Maytag G101 Manuale

Repair

Parts

List

MODEL NUMBER

G101

When requesting service or ordering parts, always

provide the following information:

- Product Type - Part Number

- Model Number - Part Description

COOKTOP DDRAFT

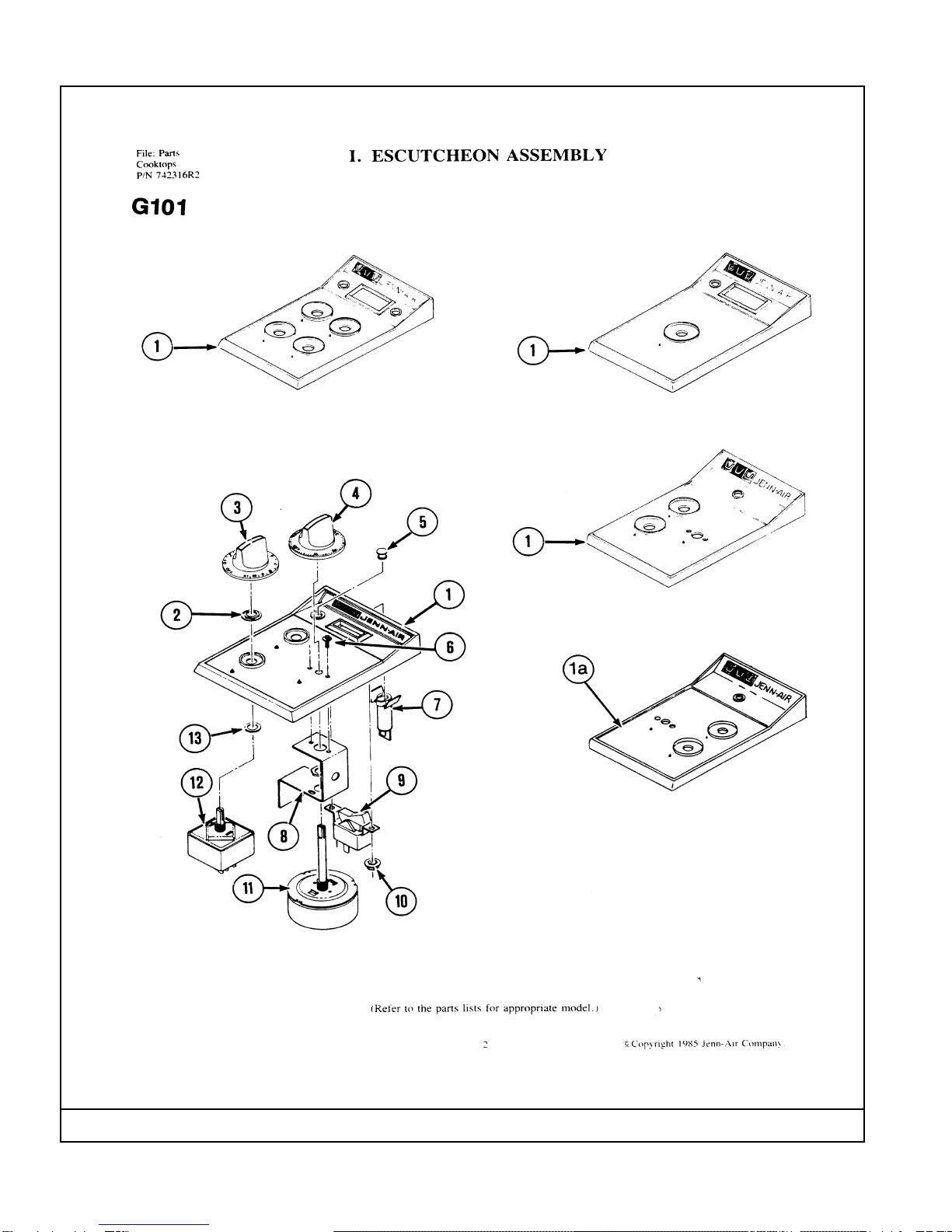

Section: ESCUTCHEON ASSEMBLY

JAA1F1

Model: G101

ESCUTCHEON ASSEMBLY

No. Part No. Description

Section:

Series Qty

1 N 701598 ESCUTCHEON (NEW W/CAST LOGO) 1 1

2 ------ NOT REQUIRED PART OR SEE NOTE 1 0

3 700854 KNOB, SWITCH 11

3 N 703272 KNOB, SWITCH 51

4 ------ NOT REQUIRED PART OR SEE NOTE 1 0

5 700631 LENS, PILOT LIGHT 11

6 ------ NOT REQUIRED PART OR SEE NOTE 1 0

7 715396 PILOT LIGHT & LENS 11

8 ------ NOT REQUIRED PART OR SEE NOTE 1 0

9 715397 SWITCH, FAN 11

11 ------ NOT REQUIRED PART OR SEE NOTE 1 0

12 703147 SWITCH, INFINITE 51

12 700855 SWITCH, INFINITE 11

13 700833 O RING 11

- N 712179 KIT, WIRE 51

- N 702026 ESCUT WR KIT 11

- 16000448 MANUAL, SERVICE-NO REFUND 11

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: BLOWER ASSEMBLY

JAA1F3

Model: G101

BLOWER ASSEMBLY

No. Part No. Description

Section:

Series Qty

- 715780 CLAMP, CABLE 11

1 N 708863 COVER,MOTOR 11

1 700027 MOTOR COVER ASSEMBLY 11

1 707766 CONNECTOR 11

1 707758 CONDUIT 11

- 707335 CLIP 11

2 707702 LOCKNUT 18

3 N 707161 NUT 11

4 707402 SCREW 11

5 708926 ISOLATOR 13

6 707407 SCREW 16

7 707393 BAND, MOTOR 11

8 707704 MOTOR 11

9 715957 FOAM, URETHANE 11

10 707985 WHEEL, BLOWER 11

11 N 708185 BUSHING 11

12 N 786316 RING, INLET (WITH STUDS) 11

12 N 702295 RING, INLET 11

13 N 712053 BLOWER SCROLL KIT 11

14 707688 RETAINER, FILTER 11

15 N 701840 PLENUM 11

16 701958 CLIP, TINNERMAN 12

17 707681 PLATE, COVER 11

18 707172 SCREW 12

19 707831 CLIP 11

20 707929 FILTER, GREASE 11

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: TOP ASSEMBLY

JAA1F5

Model: G101

TOP ASSEMBLY

No. Part No. Description

Section:

Series Qty

1 N 700668 TOP 2366 11

2 ------ NOT REQUIRED PART OR SEE NOTE 1 0

3 707886 GRATE 12

4 787834 ELEMENT, GRILL 31

4 700491 ELEMENT, GRILL 11

5 N 700667 GRILL, AIR 11

6 N 707347 SCREW 112

7 N 707341 SCREW 11

8 702699 CLIP 31

8 715121 CLIP 11

9 702434 RECEPTACLE (CERAMIC) 31

9 715120 RECEPTACLE 11

10 712017 WIRE, BLACK 31

10 N 701491 WIRE, RED 11

- 701955 PAN, GRILL (LT) 31

10 N 712015 WIRE, RED 31

10 N 701953 PAN, GRILL (W/BRACKETS) 11

10 N 701490 WIRE, BLACK 11

12 708929 PLATE, ROCK 12

13 700819 SUPPORT, ROCK PLATE 12

22 707172 SCREW 32

23 707664 WASHER 32

24 702698 BRACKET 31

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: BURNER BOX ASSEMBLY

JAA1F7

Model: G101

BURNER BOX ASSEMBLY

No. Part No. Description

Section:

Series Qty

1 712056 BOX, BURNER 31

1 701994 BOX, BURNER 11

2 707124 NUT,SQUARE 13

4 N 701995 INSULATOR 12

5 707664 WASHER 12

6 700502 SCREW 12

7 700503 CLIP, RETAINER 12

8 707121 SCREW 13

9 N 707870 LID, JAR 11

10 707869 JAR, DRAIN 11

11 N 707128 RIVET, JAR LID 16

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
