Maytag DWU9200BAB Manuale

Repair

Parts

List

MODEL NUMBER

DWU9200BAB

When requesting service or ordering parts, always

provide the following information:

- Product Type - Part Number

- Model Number - Part Description

DISHWASHER

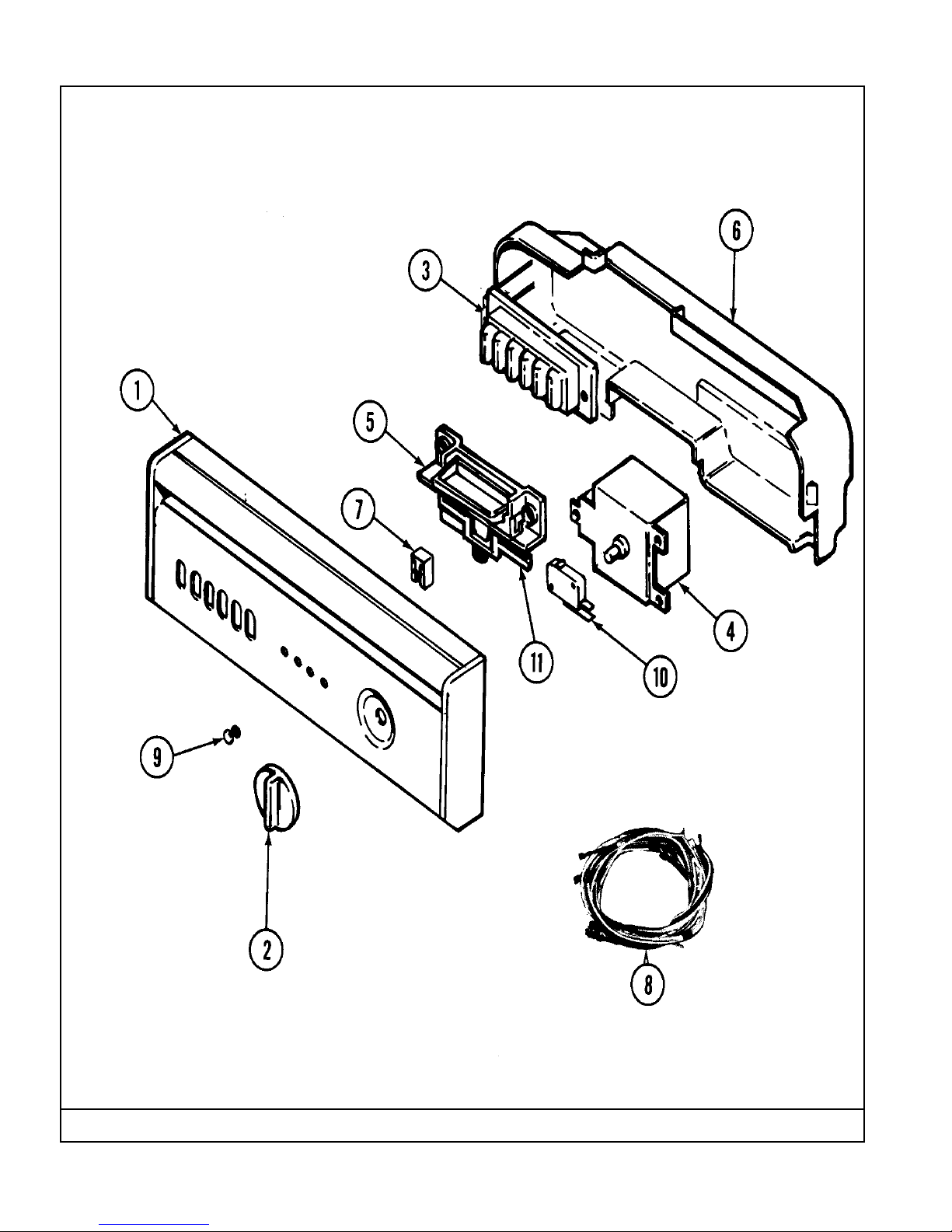

Section: CONTROL PANEL

DW11-23

Model: DWU9200BAB

CONTROL PANEL

No. Part No. Description

Section:

Series Qty

1 N 99001250 PANEL, CONTROL (BLK) A0 1

- 912615 SCREW, #8X1/2 HEX WASHER HEAD Note: SCREW, PANEL A0 3

- 99002508 FACIA, CONTROL PANEL A0 1

2 903106 KNOB, TIMER (BLK) A0 1

- 912615 SCREW, #8X1/2 HEX WASHER HEAD Note: SCREW, SWITCH A0 2

3 N 903077 SWITCH, CONTROL (6 BUTTON-BLK) A0 1

4 99001140 TIMER A0 1

- 912615 SCREW, #8X1/2 HEX WASHER HEAD Note: SCREW, TIMER A0 3

- 912615 SCREW, #8X1/2 HEX WASHER HEAD Note: SCREW, HOLDER A0 1

5 99001077 HOLDER, DOOR SWITCH A0 1

6 Y912667 BARRIER, CONTROL PANEL A0 1

7 903115 LOCK LIGHT Note: LIGHT, INDICATOR A0 4

8 99001025 WIRE HARNESS, MAIN A0 1

8 99001152 WIRE HARNESS, MAIN B6 1

9 Y912696 LENS, INDICATOR LIGHT A0 4

10 903086 SWITCH, DOOR A0 2

11 99001080 HANDLE, LATCH (BLK) A0 1

- 99001096 SEAL, HANDLE HOLE A0 2

- 99001097 COVER, HANDLE HOLE A0 2

- Y912753 MANUAL, USE & CARE Note: MANUAL, USE & CARE A0 1

- Y912825 MANUAL, USE & CARE (FRCH) Note: MANUAL, USE & CARE (FRCH) B6 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: DOOR

DW12-30

Model: DWU9200BAB

DOOR

No. Part No. Description

Section:

Series Qty

- N 912024 RIVET Note: RIVET, TRIM A0 4

- 99001110 TRIM, PANEL (LWR-BLK) A0 1

1 N 912519 INSERT, FRONT PANEL (AL/WHEAT) Note: INSERT, FRONT PANEL (ALM/HWT) A0 1

1 912520 INSERT, FRONT PANEL (WHT/BLK) A0 1

2 912521 FILLER, FRONT PANEL A0 1

3 99001102 TRIM, DOOR (BLK) A0 2

- Y913157 SCREW Note: SCREW, TRIM (BLK) A0 6

- 912266 STRAP, CABLE--++*** A0 1

- 912366 SCREW --++*** Note: SCREW, DOOR A0 4

4 903821 DOOR, OUTER A0 1

5 Y912666 RETAINER, WIRE A0 1

- 912615 SCREW, #8X1/2 HEX WASHER HEAD Note: SCREW, RETAINER A0 2

- 99001075 SCREW Note: SCREW, HINGE A0 6

6 903071 HINGE (RT) A0 1

6 903070 HINGE (LT) A0 1

7 912652 SPRING, DOOR A0 2

- Y912751 DAMPER, SOUND (BTM)----S Note: DAMPER, SOUND (BTM) A0 1

- 99001215 DAMPER, SOUND (TOP) A0 1

8 Y912669 INSULATION, DOOR ----S A0 1

- Y912620 SCREW A0 7

9 903867 DOOR, INNER A0 1

10 Y912668 BAR, REINFORCEMENT A0 1

11 99001206 BARRIER (BLK) A0 2

12 99001211 TRIM, ACCESS PANEL (BLK) A0 1

13 Y913163 SCREW Note: SCREW, TRIM (TOP-BLK) A0 2

- 912365 SCREW Note: SCREW, TRIM (BTM) A0 4

14 912527 INSERT, ACCESS PANEL (WHT/BLK) Note: INSERT, ACCESS PANEL (WHT/BLK) A0 1

14 912528 INSERT, ACCESS PANEL(ALM/HWHT) A0 1

15 912525 FILLER, ACCESS PANEL A0 1

16 Y912836 INSULATION, ACCESS PANEL----S A0 2

17 912653 LINK, DOOR SPRING A0 2

- 912366 SCREW --++*** Note: SCREW, PANEL A0 4

18 912636 PANEL, ACCESS (BLK) A0 1

19 903233 FOAM STRIP, INSULATION A0 1

- 912366 SCREW --++*** Note: SCREW, SHIELD A0 1

20 912641 SHIELD, TUB (BLK) A0 1

21 912642 COVER, WIRE (BLK)----SUB A0 1

- 912366 SCREW --++*** Note: SCREW, COVER A0 2

- 912197 SCREW Note: SCREW, SHIELD A0 4

22 Y912809 SHIELD, ACCESS PANEL (RT) Note: SHIELD, ACCESS PANEL (RT) A0 1

22 Y912810 SHIELD, ACCESS PANEL (LT) A0 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: RINSE AID & SOAP DISPENSER

DW17-10

Model: DWU9200BAB

RINSE AID & SOAP DISPENSER

No. Part No. Description

Section:

Series Qty

1 902899 MOTOR,WAX A0 2

1 902899 MOTOR,WAX B6 1

2 903123 KNOB, RINSE AID (GRAY) Note: KNOB, RINSE AID ASSEMBLY A0 1

3 Y913060 NUT, RESERVOIR ----S Note: NUT, RESERVOIR A0 1

4 Y913191 GROMMET, DISPENSER B6 1

4 912559 GROMMET, DISPENSER ----S A0 1

5 99001288 RETAINER Note: RETAINER, MOTOR & SLIDER B6 1

5 Y912673 RETAINER Note: RETAINER, MOTOR & SLIDER A0 1

6 Y912674 LATCH ----S Note: LATCH, LID A0 1

6 99001291 LATCH, DISPENSER Note: LATCH, LID B6 1

7 Y912675 LATCH, SLIDER A0 1

7 99001289 SLIDER Note: LATCH, SLIDER B6 1

8 Y912676 SPRING, DISPENSER LATCH A0 1

9 903656 RESERVOIR, RINSE AID Note: RESERVOIR, RINSE AID A0 1

10 903124 PLUNGER ASSEMBLY Note: PLUNGER ASSEMBLY A0 1

- Y913061 GASKET, RESERVOIR ----S Note: GASKET, RESERVOIR A0 1

12 912576 ACTUATOR, RINSE AID Note: ARM, ACTUATOR A0 1

12 99001290 ACTUATOR, RINSE AID Note: ACTUATOR, RINSE AID B6 1

13 903108 LID, DETERGENT CUP A0 1

14 Y912547 SPRING, CUP LID Note: SPRING, SOAP DISPENSER A0 1

15 Y912679 PIN, HINGE (SHORT) Note: PIN (SHORT) A0 1

16 Y912678 PIN, HINGE (LONG) Note: PIN (LONG) A0 1

17 99001287 PIVOT B6 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: RACKS

DW15-18

Model: DWU9200BAB

RACKS

No. Part No. Description

Section:

Series Qty

1 903845 UPPER RACK ASSY Note: RACK ASSEMBLY (UPR) (INCLUDES #903093) A0 1

2 903093 WHEEL ASSEMBLY (UPR) Note: WHEEL ASSEMBLY (UPR) A0 4

3 903850 LOWER RACK ASSY Note: RACK ASSEMBLY (LWR) (INCLUDES #903095) A0 1

4 903095 WHEEL ASSEMBLY (LWR) Note: WHEEL ASSEMBLY (LWR) A0 6

- Y912710 SLEEVE, FOLDING TINES A0 1

5 Y912709 CLIP, ADJUSTABLE PEG Note: CLIP, ADJUSTABLE PEG A0 2

6 903446 BASKET, SILVERWARE (W/COVER) Note: BASKET, SILVERWARE A0 1

7 Y912708 HANDLE, SILVERWARE BASKET A0 1

8 912639 COVER, SILVERWARE BASKET Note: LID, SILVERWARE BASKET A0 1

9 903436 SHELF, RACK (LWR) Note: SHELF, RACK (LWR) A0 1

10 N 903437 TINE, BOWL (FRONT) Note: TINE, BOWL (FRT) A0 1

- Y912710 SLEEVE, FOLDING TINES Note: SLEEVE, TINE A0 4

11 903438 TINE, BOWL (REAR) Note: TINE, BOWL (REAR) A0 1

12 903433 SHELF, UPPER Note: SHELF, RACK (UPR) A0 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

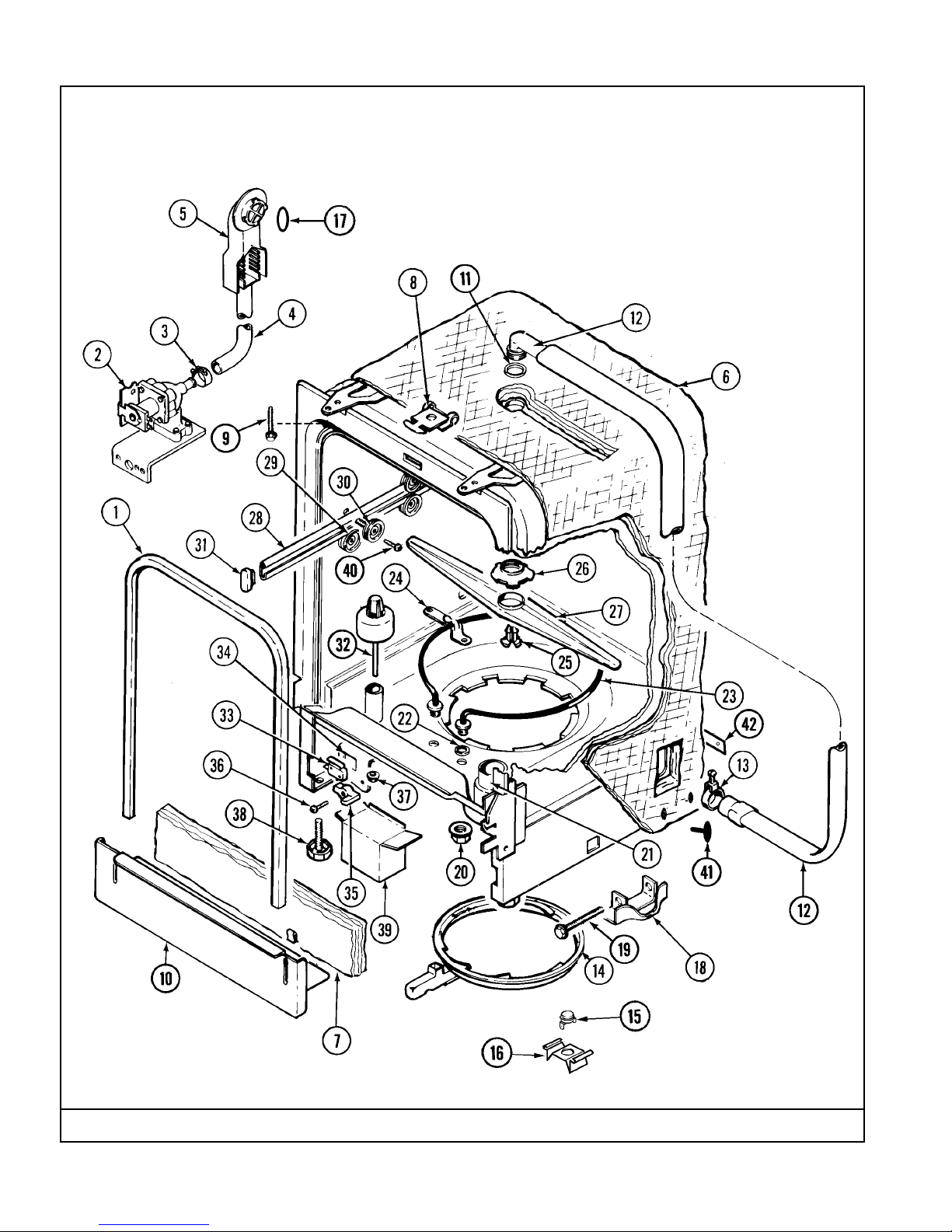

Section: TUB

DW13-21

Model: DWU9200BAB
