Maytag MDB8859AWB2 Manuale utente

DOOR AND PANEL PARTS

For Models: MDB8859AWB2, MDB8859AWW2, MDB8859AWS2

(Black) (White) (Stainless)

12−09 Litho In U.S.A. (cre) (eeb) Part No. W10311202 Rev. A

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10199707

Instructions,

Installation

W10255067

Energy Guide

W10199658

Guide, Use & Care

English/French

W10199659

Guide, Use & Care

Spanish

W10142800

Tech Sheet

2 Arm, Hinge

8534854 Left

8534853 Right

3 8268983 Stiffener,

Door

4 Panel Front

W10199758

Black

W10199759

White

W10199761

Stainless

5 Access Panel

8573255 Black

8573256 White

6 8269016 Clip, Grounding

W10073520

Insulation, Door

8 Toe Panel

(Includes Item 9)

W10205336

Black

W10205337

White

W10073540

Insulation,

Toe Panel

10 Screw

302868 Black

3400836 White

11 304392 Screw

12 3400071 Screw

13 Handle, Door

W10199637

Black

W10199635

White

W10199639

S.Steel

14 8534008 Screw

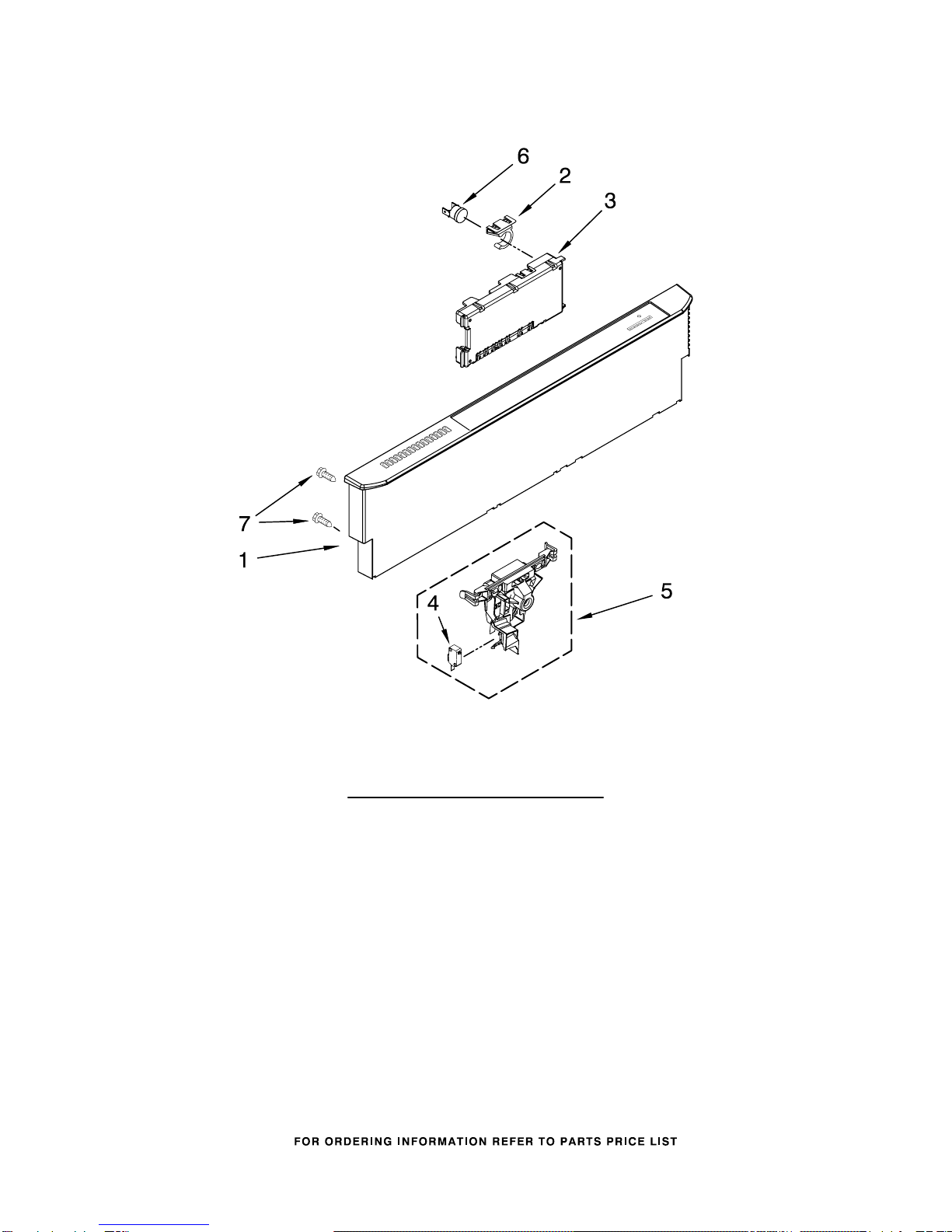

CONTROL PANEL PARTS

For Models: MDB8859AWB2, MDB8859AWW2, MDB8859AWS2

(Black) (White) (Stainless)

W10311202

Illus. Part

No. No. DESCRIPTION

1 Console Asm.

(Includes Active

Overlay & Insert)

W10199766

Black

W10199767

White

W10199782

S.Steel

2 8546546 Clip, BI−Metal

W10208673

Control

Electronic

4 8269209 Switch, Door

W10077360

Latch Assembly

6 661663 Bi−Metal

7 3369051 Screw

DOOR AND LATCH PARTS

For Models: MDB8859AWB2, MDB8859AWW2, MDB8859AWS2

(Black) (White) (Stainless)

W10311202

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8545608 Harness, Vent

Motor

W10199762

Inner Door

Mastic Assembly

4 8268937 Inlet, Air

5 8572611 Vent Assembly

6 8269259 Gasket, Vent

7 8545536 Deflector, Vent

(Also Order

Item 6)

W10199696

Dispenser,

Assembly

9 8269258 Seal, Front

10 8281217 Screw

W10199683

Cap, Rinse Aid

W10078201

Wiring Harness

Main

W10177098

Screw

14 8535660 Seal,

Console/door

15 8535637 Bracket,

Dispenser

16 8531865 Shield, Dispenser

FILL, DRAIN AND OVERFILL PARTS

For Models: MDB8859AWB2, MDB8859AWW2, MDB8859AWS2

(Black) (White) (Stainless)

W10311202

Illus. Part

No. No. DESCRIPTION

1 8268892 Lever, Overflow

Switch

2 8531412 Hose, Inlet

W10195536

Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

W10213825

Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

W10195049

Fill Valve

Assembly

8 304392 Screw

9 356138 Clamp, Hose

W10137608

Drain Loop

with Check Valve

11 8268909 Switch, Overfill

12 8545946 Standpipe,

Overfill

(Also Includes

Item 13)

13 8531743 Gasket, Flat

14 9741998 Nut, Standpipe

15 8268895 Float & Retainer

Assembly

16 8269297 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

TUB AND FRAME PARTS

For Models: MDB8859AWB2, MDB8859AWW2, MDB8859AWS2

(Black) (White) (Stainless)

W10311202

TUB AND FRAME PARTS

For Models: MDB8859AWB2, MDB8859AWW2, MDB8859AWS2

(Black) (White) (Stainless)

W10311202

Illus. Part

No. No. DESCRIPTION

W10213822

Tub Assembly

(Includes Heater

Assembly)

2 8573061 Strain Relief

W10112096

Door Seal

W10082838

Plug Tub

5 9743002 Gasket, Bracket

Mounting

6 8269110 Seal, Cabinet

7 3400072 Screw

W10084086

Door, Balance

Assembly

9 3367670 Screw

10 8269145 Bracket,

Undercounter

11 3400074 Screw

12 3370389 Screw

13 8268977 Wheel Leg

14 8524584 Leveler, Leg

15 3400014 Screw

16 8270020 Spring, Door

Balance

17 8270019 Wheel & Mount

Assembly

(Also Order

Item 6)

18 3400892 Screw

19 8268991 Cover, Terminal

Box

W10158291

Cable, Door

Balance

21 304666 Retainer, Push

22 3378128 Washer, Pronged

23 8573240 Shield, Sound

Tub

24 9742648 Bracket,

Thermostat

25 661566 Thermostat

W10077370

Strike, Latch

PUMP AND MOTOR PARTS

For Models: MDB8859AWB2, MDB8859AWW2, MDB8859AWS2

(Black) (White) (Stainless)

W10311202

PUMP AND MOTOR PARTS

For Models: MDB8859AWB2, MDB8859AWW2, MDB8859AWS2

(Black) (White) (Stainless)

W10311202

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy

2 8283527 Shield, Motor

3 3400069 Screw

4 8572618 Sump with seal

5 8268375 Check Valve, Sump

W10083957

Chopper Assembly

7 9741232 Screw

8 8531857 Protector, Inlet

W10231538

Motor Assembly

10 3400217 Screw

W10084567

Screen, Separation

W10237168

Sump & Motor

Assembly

13 8269524 Tab, Sump

14 8533949 Nut

15 8558995 Pump, Drain

W10142656

Volute, Back

(Also Order

Items 21 & 25)

17 8269144 Hose, Drain

W10226459

Motor

19 8268401 Seal, Volute

20 8531017 Impeller Kit

(Also Order

Item 25)

21 8268403 Face Seal Assembly

(Also Order

Item 25)

22 356138 Clamp, Hose

W10134017

Optical Water

Indicator

W10216724

Capacitor

25 8531018 Washer

UPPER WASH AND RINSE PARTS

For Models: MDB8859AWB2, MDB8859AWW2, MDB8859AWS2

(Black) (White) (Stainless)

W10311202

Illus. Part

No. No. DESCRIPTION

1 8559850 Feed Tube

Silverware Zone

(Also Includes

Item 3 & 11)

2 8533889 Screw

3 8557720 Spinner, 3rd

Level Wash

W10199649

Manifold

W10199648

Hanger

6 8268433 Seal, Sprayarm

W10082831

Nozzle−Feed

W10082841

Sprayarm

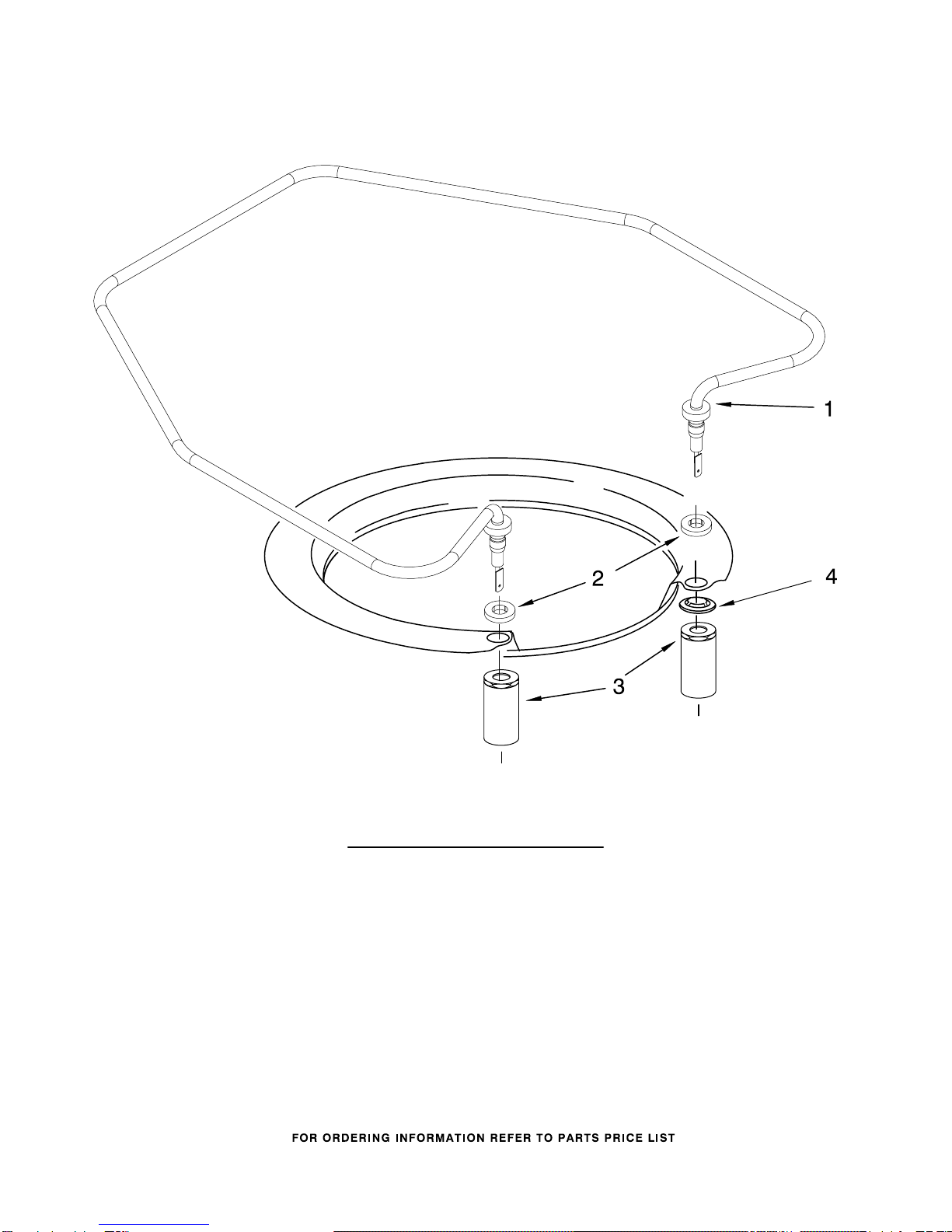

HEATER PARTS

For Models: MDB8859AWB2, MDB8859AWW2, MDB8859AWS2

(Black) (White) (Stainless)

W10311202

Illus. Part

No. No. DESCRIPTION

W10082892

Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 3400931 Speed Nut

NOTE:

If heater element is

removed, it must be replaced.
