Maytag MDE3000AYW Manuale

Repair

Parts

List

MODEL NUMBER

MDE3000AYW

When requesting service or ordering parts, always

provide the following information:

- Product Type - Part Number

- Model Number - Part Description

DRYER

Section: CONTROL PANEL

CD11-29

Model: MDE3000AYW

CONTROL PANEL

No. Part No. Description

Section:

Series Qty

- 22002339 SCREW Note: SCREW, CONTROL PANEL 10 3

1 N 33001857 PANEL, CONTROL (WHT) 10 1

2 33001621 SKIRT, TIMER DIAL (WHT) 10 1

3 22001659 TIMER KNOB - GREY 10 1

4 22001664 TIMER KNOB INSERT/CAP (WHT) 10 1

5 33001619 BUTTON, PUSH TO START (WHT) 10 1

6 33001690 SCREW, TIMER 10 2

7 33001730 TIMER 10 1

8 210186 SCREW, GROUND WIRE TO BASE--NA Note: SCREW, GROUND WIRE 10 1

9 N 33001859 WIRE, GROUND 10 1

10 N 33001860 SCREW, END OF CYCLE----NA Note: SCREW, END OF CYCLE SIGNAL 10 1

11 33001660 SIGNAL, END OF CYCLE 10 1

11 33001848 SIGNAL, END OF CYCLE (CHIME) 11 1

12 33001861 SWITCH, PUSH TO START (WHT) Note: SWITCH, PUSH TO START (WHT) 10 1

13 33001888 WIRE HARNESS, MAIN 11 1

13 33001863 WIRE HARNESS, MAIN 10 1

14 22001908 SWITCH, OPTION (4 POS.-WHT) 10 1

15 22001788 BUTTON, SWITCH (WHT-END) 10 1

16 22001789 BUTTON, SWITCH (WHT-MDL) 10 1

17 33001661 DISPLAY, DRYNESS (WHT) 10 1

18 33001656 SWITCH, TEMP (ELEC)(WHT) Note: SWITCH, TEMPERATURE (WHT) 10 1

19 33001806 BACK, CONSOLE PANEL 10 1

- 216423 SCREW Note: SCREW, CONSOLE BACK PANEL 10 2

20 22002285 CONSOLE (WHT) 10 1

- 33001874 MANUAL, USE & CARE 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: CABINET-FRONT

CD21-43

Model: MDE3000AYW

CABINET-FRONT

No. Part No. Description

Section:

Series Qty

1 33001865 COVER, TOP (WHT) 10 1

2 N 33001859 WIRE, GROUND 10 1

3 210186 SCREW, GROUND WIRE TO BASE--NA Note: SCREW, GROUND WIRE 10 1

4 N 33001826 BRACKET, TERMINAL BLOCK----NA 10 1

5 22001995 SCREW Note: SCREW, TERMINAL BLOCK BRACKET 10 2

6 33001244 BLOCK, TERMINAL 10 1

7 312209 SCREW, #10-24 X 3/4 INCH Note: SCREW, TERMINAL BLOCK 10 2

8 311270 WASHER, TERMINAL BLOCK 10 3

9 312184 STRAP, GROUND 10 1

10 N 33001245 SCREW----NA Note: SCREW, GROUND STRAP 10 1

11 311484 NUT, TERMINAL BLOCK 10 6

12 311093 WASHER, 7/32 INCH Note: WASHER, TERMINAL BLOCK 10 1

13 33001843 CABINET (WHT) 10 1

14 33001872 PIN, LOCATOR 10 2

15 22002049 CLIP Note: CLIP, FRONT PANEL 10 2

16 213280 FRONT PANEL BRACKET/FASTENER Note: RETAINER, FRONT PANEL 10 2

17 22001995 SCREW Note: SCREW, FRONT PANEL 10 2

18 310376 CLIP, WIRE HARNESS 10 1

19 213007 SCREW, CABINET 10 6

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: DOOR

CD12-10

Model: MDE3000AYW

DOOR

No. Part No. Description

Section:

Series Qty

1 33001767 SEAL, SHROUD 10 1

2 22002033 HOOK, SECURITY 10 2

3 33001778 SHROUD (WHT) 10 1

- 33002116 LABEL, SAFTEY Note: LABEL, SAFETY 10 1

4 22001995 SCREW Note: SCREW, TUMBLER FRONT & SHROUD 10 8

5 33001768 SCREW, SHROUD Note: SCREW, SHROUD & OUTLET DUCT 10 2

6 33001508 SWITCH, DOOR 10 1

7 33001760 BRACKET, HINGE 10 4

8 N 33001174 PLUG, DOOR CATCH 10 1

9 304578 CATCH, DOOR (FEMALE) 10 1

- 33001791 CATCH, DOOR (W/PLUG) 10 1

10 33002094 SEAL, DOOR 10 1

11 22002038 CLIP, DOOR (DOUBLE) 10 4

12 33001793 BRACKET, STRIKE 10 1

13 33001761 STRIKE, DOOR (MALE) 10 1

14 22002039 CLIP, DOOR (SINGLE) 10 2

15 33001763 PLUG, INNER DOOR 10 1

16 33001750 DOOR, INNER/ W SEAL (WHT) 10 1

- 33001893 LABEL, OPEN DOOR (DRYER) 10 1

17 22002260 PANEL, DOOR (WHT-W/MEDALLION) 10 1

- 22001817 SHEET, SOUND DAMPER (FT. PNL) 10 1

18 33001759 HINGE, DOOR 10 2

19 22002062 SCREW 10 4

20 22002063 SCREW #8-18AB WAFER HD 10 8

- 33002349 COVER, HINGE HOLE (BSQ) 2

21 33001764 COVER, HINGE HOLE (WHT) 10 2

22 33001787 SCREW, HINGE Note: SCREW, HINGE HOLE COVER 10 2

23 22002012 SCREW, HINGE Note: SCREW, HINGE BRACKET 10 2

- 33001867 PAD, FRONT 10 1

24 22002241 PANEL, FRONT (WHT) 10 1

- 33001221 PAD, SOUND DAMPER 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: CABINET-REAR

CD21-19

Model: MDE3000AYW

CABINET-REAR

No. Part No. Description

Section:

Series Qty

- 33002118 LABEL, SAFETY Note: LABEL, SAFETY (EXHAUST) 10 1

1 33001843 CABINET (WHT) 10 1

- 33002119 LABEL, SAFETY Note: LABEL, SAFETY (INSTALL) 10 1

2 N 33001827 BRACKET, CABINET HINGE 10 2

3 33001795 COVER, TERMINAL BLOCK 10 1

4 22001995 SCREW Note: SCREW, TERMINAL BLOCK COVER 10 1

7 22001995 SCREW Note: SCREW, CABINET 10 2

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

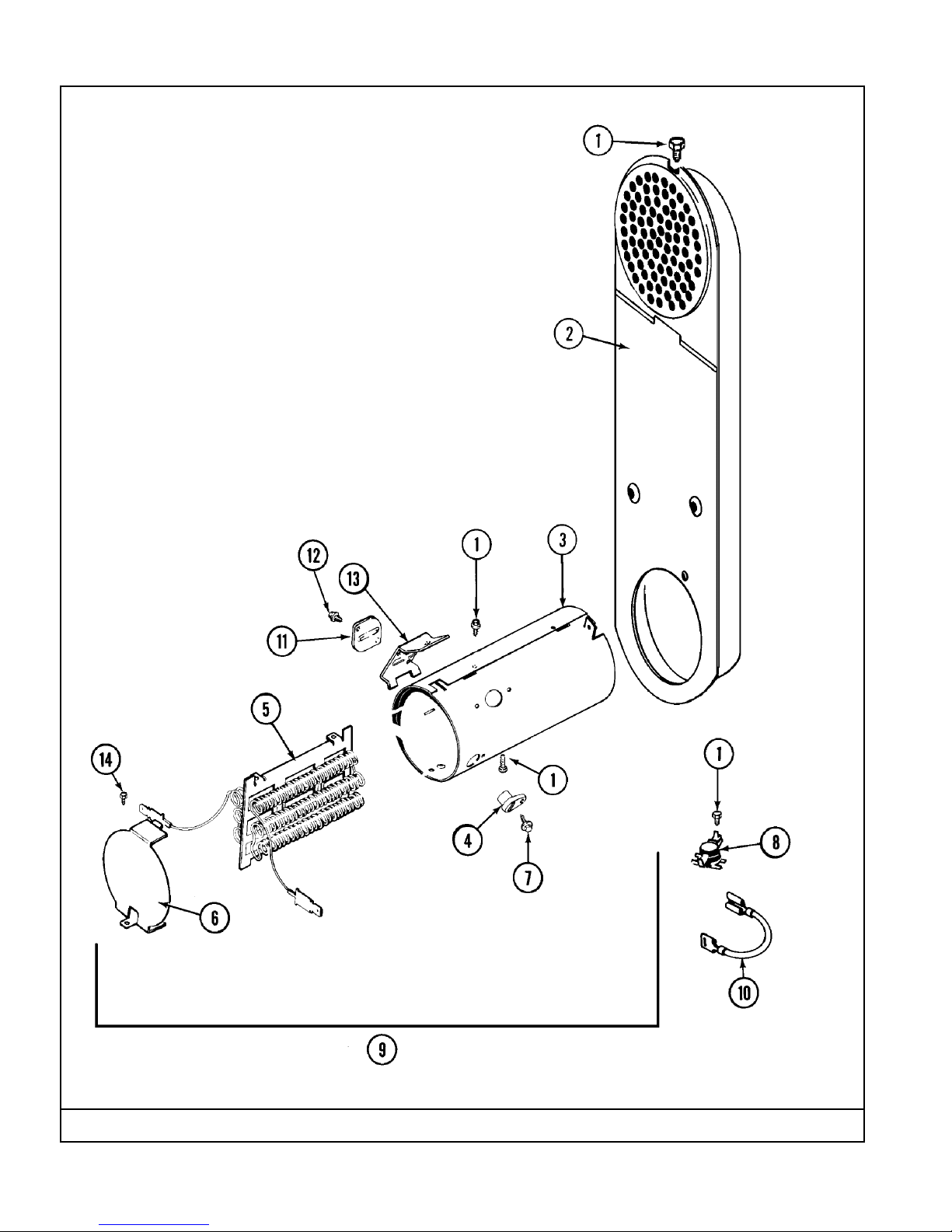

Section: HEATER

CD15-3

Model: MDE3000AYW
