RETAIN THESE

INSTRUCTIONS IN A

SAFE PLACE FOR

FUTURE REFERENCE

MDG75PNH and MDG75MNV

Installation Manual

1,000 CFM / Phase 7 with S.A.F.E. System

Part No. 113394-8

AVERTISSEMENT:Assurez-vous de bien

suivre les instructions données dans cette

notice pour réduire au minimum le risque

d’incendie ou d’explosion ou pour éviter

tout dommage matériel, toute blessure ou

la mort.

—Ne pas entreposer ni utiliser d’essence

ni d’autres vapeurs ou liquides

inflammables à proximité de cet

appareil ou de tout autre appareil.

—QUE FAIRE SI VOUS SENTEZ UNE

ODEUR DE GAZ:

●Ne pas tenter d’allumer d’appareils.

●Ne touchez à aucun interrupteur. Ne

pas vous servir des téléphones se

trouvant dans le bâtiment.

●Évacuez la pièce, le bâtiment ou la

zone.

●Appelez immédiatement votre

fournisseur de gaz depuis un voisin.

Suivez les instructions du fournisseur.

●Si vous ne pouvez rejoindre le

fournisseur de gaz, appelez le service

des incendies.

—L’installation et l’entretien doivent être

assurés par un installateur ou un

service d’entretien qualifié ou par le

fournisseur de gaz.

WARNING: For your safety the information

in this manual must be followed to

minimize the risk of fire or explosion and

to prevent property damage, personal

injury or death.

— Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS:

●Do not try to light any appliance.

●Do not touch any electrical switch;

do not use any phone in your

building.

●Clear the room, building or area of

all occupants.

●Immediately call your gas supplier

from a neighbor’s phone. Follow

the gas supplier’s instructions.

●If you cannot reach your gas

supplier, call the fire department.

— Installation and service must be

performed by a qualified installer, service

agency or the gas supplier.

Retain This Manual In ASafe Place For Future Reference

This product embodies advanced concepts in engineering, design, and safety. If this product is properly maintained, it will

provide many years of efficient, trouble free, and most importantly safe operation.

ONLY qualified technicians should service this equipment.

OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with

the dryer.

The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.

“IMPORTANT NOTE TO PURCHASER”

Information must be obtained from your local gas supplier on the instructions

to be followed if the user smells gas. These instructions must be posted in a

prominent location near the dryer.

We have tried to make this manual as complete as possible and hope you will find it useful. The manufacturer reserves the

right to make changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to

change or discontinue models. The illustrations included in this manual may not depict your particular dryer exactly.

Important

For your convenience, log the following information:

DATE OF PURCHASE ________________________________________________ MODEL NO. __________________________

DEALER’S NAME __________________________________________________________________________________________

Serial Number(s) ________________________________________________________________________________________

________________________________________________________________________________________

For replacement parts, contact the dealer from which the dryer was purchased or contact:

Maytag Co.

Benton Harbor, MI

1-800-662-3587

FOR YOUR SAFETY

Do not store or use gasoline or

other flammable vapors and

liquids in the vicinity of this or

any other appliance.

POUR VOTRE SÉCURITÉ

Ne pas entreposer ni utiliser d’essence

ni d’autres vapeurs ou liquides

inflammables à proximité de cet

appareil ou de tout autre appareil.

IMPORTANT

YOU MUST DISCONNECTAND LOCK OUTTHE ELECTRIC SUPPLYAND THE GAS

SUPPLY BEFORE ANY COVERS OR GUARDS ARE REMOVED FROM THE

MACHINE TOALLOWACCESS FOR CLEANING,ADJUSTING, INSTALLATION, OR

TESTING OF ANY EQUIPMENT PER OSHA (Occupational Safety and Health

Administration) STANDARDS.

WARNING

CHILDREN SHOULD NOT BE ALLOWED TO PLAY ON OR NEAR THE DRYER(S).

CHILDREN SHOULD BE SUPERVISED IF NEAR DRYERS IN OPERATION.

CAUTION

DRYERS SHOULD NEVER BE LEFT UNATTENDEDWHILE IN OPERATION.

FOR YOUR SAFETY

DO NOT DRYMOPHEADS IN THE DRYER.

DO NOT USE DRYER IN THE PRESENCE OF DRYCLEANING FUMES.

State of California Proposition 65 Warnings:

WARNING: This product contains a chemical known to the State of California to cause

cancer.

WARNING: This product contains a chemical known to the State of California to cause

birth defects or other reproductive harm.

“Caution: Label all wires prior to

disconnection when servicing

controls. Wiring errors can cause

improper operation.”

«Attention:Au moment de l’entretien des commandes,

étiquetez tous les fils avant de les débrancher. Des

erreurs de câblage peuvent entraîner un fonctionnement

inadéquat et dangereux.»

WARNING

UNDER NO CIRCUMSTANCES should the dryer door switches, lint drawer switch,

or heat safety circuit ever be disabled.

WARNING

The dryer must never be operated with any of the back guards, outer tops, or service

panels removed. PERSONAL INJURY OR FIRE COULD RESULT.

IMPORTANT

PLEASE OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment and/or

specified in the installation manual included with the dryer.

WARNING

DRYER MUST NEVER BE OPERATED WITHOUT THE LINT FILTER/SCREEN IN

PLACE, EVEN IFAN EXTERNALLINT COLLECTION SYSTEM IS USED.

Dryer must not be installed or stored in an area where it will be exposed to water or weather.

The wiring diagram for the dryer is located in the front electrical control box area.

IMPORTANT

Dryer must be installed in a location/environment, which the ambient temperature

remains between 40° F (4.44° C) and 130° F (54.44° C).

Table of Contents

SECTION I

SAFETY PRECAUTIONS ......................................................................................... 3

SECTION II

SPECIFICATIONS ..................................................................................................... 5

A. Specifications ............................................................................................................................. 5

B. Component Identification ............................................................................................................ 7

SECTION III

INSTALLATION PROCEDURES ........................................................................... 9

A. Location Requirements ............................................................................................................... 9

B. Unpacking/Setting Up ............................................................................................................... 10

C. Dryer Enclosure Requirements .................................................................................................. 11

D. FreshAir Supply Requirements ................................................................................................. 12

E. Exhaust Requirements ............................................................................................................... 13

F. Electrical Information ................................................................................................................ 18

G. Gas Information ........................................................................................................................ 22

H. Preparation For Operation/Start-Up ......................................................................................... 26

I. Preoperational Tests ................................................................................................................. 27

J. Preoperational Instructions ........................................................................................................ 29

K. Shutdown Instructions ............................................................................................................... 30

SECTION IV

SERVICE/PARTS INFORMATION ...................................................................... 31

A. Service ..................................................................................................................................... 31

B. Parts ........................................................................................................................................ 31

SECTION V

ROUTINE MAINTENANCE .................................................................................. 32

A. Cleaning ................................................................................................................................... 32

B. Adjustments ............................................................................................................................. 33

C. Lubrication ............................................................................................................................... 33

D. Lint Drawer Removal ................................................................................................................ 34

SECTION VI

DATA LABEL INFORMATION ............................................................................. 35

SECTION VII

PROCEDURE FOR FUNCTIONAL CHECK

OF REPLACEMENT COMPONENTS ................................................................ 36

SECTION VIII

MANUAL RESET BURNER HI-LIMIT INSTRUCTIONS ............................... 38

A. Phase 7 .................................................................................................................................... 38

B. Dual Timer ................................................................................................................................38

SECTION IX

SENSOR ACTIVATED FIRE EXTINGUISHING (S.A.F.E.) SYSTEM ........... 39

113394-8 Maytag Co. 3

SECTION I

SAFETY PRECAUTIONS

WARNING: For your safety, the information in this manual must be followed to minimize the risk of

fire or explosion or to prevent property damage, personal injury, or loss of life.

WARNING: The dryer must never be operated with any of the back guards, outer tops, or

service panels removed.PERSONAL INJURY OR FIRE COULD RESULT.

1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other

appliance.

2. Purchaser and user should consult the local gas supplier for proper instructions to be followed in the event

the user smells gas. The instructions should be posted in a prominent location.

3. WHAT TO DO IF YOU SMELL GAS:

a. DO NOT try to light any appliance.

b. DO NOT touch any electrical switch.

c. DO NOT use any phone in your building.

d. Clear the room, building, or area of ALL occupants.

e. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

f. If you cannot reach your gas supplier, call the fire department.

4. Installation and service must be performed by a qualified installer, service agency, or gas supplier.

5. Dryers must be exhausted to the outdoors.

6. Although Maytag produces a very versatile dryer, there are some articles that, due to fabric composition or

cleaning method, should not be dried in it.

WARNING: Dry only water washed fabrics. DO NOT dry articles spotted or washed in dry

cleaning solvents, a combustible detergent, or “all purpose” cleaner. EXPLOSION

COULD RESULT.

WARNING: DO NOT dry rags or articles coated or contaminated with gasoline, kerosene, oil, paint,

or wax. EXPLOSION COULD RESULT.

WARNING: DO NOT dry mop heads. Contamination by wax or flammable solvents will create a

fire hazard.

4 Maytag Co. 113394- 8

WARNING: DO NOT use heat for drying articles that contain plastic, foam, sponge rubber, or

similarly textured rubber materials. Drying in a heated basket (tumbler) may damage

plastics or rubber and may be a fire hazard.

7. A program should be established for the inspection and cleaning of lint in the burner area, exhaust ductwork,

and area around the back of the dryer. The frequency of inspection and cleaning can best be determined

from experience at each location.

WARNING: The collection of lint in the burner area and exhaust ductwork can create a potential fire

hazard.

8. For personal safety, the dryer must be electrically grounded in accordance with local codes and/or the

National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical

Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.

NOTE: Failure to electrically ground the dryer properly will VOID THE WARRANTY.

9. UNDER NO CIRCUMSTANCES should the dryer door switches, lint drawer switch, or heat safety

circuit ever be disabled.

WARNING: PERSONAL INJURY OR FIRE COULD RESULT SHOULD THE DRYER

DOOR SWITCHES, LINT DRAWER SWITCH, OR HEAT SAFETY CIRCUIT

EVER BE DISABLED.

10. This dryer is not to be used in the presence of dry cleaning solvents or fumes.

11. Remove articles from the dryer as soon as the drying cycle has been completed.

WARNING: Articles left in the dryer after the drying and cooling cycles have been completed can

create a fire hazard.

12. READ AND FOLLOW ALL CAUTION AND DIRECTION LABELS ATTACHED TO THE

DRYER.

13. For safety, proper operation, and optimum performance, the dryer must not be operated with a load less

than sixty-six percent (66%) 50 lb (22.7 kg) of its rated capacity.

WARNING: YOU MUST DISCONNECTAND LOCK OUT THE ELECTRIC SUPPLY

AND THE GAS SUPPLY BEFORE ANY COVERS OR GUARDS ARE

REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING,

ADJUSTING, INSTALLATION, OR TESTING OFANY EQUIPMENT PER

OSHA (Occupational Safety and Health Administration) STANDARDS.

IMPORTANT: Dryer must be installed in a location/environment, which the ambient

temperature remains between 40° F (4.44° C) and 130° F (54.44° C).

113394-8 Maytag Co. 5

SECTION II

SPECIFICATIONS

A. SPECIFICATIONS

GAS

Shaded areas are stated in metric equivalents 2/5/04

*ALL reversing dryers are supplied with two (2) 3-phase (3ø) motors standard: a 1/2 hp (0.37 kW) blower motor and a 1/2 hp (0.37 kW) drive motor.

NOTE: The manufacturer reserves the right to make changes in specifications at any time without

notice or obligation.

)THGIEWYRD(YTICAPACMUMIXAMbl57 gk43

RETEMAIDRELBMUT”73 mc49

HTPEDRELBMUT”63 mc44.19

ROTOMRELBMUTph1 *Wk57.0

)RETEMAID(GNINEPOROOD”2/1-12 mc16.45

EMULOVRELBMUTtfuc4.22 L03.436

)RETEMAID(NOITCENNOCTSUAHXE”8mc23.02

WOLFRIAzH06mfc000,1 mmc23.82

zH05mfc338 mmc06.32

RENIATNOC’04/’02REPSREYRD02/01

KCURT’35/’84REPSREYRD62/42

NOITCENNOCRETAW.E.F.A.SHN5.11-4/3

ELBALIAVAEGATLOV zH06/05w4,3,2ø3,1V575-021

)DETARCNU(THGIEW.XORPPAbl127 gk723

)DETARC(THGIEW.XORPPAbl177 gk7.943

TUPNITAEHrh/utB000,571 rh/lack001,44

NOITCENNOCEPIPTELNI.T.P.N.F”4/3

6 Maytag Co. 113394- 8

NOTE: The manufacturer reserves the right to make changes in specifications at any time without

notice or obligation.

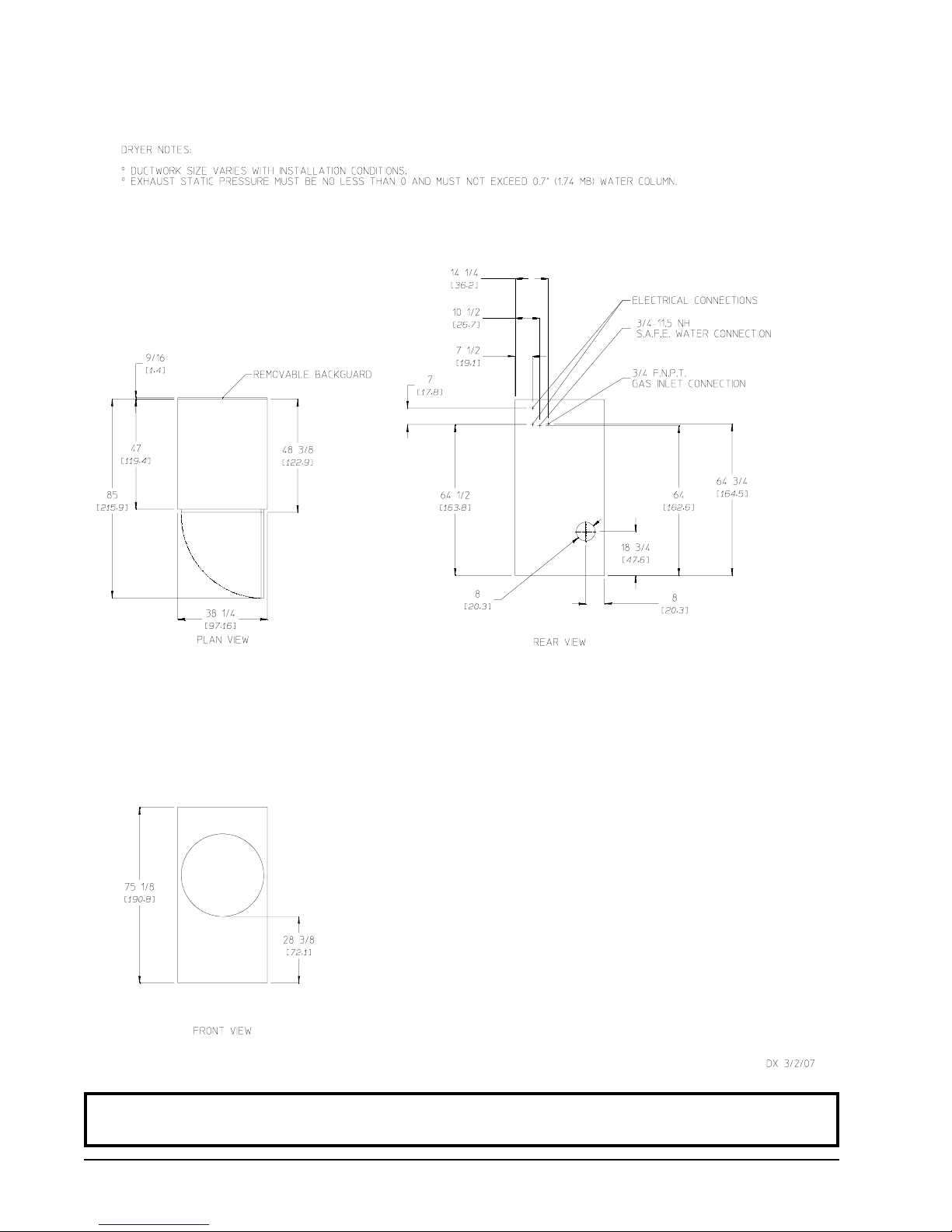

Specifications – Gas

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Maytag Asciugatrice

Maytag

Maytag W10529646B Manuale utente

Maytag

Maytag MDG30PCCWW Manuale utente

Maytag

Maytag MEDZ600TB1 Manuale utente

Maytag

Maytag MED5800TW - Electric Dryer Manuale utente

Maytag

Maytag MDG17MN Manuale utente

Maytag

Maytag NDG6800AWW Manuale utente

Maytag

Maytag MD8058 Manuale utente

Maytag

Maytag EPIC Z MGD9800TK0 Manuale utente

Maytag

Maytag MDE20PDFGW Manuale utente

Maytag

Maytag MEDZ400TQ1 Manuale utente

Maytag

Maytag MDG17PRAW Manuale utente

Maytag

Maytag MDE17MN Manuale utente

Maytag

Maytag MDG31 Guida per l'amministratore

Maytag

Maytag NEPTUNE MD-6 Manuale utente

Maytag

Maytag Neptune MD4000 Manuale utente

Maytag

Maytag W10557651B Manuale utente

Maytag

Maytag SDE4606AYW Manuale utente

Maytag

Maytag MGDB850WL - 29" Gas Dryer Manuale utente

Maytag

Maytag SD-5 Manuale utente

Maytag

Maytag MGD5707TQ - 29" Gas Dryer Manuale utente

Maytag

Maytag MLG33PDAWW Guida per l'amministratore

Maytag

Maytag MGDC700VW - Centennial Gas Dryer Manuale utente

Maytag

Maytag Bravos MGDB750YW Manuale utente

Maytag

Maytag MED5100DC Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente
