Maytag MDG9206AWW Manuale

Repair

Parts

List

MODEL NUMBER

MDG9206AWW

When requesting service or ordering parts, always

provide the following information:

- Product Type - Part Number

- Model Number - Part Description

DRYER

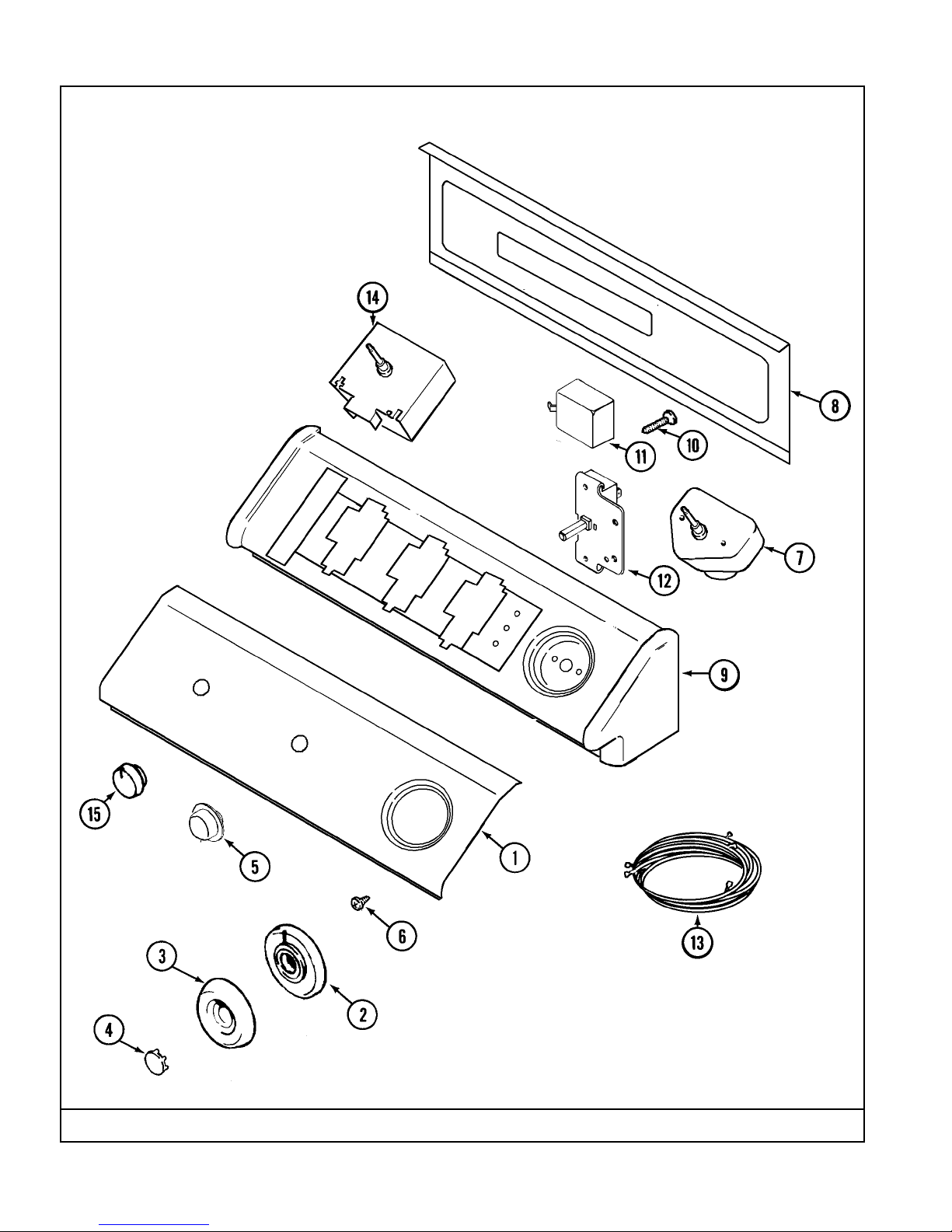

Section: CONTROL PANEL

LD11-99

Model: MDG9206AWW

CONTROL PANEL

No. Part No. Description

Section:

Series Qty

1 33001918 PANEL, CONTROL (WHT) 10 1

- 22002339 SCREW Note: SCREW, CONTROL PANEL 10 3

2 33001621 SKIRT, TIMER DIAL (WHT) 10 1

3 22001659 TIMER KNOB - GREY 10 1

4 22001664 TIMER KNOB INSERT/CAP (WHT) 10 1

5 33001619 BUTTON, PUSH TO START (WHT) 10 1

6 33001690 SCREW, TIMER 10 2

7 33001624 TIMER 10 1

8 33001806 BACK, CONSOLE PANEL 10 1

- 216423 SCREW Note: SCREW, CONSOLE BACK PANEL 10 2

9 22002285 CONSOLE (WHT) 10 1

10 216423 SCREW Note: SCREW, NON-ADJUSTABLE BUZZER 10 1

11 33001623 BUZZER, NON-ADJUSTABLE 10 1

12 33001861 SWITCH, PUSH TO START (WHT) Note: SWITCH, PUSH TO START (WHT) 10 1

13 33001923 WIRE HARNESS, MAIN 10 1

14 33001643 SWITCH, TEMPERATURE (GAS) 10 1

15 22001663 KNOB, SELECTOR SWITCH (WHT) 10 1

- 33002531 MANUAL, USE & CARE (FRC) 10 1

- 33002457 MANUAL, USE & CARE 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

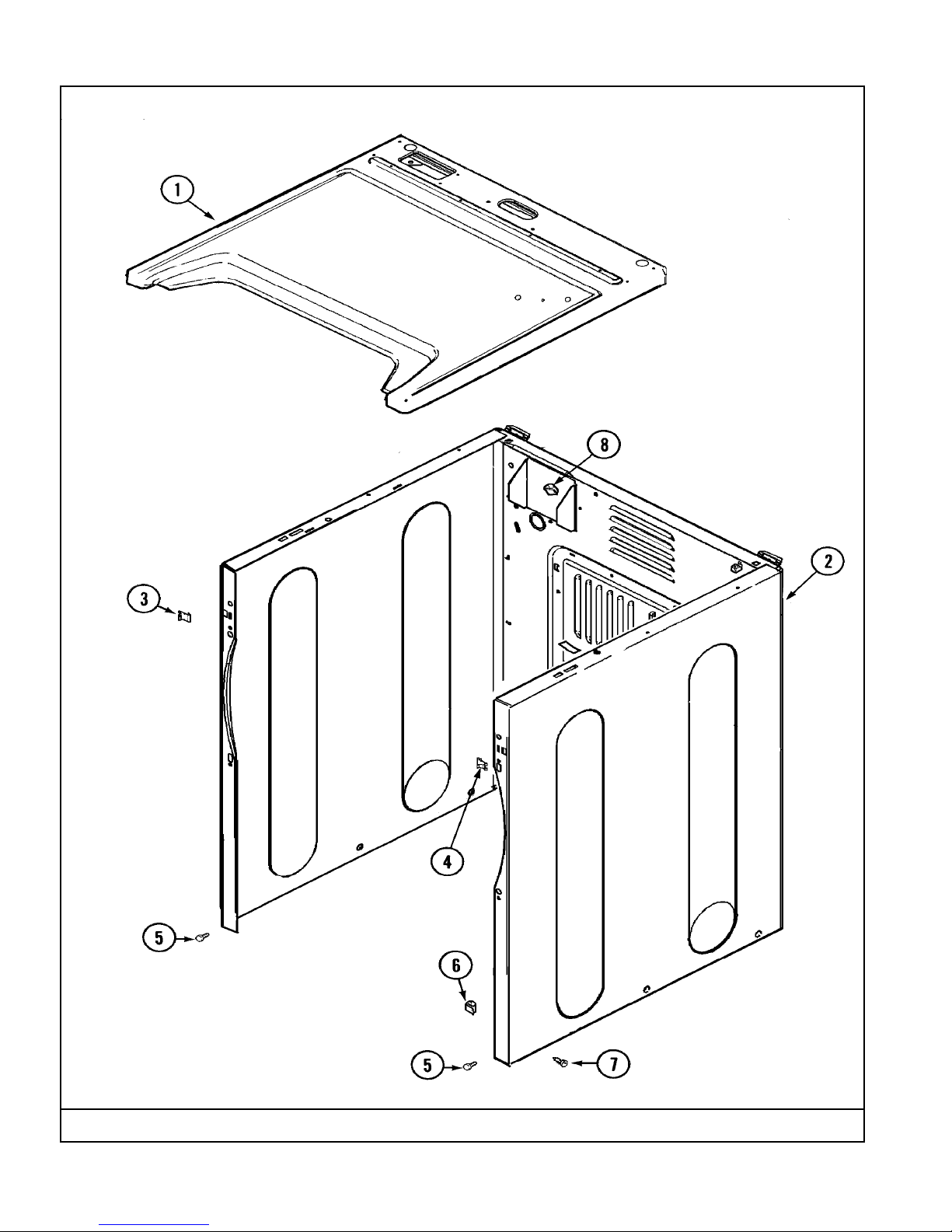

Section: CABINET-FRONT

LD12-57

Model: MDG9206AWW

CABINET-FRONT

No. Part No. Description

Section:

Series Qty

1 33001896 COVER, TOP (WHT) 10 1

2 N 33001897 CABINET (WHT) 10 1

3 22002049 CLIP Note: CLIP, FRONT PANEL 10 2

4 213280 FRONT PANEL BRACKET/FASTENER Note: RETAINER, FRONT PANEL 10 2

5 22001995 SCREW Note: SCREW, FRONT PANEL 10 2

6 310376 CLIP, WIRE HARNESS 10 1

7 213007 SCREW, CABINET 10 6

8 310376 CLIP, WIRE HARNESS 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: DOOR

LD17-26

Model: MDG9206AWW

DOOR

No. Part No. Description

Section:

Series Qty

1 33001767 SEAL, SHROUD 10 1

2 22002247 HOOK, SECURITY 10 2

3 33001900 SHROUD (WHT) 10 1

4 22001995 SCREW Note: SCREW, TUMBLER FRONT & SHROUD 10 8

5 33001768 SCREW, SHROUD Note: SCREW, SHROUD & OUTLET DUCT 10 2

6 33001509 SWITCH, DOOR 10 1

7 33001760 BRACKET, HINGE 10 1

8 N 33001174 PLUG, DOOR CATCH 10 1

- 33001791 CATCH, DOOR (W/PLUG) 10 1

9 304578 CATCH, DOOR (FEMALE) 10 1

10 33002094 SEAL, DOOR 10 1

11 22002038 CLIP, DOOR (DOUBLE) 10 4

12 33001793 BRACKET, STRIKE 10 1

13 33001761 STRIKE, DOOR (MALE) 10 1

14 22002039 CLIP, DOOR (SINGLE) 10 2

15 33001763 PLUG, INNER DOOR 10 1

16 33001899 DOOR, INNER (WHT) 10 1

17 33001904 DOOR, OUTER (WHT) 10 1

- 22001817 SHEET, SOUND DAMPER (FT. PNL) 10 1

18 33001759 HINGE, DOOR 10 2

19 22002062 SCREW 10 4

20 22002063 SCREW #8-18AB WAFER HD 10 8

21 33001764 COVER, HINGE HOLE (WHT) 10 2

22 33001787 SCREW, HINGE Note: SCREW, HINGE HOLE COVER 10 2

23 22002012 SCREW, HINGE Note: SCREW, HINGE BRACKET 10 2

24 33001901 PANEL, FRONT (WHT) 10 1

25 33001771 BUSHING, INNER DOOR 10 2

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: CABINET-REAR

LD12-61

Model: MDG9206AWW

CABINET-REAR

No. Part No. Description

Section:

Series Qty

1 N 33001897 CABINET (WHT) 10 1

2 N 33001827 BRACKET, CABINET HINGE 10 2

3 33001795 COVER, TERMINAL BLOCK 10 1

4 22001995 SCREW Note: SCREW, TERMINAL BLOCK COVER 10 1

5 211881 GROMMET, CORD 10 1

6 33001246 CORD, POWER 10 1

7 22001995 SCREW Note: SCREW, CABINET 10 2

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

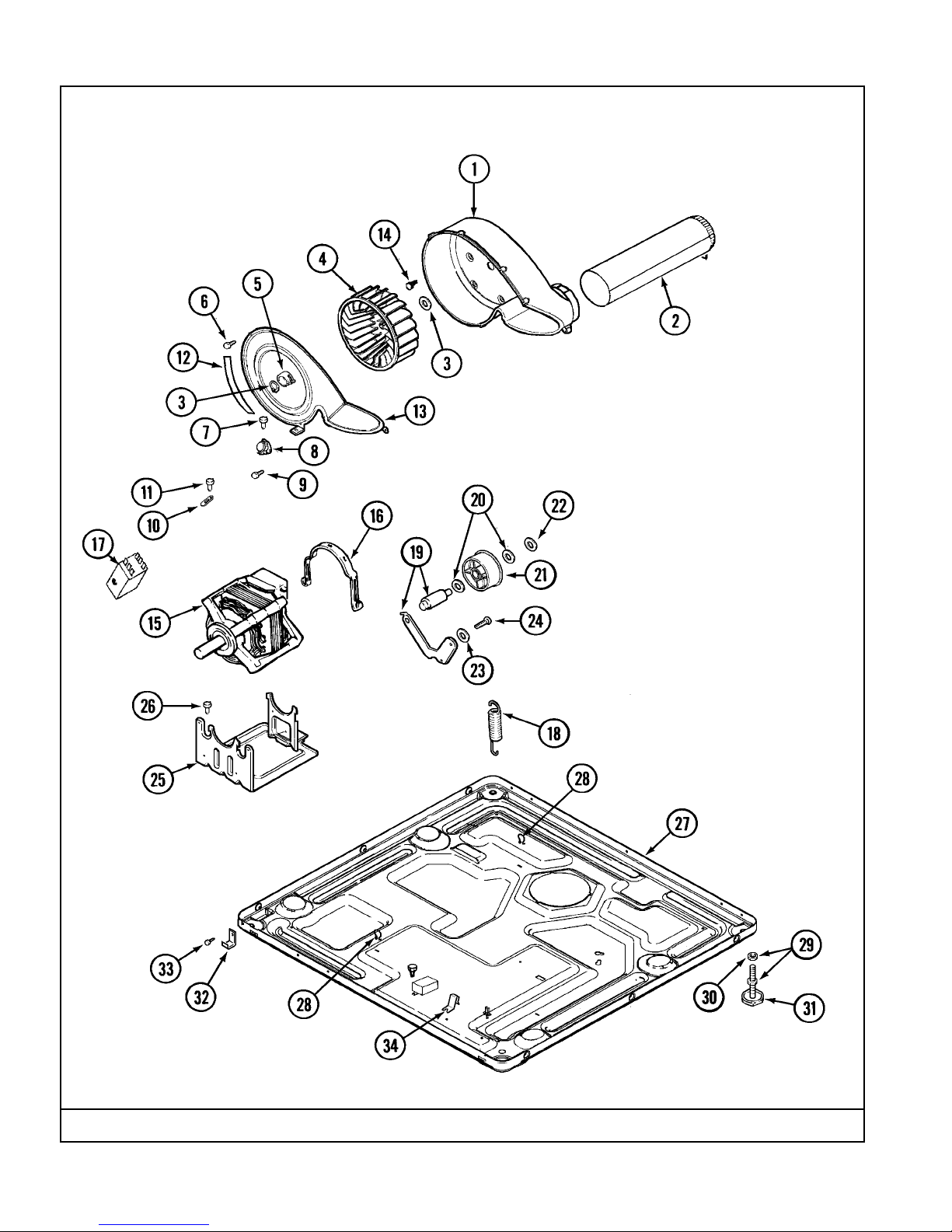

Section: MOTOR DRIVE

CD17-12

Model: MDG9206AWW
