Maytag MGD5707TQ1 Manuale utente

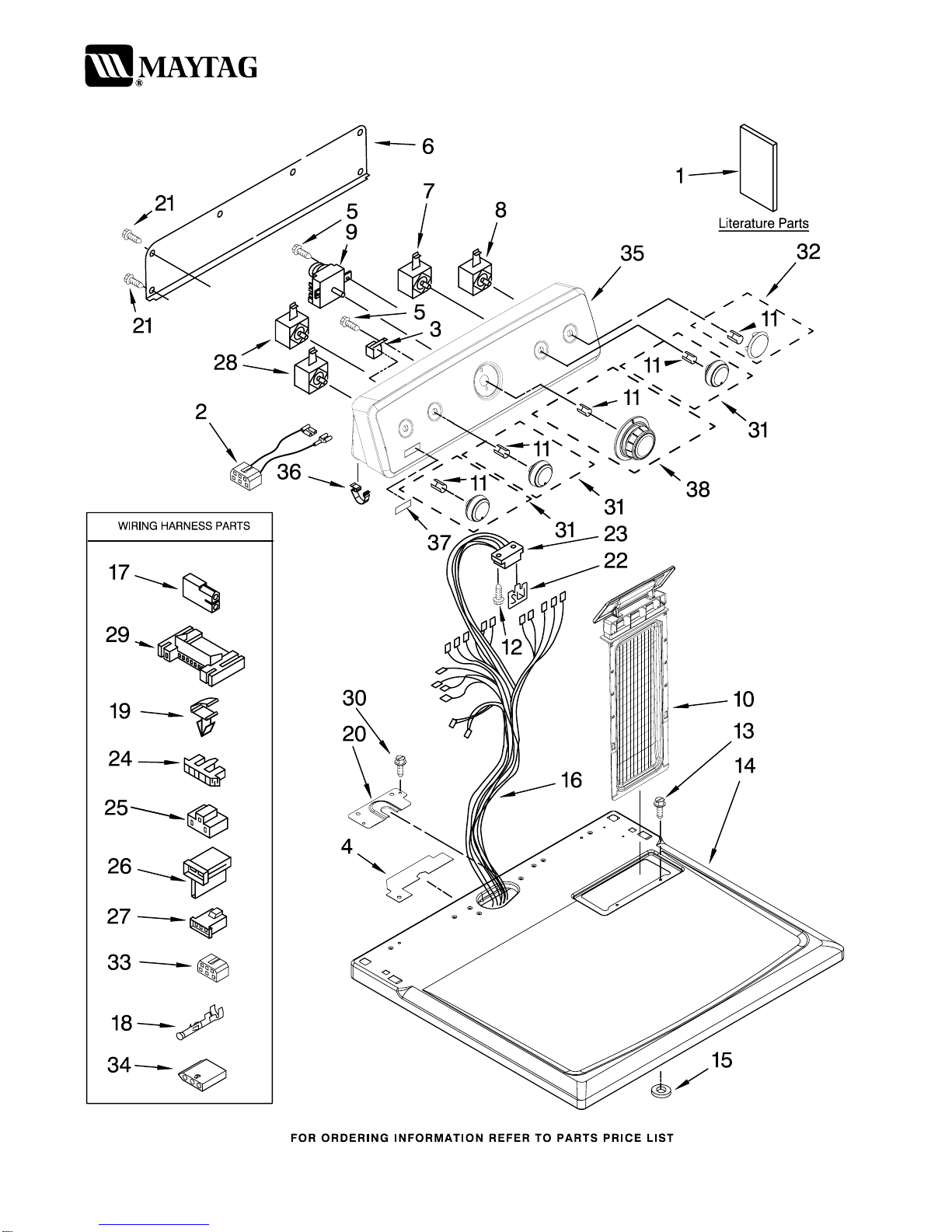

TOP AND CONSOLE PARTS
1
For Model: MGD5707TQ1
(White)
10−07 Litho in U.S.A.(LT) Part No. W10155375 Rev.A.
29" GAS DRYER
TOP AND CONSOLE PARTS
2
For Model: MGD5707TQ1
(White)
W10155375
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10089177
Sheet,
Cycle Feature
W10088775
Use & Care Guide
W10124167
Wiring Diagram
2
W10124166
Wire, Jumper
(Buzzer On/Off)
3 694419 Buzzer, Mini
4
W10112603
Seal−Harness
5 8533971 Screw, 8−18 x 5/8
6
W10112577
Panel, Rear
Console
7 8530169 Switch,
Temperature
8 3398094 Switch,
Push−To−Start
9 8566184 Timer Assembly
60 HZ.
10 8565972 Screen, Lint
11 8536939 Clip, Spring
12 359625 Screw, 8−18 x 1/2
13 688983 Screw, 8−18 x 5/8
14
W10112599
Top
15 237446 Washer (Top/chute)
16
W10111000
Harness, Wiring
17 717252 Plug, 2−way
18 94614 Terminal Female
19 3394427 Clip−Harness
20
W10112578
Bracket−Harness
21 693995 Screw, Hex
Washer Head
22 8558178 Control,
Electronic
23 3391885 Connector, Edge
24 3397269 Connector−Timer
25 3401144 Connector,
(PTS Relay)
26 3403499 Connector,
2−Position
(Gas Valve)
27 3403498 Connector,
3−Position
(Gas Valve)
28 3405156 Switch Rotary
(Twist Mount)
29 3395683 Connector, Motor
30 337686 Screw, 8−18 x 3/4
31
W10112582
Knob, Control (3)
32
W10112586
Knob,
Push−To−Start
33 3347243 Connector
6−Circuit
34 3936144 Connector
35
W10086730
Console & Control
Panel Assembly
(Includes: Item:
36 & 37.)
36 8312709 Clip−Console
37
W10112588
Badge Assembly
38
W10112584
Knob, Timer
Assembly

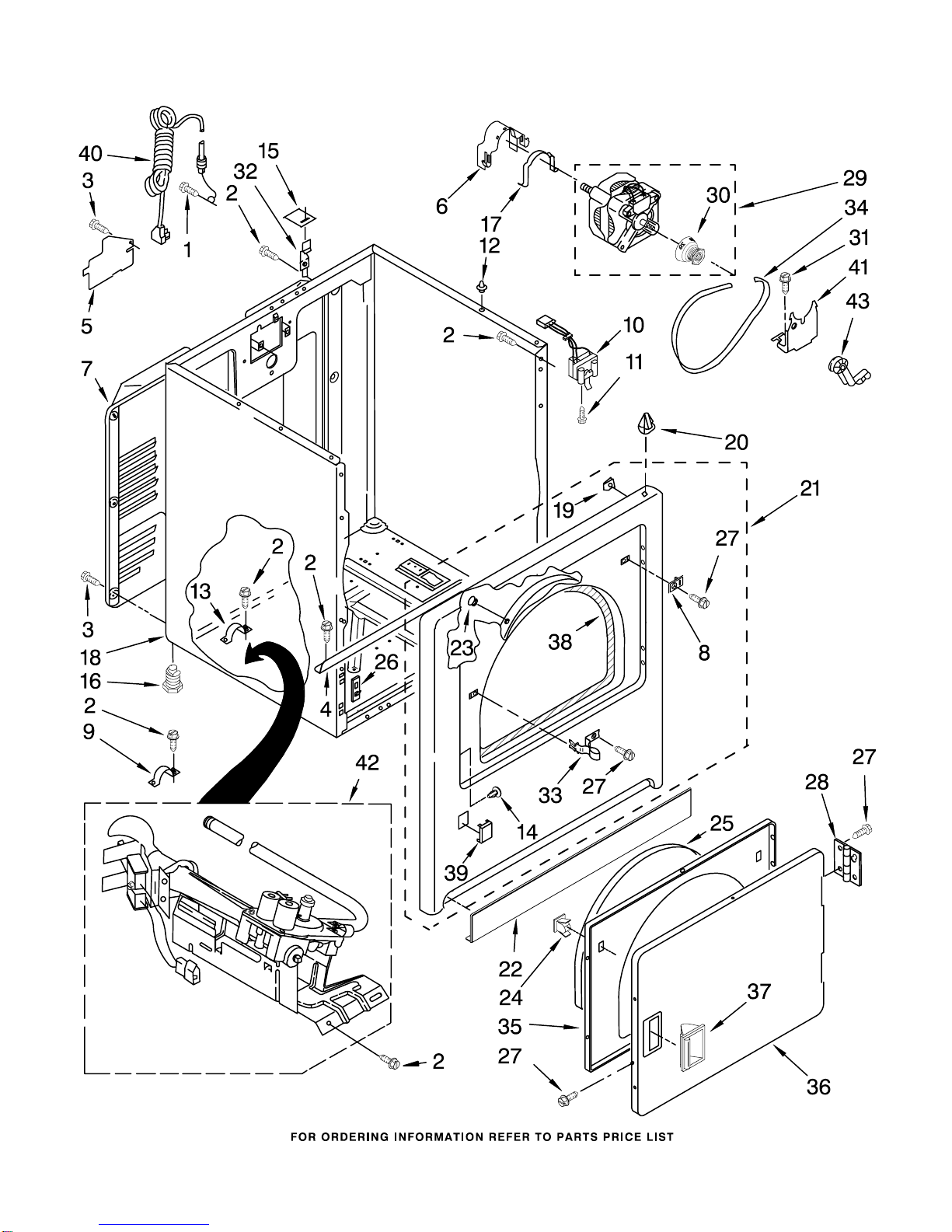

CABINET PARTS
3
For Model: MGD5707TQ1
(White)
W10155375
CABINET PARTS
4
For Model: MGD5707TQ1
(White)
W10155375
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 697776 Screw, 10−32 x 5/8
(External Ground)
2 343641 Screw, 10−16 x 1/2
3 693995 Screw, Hex Head
4 8541400 Bracket, Cabinet
5 3396795 Cover, Block
6 3404162 Clamp, Motor
(W/Shield)
7 3396805 Panel, Rear
8 3403630 Plug−Strike
9 3980175 Clamp−Elbow
10 3406107 Door Switch
Assembly
11 697773 Screw, 6−20 x 7/8
12 98669 Locator, Top
13 341029 Clamp−Pipe
14 3404413 Plug−Hole
15 18849 Pad, Top Hinge
16 3392100 Foot, Dryer
279810 Foot−Optional
(Extended Length)
(Package of 2)
(Not Included.)
17 660658 Clamp, Motor
18 8530603 Cabinet
(Includes
Illus. 4)
19 98234 Clip, Ground (2)
20 18776 Lock, Front Top (2)
21 3403447 Panel Front
22
W10112593
Toe−Plate
23 685203 Clip, Felt Pad (2)
24 3389441 Catch, Door
Assembly
25 3405246 Seal, Door
26 3394083 Clip, Front Panel
27 342055 Screw, 8−18 x 1/2
28
W10112600
Hinge, Door
29 8066206 Motor Assembly
60 HZ.
30 8066184 Pulley 60 Hz.
31 3400500 Bolt,
5/16−18 x 3/4
32 8066217 Hinge, Top (2)
33 3403431 Strike, Panel
34
W10131364
Belt Drive
35 3402341 Door, Rear
36 3402335 Door, Front
37 8565970 Handle, Door
38 3406129 Seal & Bearing
Assembly
39 3394975 Plug, Front Panel
40 344020 Cord, Power
41 348780 Base, Motor
42 8318272 Burner Assembly,
60 Hz.
(See Pages 7 &
8 For Further
Burner Breakdown)
43 691366 Idler & Pulley
Assembly
BULKHEAD PARTS
5
For Model: MGD5707TQ1
(White)
W10155375
BULKHEAD PARTS
6
For Model: MGD5707TQ1
(White)
W10155375
Illus. Part
No. No. DESCRIPTION
1 348368 Lint Chute
Assembly
2 489463 Screw, 8−18 x 5/8
3 3388703 Washer−Support
4 347139 Seal, Lint
Chute
5 90767 Screw, 8−18 x 3/8
6 487909 Screw, 8−15 x 1/2
7 3392519 Thermal−Fuse (91C)
8 8066086 Drum Hole
Plug
9 8318268 Thermostat,
Internal−Bias
10 694089 Wheel, Blower
11 8577230 Housing, Blower
12 3398161 Clip
13 343641 Screw, 10−16 x 1/2
14 8530285 Box, Heater
15 3403140 Thermostat, 205 F
(96 C)
16 696302 Shield, Exhaust
17 339956 Seal
18 8066049 Funnel, Burner
19 3403634 Socket Assembly
20 3406124 Bulb
21 3403636 Baffle, Drum (1)
22 3977373 Bracket, Drum
Light
23 3406022 Bracket, Bulkhead
24 3390647 Screw, 8−18 x 1/2
25 280010 Kit,
Thermal Cut−Off
(Includes
Illus. 15)
26 3401707 Wire, Jumper
27 3976479 Pad, Sensor
28 690997 Ring, Tri
29 3399506 Shaft, L.H.
30 3399507 Shaft, R.H.
31 3397590 Roller, Support
32 348197 Washer, Support
33 3359452 Nut, 3/8−16
34 3403414 Bulkhead
35 338906 Sensor, Radiant
36 3402841 Lens, Drum Light
37 692526 Ring, Bearing
38
W10109200
Screw, 11−16 x 3/4
39 3406130 Seal, Rear Drum
40 695587 Drum Assembly
41 692490 Baffle, Drum (2)
42 3976434 Bracket, Support
43 90296 Clip
BA−150
8318272 BURNER ASSEMBLY
USE WITH TYPE 1 − NATURAL
AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES
7
For Model: MGD5707TQ1
(White)
W10155375
Illus. Part
No. No. DESCRIPTION
BA−150
8318272 BURNER ASSEMBLY
USE WITH TYPE 1 − NATURAL
AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES
1 8318272 Burner Assembly
60 Hz.
(Type 1)
(White Rodgers)
2 688617 Tube, Burner
3 694298 Bracket, Ignitor
4 686590 Ignitor
5 3393909 Screw & Washer
(8−32 x 5/8)
6 343641 Screw, 10−16 x 1/2
7 693986 Base, Burner
8 3387057 Screw, 8−18 x 3/8
9 Orifice, Burner
234826 Type 1
229742 Type 4 (Butane)
234868 Type 4 (Propane)
10 8318277 Valve, 60 Hz.
(Includes Pipe &
Illus. #7)
11 694421 Screw,
8−32 x 1/2 (2)
12 694538 Bracket, Coil
13 694540 Coil, 60 Hz.
(2 Terminal)
(Main)
14 694539 Coil, 60 Hz.
(Split)
(3 Terminal)
(Pilot Position)
15 694424 Leak Limiter
16 694423 Screw, Regulator
Adjustment
17 694422 Spring, Regulator
20 239822 Plug, Pipe
25 341029 Clamp, Pipe
694572 Conversion Kit
(Type 1)
to Type (4) L.P.G.
Following Parts Not Illustrated
8
For Model: MGD5707TQ1
(White)
W10155375
OPTIONAL PARTS (NOT INCLUDED)
9
For Model: MGD5707TQ1
(White)
W10155375
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
279948 Kit,
Dryer Repair
346764 Kit, Hold−Down
(Gas Dryer Mobile
Home Installation)
3406839 Dry Rack
8522199 Kit, Dryer
Vent Testing
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit (Uncut)
