TOP AND CONSOLE PARTS
1
(Magna Red) (Oxide)
For Models:MGDE500WR1, MGDE500WJ1
12−09 Printed in U.S.A. (MP)(bay) Part No. W10303330 Rev. A
29" GAS DRYER
TOP AND CONSOLE PARTS
2
(Magna Red) (Oxide)
For Models:MGDE500WR1, MGDE500WJ1
W10303330
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10239302
Use & Care Guide
W10255469
Installation
Instructions
W10258377
Tech Sheet
2 Top
W10164743
Oxide
W10249738
Red
3
W10111069
Harness, Main
4 Console Assembly
W10269246
Oxide
W10269245
Red
5 3394427 Clip, Harness
6
W10215656
Bracket, Console
(Includes No. 16)
7 353424 Connector, Sensor
8 94614 Terminal
9 3936144 Plug, Terminal
10 94613 Terminal
11 3390647 Screw, 8−18 x 1/2
12 8572039 Seal,
User Interface
13
W10177245
Medallion
14 3936150 Connector,
7−Circuit
15 3395683 Connector,
(Motor)
16
W10112267
Foam, Seal
Control Bracket
17 2203186 Connector,
5−Circuit
18 3403498 Connector,
3−Position
(Gas Valve)
19 3403499 Connector,
2−Position
(Gas Valve)
20
W10164576
Knob
21
W10269025
Techbox Assembly
22
W10171504
Foil−Display
23
W10214555
Plug−Connector
Frame
24 8540282 Screw
25 8540513 Screw
26
W10170295
Frame−Light Guide
27
W10170293
Guide, Light
Cylcle Internal
28
W10164567
Cycle, Light Guide
29
W10172298
Bushing, Knob
30
W10242907
Power Cable
User Interface
31
W10164578
Guide, Light
(3−Way Digital)
32
W10171502
Frame−Light
(Guide Display)
33
W10215674
Shield,
Console Bracket
34
W10216201
Plug−Hole 1/4"(2)
35
W10216202
Plug−Hole 5/16"(1)

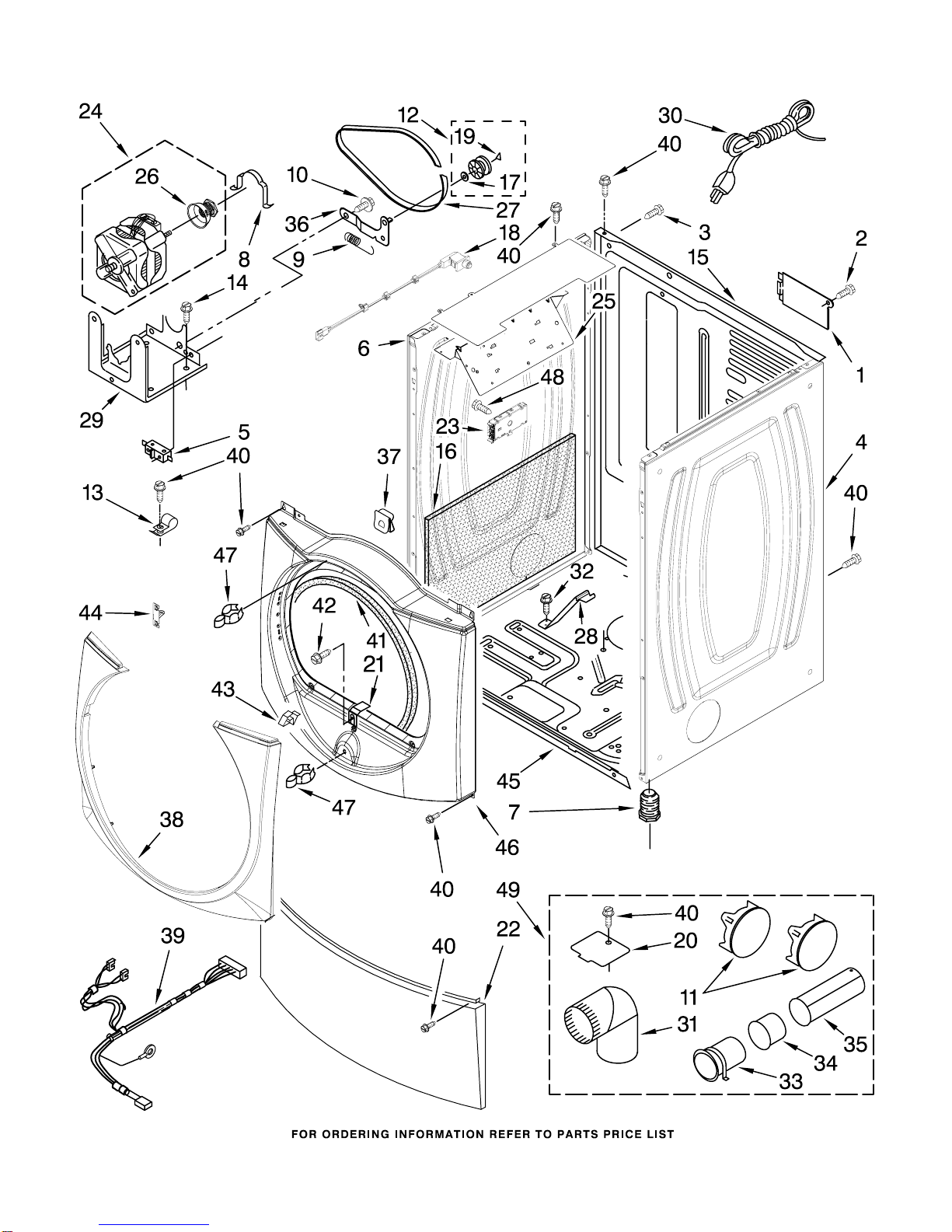

CABINET PARTS
3
(Magna Red) (Oxide)
For Models:MGDE500WR1, MGDE500WJ1
W10303330
CABINET PARTS
4
(Magna Red) (Oxide)
For Models:MGDE500WR1, MGDE500WJ1
W10303330
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8317340 Cover,
Terminal Block
2 3390814 Screw, 8−18 x 3/8
3 8533974 Screw, 10−32 x 5/8
(Ground)
4 Panel, Side (R.H.)
W10192435
Oxide
W10249769
Red
5
W10246525
Switch, Broken
Belt
6 Panel, Side (L.H.)
W10193956
Oxide
W10249768
Red
7 3392100 Foot, Dryer
279810 Foot − Optional
(Extended Length
Package Of 2)
(Not Included)
8 660658 Clamp, Motor (2)
9 3387374 Spring, Idler
10 3389420 Retainer, Idler
11 Plug, Multivent
49252 White
W10151499
Midnight Grey
12 3388672 Pulley Assembly
13 3978776 Bracket,
Gas Pipe
14 343641 Screw, 10−16 x 1/2
15
W10244142
Panel, Rear
16
W10123956
Sound Panel
17
W10121334
Washer, Flat
Plastic
18
W10128087
Assembly,
Door Switch
19 690997 Tri Ring
20 8066115 Cover−Plate
21 8529053 Ramp, Door
22 Toe Panel
W10246285
Oxide
W10250673
Red
23
W10174746
Control Board
24 8538263 Motor Assembly
60 HZ.
25 8563727 Bracket, Control
26 8578220 Pulley 60 HZ.
27
W10112954
Belt, Drive
28 8529757 Bracket, Burner
29
W10242878
Bracket, Motor
30 3401401 Cord, Power
31 49026 4" − 90 Elbow
32 693995 Screw, 8−18 x 3/8
33 8563747 Exhaust Pipe
& Bracket
34 8563750 Exhaust Pipe
(Short)
35 8563749 Exhaust Pipe
(Long)
36 3388674 Idler Bracket
37 62825 Clip, S−Type (3)
38 Trim−Ring
Assembly
(Includes:
Item 44)
W10221447
Oxide
W10271928
Red
39
W10242903
Harness,
Digital Interface
40 3390647 Screw, 8−18 x 1/2
41 3387242 Seal, Front Panel
42 3357011 Screw, 10−16 x 1/2
43 8519459 Clip, Toe Panel
44
W10129065
Trim−Clip Metal
45
W10239098
Base, Cabinet
46 Front Panel
W10164915
Oxide
W10250671
Red
47 696144 Strike, Door (2)
48 90767 Screw, 8−18 x 3/8
Optional Parts Not Included
Dryer Exhaust Kit
(For Side & Bottom Venting)
49 279818 White
W10186596
Midnight Grey
BULKHEAD PARTS
5
(Magna Red) (Oxide)
For Models:MGDE500WR1, MGDE500WJ1
W10303330
BULKHEAD PARTS
6
(Magna Red) (Oxide)
For Models:MGDE500WR1, MGDE500WJ1
W10303330
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8575324 Shaft, R.H. Thread
2 3390647 Screw, 8−18 x 1/2
3
W10153413
Door, Lint Screen
4 3406653 Harness, Sensor
5 3394346 Air Duct Assembly
6 697813 Seal, Outlet
Housing
7 697814 Seal, Drum Front
8 3934666 Nut,3/8 x 16(R.H.)
9
W10049370
Lint, Screen
10 3402841 Lens, Drum Light
11
W10153423
Outlet Housing
Assembly
12 8572105 Clip, Exhaust Pipe
13 8533971 Screw, 8−18 x 5/16
14 693995 Screw, 8−18 x 3/8
15
W10001120
Nut, 3/8−16 (L.H.)
16
W10133857
Bulkhead, Rear
17 3387459 Washer, Support
18 8575325 Shaft, L.H. Thread
19 690997 Ring, Tri
20 8536973 Roller, Support
21 8563745 Exhaust Pipe
22
W10253353
Outlet Grill
Housing Assembly
23 489463 Screw, 8−18 x 5/8
24
W10181466
Complete Drum
Assembly
25
W10219342
Screw, 8−16 x 1/2
26
W10166807
Seal, Drum
27 8066208 Clip−Spring
28 90767 Screw, 8−18 x 3/8
29 8573713 Thermal−Cutoff
30 3406124 Bulb, Light
31 3387223 Electrode, Sensor
32 8578825 Bracket,
Drum Light
33
W10214261
Socket Assembly
34 697772 Wheel, Blower
35 3401710 Jumper−Tco
Hi−Limit
36 3394986 Spring, Lint
Screen Door
37 697770 Seal, Cover Plate
38 695240 Screw, 8−18 x 1/2
39 8577274 Thermistor
40
W10153414
Outlet Housing
41 8544362 Housing, Blower
42 8066168 Lint Duct Assembly
43 8573824 Funnel, Burner
44 3391912 Thermostat
Hi Limit
45 338906 Sensor, Radiant
46 3392519 Thermal−Fuse
(91C)
47 3387230 Screw, 10−16 x 1
48 697693 Baffle, Drum
49
W10252304
Bulkhead, Front
50
W10153412
Grille, Outlet
51
W10044596
Valve, Water Inlet
(Includes Item 52)
52
W10044597
Bracket, Valve
53
W10044605
Coupling, Hose
54
W10044598
Hose
55
W10277503
Nozzle & Screen
Assembly
56 3391018 Tie Cable
57
W10044579
Washer, Nozzle
58
W10128544
Caplug
59
W10044628
Brass Nut
60
W10044615
Clip,
Push−To−Connect
61
W10128629
Shield, Blower
Housing
(Includes Item 2)
62
W10184825
Cover, Inlet
Valve

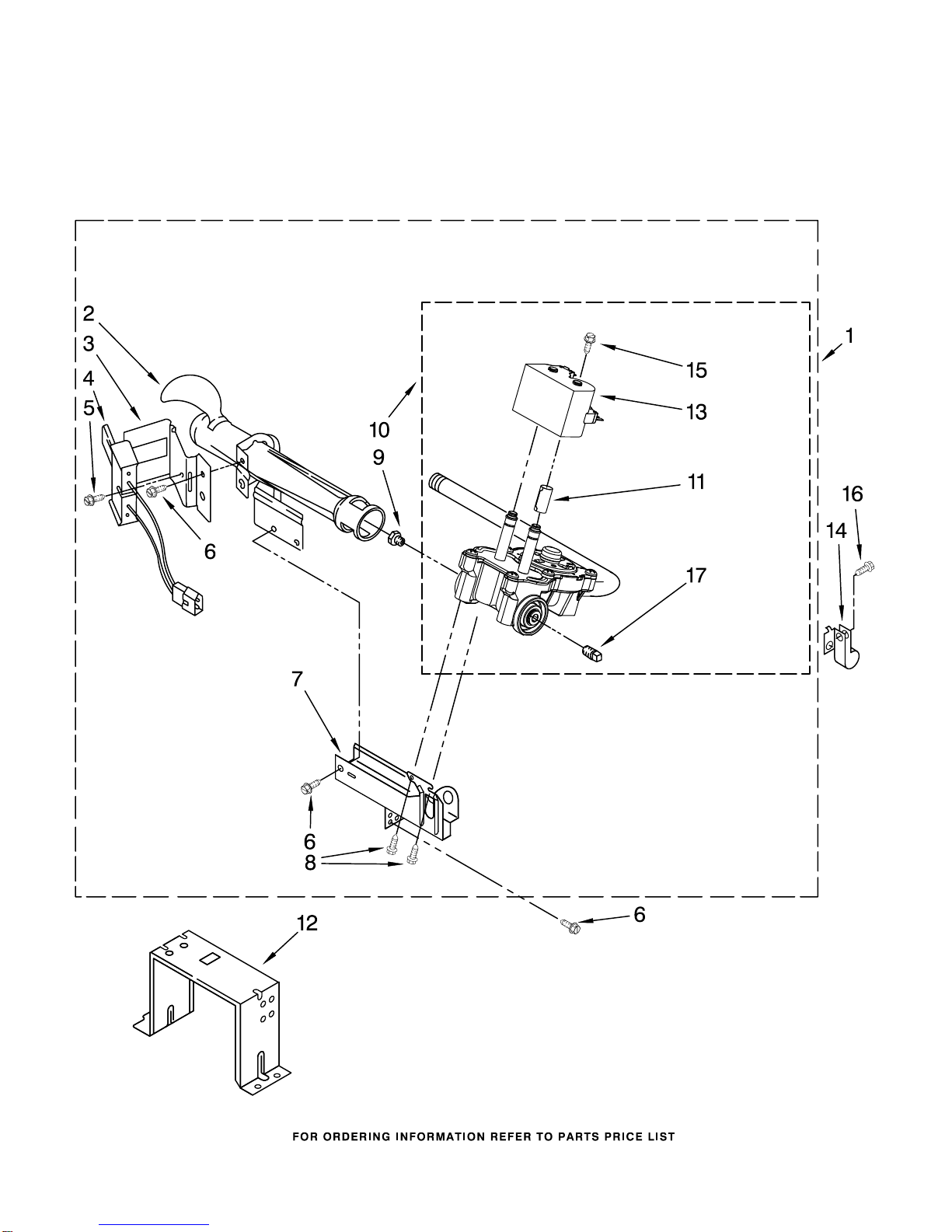

W10293911 BURNER ASSEMBLY
BA−159
USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED,
AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES
7
(Magna Red) (Oxide)
For Models:MGDE500WR1, MGDE500WJ1
W10303330
USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED,
AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES
Illus. Part
No. No. DESCRIPTION
W10293911 BURNER ASSEMBLY
BA−159
1
W10293911
Burner Assembly
60 Hz.
(Type 1 & 2)
2 688617 Tube, Burner
3 694298 Bracket, Ignitor
4 686590 Ignitor
5 3393909 Screw & Washer
(8−32 x 5/8)
6 343641 Screw, 10−16 x 1/2
7 3389871 Base, Burner
8 3387057 Screw,
8−18 x 3/8 (3)
9 15418 Orifice, Burner
Type 1
10
W10175144
Valve, Gas
60 Hz. (Complete)
(Includes Pipe &
Illus. No. 7 )
11
W10295524
Sleeve−Magnetic
12 3389889 Bracket, Support
13
W10273784
Coil, 60 Hz.
14 3978776 Clamp, Pipe
15
326049536
Screw, Coil
16 3390647 Screw, 8−18 x 1/2
17
W10295523
Plug, Pipe
Following Parts Not Illustrated
W10293913
Conversion Kit
(Type 1 and 2)
to Type (4) L.P.G.
8
(Magna Red) (Oxide)
For Models:MGDE500WR1, MGDE500WJ1
W10303330
DOOR PARTS
9
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
(Magna Red) (Oxide)
For Models:MGDE500WR1, MGDE500WJ1
1 Label, Hinge Hole
W10085210
White
W10085230
Silver
2
W10139920
Door Hinge
Assembly
3
W10180119
Cover,
Door Hinge
4 3400224 Screw,1/4−20 x 0.5
5 8519356 Retainer−Window
(Upper)
6 8519354 Retainer−Window
(Lower)
7
W10193522
Handle Ring
8
W10159996
Screw,
10−24 x 5/16
9
W10048910
Screw−Plug
10 8578229 Inner Door
11 355515 Screw,
8−18 x 11/16
12
W10193530
Door Assembly
Outer (Includes
3,7,13,19,20,21,
23)
13
W10180117
Door Mask
Assembly
14 8577819 Door Assembly
Inner (Includes
2,4,5,6,8,9,10,
15,16,17,18,22)
15 8566254 Window
16 8579662 Seal, Window
17 3393258 Screw,
10−16 x 3/64
18
W10139457
Seal, Door
19
W10180118
Door, Intermediate
20
W10180120
Shield, Door
21
W10153281
Pad−Foam Frame
22 690081 Door Catch
23
W10171571
Screen, Door
24 9742177 Screw,8−18 x 5/8
W10303330
OPTIONAL PARTS (NOT INCLUDED)
10
Illus. Part
No. No. DESCRIPTION
(Magna Red) (Oxide)
For Models:MGDE500WR1, MGDE500WJ1
PAINT, TOUCH−UP (1/2oz.)
W10202939
Oxide
W10218245
Magna Red
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
ACCESSORY PARTS
8529894 Hold Down Kit
8522199 Kit, Dryer
Vent Testing
80047 Kit,
Dryer Repair
8579666A Kit,
Door Reversing
Miscellaneous Parts Bag
W10206708
Bag Assembly
(Contains,
The Following )
89503 Hose Inlet,
5’Hose
350027 Hose Inlet,
2’Hose
W10242307
Washer
W10044604
Connector,
Hose "Y"
353362 Filter Washer
W10303330
