Maytag MGDZ600TB2 Manuale utente

TOP AND CONSOLE PARTS

For Model: MGDZ600TW2, MGDZ600TB2, MGDZ600TK2, MGDZ600TE2

(White) (Black) (Pacific Blue)(Ocean Sapphire)

3−10 Printed in U.S.A. (L.T.)(bay) Part No. W10180622 Rev. C

27" GAS DRYER

TOP AND CONSOLE PARTS

For Model: MGDZ600TW2, MGDZ600TB2, MGDZ600TK2, MGDZ600TE2

(White) (Black) (Pacific Blue)(Ocean Sapphire)

W10180622

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10260034

Use & Care Guide

W10261613

Installation,

Instruction

W10133923

Tech Sheet

2 Top

8563730 White

W10129703

Black

W10140767

Pacific Blue

W10174561

Ocean Sapphire

W10251443

Harness, Main

4 Panel, Console

(Includes Illus.

12.)

W10117389

White

W10117393

Black

W10119034

Pacific Blue

W10174674

Ocean Sapphire

W10119050

Knob, Assembly

6 8565237 Bracket, Console

W10117387

Lens, Display

8 3400238 Screw, 2−28 x 1/2

W10117417

Assembly,

User Interface

W10266747

Channel, Water

11 3390647 Screw, 8−18 x 1/2

W10203949

Badge Assembly

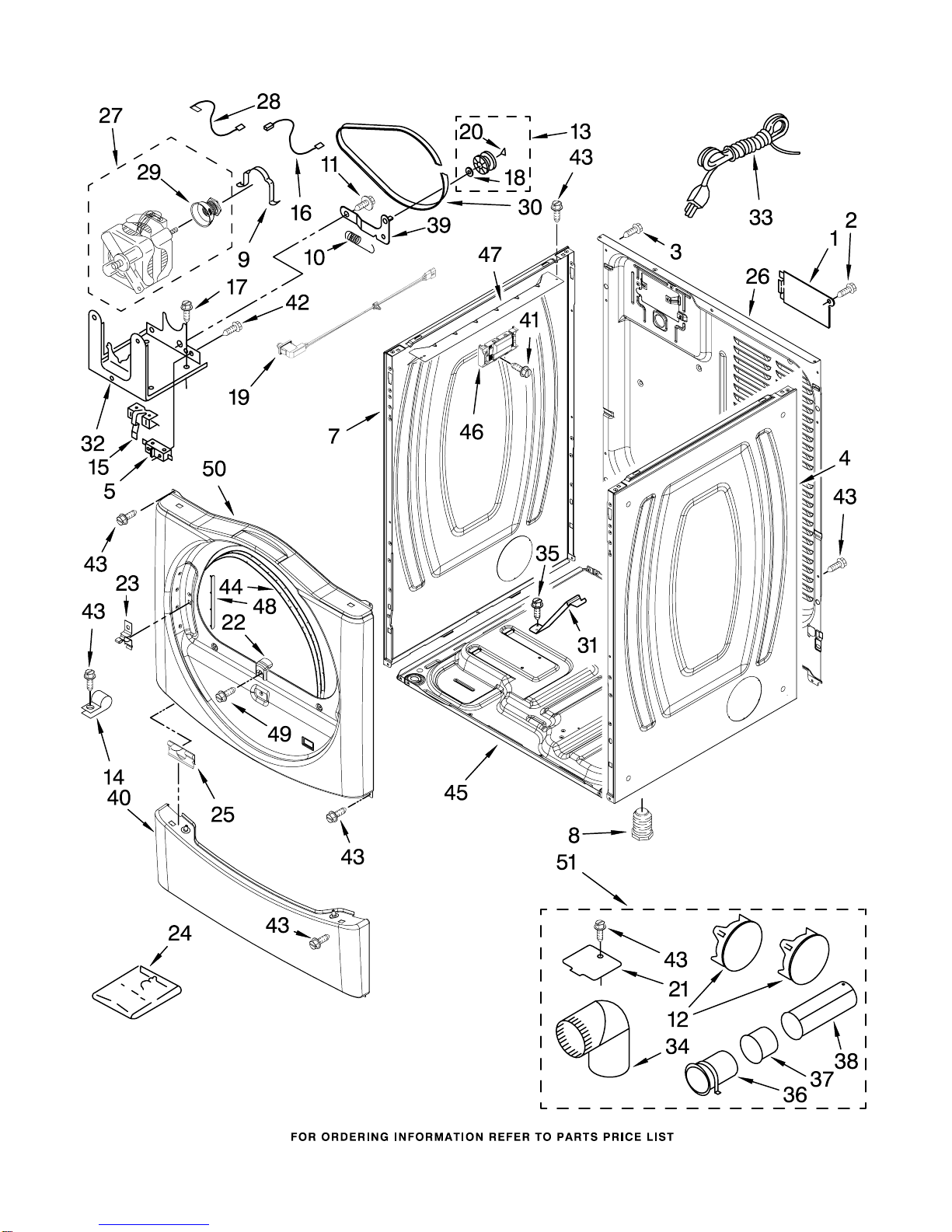

CABINET PARTS

For Model: MGDZ600TW2, MGDZ600TB2, MGDZ600TK2, MGDZ600TE2

(White) (Black) (Pacific Blue)(Ocean Sapphire)

W10180622

CABINET PARTS

For Model: MGDZ600TW2, MGDZ600TB2, MGDZ600TK2, MGDZ600TE2

(White) (Black) (Pacific Blue)(Ocean Sapphire)

W10180622

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8317340 Cover,

Terminal Block

2 3390814 Screw, 8−18 x 3/8

3 8533974 Screw Ground

4 Panel, Side (R.H.)

8565048 White

W10112963

Black

W10119027

Pacific Blue

W10174558

Ocean Sapphire

5 3394881 Switch, Broken

Belt

7 Panel, Side (L.H.)

8565054 White

W10112962

Black

W10119026

Pacific Blue

W10174559

Ocean Sapphire

8 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 Plug, Multivent

49252 White

3388309 Black

8561800 Pacific Blue

W10151499

Midnight Grey

13 3388672 Pulley Assembly

14 3978776 Bracket,

Gas Pipe

15 8066120 Lever, Snap

Switch

W10167612

Wire, Belt Switch

17 343641 Screw, 8−18 x 1/2

W10121334

Washer, Thrust

W10128087

Assembly,

Door Switch

20 690997 Tri Ring

21 8066115 Cover−Plate

22 8565083 Ramp, Door

23 8565122 Strike, Door (1)

24 8572546 Kit,

Stack Assembly

25 8519459 Clip, Toe Panel

26 8565059 Panel, Rear

27 8538263 Motor Assembly

60 HZ.

28 3398948 Wire, Jumper

(Broken Belt

Switch)

29 8578220 Pulley 60 HZ.

W10112954

Belt, Drive

31 8529757 Bracket, Burner

32 3387118 Bracket, Motor

33 3401401 Cord, Power

34 49026 4" − 90 Elbow

35 693995 Screw, 8−18 x 3/8

36 8563747 Exhaust Pipe

& Bracket

37 8563750 Exhaust Pipe

(Short)

38 8563749 Exhaust Pipe

(Long)

39 3388674 Idler Bracket

40 Toe Panel

8540621 White

W10112964

Black

W10119028

Pacific Blue

W10174590

Ocean Sapphire

41 8533971 Screw, 8−18 x 5/16

42 98129 Screw,

6−20 x 1 1/16

43 3390647 Screw, 8−18 x 1/2

44 3387242 Seal, Front Panel

45 8565046 Base, Cabinet

W10111606

Control Board

47 8563727 Control Bracket

W10085210

Label−Hinge Hole

Cover

49 3357011 Screw, 8−18 x 1/2

50 Front Panel

(Includes Illus. 44)

W10117421

White

W10117396

Black

W10119029

Pacific Blue

W10174660

Ocean Sapphire

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

51 279818 White

279820 Black

280102 Pacific Blue

W10186596

Midnight Grey

BULKHEAD PARTS

For Model: MGDZ600TW2, MGDZ600TB2, MGDZ600TK2, MGDZ600TE2

(White) (Black) (Pacific Blue)(Ocean Sapphire)

W10180622

BULKHEAD PARTS

For Model: MGDZ600TW2, MGDZ600TB2, MGDZ600TK2, MGDZ600TE2

(White) (Black) (Pacific Blue)(Ocean Sapphire)

W10180622

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8575324 Shaft, R.H. Thread

2 3390647 Screw, 8−18 x 1/2

W10153413

Door, Lint

Screen

4 3392519 Thermal Fuse

(91 C)

5 3394346 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,3/8 x 16(R.H.)

W10153409

Baffle, Drum

10 3402841 Lens,

Drum Light

11 359625 Screw, 8−18 x 1/2

12 8572105 Clip, Exhaust

Pipe

13 8533971 Screw, 8−18 x 5/16

14 8565061 Bulkhead, Front

15 693995 Screw, 8−18 x 3/8

W10001120

Nut, 3/8−16 (L.H.)

W10080170

Bulkhead, Rear

18 3387459 Washer, Support

19 8575325 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

22 8563728 Exhaust Pipe

W10153423

Housing, Outlet

Assembly

24 489463 Screw, 8−18 x 5/8

W10153420

Complete Drum

Assembly

W10219342

Screw, 8−16 x 1/2

W10166807

Seal, Drum

28 8066208 Clip−Spring

29 90767 Screw, 8−18 x 3/8

W10153412

Grille, Outlet

W10049370

Lint Screen

32 3401707 Wire Jumper

33 3406124 Bulb, Light

34 3387223 Electrode, Sensor

35 8578825 Bracket,

Drum Light

W10214261

Socket Assembly

37 697772 Wheel, Blower

38 8573713 Thermal Cut−Off

39 3394986 Spring, Lint

Screen Door

40 697770 Seal,

Cover Plate

41 695240 Screw, 8−18 x 1/2

42 8577274 Thermistor

43 487909 Screw, 8−15 x 1/2

44 8544362 Housing, Blower

45 8066168 Lint Duct Assembly

46 8573824 Funnel, Burner

47 3391912 Thermostat,

High−Limit 205 F

(96 C)

48 338906 Sensor, Radiant

49 3387230 Screw, 10−16 x 1

W10110975

Harness,

Moisture Sensor

51 3406653 Harness, Sensor

52 3401850 Harness, Gas

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

8576353 BURNER ASSEMBLY

BA−153A

For Model: MGDZ600TW2, MGDZ600TB2, MGDZ600TK2, MGDZ600TE2

(White) (Black) (Pacific Blue)(Ocean Sapphire)

W10180622

Illus. Part

No. No. DESCRIPTION

BA−153A

8576353 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

1 8576353 Burner Assembly

60 Hz.

(Type 1)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 686590 Ignitor

5 3393909 Screw & Washer

(8−32 x 7/8)

6 343641 Screw, 10−16 x 1/2

7 3389871 Base, Burner

8 3387057 Screw,

8−18 x 3/8

9 Orifice, Burner

15418 Type 1

15422 Type 4 (Butane)

234867 Type 4 (Propane)

W10118347

Valve, Gas

60 Hz. (Complete)

(Includes Pipe &

Illus. #7).

11 694421 Screw,

8−32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak, Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

18 3390647 Screw, 8−18 x 1/2

20 239822 Plug, Pipe

25 3387561 Clamp, Pipe

26 3389889 Bracket, Support

Following Parts Not Illustrated

8576846 Conversion Kit

(Type (1)

to Type (4) LPG).

8W10180622

For Model: MGDZ600TW2, MGDZ600TB2, MGDZ600TK2, MDGZ600TE2

(White) (Black) (Pacific Blue) (Ocean Sapphire)

DOOR PARTS

For Model: MGDZ600TW2, MGDZ600TB2, MGDZ600TK2, MGDZ600TE2

(White) (Black) (Pacific Blue)(Ocean Sapphire)

W10180622

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10256915

Label−Hinge Hole

Cover

2 8578887 Door Hinge

Assembly

W10119053

Assembly, Door

Intermediate

4 9742177 Screw, 8−18 x 5/8

5 3400618 Screw, 6−32 x 3/8

6 8579663 Seal, Window

W10117478

Handle, Door

(Includes Illus.

20.)

W10159996

Screw,

10−24 x 3/64

9 3393258 Screw,

10−16 x 3/64

W10259900

Door Assembly,

Inner

(Includes

Illus. 1,14 & 19)

11 355515 Screw,

8−18 x 11/16

W10112917

Door, Outer Ring

W10286878

Window

14 690081 Door Catch

Assembly

15 8519354 Retainer−Lower

16 8580059 Door,

Intermediate

17 8534022 Screw

18 8519356 Retainer, Upper

19 Door Seal

(Not Serviceable)

W10112927

Pad, Door Handle

OPTIONAL PARTS (NOT INCLUDED)

For Model: MGDZ600TW2, MGDZ600TB2, MGDZ600TK2, MGDZ600TE2

(White) (Black) (Pacific Blue)(Ocean Sapphire)

W10180622

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72031 Black

4396816 Pacific Blue

W10202940

Ocean Sapphire

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORY PARTS

8529894 Hold Down Kit

8522199 Kit, Dryer

Vent Testing

80047 Kit,

Dryer Repair

ACCESSORY PARTS

The following power cord can be

ordered.

Important: Check local wiring code

requirements to see if one of these

meets your needs.

PT220L 4’ 30 Amp 3 Wire

Dryer Cord

PT400L 4’ 30 Amp 4 Wire

Dryer Cord

PT600L 6’ 30 Amp 4 Wire

Dryer Cord
