Maytag MER6765BA - Electric 30 in. Double-Oven... Guida utente

Freestanding Electric Range

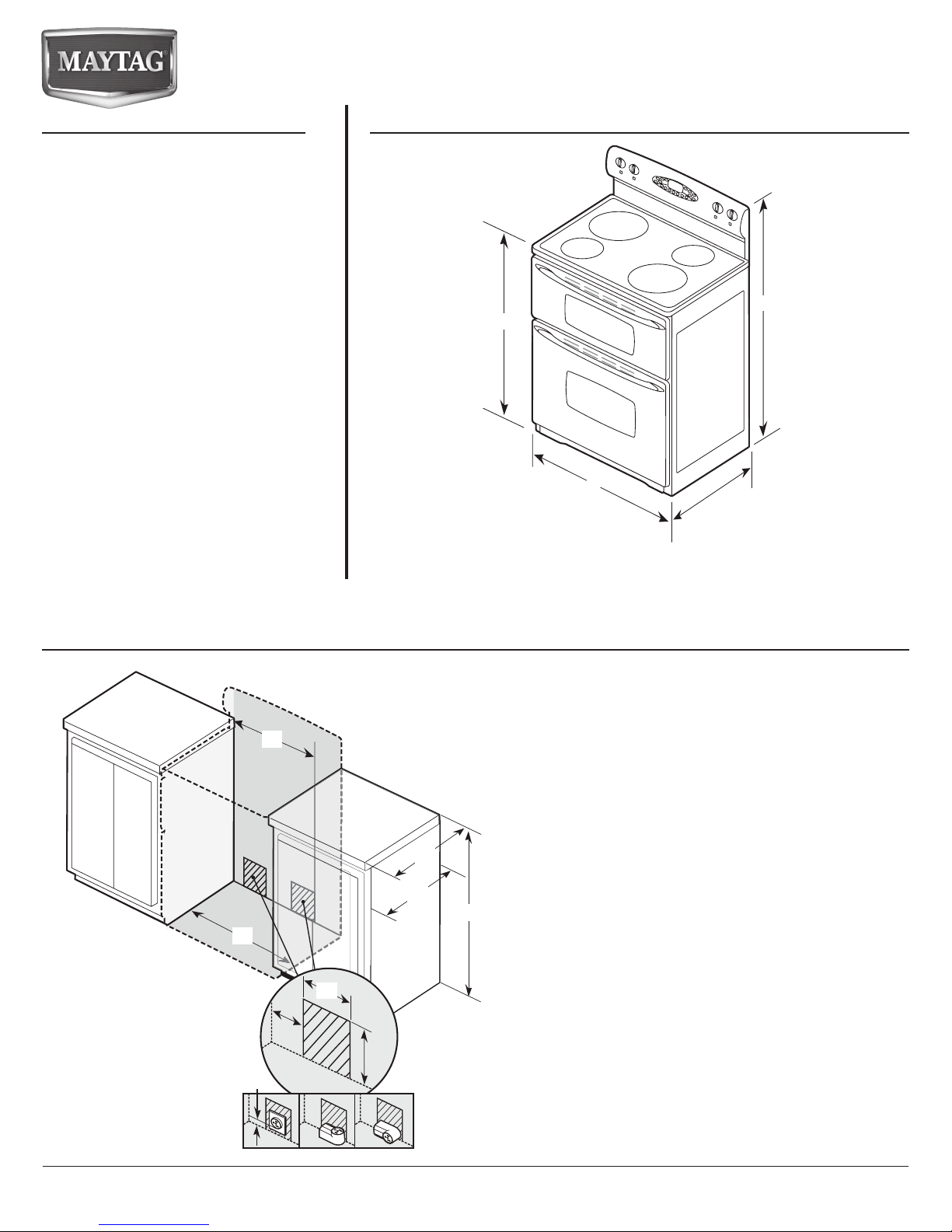

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

CABINET OPENING DIMENSIONS

MER6875BC

MER6765BA

MER6775BA

MER6775BC

MER6875BA

MER6741BA

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice. Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Electrical: This range requires a single phase

three wire 120/240 or a 120/208 volt, 60 Hz, AC

circuit. Wiring codes require a separate circuit be

run from the main entrance panel to the range and

that it be epuipped with separate disconnect

switch and fuses, either in the main entrance panel

or in a separate switch and fuse box.

Some models are shipped direct from the factory

with service cord attached. When using a power

supply cord, use only a supply cord with closed

loop terminals rated either 240 volts, 40 amps or

240 volts, 50 amps that is marked for use with

nominal 1³⁄₈" (34.94 mm) diameter connection

opening and marked for ranges. A 4-conductor

cord is to be used on new branch-circuit

installations (1996 NEC), mobile homes,

recreational vehicles and where local codes

prohibit grounding through the neutral conductor.

A 3-wire service may be used when permitted by

local codes. When a power supply cord is used, a

cord no longer than 4 feet should be used.

A. 26⁵⁄₁₆" - 27-1/4" (66.8 - 69.2 cm) depth excluding handle

B. 46⁷⁄₈" (119.1 cm) overall height

C. 35⁷⁄₈" (91.1 cm) cooktop height

D. 29⁷⁄₈" (75.9 cm) width

A. 20" (50.8 cm), 20 ¹⁄₂ (52.1 cm) Canada, min. opening width

B. 30" (76.2 cm), 31" (78.7 cm) Canada, min. opening width

C. 25" (63.5 cm) min. countertop depth

D. 24" (61 cm) min. cabinet depth

E. 36" (91.4 cm) countertop height

F. 6" (15.2 cm) electrical outlet placement

G. 1¹⁄₂" (3.8 cm) min.

Ref. 8101P630-60

11/16/09

36"

(91.4 cm)

3 Wire 4 Wire

B

C

D

A

B

F

D

C

E

G
