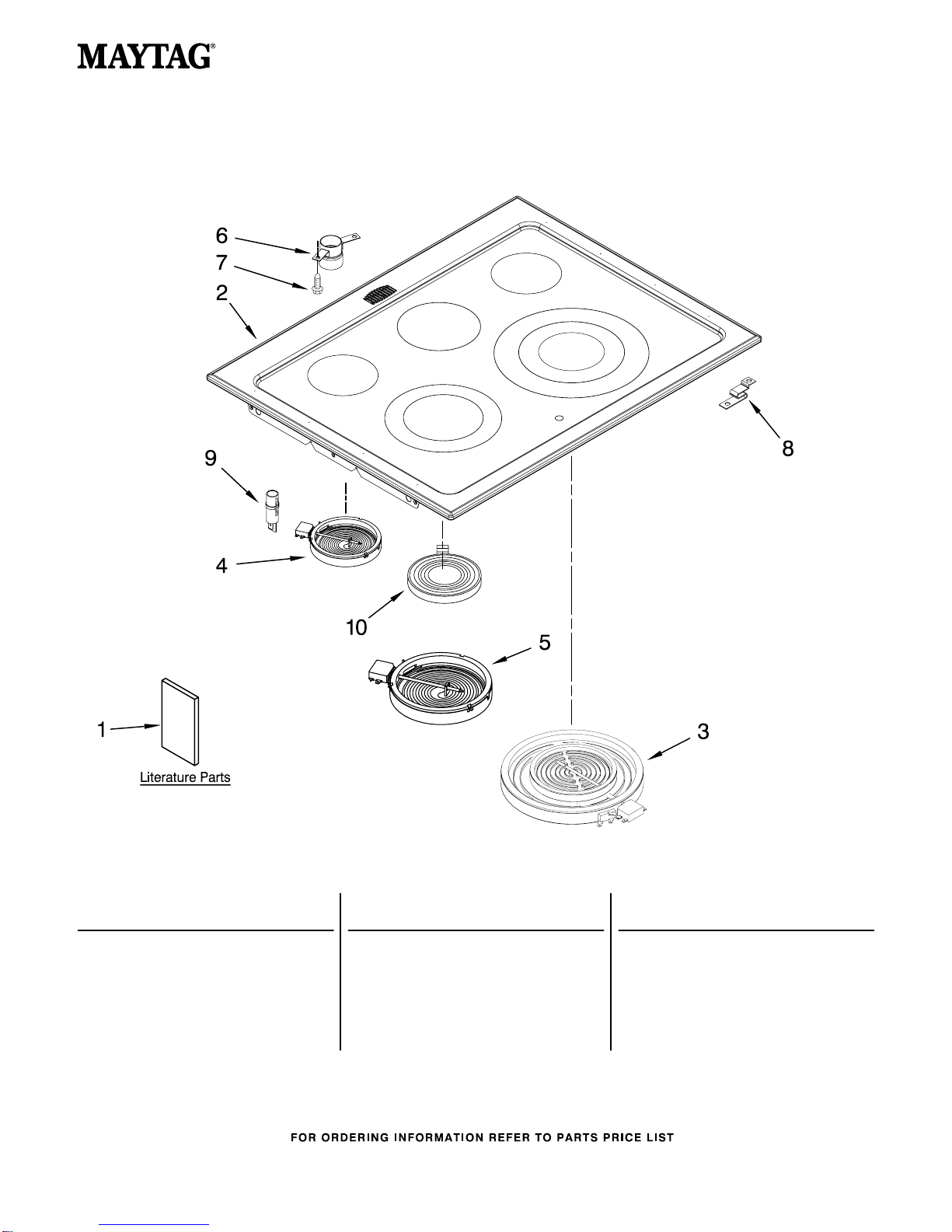

COOKTOP PARTS
1
For Models: MES5775BAB19, MES5775BAF19, MES5775BAS19
(Black) (Frost White) (Stainless)
5−10 Litho in U.S.A. (LANK) (psw) Part No. W10298327 Rev. B
30" Slide−In
Electric Range
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8113P771−60
Use & Care Guide
8101P716−60
Installation,
Instructions
8119P148−60
Wiring Diagram
2 Cooktop
5706M538−09
Black
5706M538−81
White
5706M538−50
Stainless
3
7406P410−60
Element (RF)
4
7406P403−60
Element (LF)
5 8523698 Element (LR/RR)
6
W10233479
Tube, Vent Upper
7
7101P426−60
Screw
8
8004P093−60
Support,Element
9
7407P193−60
Light, Indicator
10 9762851 Element, Warm Zone

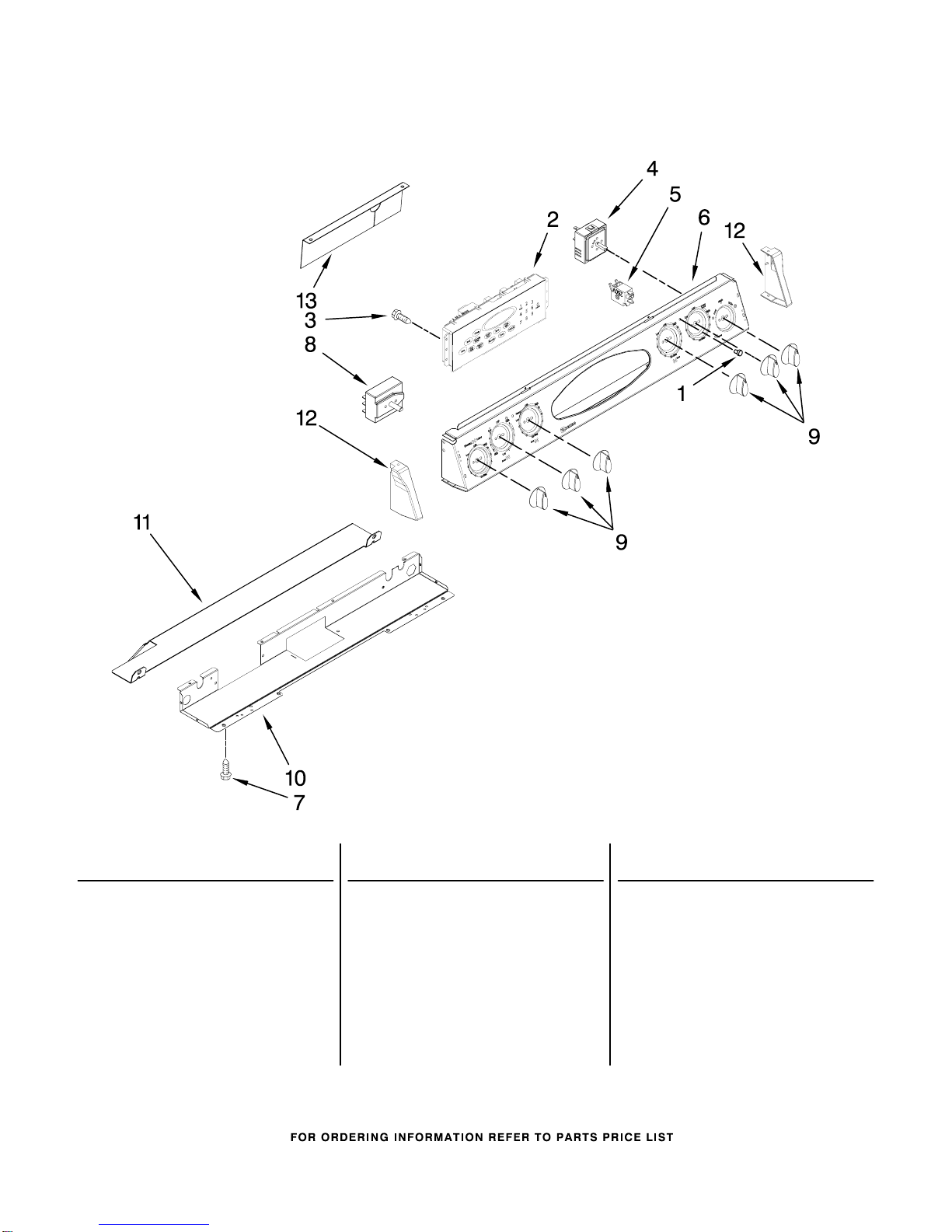

CONTROL PANEL PARTS
2
For Models: MES5775BAB19, MES5775BAF19, MES5775BAS19
(Black) (Frost White) (Stainless)
W10298327
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
7730P011−60
Lens
2 Control W/Overlay
5701M881−60
Black
5701M882−60
White
3
7101P077−60
Screw
4 Switch, Infinte
7450P011−60
LF
7403P373−60
LR
7403P992−60
RF
7403P877−60
RR
7450P024−60
Center
5
7407P136−60
Light, Indicator
6 Panel, Control
2614D131−09
Black
2614D131−81
White
2614N147−50
Stainless
7
7101P426−60
Screw
8
7403P255−60
Switch, Selector
9 Knob (6)
7737P235−60
Black
7737P238−60
White
10
3807F729−51
Support,
Control Panel
11
3604F421−51
Shield, Control
12 Trim, End Cap
7726P400−60
Black, Right
7726P401−60
Black, Left
7726P332−60
White, Right
7726P333−60
White, Left
13
7003P150−60
Shield, Insulator
CHASSIS PARTS
3
For Models: MES5775BAB19, MES5775BAF19, MES5775BAS19
(Black) (Frost White) (Stainless)
W10298327

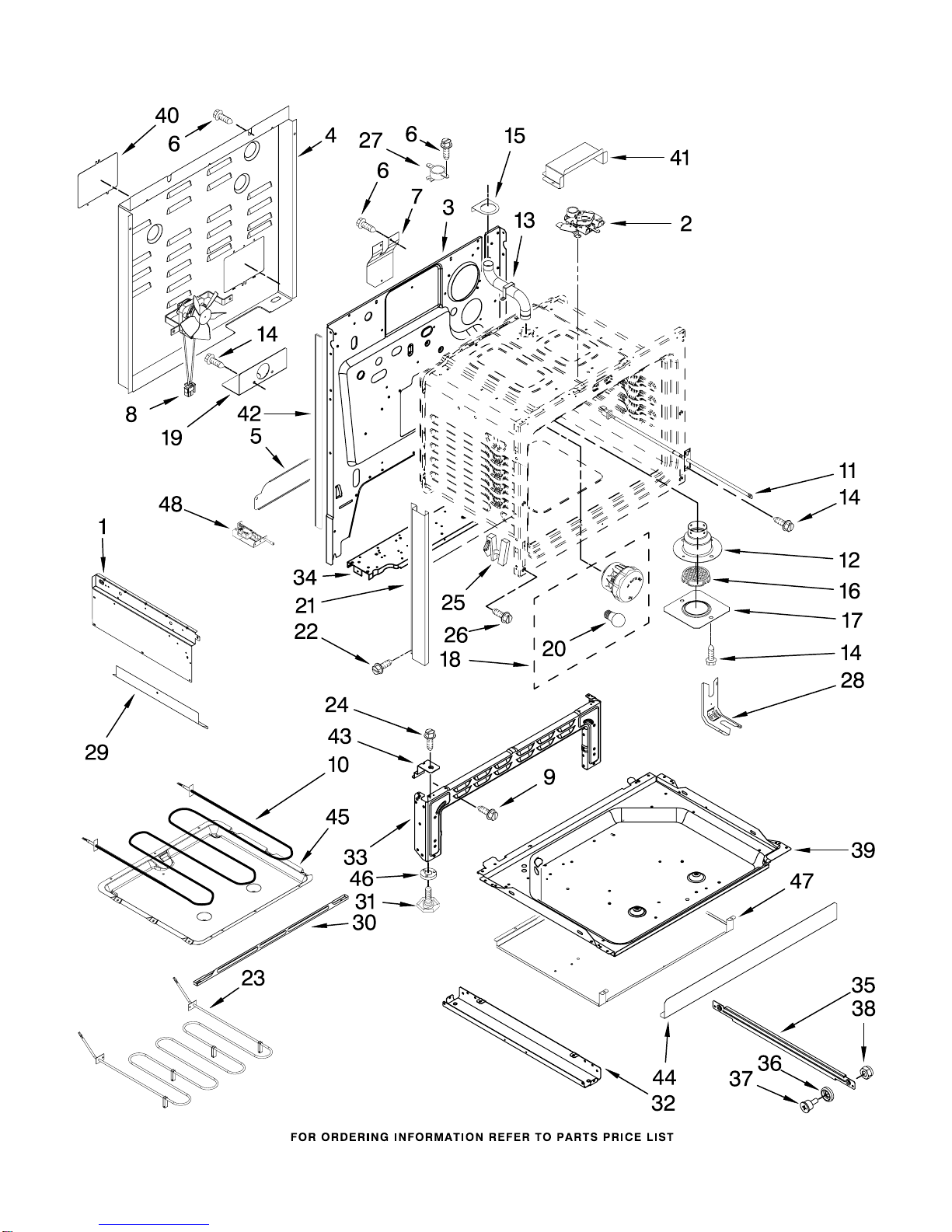

CHASSIS PARTS
4
For Models: MES5775BAB19, MES5775BAF19, MES5775BAS19
(Black) (Frost White) (Stainless)
W10298327
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Panel, Shield
2618F201−51
Left
2618F206−51
Right
2
8002P089−60
Latch Assembly
3
3804F313−51
Main Back
4
4005F810−51
Cover, Main Wire
5
3826F066−51
Extension, Back
6
7101P426−60
Screw
7
7003P101−60
Insulator, Cord
8
7427P094−60
Fan, Cooling
9
7101P434−60
Screw
10
7406P218−60
Element, Broil
11
7430P042−60
Sensor, Oven
12
8026P096−60
Tube, Vent Lower
13
8026P084−60
Tube, Vent Middle
14
7101P426−60
Screw
15
3605F345−51
Holder, Vent Tube
16
8034P008−60
Smoke Eliminator
17
3605F354−45
Plate, Smoke Elm.
18
7407P182−60
Light Assembly
19
W10190166
Bracket,Pwr Supply
20
7407P103−60
Bulb, Oven
21 Trim, Side
3608F138−70
Black
3608F138−71
White
22
7101P434−60
Screw
23
7406P411−60
Element, Bake
24
7101P434−60
Screw
25
7106P141−60
Hinge (2)
26
7101P336−60
Screw, Hinge (4)
27
7450P034−60
Switch, Hi−Limit
28
3801F656−51
Bracket,Anti−Tip
29
3826F064−51
Extention, Shield
30
3807F494−45
Support, Element
31
7101P660−60
Leg, Leveling
32
4020W035−80
Pedestal, Bottom
33
W10271711
Pedestal, Front
34
3807F640−51
Support
35
W10182835
Runner, Drawer (2)
36
W10272883
Roller, Drawer (2)
37
7118P032−60
Shaft, Roller (2)
38
7103P190−60
Nut, Lock (2)
39
3804F231−51
Retainer, Bottom
40
4005F612−51
Cover, Terminal
41
4005F750−51
Cover, Door Latch
42
2205F060−19
Bottom, Oven
43
3807F727−45
Support, Oven Btm
44
4005F749−45
Cover, Front
45
3401F092−45
Pan, Bake
46
7103P212−60
Nut, Leveling Leg
47
3604F326−45
Shield, Warm Dwr
48
7450P109−60
Assembly,
Light Switch
INSULATION
7002P471−60
Insulation, Wrap
7002P445−60
Insulation, Back
7002P448−60
Insulation,
Hidden Bake Cover
7002P443−60
Insulation,
Oven Bottom

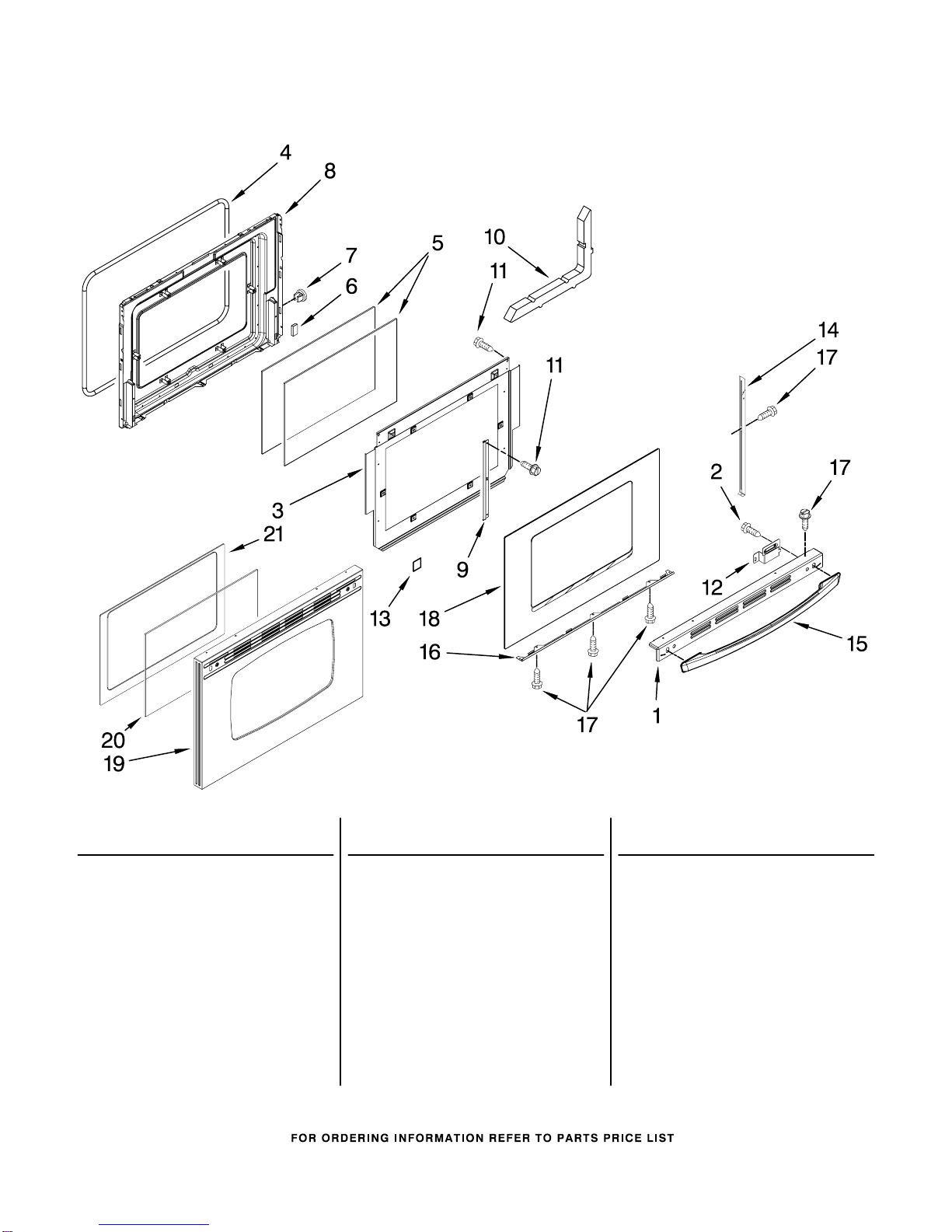

DOOR PARTS
5
For Models: MES5775BAB19, MES5775BAF19, MES5775BAS19
(Black) (Frost White) (Stainless)
W10298327
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Trim, Door Top
3608F141−70
Black
3608F141−71
White
2
7101P681−60
Screw, Handle (2)
3
3601F373−51
Baffle, Retainer
4
W10162384
Seal, Door
5
7902P436−60
Glass, Inner (2)
6
8010P130−60
Spacer, Rubber
7
7103P141−60
Nut, Snap (4)
8
2402W312−19
Lining, Door
9
3801F886−51
Bracket, Glass (2)
10
7002P246−60
Insulation, Door
11
7101P426−60
Screw
12 Bracket, Handle
3801F832−45
Left
3801F831−45
Right
13
8010P152−60
Spacer, Rubber
14 Trim, Door Side
3608F117−70
Black, Left
3608F116−70
Black, Right
3608F117−71
White, Left
3608F116−71
White, Right
15 Handle, Door
7701P516−60
Black
7701P517−60
White
7701P526−60
Stainless
16 Trim, Door Bottom
3807F708−70
Black
3807F708−71
White
17
7101P633−60
Screw, Trim
18 Panel, Outer
Door
7902P797−60
Black
7902P736−60
White
19
7760P186−60
Panel, Door
(Stainless Only)
20
7902P768−60
Glass, Door Inner
(Stainless Only)
21
7902P752−60
Glass, Outer
(Stainless Only)

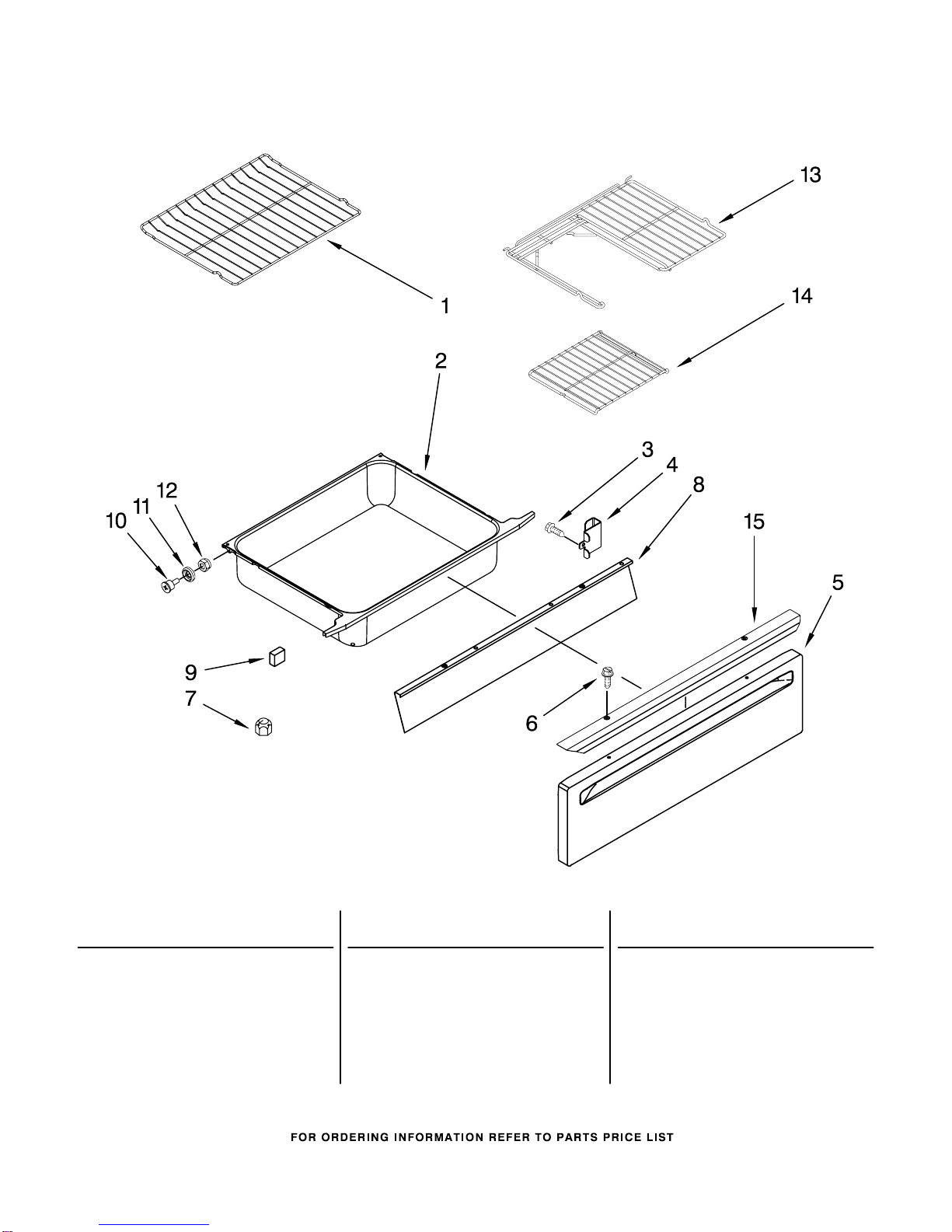

DRAWER AND RACK PARTS
6
For Models: MES5775BAB19, MES5775BAF19, MES5775BAS19
(Black) (Frost White) (Stainless)
W10298327
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
7801P173−60
Rack, Oven (2)
2
3405F033−80
Drawer, Storage
3
7101P072−60
Screw, Panel
4
3801F887−51
Bracket, Drawer
5 Panel, Drawer
2416F059−70
Black
2416F059−71
White
W10253205
Stainless
6
7101P072−60
Screw, Panel
7
7103P139−60
Nut, Lock
8
2404F030−51
Lining, Drawer
9
8010P130−60
Spacer, Rubber
10
W10272883
Roller, Drawer (2)
11
7118P032−60
Shaft, Roller (2)
12
7103P082−60
Nut
13
W10273862
Rack, Oven Half
14
W10275560
Rack,
Oven Half Insert
15
W10180296
Handle, Drawer
(Stainless Model)
OPTIONAL PARTS (NOT INCLUDED)
7
For Models: MES5775BAB19, MES5775BAF19, MES5775BAS19
(Black) (Frost White) (Stainless)
W10298327
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
REFINISHING MATERIAL
242756 Touch−Up
Self−Clean(1/2 Pt)
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
511873 White Porcelain
(2 Oz.)
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit(Uncut)
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
3191048 Cleaner, Glass
WIRING HARNESS PARTS
5171P560−60
Harness, Sensor
5171P845−60
Harness, Top
5171P555−60
Harness,
Unity (Right)
5171P564−60
Harness,
Unity (Left)
5171P508−60
Harness, Main
