COOKTOP PARTS

For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0

(White) (Black) (Stainless Steel)

3−10 Litho in U.S.A. (JMJ) (eeb) Part No. W10274029 Rev. B

30" GAS FREESTANDING

SELF CLEAN RANGE

SEALED BURNER

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10196161

Installation

Instructions

Anti−Tip Template

9757142 English/Spanish

9757143 English/French

W10234650

Owners Manual

W10198615

Tech Sheet

9762761 Safer Cooking Tips

2 Cap, Burner

Left Front

W10183368

Black

W10169973

Grey

R. Front, L. Rear

W10183369

Black

W10169974

Grey

Right Rear

W10183370

Black

W10169975

Grey

3 Burner

8286183 Left Front

W10194076

R. Front, L. Rear

8286181 Right Rear

4 Cooktop

W10153562

White

W10153563

Black

5 Panel, Manifold

8523855 Black

8523854 White

6 Knob, Control (3)

W10200193

Black

W10200192

White

8 Grate, Burner (4)

W10233576

Black

W10233577

Grey

9 3400701 Screw

10 3196557 Screw

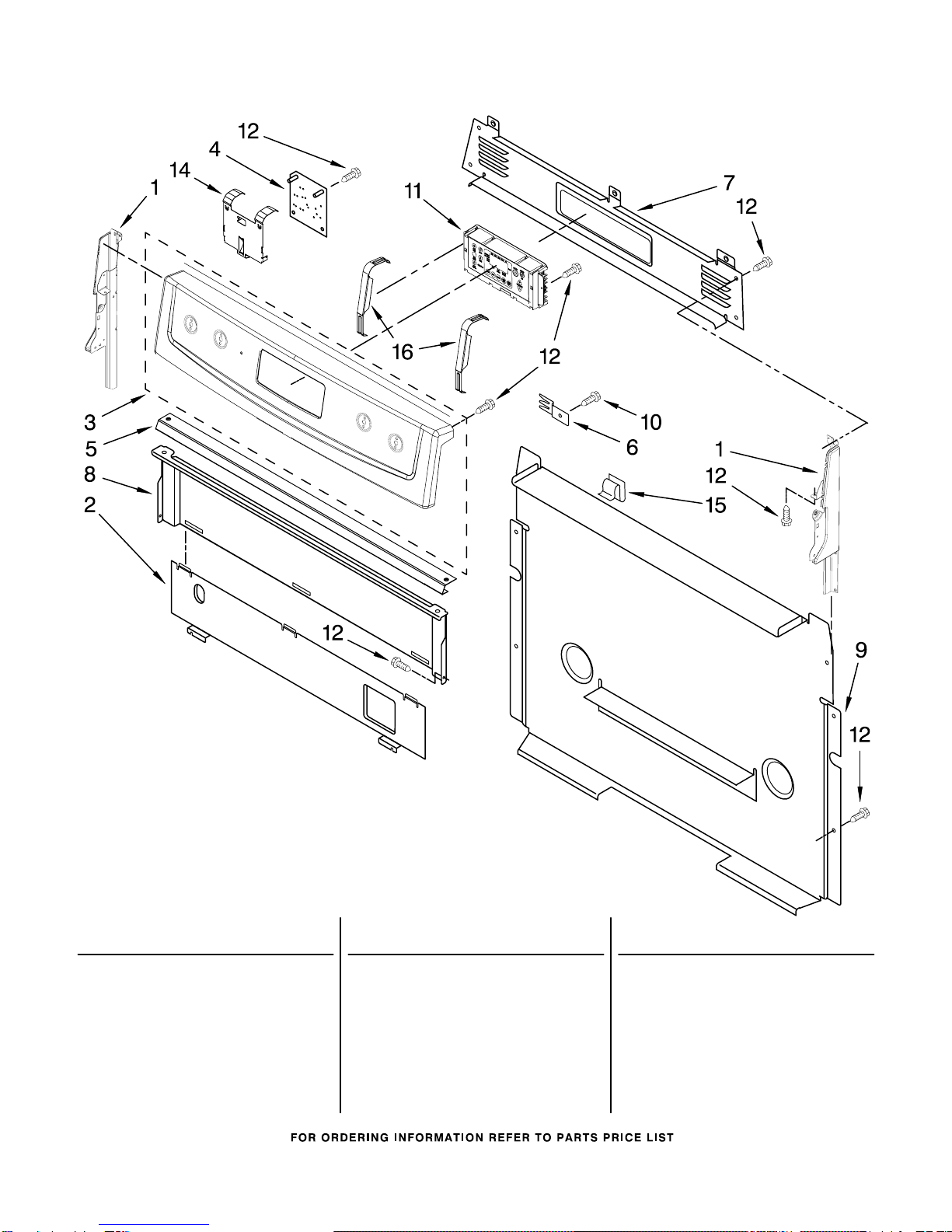

CONTROL PANEL PARTS

For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0

(White) (Black) (Stainless Steel)

W10274029

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap, Left Hand

W10184437

Black

W10184433

White

Endcap, Right Hand

W10184438

Black

W10184434

White

2 8053505 Shield−Heat, Lwr

3 Panel, Console

W10225558

Black

W10111301

White

W10225560

Stainless Steel

4 9758080 Module, Spark

W10211996

Brkt−Mntg, Console

6 8523412 Bracket, Support

W10198745

Cover, Upper

W10192841

Shield, Heat

W10184370

Cover, Lower

10 3196169 Screw

11 Control, Range

W10236250

Black

W10236249

White

12 3196178 Screw

15 8273564 Clip

W10138683

Bracket, EOC Mount

W10137524

Bracket, DSI

MANIFOLD PARTS

For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0

(White) (Black) (Stainless Steel)

W10274029

MANIFOLD PARTS

For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0

(White) (Black) (Stainless Steel)

W10274029

Illus. Part

No. No. DESCRIPTION

1 8273096 Screw, Valve

3 Tubing, Burner

W/Orifice

W10170346

Left Front

W10157418

Left Rear

W10170345

Right Front

W10157415

Right Rear

W10157928

Tubing (Manifold

to Regulator)

5 8523406 Harness, Igniter

(W/Switches)

W10216419

Electrode (4)

W10169928

Pipe, Manifold

8 Valve

9757218 LF − RF − LR

8273004 Right Rear

10 8273062 Screw (4)

11 3400228 Bolt

12 8054078 Burner, Broiler

W10184491

Spreader, Flame

(Oven)

14 9758078 Burner, Bake

15 9761959 Valve/Regulator

16 Igniter

8054129 Broil

9758079 Bake

17 8272222 Tubing (Broiler

Fitting To Valve)

18 3186489 Fitting, Broiler

20 Orifice, Burner

W10170510

Left Front

W10170510

Right Front

W10170508

Left Rear

W10170506

Right Rear

W10137062

Spreader, Flame

(Broiler)

22 3196265 Screw

23 3196176 Screw

24 3196385 Screw

25 3400016 Screw

Following Parts Not Illustrated

W10170534

Spuds, LP Gas

(Kit of 4)

CHASSIS PARTS

For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0

(White) (Black) (Stainless Steel)

W10274029

CHASSIS PARTS

For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0

(White) (Black) (Stainless Steel)

W10274029

Illus. Part

No. No. DESCRIPTION

W10153186

Flue Box

2 8272747 Shield, Flue

3 8273036 Burner Box

4 Panel, Side (2)

8053830 White−Textured

8053832 Black−Textured

5 8523249 Brkt, Manifold Mtg

6 Frame, Front

(Not Serviced)

7 3196037 Foot, Front (2)

W10058460

Foot, Rear (2)

9 3195097 Bottom, Oven

W10181986

Sensor, Oven

11 8053967 Baffle, Burner

12 8053969 Shield, Heat

13 8053968 Shield, Lower

14 9760314 Rail, Base (2)

W10008830

Seal, Oven Flange

16 9758701 Spacer, Door

W10222733

Back, Main

18 8522416 Seal, Oven

19 8053971 Brace, Main Back

20 Retainer, Insul.

9761449 Left Hand

9761448 Right Hand

W10137382

Clip, Panel (6)

22 9757891 Cord, Power

23 9760407 Brkt − Hinge

24 9757262 Switch, Door

25 3196701 Light Socket Assy

26 311255 Bulb, Oven Light

27 9761013 Latch, Door

W10078370

Rod, Latch

W10107820

Latch−Mtr

W10114344

Glide, Drawer

W10182346

Insulation

33 3196178 Screw

34 3196152 Screw

35 Screw

3196166 White

3196168 Black

W10031780

Screw

37 3196179 Screw

38 3196177 Screw

39 3196168 Screw

40 9757239 Rod − Door Switch,

Rear Mount

41 3196560 Screw

INSULATION

8524099 Insulation, Wrap

W10180437

Insulation, Back

8272613 Insulation, Vent

DOOR PARTS

For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0

(White) (Black) (Stainless Steel)

W10274029

DOOR PARTS

For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0

(White) (Black) (Stainless Steel)

W10274029

Illus. Part

No. No. DESCRIPTION

1 Trim, Top

W10118391

Black

W10118390

White

2 3196164 Screw

3 Handle, Door

W10111310

Black

W10111309

White

W10118391

Stainless Steel

4 9761344 Liner, Door

W10031790

Screw

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

8 8272618 Insulation, Door

9 9761357 Retainer, Insul.

10 9761493 Hinge, Door

11 Glass, Outer Door

W10106405

Black

W10106404

White

W10181749

Stainless Steel

12 Trim, Door Side

Left Hand

8523171 Black

8523172 White

W10113926

Stainless Steel

Right Hand

8523165 Black

8523166 White

W10113925

Stainless Steel

13 3196160 Screw

14 3196165 Screw

16 3196794 Bracket, Window(2)

17 Trim, Bottom

8523177 Black

8523175 White

18 9761517 Clip, Door Mntg

W10031780

Screw

W10113759

Strap, Door

DRAWER & BROILER PARTS

For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0

(White) (Black) (Stainless Steel)

W10274029

Illus. Part

No. No. DESCRIPTION

W10179196

Rack, Oven (2)

2 9761031 Drawer, Storage

W10174397

Bracket, Drawer(2)

4 Rivet, Push (2)

3196814 White

3196813 Black

5 Panel, Drawer Frnt

W10022090

White

W10022100

Black

8053338 Stainless Steel

6 8053334 Spacer, Glide

7 3196168 Screw

8 3196167 Screw

W10217861

Panel (Stls Steel)

W10197980

Hndl (Stls Steel)

11 9781235 Clip (Stls Steel)

OPTIONAL PARTS

For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0

(White) (Black) (Stainless Steel)

W10274029

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

REFINISHING MATERIAL

242756 Touch−Up

Self−Clean(1/2 Pt)

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

4396923 Pan − Broiler

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

W10182840

Harness, Main

(EOC Pyro)

W10170250

Harness, Wire

Bake/Broil

W10174458

Harness, Wire

(Cooktop Spark)

W10045060

Harness, Wire

(Ground)

3196896 Clip, Wire

3400016 Clip, Wire

313438 Clip, Harness

3196173 Screw

3196696 Clip, Harness

3196174 Screw−Grnd Harns
