TOP AND CABINET PARTS

For Models: MFW9800TQ0, MFW9800TK0

(White) (Pacific Blue)

10−07 Printed in U.S.A. (drd) Part No. W10157670 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Models: MFW9800TQ0, MFW9800TK0

(White) (Pacific Blue)

W10157670

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137082

Use & Care Guide

8182658 Quick Start Guide

8182677 Tech Sheet

W10163495

Energy Guide

2 Top

8181641 White

W10163316

Pacific Blue

3 Cabinet

8182609 White

8182541 Pacific Blue

4 Panel, Front

8182605 White

W10163317

Pacific Blue

5 Toe Panel

8181643 White

8182550 Pacific Blue

6 8181636 Foot, Leveling

7 8181763 Bracket, Spring

8 8181695 Switch, Pressure

9 8181739 Hose, Pressure

Switch

10 8181635 Pan, Bottom

11 8182661 Brace, Transport

12 Bolt, Shipping

8182797 Upper

8182798 Lower

13 8182698 Panel, Rear

14 8183009 Cord, Power

15 8181690 Strain Relief

W10138248

Brace, Rear

17 8182701 Clip, Drain Hose

18 8181737 Hose, Drain

(Outer)

19 8181738 Connector,

Drain Hose

20 8181752 Clamp, Hose

21 8181632 Brace, Top

22 8183019 Filter,

Interference

23 Hose, Water Inlet

8182795 Blue Coupler

8182792 Red Coupler

24 8183030 Grid, Ventilation

25 8181691 Screw

26 8182700 Cover, Transport

27 8181768 Storage, Hose

28 8181828 Screw

29 8183086 Microswitch (2)

30 8182699 Grommet,

Cord Support (2)

31 8182201 Screw, 3 x 8 mm

32 8182702 Clip, Outer Hose

Holder

Following Parts Not Illustrated

8182109 Harness Channel

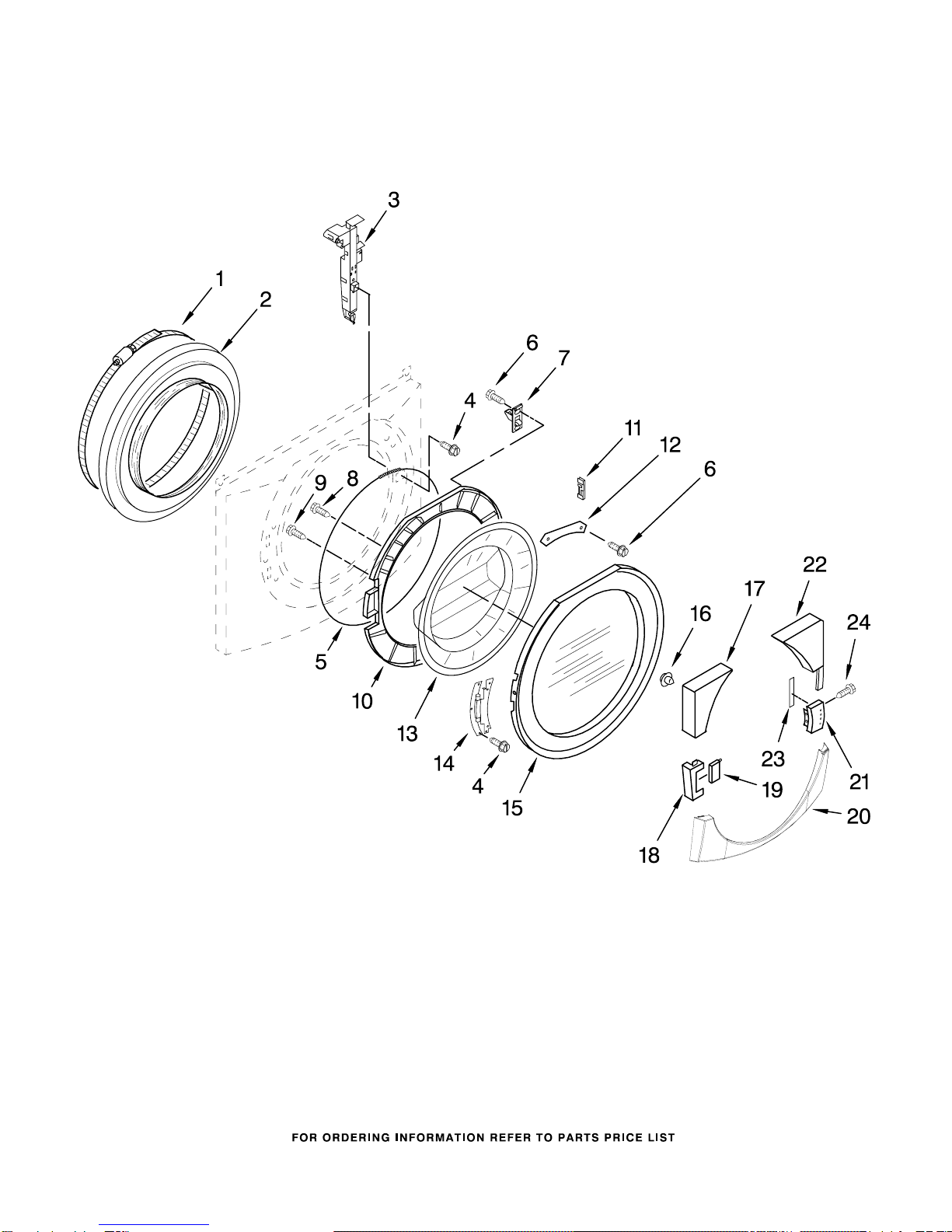

DOOR AND LATCH PARTS

For Models: MFW9800TQ0, MFW9800TK0

(White) (Pacific Blue)

W10157670

DOOR AND LATCH PARTS

For Models: MFW9800TQ0, MFW9800TK0

(White) (Pacific Blue)

W10157670

Illus. Part

No. No. DESCRIPTION

1 8182210 Clamp, Bellow

To Tub

2 8182119 Bellow

3 8182634 Lock, Door

4 8181760 Screw

5 8182211 Clamp, Bellow

To Front Panel

6 8181758 Screw

7 8181651 Hook, Door

8 8181661 Screw

9 8181660 Screw

W10163308

Frame, Door

Back Support

W10128586

Clamp,

Glass Support

12 8181650 Clamp, Glass (2)

13 8181655 Glass, Door

14 8181843 Hinge, Door

W10163299

Frame, Door

Front Assembly

16 8182779 Clip, Trim

17 Trim, Upper Left

8182592 White

W10163318

Pacific Blue

18 Cover, Hinge

(Outer)

8182595 White

W10163322

Pacific Blue

19 Cover, Hinge

(Inner)

8182596 White

W10163323

Pacific Blue

20 Trim, Lower

8182594 White

W10163321

Pacific Blue

21 Handle, Door

8182591 White

W10163324

Pacific Blue

22 Trim, Upper Right

8182593 White

W10163319

Pacific Blue

23 8182153 Foam, Door Handle

24 8181759 Screw

CONTROL PANEL PARTS

For Models: MFW9800TQ0, MFW9800TK0

(White) (Pacific Blue)

W10157670

CONTROL PANEL PARTS

For Models: MFW9800TQ0, MFW9800TK0

(White) (Pacific Blue)

W10157670

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

W10163309

White

W10163310

Pacific Blue

2 8182150 User Interface

W10163302

Button, Power

4 8182183 Pal−nut

W10163305

Button Set,

Left

W10163304

Button Set,

Middle

W10163303

Button Set,

Right

W10163306

Button Set,

Start

9 8182224 Brace, Front Top

10 8181640 Channel, Water

W10137702

Microcomputer,

Machine Control

12 8181756 Screw

13 8182212 Harness, Wiring

(Main)

14 8182171 Bezel, Knob

W10163300

Overlay, Door

16 8183059 Medallion

W10163301

Knob, Control

18 Endcap, Left

8182599 White

W10163314

Pacific Blue

19 Endcap, Right

8182600 White

W10163315

Pacific Blue

20 Handle, Drawer

(Includes Item 18)

W10163312

White

W10163313

Pacific Blue

DISPENSER PARTS

For Models: MFW9800TQ0, MFW9800TK0

(White) (Pacific Blue)

W10157670

DISPENSER PARTS

For Models: MFW9800TQ0, MFW9800TK0

(White) (Pacific Blue)

W10157670

Illus. Part

No. No. DESCRIPTION

1 8182862 Valve, Inlet

2 8181710 Hose, Flowmeter

(L−Shaped)

3 8181751 Clamp, Hose

4 8181696 Flowmeter

5 8181708 Hose, Flowmeter

6 8183010 Nozzle, Inlet

7 8181714 O−Ring

8 8183022 Harness, Wiring

(Inlet Valve)

9 8181726 Cam, Actuator

10 8181725 Lever, Water

Distribution

11 8181723 Actuator

12 8181724 Connection, Lever

13 8181727 Spring, Lever

14 8183032 Dispenser

15 8181712 Nozzle,

Distribution

16 8181747 Seal

17 8181718 Tube, Dispenser

To Bellow

18 Handle, Drawer

W10163312

White

W10163313

Pacific Blue

19 Endcap

8182599 White

W10163314

Pacific Blue

20 8182173 Cushion, Handle

21 8181720 Drawer,

Detergent

22 8181722 Container,

Detergent

23 8182665 Siphon,

Bleach/Softener

24 8181730 Separator

25 8181721 Hook, Drawer

26 8182123 Cap

TUB AND BASKET PARTS

For Models: MFW9800TQ0, MFW9800TK0

(White) (Pacific Blue)

W10157670

TUB AND BASKET PARTS

For Models: MFW9800TQ0, MFW9800TK0

(White) (Pacific Blue)

W10157670

Illus. Part

No. No. DESCRIPTION

1 8182132 Nut, Pulley

2 8182650 Pulley

3 8183269 Belt

4 8181645 Counterweight,

Front (2)

5 8181744 Pipe, Ventilation

6 8181746 Clamp

7 8181743 Hose, Exhaust

8 8181666 Tub, Rear

(Includes Items

10, 22, 23 & 24)

9 8181644 Counterweight,

Rear

10 8181673 Gasket, Tub

11 8182247 Basket

12 8182233 Baffle, Basket

13 8181748 O−Ring

14 8181731 Airtrap

15 8181785 Screw

16 8182814 Spring,

Suspension

17 8181647 Bolt

18 8181742 Clamp, Hose

19 8181794 Hose, Tub to

Dispenser

20 8181667 Clamp, Tub

21 8181665 Tub, Front

(Includes Items

10 & 22)

22 8182512 Nut, Push−In

23 8182214 Screw

24 8181686 Clamp,

Heating Element

25 8182666 Element, Heating

26 8181705 NTC

27 8182812 Shock Absorber

Following Parts Not Illustrated

8182126 Screw, Baffle

Mounting
