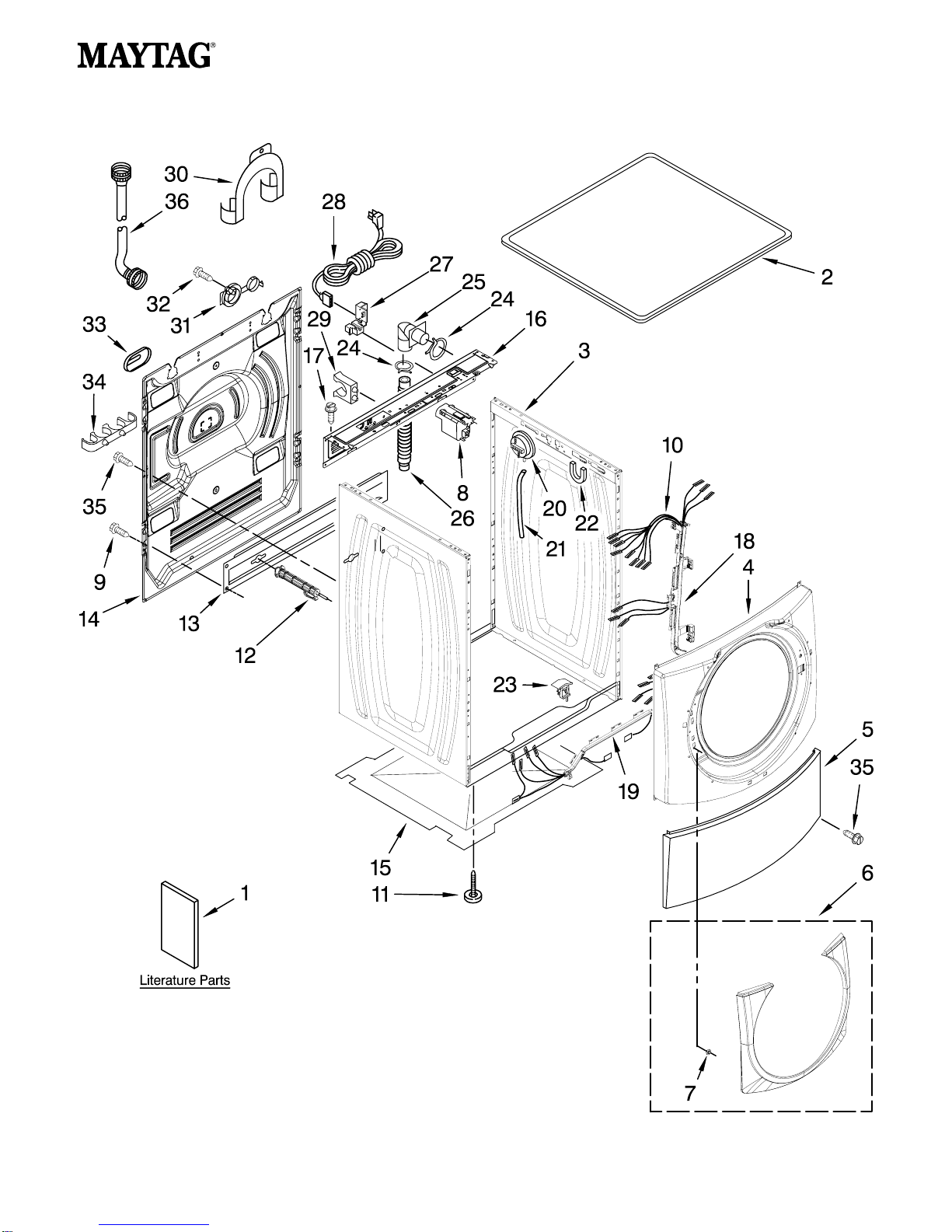

TOP AND CABINET PARTS

For Model: MHWE300VW12

(White)

4−09 Printed in U.S.A. (drd)(bay) Part No. W10270384 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Model: MHWE300VW12

(White)

W10270384

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10248061

Use & Care Guide

W10250503

Tech Sheet

8183017 Quick Start Guide

W10248060

Energy Guide

2 8181799 Top

W10250656

Cabinet

W10248114

Panel, Front

5 8181643 Toe Panel

W10248115

Ring, Trim

7 8183210 Clip, Trim

8 8183019 Filter,

Interference

W10157885

Screw, 4.2 x 14

10 8183189 Harness, Wiring

(Lower Main)

(Includes Items

18, 19 & 23)

11 8181636 Foot, Leveling

12 Bolt, Shipping

8182797 Upper

8182798 Lower

13 8182661 Brace, Transport

W10242507

Panel, Rear

15 8181635 Pan, Bottom

W10250578

Brace, Rear

17 8181756 Screw

W10121609

Channel, Harness

(Side)

W10121610

Channel, Harness

(Bottom)

W10271610

Switch, Pressure

21 8181739 Hose, Pressure

Switch

22 8181763 Bracket, Spring

W10189678

Microswitch (2)

24 8181752 Clamp, Hose

25 8181738 Connector,

Drain Hose

26 8181737 Hose, Drain

(Outer)

27 8181690 Strain Relief

28 8183009 Cord, Power

29 8182702 Clip, Outer

Hose Holder

30 8181768 Storage, Hose

31 8182699 Sleeve,

Cord Support (2)

32 8182201 Screw, 3 x 8 mm

33 8182700 Cover, Transport

34 8182701 Clip, Outer

Hose Holder

35 8181828 Screw

36 Hose, Water Inlet

8182795 Blue Coupler

8182792 Red Coupler

DOOR AND LATCH PARTS

For Model: MHWE300VW12

(White)

W10270384

Illus. Part

No. No. DESCRIPTION

1 8182210 Clamp, Bellow

To Tub

2 8182119 Bellow

3 8183270 Lock, Door

4 8182211 Clamp, Bellow

To Front Panel

5 8181760 Screw

6 8183198 Hook, Door

7 8181758 Screw

8 8181661 Screw

9 8181660 Screw

10 8183195 Frame, Door

Back Support

11 8181659 Clamp, Glass

Support

12 8181655 Glass, Door

13 8183202 Hinge, Door

14 8183199 Clamp, Glass (2)

15 8183256 Frame, Door

Front Support

W10248071

Screen, Door

W10248123

Trim Ring,

Outer Door

(Includes Item 18)

W10121607

Pad, Door Handle

CONTROL PANEL PARTS

For Model: MHWE300VW12

(White)

W10270384

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10248112

Panel−Control

W10248116

Knob, Control

(Includes Item 5)

3 8181758 Screw

W10248117

Bushing, Knob

W10248122

Light Guide, Cycle

W10271608

User Interface

7 8181661 Screw

W10248120

Seal,

User Interface

W10248121

Light Guide−

Cycle, Internal

W10248118

Foil−Display

W10248119

Light Guide−

Display

W10168511

Harness, Wiring

(User Interface)

W10271604

Microcomputer,

Machine Control

14 8183203 Brace, Front Top

15 8183204 Channel, Water

16 8181756 Screw

W10271602

Harness, Wiring

(Upper Main)

DISPENSER PARTS

For Model: MHWE300VW12

(White)

W10270384

DISPENSER PARTS

For Model: MHWE300VW12

(White)

W10270384

Illus. Part

No. No. DESCRIPTION

1 8182862 Valve, Inlet

W10168480

Hose, Inlet Valve

To Dispenser

3 8181754 Clamp, Hose

4 8181751 Clamp, Hose

5 8183181 Nozzle, Inlet

6 8183183 Lever, Water

Distribution

7 8183184 Cam, Actuator

W10161052

Lever, Connection

9 8181661 Screw

10 8183186 Actuator

W10157886

Dispenser,

Complete

(Includes Item 8)

W10164400

Plate,

Distribution

13 8181712 Nozzle,

Distribution

14 8181721 Hook, Drawer

W10121596

Separator, With

Selection Slider

W10121598

Syphon,

Bleach/Softener

17 8183179 Cover,

Detergent Drawer

18 8183173 Drawer, Detergent

(Complete)

W10248111

Bracket, Handle

Fixation

W10248109

Handle, Drawer

(Includes Items

19 & 21)

W10248108

Medallion

22 8181747 Seal

23 8181718 Tube, Dispenser

To Bellow

TUB AND BASKET PARTS

For Model: MHWE300VW12

(White)

W10270384

TUB AND BASKET PARTS

For Model: MHWE300VW12

(White)

W10270384

Illus. Part

No. No. DESCRIPTION

1 8182132 Nut, Pulley

2 8182650 Pulley

W10248068

Belt

4 8181645 Counterweight,

Front (2)

W10253670

Pipe, Ventilation

W10208156

Clamp

7 8181743 Hose, Exhaust

W10253855

Tub, Rear

(Includes Items

10, 22, 23 & 24)

9 8181913 Counterweight,

Rear

10 8181673 Gasket, Tub

W10250573

Basket

W10250572

Baffle, Tub

W10250553

O−Ring

14 8181731 Airtrap

15 8181785 Screw

16 8182814 Spring,

Suspension

17 8181647 Bolt

18 8181742 Clamp, Hose

19 8183187 Hose, Exhaust

20 8181667 Clamp, Tub

21 8182312 Tub, Front

(Includes Items

10 & 22)

22 8182512 Nut, Push−In

23 8182214 Screw

W10250572

Bracket,

Heater Support

25 8182666 Element, Heating

26 8181705 NTC

27 8182812 Shock Absorber (4)

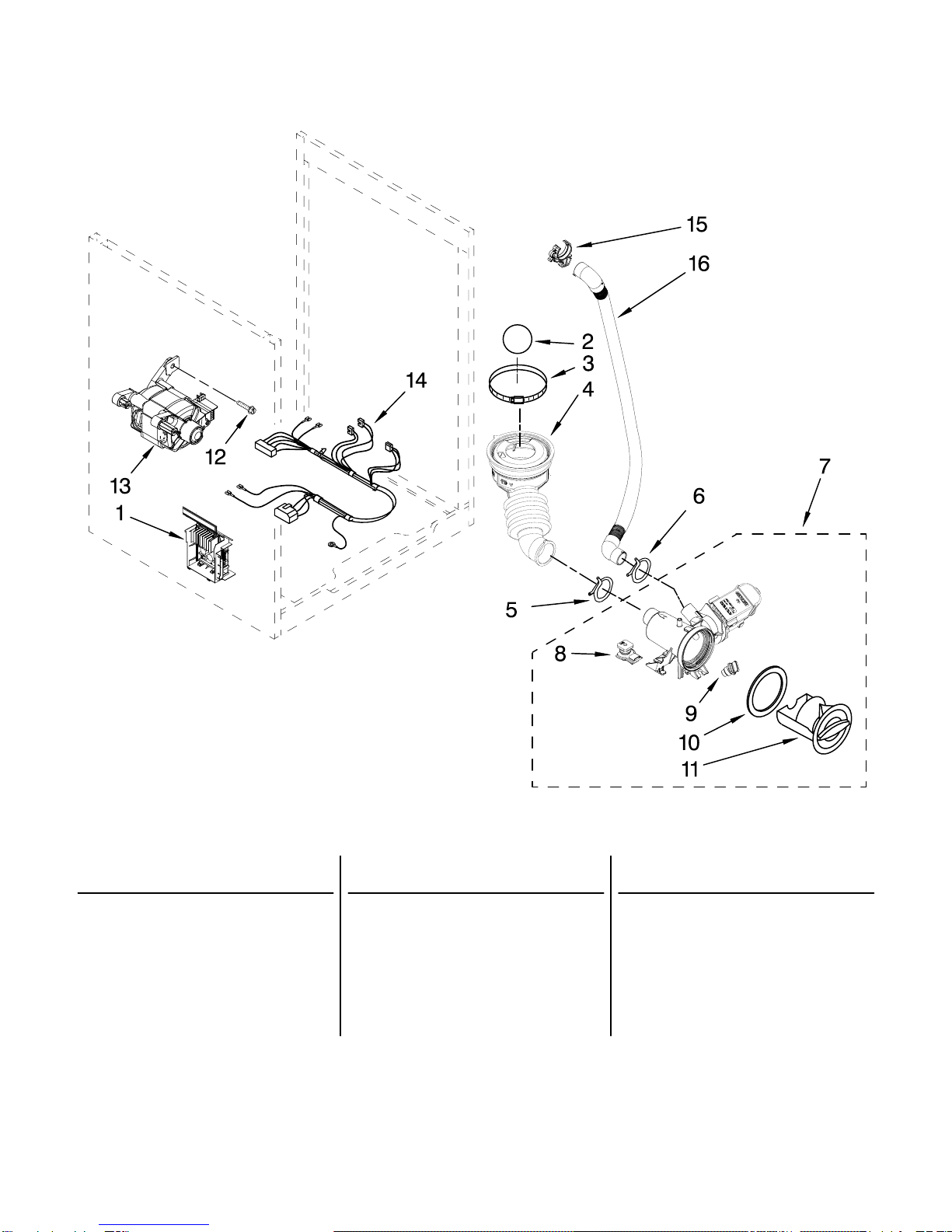

PUMP AND MOTOR PARTS

For Model: MHWE300VW12

(White)

W10270384

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8183196 Motor Control Unit

W10121657

Ball

3 8181734 Clamp

4 8181732 Hose,

Tub to Pump

5 8181753 Clamp

6 8181752 Clamp

7 8182821 Pump (Complete)

8 8182820 Grommet, Damper

(Rear)

9 8182816 Grommet, Damper

(Front)

10 8181736 Seal, Filter Cap

11 8183027 Cap, Filter

(Includes Item 10)

W10128585

Bolt, Motor

13 8182793 Motor

W10189680

Harness, Motor

(Includes Item

23 On Page 1)

15 8182209 Retainer,

Drain Hose

16 8181740 Drain Hose

(Inner)

OPTIONAL PARTS (NOT INCLUDED)

For Model: MHWE300VW12

(White)

W10270384

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORY PARTS

285863 Drain Extension

4396899 Rear Guard

38005 Stack Kit

W10135699

Affresh

Odor Remover
