Maytag MTW6300TQ0 Manuale utente

TOP AND CABINET PARTS

For Model: MTW6300TQ0

(White)

10−07 Litho in U.S.A. (slc) Part No. W10131043 Rev. A

AUTOMATIC WASHER

TOP AND CABINET PARTS

For Model: MTW6300TQ0

(White)

W10131043

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10092684

Use & Care Guide

W10092700

Tech Sheet

W10092691

Quick Start Guide

8577781 Wiring Diagram

W10092738

Energy Guide

W10058300

Top

W10114656

Frame Assembly,

Cabinet Top

(Includes

Items 31 & 38)

4 3390647 Screw, 8−18 X 1/2

5 8566156 Cabinet

6 8566090 Panel, Rear

7 8543781 Retainer, Drain

Hose Storage

8 8576784 Sound Absorber,

Cabinet

W10111536

Ball,

Suspension (4)

10 8564009 Damper Assembly,

Tub Suspension

(Set Of 4−Includes

Items 45 & 46)

11 1157158 Screw, 8−18 x 3/8

W10042120

Locator, Top (2)

W10119828

Screw, Lid

Hinge

Mounting (4)

14 8576780 Hinge Arm, Lid (2)

15 Hinge, Spring

Assembly

8563958 (Left)

8563959 (Right)

16 8565184 Absorber, Sound

(Bottom)

W10052730

Bearing, Lid

Hinge (2)

W10093736

Liner, Lid

(Includes Item 48)

19 8572891 Lid

20 8578826 Foot Assembly,

Leveling (4)

21 3400076 Screw, 10−32 x 5/8

22 8281736 Wire,

Ground Jumper

W10059160

Dispenser, Bleach

24 8566211 Bezel, Bleach

Dispenser

25 8564976 Dispenser,

Detergent

26 8576772 Bezel, Detergent

Dispenser

W10106990

Nozzle Assembly,

Fresh Water

28 371503 Clamp, Hose

W10059230

Lock Assembly, Lid

30 8572019 Bezel, Lid Lock

31 8564458 Absorber, Impact

32 8564456 Hinge, Top (2)

33 18849 Pad, Top Hinge (2)

34 343641 Screw,

10−16 x 1/2 (2)

35 8563941 Cover, Harness

36 693995 Screw, 8−18 x 3/8

37 8543784 Bracket,

Drain Hose

38 8578386 Shield, Wire

Harness

39 8281136 Screw, 10−16 x 3/4

40 8576476 Spacer, Rear

(Cabinet/Top)

41 370451 Clamp, Hose

42 371503 Clamp, Hose

43 3400061 Screw,

10−16 x 9/16

44 90016 Clip, Harness (5)

45 8577896 Washer, Suspension

Umbrella (4)

46 8564017 Cup,

Suspension (4)

47 8563785 Lock, Top−

Front (2)

W10076780

Bumper, Lid (2)

W10076920

Screw (2)

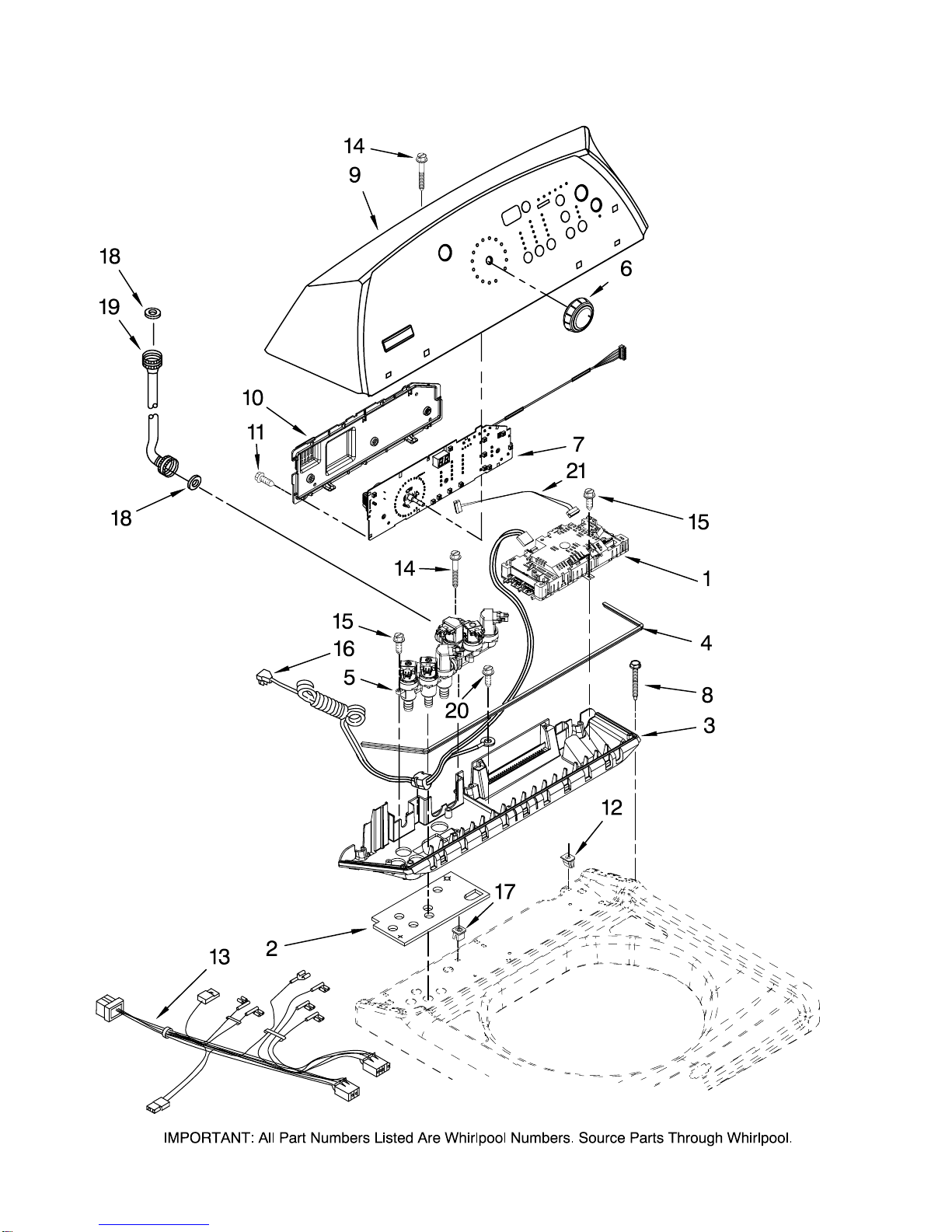

CONTROL PANEL PARTS

For Model: MTW6300TQ0

(White)

W10131043

CONTROL PANEL PARTS

For Model: MTW6300TQ0

(White)

W10131043

Illus. Part

No. No. DESCRIPTION

W10112113

Control Unit

Assembly,

Machine & Motor

2 8565260 Gasket, Valve Tray

3 8565304 Tray Assembly,

Console (Includes

Items 2 & 4)

4 8565259 Gasket,

Console/Tray

W10059310

Valve, Log

Assembly

W10110196

Knob, Control

W10051091

User Interface

W10004990

Screw, 6−20 x 1.2

W10090707

Console

10 8564265 Cover, Rear−

User Interface

W10003770

Screw,

6−19 x 1/2 (3)

W10022060

Nut, Push−In (3)

W10045090

Harness, Upper

14 8565324 Screw,

10−16 x 1.75

15 8281136 Screw, 8−18 x 3/4

16 3407203 Cord Assembly,

Power

17 98460 Nut, Push−In (2)

18 3976300 Washer, Water

Inlet Hose

(1−1/16 x 5/8)(4)

19 Hose, Water Inlet

8571377 Blue Coupler

8571378 Red Coupler

20 488649 Screw, Power

Cord Ground

21 3407187 Harness,

Thermistor

MOTOR, BASKET AND TUB PARTS

For Model: MTW6300TQ0

(White)

W10131043

MOTOR, BASKET AND TUB PARTS

For Model: MTW6300TQ0

(White)

W10131043

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10108420

Tub Ring

2 8566491 Dispenser,

Fabric Softener

W10074580

Cap, Barrier

W10072840

Seal, Inner Cap

W10076310

Agitator, Assembly

(Complete)

W10076270

Screw & Washer

Assembly

W10076260

Washer

W10076210

Cam, Agitator

9 8558884 Roller, Agitator

Cam (Set of 4)

10 8578563 Spacer, Thrust−Cam

11 8577284 Auger, Agitator

12 8566279 Spacer, Thrust

W10076190

Agitator

14 8533953 Screw,

8−16 X 1.000 (6)

W10118114

Hub, Basket−Driven

(Includes Item 16)

16 8545953 Hub, Basket−Driver

(Includes Item 15)

W10118180

Basket Assembly

(Includes Items

14, 15, & 16)

18 8572660 Tub & Drive Shaft

Assembly

19 8566197 Filter, Dual

Pump Hood

20 8533928 Screw,

8−18 X 3/4 (2)

21 8542674 Weight

Tub Counterbalance

W10004910

Screw,

12−16 X 1−1/4 (2)

23 8565172 Tub, Buffer

(Set of 4)

24 8557839 Shield,

Drive Motor

(Includes Item 23)

25 8557836 Plate, Stator

(Set of 2)

26 8565188 RPS Assembly

27 8565170 Stator, Motor

(Includes Item 25)

W10076010

Screw,

1/4−20 X .968 (4)

29 8565177 Rotor, Main Drive

Motor (Includes

Item 30)

30 Bolt, Rotor

Assembly

Non−Serviceable

(Supplied W/Rotor)

31 8572540 Hose, Pressure

Switch

W10058730

Harness, Lower

(Includes Item 31)

W10005430

Clamp, Pressure

Hose Retainer

34 8533957 Screw, 10−16 X 1/2

PUMP PARTS

For Model: MTW6300TQ0

(White)

W10131043

Illus. Part

No. No. DESCRIPTION

W10049390

Pump Assembly,

Drain

2 8571715 Hose, Drain

3 8543774 Hose, Recirc

W10049400

Pump Assembly,

Recirc

5 8534063 Screw,

10−14 x 1.000

6 370449 Clamp, Hose

7 8269146 Clamp, Hose

8 8317496 Clamp, Hose

9 8182771 Grommet, Pump

Mounting (4)

10 8534021 Clamp, Recirc

Hose Retainer

11 8533943 Screw, 10−16 x 3/4

12 8182768 Clamp,

Drain Pump Hose

13 8576642 Retainer,

Drain Hose

14 3347868 Cable Tie

15 8182769 Hose, Recirc Pump

16 8182770 Clamp,

Recirc Pump Hose

17 8182767 Hose, Drain Pump

OPTIONAL PARTS (NOT INCLUDED)

For Model: MTW6300TQ0

(White)

W10131043

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

WATER SYSTEM PARTS

285442 Connector Kit,

Plastic Drain

Hose

285321 Sleeve Kit,

(Contains 2

Sleeves)

285320 Siphon Break Kit

367031 Drain Protector

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

COUPLING

384496 Coupling, Hose
