TOP AND CABINET PARTS

AUTOMATIC

WASHER

For Models: MVWC700VW0, MVWC700VJ0

(White) (Oxide)

8−09 Litho in U.S.A. (drd) (psw)(eeb) Part No. W10218816 Rev. B

TOP AND CABINET PARTS

2W10218816

For Models: MVWC700VW0, MVWC700VJ0

(White) (Oxide)

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Installation

Instructions

W10200331

English/French

W10200662

Spanish

Use & Care Guide

W10092796

English/French

W10092797

Spanish

Feature Sheet

W10092800

English/French

W10092801

Spanish

W10092805

Energy Guide

W10111392

Wiring Diagram

2 Lid Assembly

W10164516

White

W10196543

Oxide

W10119828

Screw, Lid Hinge

Mounting (4)

4 8319539 Bearing, Lid

Hinge (2)

5 3351614 Screw, Ground

6 8318084 Switch, Lid

7 8559336 Hinge, Lid (L.H.)

W10202542

Hinge, Lid (R.H.)

9 62780 Clip, Top &

Cabinet & Rear

Panel (2)

10 Dispenser, Bleach

W10192089

White

W10196539

Oxide

11 Top

W10203530

White

W10212421

Oxide

12 62750 Spacer, Cabinet

To Top (4)

13 Cabinet

63424 White

W10207741

Oxide

14 3390631 Screw,

10−16 x 3/8 (4)

W10177046

Cabinet −

Damper, Sound

W10208782

Spring−Extension,

Glass Lid

17 3350828 Clip, Retainer

CONTROLS AND REAR PANEL PARTS

W10218816

For Models: MVWC700VW0, MVWC700VJ0

(White) (Oxide)

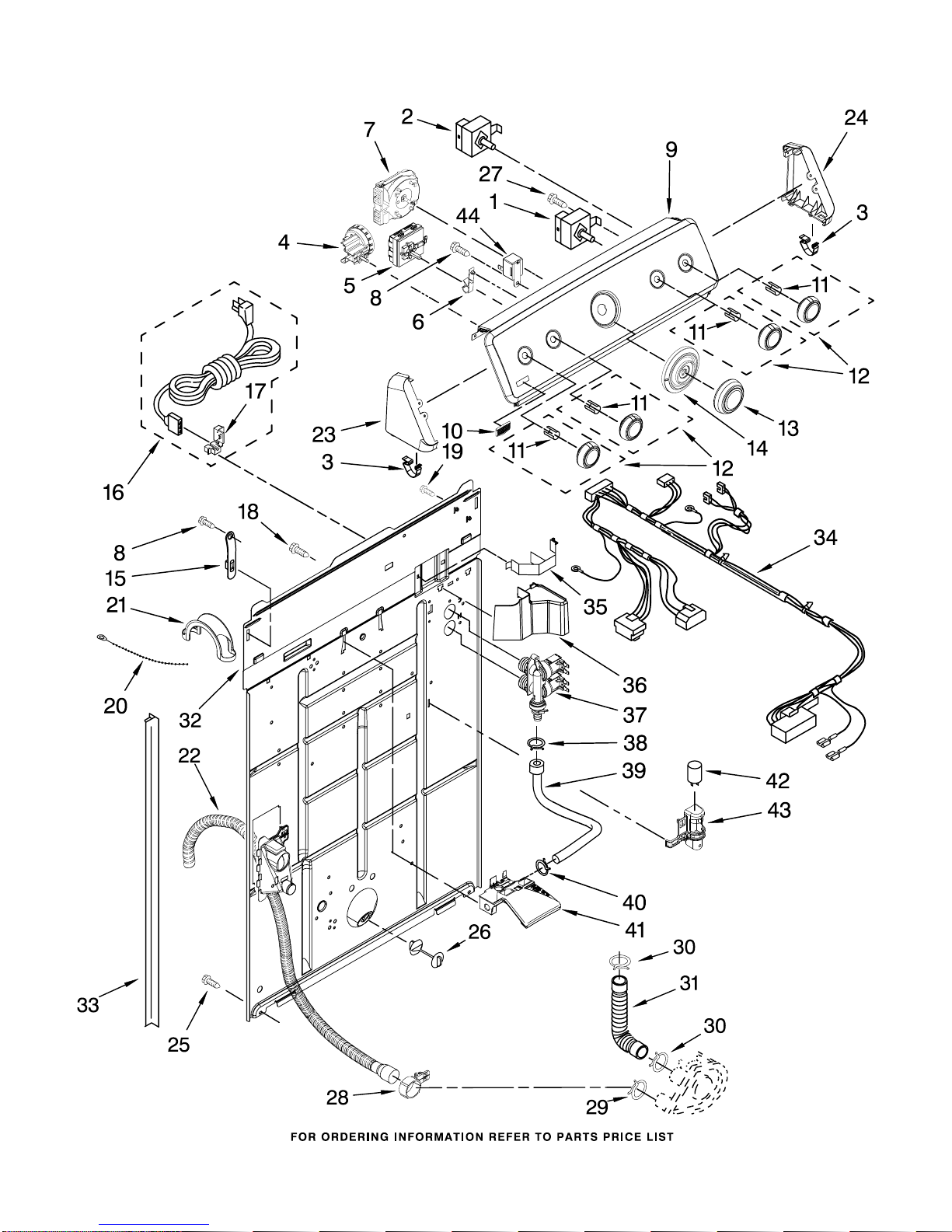

CONTROLS AND REAR PANEL PARTS

W10218816

For Models: MVWC700VW0, MVWC700VJ0

(White) (Oxide)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3949187 Switch, Rotary

2 3949180 Switch, Rotary

(Includes Item 3)

3 8312709 Clip, Console (2)

4 8577843 Switch,

Water Level

W10202616

Switch, Water

Temperature (ATC)

6 8317975 Retainer, Harness

W10111389

Timer

(Motor Not A

Service Part)

8 90767 Screw, 8−18 x 3/8

9 Panel, Control

(Includes Item 10)

10 Badge Assembly

W10101390

Standard

W10103431

Signature

11 8536939 Clip, Knob

12 Knob, Control

W10180218

Grey/Chrome

W10112582

Gold

13 Knob, Timer

W10180213

Grey/Chrome

W10112579

Gold

14 Dial, Timer

W10180214

Circular Brush

W10112581

Gold

15 8568314 Strap, Console

16 8578842 Cord, Power

17 3952821 Strain Relief,

Power Cord

18 9740848 Screw, 8−18 x 1/2

19 3351614 Screw, Ground

20 3347868 Cable Tie

21 8577378 U−Bend,

Drain Hose

W10189267

Drain Hose

Assembly

(Includes Item 28)

23 Cap, End (L.H.)

(Includes Item 3)

W10193824

White

W10101398

Oxide

24 Cap, End (R.H.)

(Includes Item 3)

W10193821

White

W10101397

Oxide

25 62863 Screw, 10−16 x 3/8

26 8519200 Support, Rear

Panel

27 3400073 Screw, Ground

28 8541668 Clamp, Hose

29 8317496 Clamp, Hose

30 3363366 Clamp, Hose

31 3951449 Hose, Pump To Tub

(Includes Item 30)

W10194449

Panel, Rear

33 62747 Pad, Rear Panel

W10113814

Harness, Wiring

(For Detail See

Pages 9 & 10)

35 8055003 Clip, Harness

& Pressure Hose

W10223717

Shield, Suds

37 3979347 Valve, Water Inlet

& Thermistor Assy.

38 301958 Clamp, Hose

W10190501

Hose, Vacuum Break

40 370450 Clamp, Hose

W10190514

Break, Vacuum

42 8572717 Capacitor,

Motor Start

43 8318046 Clip, Capacitor

44 694419 Buzzer, Mini

W10089727

Oxide/Gold

W10089725

White/Silver

AGITATOR, BASKET AND TUB PARTS

For Models: MVWC700VW0, MVWC700VJ0

(White) (Oxide)

W10218816

AGITATOR, BASKET AND TUB PARTS

6W10218816

For Models: MVWC700VW0, MVWC700VJ0

(White) (Oxide)

Illus. Part

No. No. DESCRIPTION

1 8575076 Dispenser,

Fabric Softener

2 3354733 Cap, Barrier

W10072840

Seal, Inner Cap

4 358237 Screw & Washer

(5/16−24 x 1)

5 3949550 Washer

W10093672

Agitator

(Complete)

7 3363663 Cam, Driven

8 3366877 Dog, Agitator

Clutch (4)

9 3363661 Bearing,

Driven Cam

10 3349019 Clothes Mover

11 3350389 Spacer, Thrust

W10110020

Agitator

W10168523

Tub Ring

14 3359585 Gasket, Tub Ring

15 3354845 Clip, Agitator

16 8543666 Washer, Agitator

W10006326

Balance Ring

W10116602

Nut, Spanner

W10006327

Basket & Balance

Ring

20 2219077 Clip, Pressure

Switch Hose

21 3347780 Hose, Pressure

Switch

22 389140 Block, Basket

Drive

23 63849 Tub

24 383727 Gasket, Centerpost

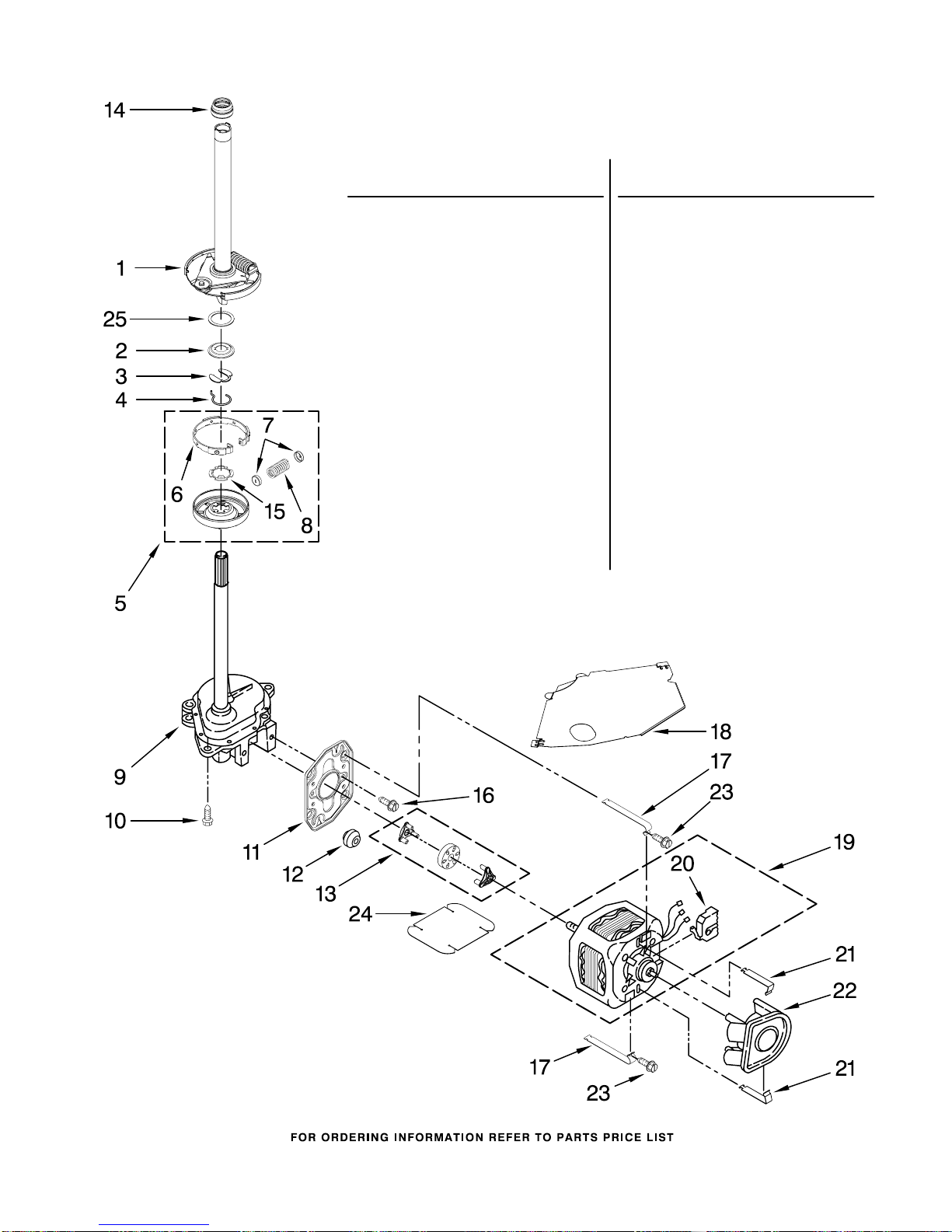

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

7W10218816

For Models: MVWC700VW0, MVWC700VJ0

(White) (Oxide)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 8299642 Clutch (Complete)

6 3951993 Band & Lining,

Clutch

7 62646 Cap, Clutch

Spring (2)

8 8559387 Spring, Clutch

W10140301

Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 3978849 Coupling, Motor

& Isolation

14 8577374 Seal

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

W10086010

Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 8528157 Motor, Main

Drive

20 3952056 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3946532 Shield, Motor

25 8578981 Washer, Thrust

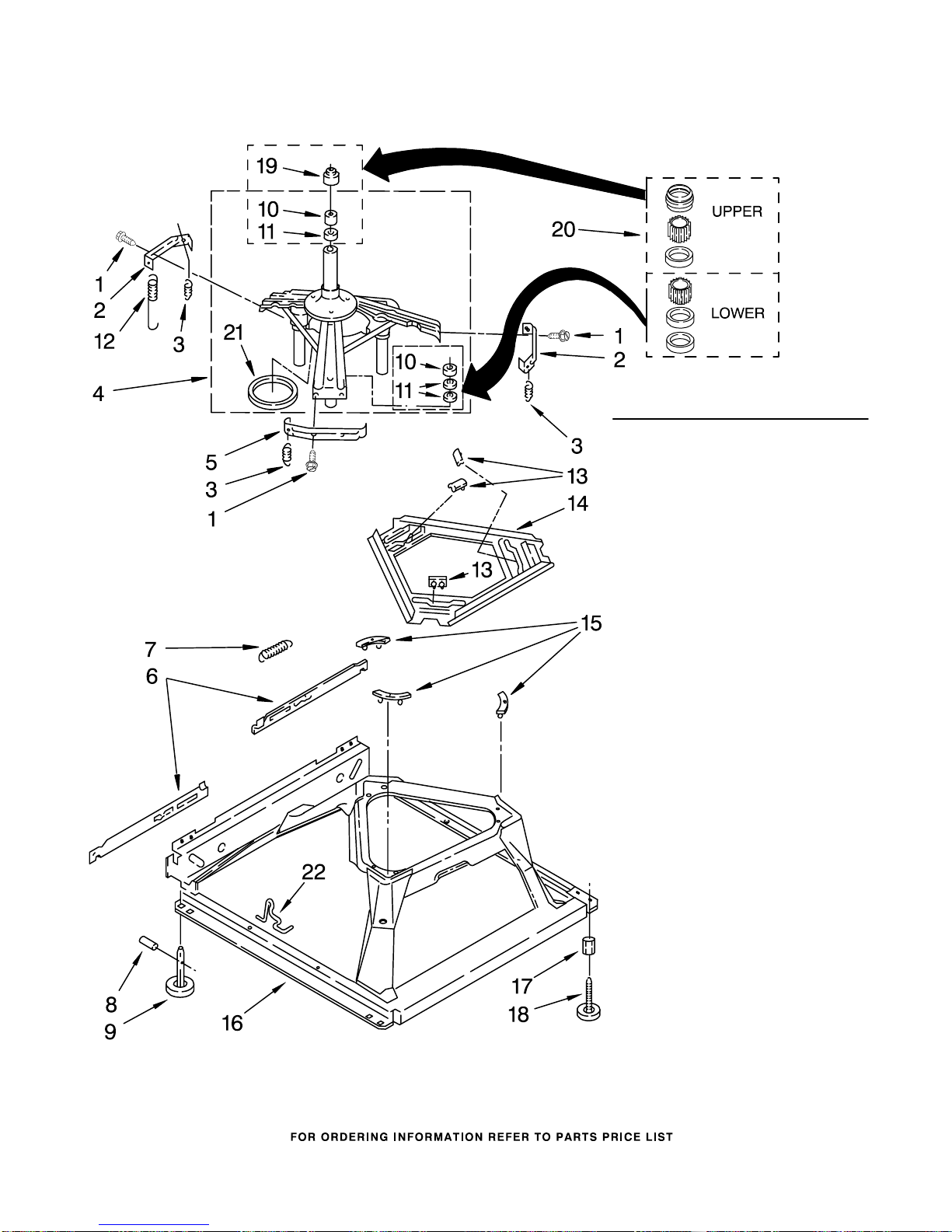

MACHINE BASE PARTS

8W10218816

For Models: MVWC700VW0, MVWC700VJ0

(White) (Oxide)

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 8575214 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

10 8546455 Bearing,

Centerpost (2)

11 357409 Seal, Centerpost (3)

12 388492 Spring,

Counterweight

13 62568 Pad, Plate

14 3946509 Plate, Suspension

(Includes Item 13)

15 3363660 Pad, Base

16 3946512 Base Assembly

(Includes Items 6,

7, 8, 9, 13, 14

15 & 22)

17 3359452 Nut, Lock (2)

(3/8−16)

W10001130

Foot, Front (2)

19 8577376 Seal, Centerpost

20 285203 Centerpost

Bearing Kit

(Includes Items

10, 11 & 19)

21 63134 Ring, Sound

Deadening

W10145155

Retainer,

Suspension Spring

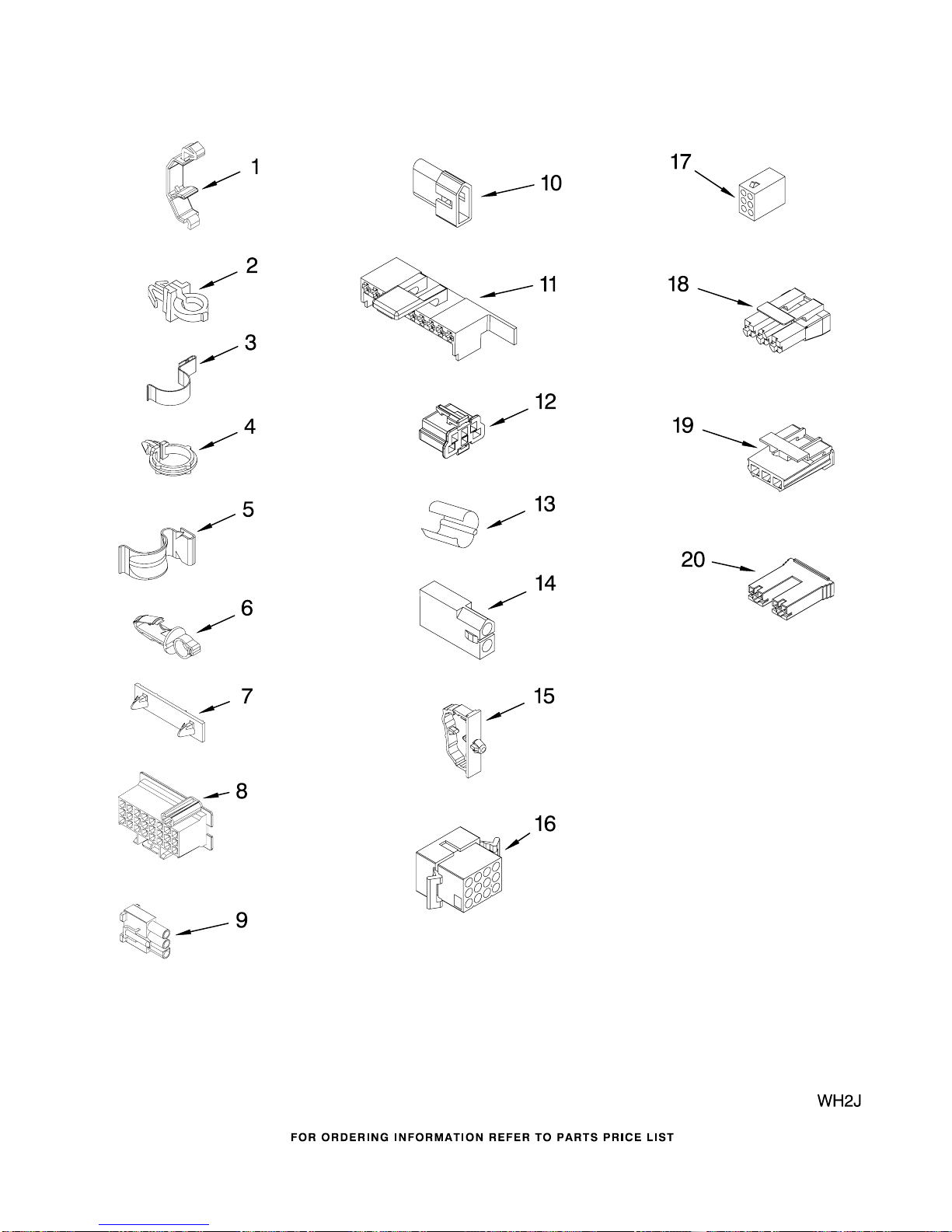

WIRING HARNESS PARTS

For Models: MVWC700VW0, MVWC700VJ0

(White) (Oxide)

W10218816

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Retainer, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

(Push−In)

5 90016 Clip, Harness

(Half−Harness)

6 3390496 Clip, Harness

7 389379 Retainer, Harness

8 Timer, Block

Disconnect

3948614 Natural

352089 Black

9 62889 Receptacle,

Terminal

(3−Way)

10 353424 Plug, Terminal

(3−Way)

11 62505 Block, Disconnect

(Motor 2 Speed)

12 3347243 Block, Disconnect

13 63523 Protector

14 717252 Connector

(2−Way)

15 3352944 Clip, Harness

16 3390423 Block, Disconnect

(12−Way)

17 3347730 Receptacle

(6−Way)

18 3948617 Connector (T.P.A.)

(3−Circuit)

19 3360056 Plug (T.P.A)

(3−Circuit)

(Pressure Switch)

20 Block, Connector

3354925 Natural

3354926 Red

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

For Models: MVWC700VW0, MVWC700VJ0

(White) (Oxide)

10 W10218816
