Mazda 2003 B2300 Manuale utente

Introduction 4

Instrument Cluster 12

Warning and control lights 12

Gauges 16

Entertainment Systems 19

AM/FM stereo 19

AM/FM stereo with CD 21

AM/FM stereo with in-dash six CD 23

AM/FM stereo with CD/MP3 27

Climate Controls 35

Manual heating and air conditioning 35

Lights 38

Headlamps 38

Turn signal control 40

Bulb replacement 40

Driver Controls 47

Windshield wiper/washer control 47

Power windows 49

Speed control (Cruise control) 53

Locks and Security 59

Keys 59

Locks 59

Anti-theft system 59

Table of Contents

Seating and Safety Restraints 67

Seating 67

Safety restraints 69

Air bags 82

Child restraints 93

Driving 110

Starting 110

Brakes 115

Transmission operation 119

Vehicle loading 129

Trailer towing 131

Recreational towing 138

Roadside Emergencies 140

Hazard flasher switch 140

Fuel pump shut-off switch 140

Fuses and relays 141

Overheating 151

Changing tires 152

Jump starting 158

Wrecker towing 164

Customer Assistance 165

Reporting safety defects (U.S. only) 175

Cleaning 176

Repairing paint chips 177

Underbody preservation 181

Table of Contents

Maintenance and Specifications 182

Engine compartment 192

Engine oil 196

Battery 202

Fuel information 208

Refill capacities 232

Lubricant specifications 235

Engine data 236

Accessories 239

Index 240

including photocopying, recording or by any information storage and retrieval

system or translation in whole or part is not permitted without written

authorization from Mazda Motor Corporation. Mazda may change the contents

without notice and without incurring obligation.

Table of Contents

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or

other reproductive harm. In addition, certain fluids contained in

vehicles and certain products of component wear contain or

emit chemicals known to the State of California to cause cancer

and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Mazda Motor Corporation

product. Please take the time to get well acquainted with your vehicle by

reading this handbook. The more you know and understand about your

vehicle the greater the safety and pleasure you will derive from driving

it.

For more information on Mazda Motor Corporation and its products visit

the following website:

•In the United States: www.mazdausa.com

•In Canada: www.mazda.ca

Additional owner information is given in separate publications.

This Owner’s Guide describes every option and model variant available

and therefore some of the items covered may not apply to your

particular vehicle. Furthermore, due to printing cycles it may describe

options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the vehicle. It is

an integral part of the vehicle.

WARNING: In the event of an accident the Fuel pump shut-off

switch will automatically cut off the fuel supply to the engine.

The switch can also be activated through sudden vibration (e.g.

collision when parking). To reset the switch, refer to the Fuel

pump shut-off switch in the Roadside emergencies chapter.

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of

personal injury and prevent possible

damage to others, your vehicle and

its equipment? In this guide,

answers to such questions are

contained in comments highlighted by a bold WARNING statement.

These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is

imperative that you consult the

relevant section of this guide before

touching or attempting adjustment

of any kind.

Protecting the environment

We must all play our part in

protecting the environment. Correct

vehicle usage and the authorized

disposal of waste cleaning and

lubrication materials are significant

steps towards this aim. Information in this respect is highlighted in this

guide with the tree symbol.

Always dispose of used automotive fluids in a responsible manner. Follow

your community’s regulations and standards for recycling and disposing

of automotive fluids.

BREAKING-IN YOUR VEHICLE

There are no particular breaking-in rules for your vehicle. During the

first 1,600 km (1,000 miles) of driving, vary speeds frequently. This is

necessary to give the moving parts a chance to break in.

Introduction

SPECIAL NOTICES

Emission warranty

The New Vehicle Limited Warranty includes Bumper to Bumper

Coverage, Safety Restraint Coverage and Corrosion Coverage. In addition,

your vehicle is eligible for Emissions Defect and Emissions Performance

Warranties. For a detailed description of what is covered and what is not

covered, refer to the Warranty Guide that is provided to you along with

your Owner’s Guide.

Event Data Recorder

The computer in your vehicle is capable of recording detailed data

potentially including but not limited to information such as:

•the use of restraint systems including seat belts by the driver and

passengers,

•information about the performance of various systems and modules in

the vehicle, and

•information related to engine, throttle, steering, brake or other system

status potentially including information related to how the driver

operates the vehicle including but not limited to vehicle speed.

This information may be stored during regular operation or in a crash or

near crash event. This stored information may be read out and used by:

•Mazda Motor Company.

•service and repair facilities.

•law enforcement or government agencies.

•others who may assert a right or obtain your consent to know such

information.

Introduction

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic

controls.

WARNING: Please read the section Air bag in the Seating and

safety restraints chapter. Failure to follow the specific

warnings and instructions could result in personal injury.

WARNING: Front seat mounted rear facing child or infant

seats should NEVER be used in front of a passenger side air bag

unless the air bag can be and is turned OFF.

Notice to owners of pickup trucks and utility type vehicles

WARNING: Utility vehicles have a significantly higher rollover

rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully.

Your vehicle is not a passenger car. As with other vehicles of this type,

failure to operate this vehicle correctly may result in loss of vehicle

control, vehicle rollover, personal injury or death.

Be sure to read Driving off road in the Driving chapter.

Using your vehicle with a snowplow

WARNING: Do not use this vehicle for snowplowing.

Using your vehicle as an ambulance

WARNING: Do not use this vehicle as an ambulance.

Do not use your vehicle as an ambulance, as it is not equipped with an

ambulance preparation package.

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert See Owner’s Guide

Protecting the

Environment Fasten Safety Belt

Air Bag-Front Air Bag-Side

Child Seat Child Seat Installation

Warning

Child Seat Lower

Anchor

Child Seat Tether

Anchor

Brake System Anti-Lock Brake System

Brake Fluid -

Non-Petroleum Based Traction Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

Fuel Pump Reset Windshield Wash/Wipe

Windshield

Defrost/Demist

Rear Window

Defrost/Demist

Introduction

Vehicle Symbol Glossary

Power Windows Power Window Lockout

Personal Alarm System

Feature Engine Oil

Engine Coolant Engine Coolant

Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames,

or Sparks Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid Maintain Correct Fluid

Level

MAX

MIN

Emission System Engine Air Filter

Passenger Compartment

Air Filter Jack

Check fuel cap

INFORMATION ABOUT THIS GUIDE

The information found in this guide was accurate at the time of printing.

Mazda may change the contents without notice.

Introduction

456

RPMx1000

ABS

BRAKE

CHECK

ENGINE

CHECK

FUEL

CAP

PRN D 21 THEFT

SPEED

CONT

4WD

HIGH

4WD

LOW

O/D

OFF

10 MPH

60 70

km/h

0 0 0

101

0 0 0 0 0 0

80 100

120

140

160

180

DOOR

AJAR

CHECK

GAGE

DIM

OFF

SET

ACC

COAST

OFF

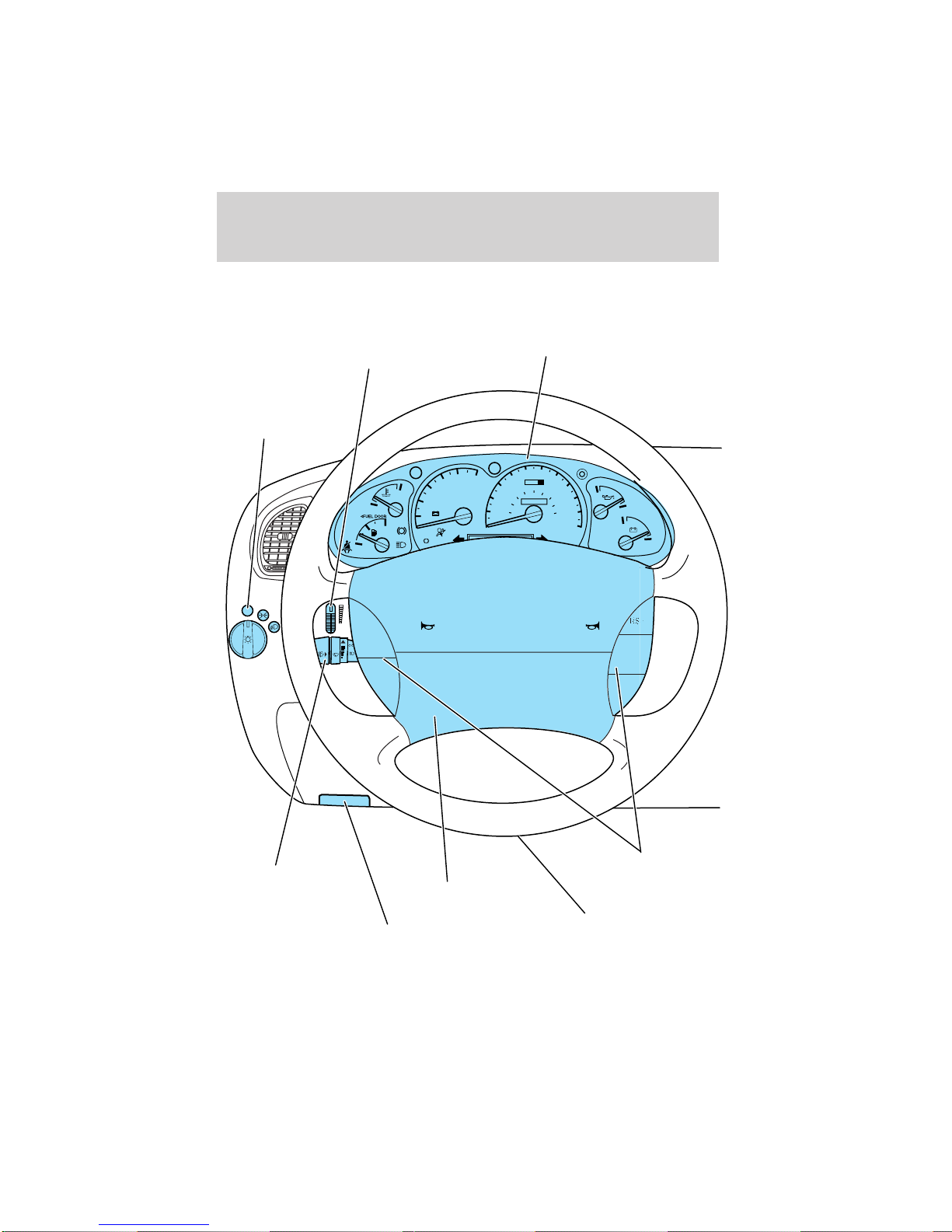

Headlamp control

(pg. 38)

Instrument panel

dimmer/dome light

control

(pg. 39)

Instrument cluster

(pg. 12)

Speed control*

(pg. 53)

Hood release

(pg. 191)

Driver air bag

(pg. 82)

Parking brake release

(pg. 116)

Turn signal and

wiper/washer

control

(pg. 40)

* If equipped

Instrument Cluster
