MB QUART ONYX ONX254 Manuale utente

ONYX

ONX254/ONX302/ONX304ONX304SQ

ONX254/ONX302/ONX304/ONX304SQ

- Spade Style Speaker Terminals

- High Energy Magnet

- Heat-Dispersing Vented Pole Plate

-Anti-ResonantABS Magnet Cover

Thank you for choosing the MB Quart ONYX subwoofer for your car audio sound

system. With proper installation, you are on the path to experiencing your music in a

way you only imagined possible. Here at MB Quart, we call this “Sound In Every Detail.”

The ONYX series subwoofers have been designed for the enthusiast looking for incredible

bass and great cosmetics in their woofer. The ONYX series subwoofer feature the following:

- Illuminating ONYX Logo

- Gloss Black Polypropylene Cone

- NBR Rubber Surround

- Red Nomex Spider

ONX254/ONX302/ONX304/ONX304SQ

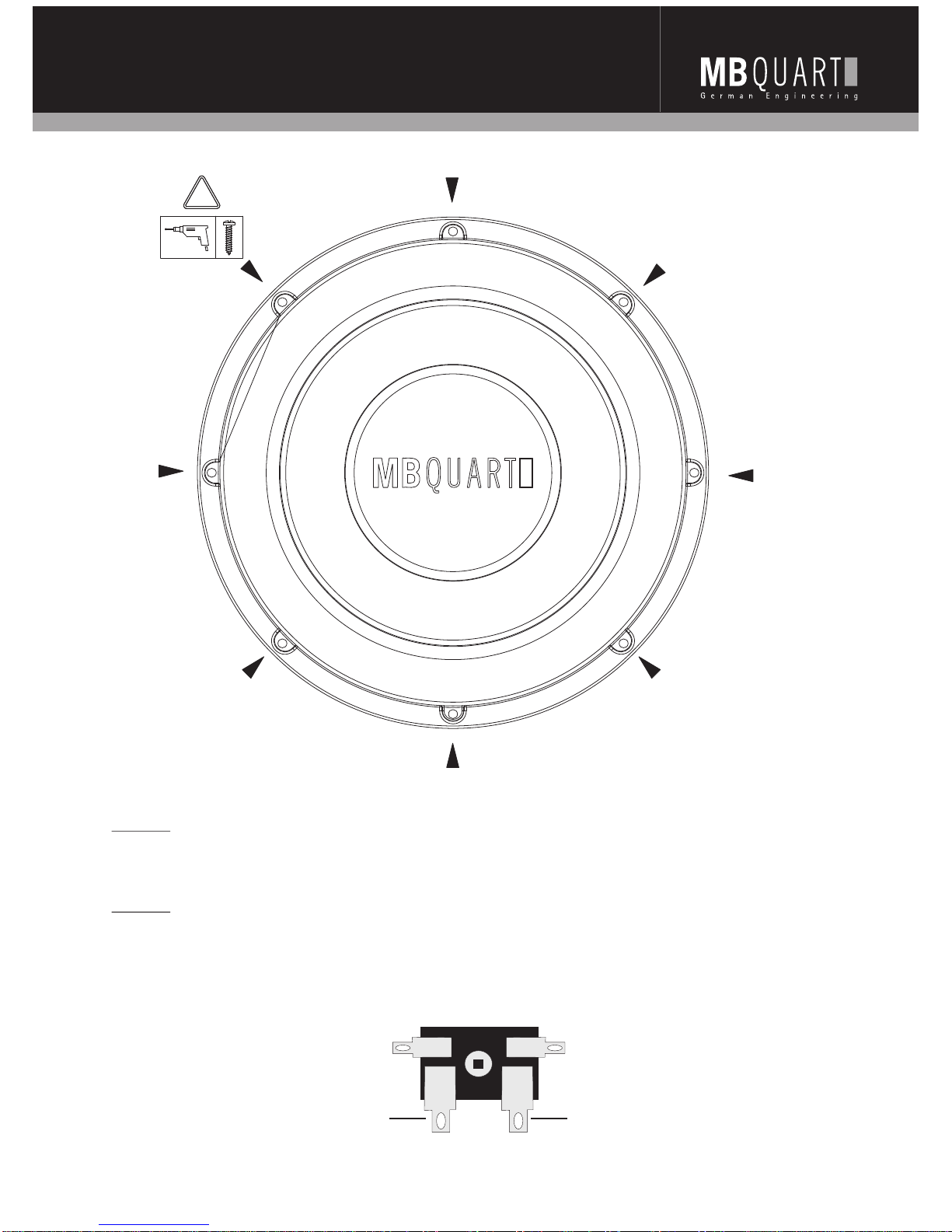

The diagram below shows a screw pattern for mounting your subwoofer.

M4 X 35

ILLUMINATION WIRING:

Option 1

- Connect the LED + spade terminal to an accessory switched 12 volt wire. This wire should have +12V

when the ignition key is “on” and 0 volts when the ignition key is “off”. You can use a toggle switch

in line on this wire to manual turn the illumination off if desired and this 12V+ wire must have a 5 amp

fuse in line.

Option 2

- Connect the LED + spade terminal to the Radio / CD player “remote out” wire which is also connected to

the amplifier “remote” input terminal. This ire will show 12 volts when the radio is “on” and 0 volts when

the radio is “off”

Connect the LED - spade terminal to chassis ground.

LED + LED -

Speaker Wire + Speaker Wire -

LED

835 35

DVC DVC

25.4 cm / 10” 25.4 cm / 10”

DVC 4

25.4 cm / 10”

DVC 4

25.4 cm / 10” 25.4 cm / 10”

DVC 4

25.4 cm / 10”

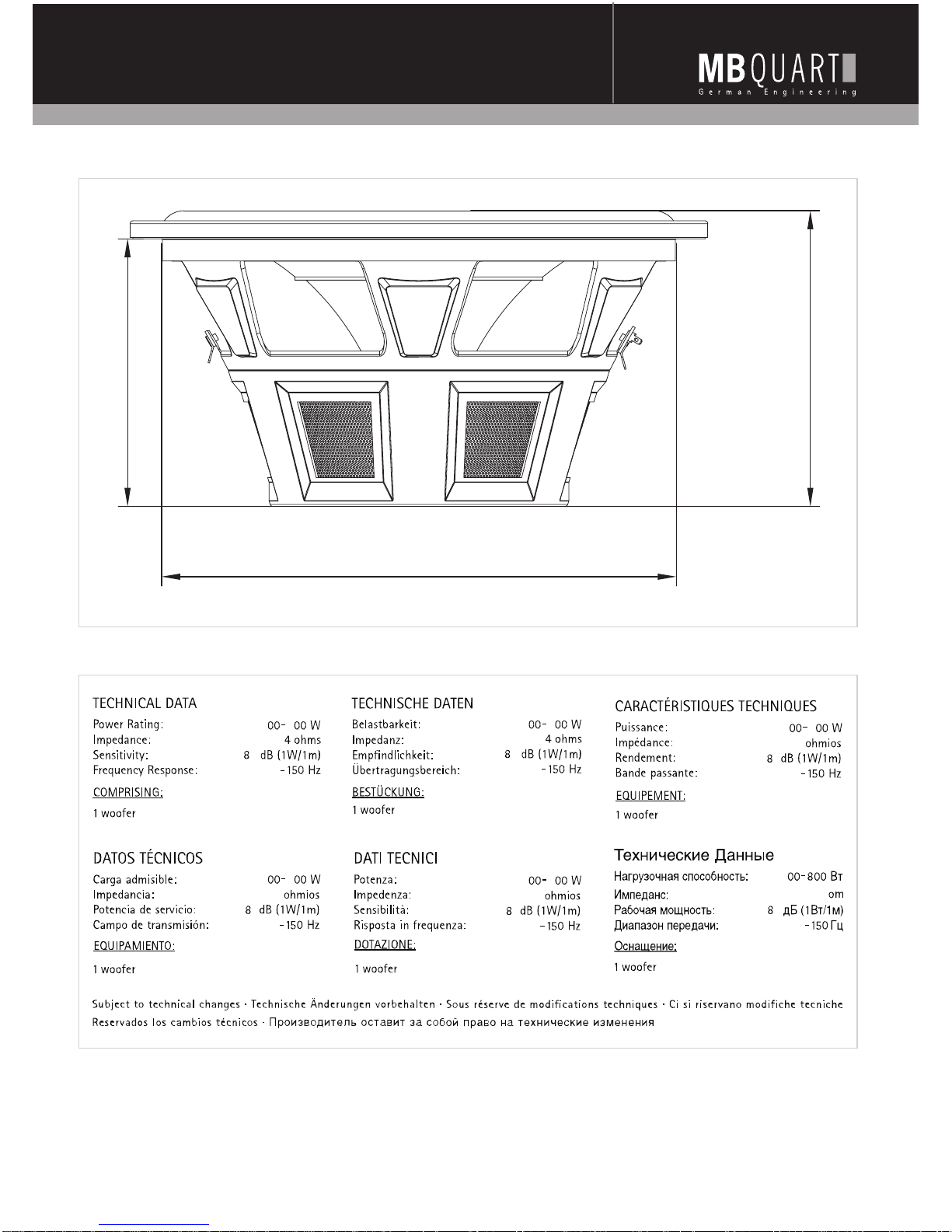

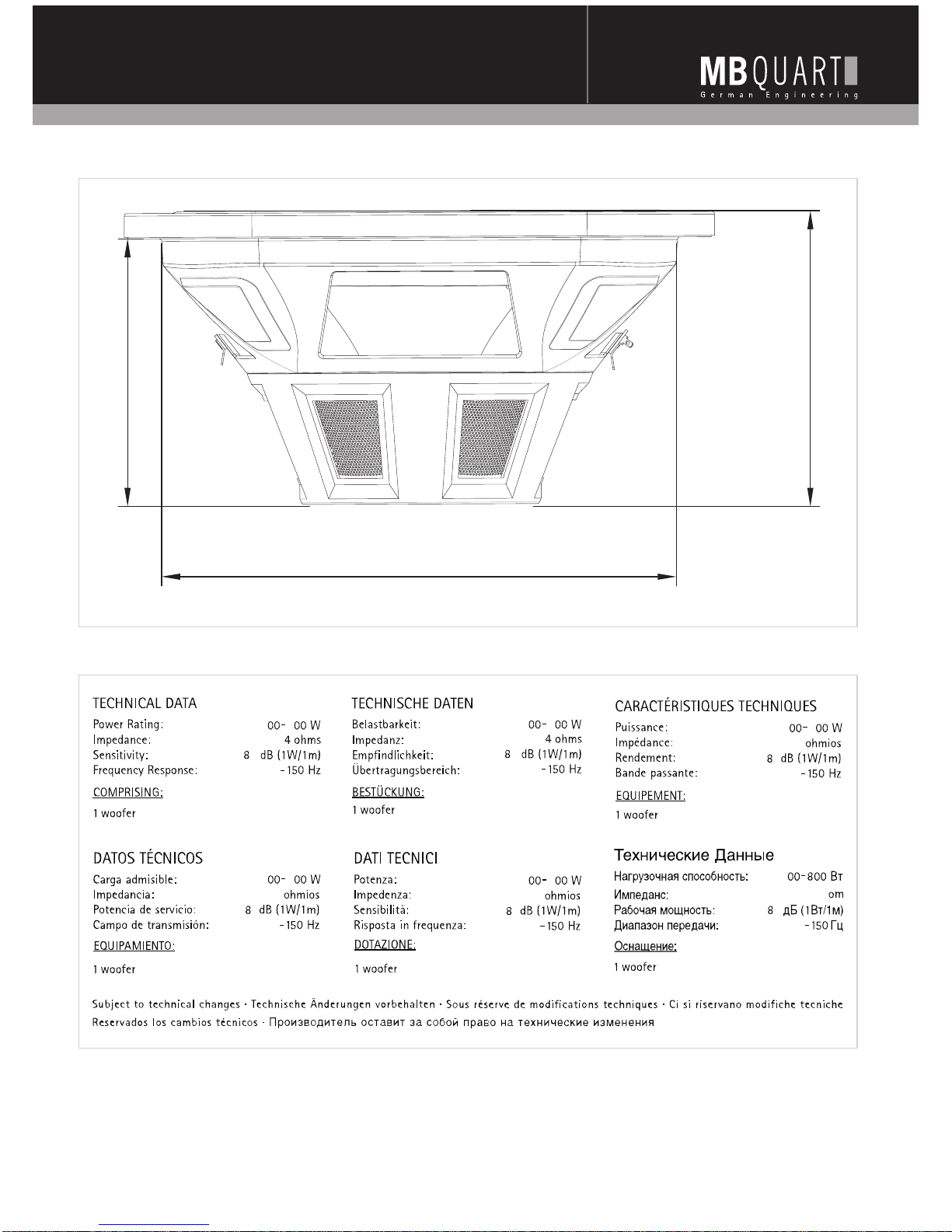

ONX254

231.4mm / 9.11”

141.4mm / 5.57”

127.4mm / 5.02”

/ DVC / DVC

DVC DVC

30.48 cm / 12” 30.48 cm / 12”

DVC 2 / DVC 4

30.48 cm / 12”

DVC 2 / DVC 4

30.48 cm / 12” 30.48 cm / 12”

DVC 2 / DVC 4

30.48 cm / 12”

ONX302/ONX304

278mm / 10.94”

160mm / 6.3”

144.5mm / 5.69”

630

30 30 30

30 30

DVC DVC

30.48 cm / 12” 30.48 cm / 12”

DVC 4

30.48 cm / 12”

DVC 4

30.48 cm / 12” 30.48 cm / 12”

DVC 4

30.48 cm / 12”

ONX304SQ

283mm / 11.14”

165mm / 6.5”

149.7mm / 5.89”

ONX302

DVC 2-Ohms

0.5-Ohm

Parallel Coils / Parallel Subs

Parallel

1-Ohm 4-Ohms

Series

2-Ohms

Series Coils / Parallel Subs

ONX254/ONX304/ONX304SQ

ONX254/ONX302/ONX304/ONX304SQ

Check out our videos of new products,

events and technical tutorials at

www.youtube.com/maxxsonicsusainc

Consider these great MB Quart amplifiers

to power your new ONYX subwoofers.

For specifications, please check out

www.mbquart.com

ONX1.1000D

ONX1.1500D

ONX4.80/500

ONX254/ONX302/ONX304/ONX304SQ

MAXXSONICS USA, INC

1290 Ensell Road

Lake Zurich, Illinois 60047 USA

E-Mail: [email protected]

Website: www.maxxsonics.com

www.mbquart.com

ONX254/ONX302/ONX304/ONX304SQ

MaxxsonicsLimitedWarranty

AsthemanufacturerofMaxxsonics,Autotek,Crunch,MBQuartandHifonicscaraudio

products,MaxxsonicsUSAInc.Warrantstotheoriginalconsumerpurchaserthe

amplifiertobefreefromdefectsinmaterialandworkmanshipforone(1)Yearfrom

dateofpurchase.

Allotherpartsandaccessoriesofthesystemarewarrantiedtobefreefromdefectsin

materialandworkmanshipforone(1)yearfromdateofpurchase.Maxxsonicswill

repairorreplaceatit’soptionandfreeofchargeduringthewarrantyperiod,anysystem

componentthatprovesdefectiveinmaterialsandworkmanshipundernormalinstallation,

useandserviceprovidedthattheproductisreturnedtotheauthorizedMaxxsonicsdealer

fromwhereitwaspurchased.Aphotocopyoftheoriginalreceiptmustaccompanythe

productbeingreturned.

Validpurchasereceiptswillcontainthenameandaddressoftheauthorizedreseller.

Anydamagetotheproductasaresultofmisuse,abuse,accident,incorrectwiring,

improperinstallation,alterationofdatecodeorbarcodelabels,revolution,natural

disaster,oranysneakystuffbecausesomeonemessedup,repairoralterationoutside

ofourfactoryorauthorizedservicecentersandanythingelseyouhavedonethatyou

shouldnothavedoneisnotcovered.

Thiswarrantyislimitedtodefectivepartsandspecificallyexcludesanyincidental

orconsequentialdamagesconnectedtherewith.Thiswarrantyisnottobeconstrued

asaninsurancepolicy.

Warrantyoninstallationlabor,removal,re-installationandfreightchargesarenotthe

responsibilityofMaxxsonicsUSAInc.

Warrantyproductsdamagedasaresultofinsufficientorimproperpackingmaterials

arenotcoveredbythislimitedwarrantyandsuchdamagedproductwillbereturned

“asis”attheexpenseoftheowner.
