McCulloch 6238-989801 Guida

N/A

No. TK COD

Parts No. Description QNo. STK CODE Parts No. Description Q

1 A MC-6SDANB02-05 SCREW 2 18 A MC-6228-989901 SHAFT ASS'Y 1

2 B MC-6158-989901 PRESSURE PLATE 1 19 A MC-6022-989903 SWITCH 4

3 B MC-6141-989901 SOCKET, MAIN BODY 1 20 A MC-6056-989901 BUTTON, FRONT 1

4 A MC-6024-989902 SPRING 1 21 A MC-6024-989904 SPRING 1

5 A MC-6056-989902 BUTTON, AFTER 1 22 B MC-6035-JR0102 SPRING CAP 1

6 A MC-6115-989901 PIN 2 23 A MC-6188-989901 BUTTON 1

7 B MC-6114-989901 LEVER 1 24 A MC-6024-989903 SPRING 1

8 B MC-6038-989902 HOUSING (L) 1 25 B MC-6010-989901 WIRE 1

9 A MC-6SDABB04-16 SCREW 11 26 B MC-6010-989802 WIRE 1

10 A MC-6228-989801 MOTOR ASS'Y 1 27 B MC-6010-989803 WIRE 1

11 B MC-6043-989901 MOTOR PLATE 1 28 B MC-6010-989804 WIRE 1

12 A MC-6SQAC-04-10 SCREW 2 29 B MC-6010-989805 WIRE 1

13 A MC-6022-989904 SWITCH 1 30 B MC-6010-989806 WIRE 1

14 B MC-6023-989901 HANGER 1 31 B MC-6010-989807 WIRE 1

15 B MC-6041-989901 TERMINAL HOLDER 132 B MC-6010-989908 WIRE 1

16 B MC-6038-989901 HOUSING (R) 1 33 MC-6228-18BE01 1.7Ah BATTERY ASS'Y 2

17 A MC-9SLABB03-12 SCREW 1

Stocking Codes are:

A - Dealer stocked B - Distributor stocked C - Factory stocked

DATE REVISED

DATE

4/7/2003

MODEL NO.

SPECIFY MODEL NO. WHEN ORDERING PARTS

Motor Ass'y

6238-989801

SERVICE SPARE PARTS LIST

钡??



26 27

29 30



(6099-9699A1)

钡?瞶?

上開關

割草機馬達

下開關中開關

前把手開關

後把手開關

主機馬達

中

後把手開關

前把手開關

18-5

18-4

18-3

18-1

18-2

10-1 10-2

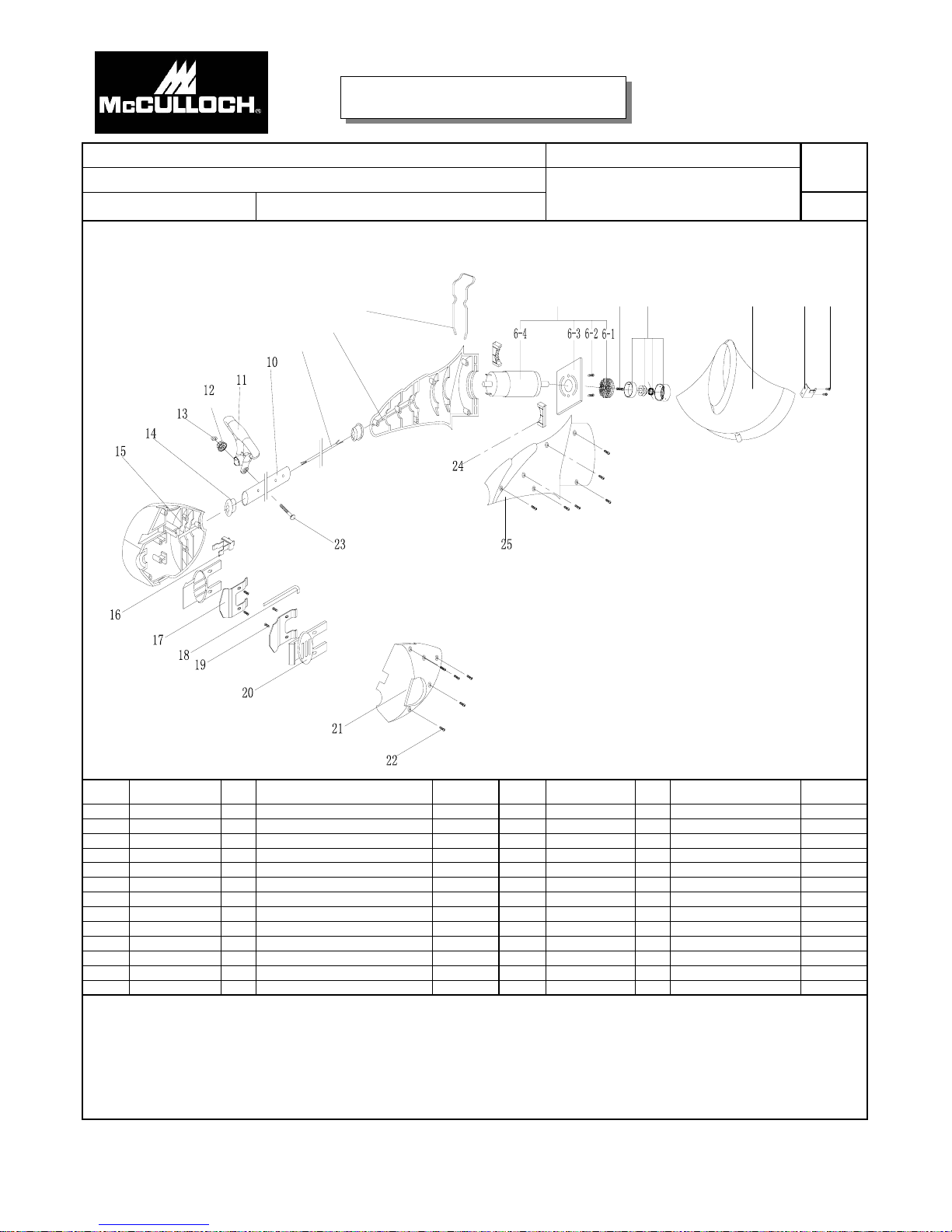

N/A

No. Parts No. STK

CODE Description NO. REQ % No. Parts No. STK

CODE Description NO. REQ %

1 MC-6SDABB04-14 A SCREW 14 MC-9012-330501 A RUBBER

2 MC-6250-202501 A KNIFE 15 MC-6154-980101 B CONNECT (L)

3 MC-6262-980101 A GUARD 16 MC-6041-980101 B TERMINAL ASS'Y

4 MC-6228-202004A A SPOOL ASS'Y 17 MC-6079-981001 A SPRING LAMINATION

5 MC-6024-202604 A SPRING 18 MC-6197-981001 A PIN

6 MC-6228-980201 A MOTOR ASS'Y 19 MC-6SVAB-05-10 A SCREW

7 MC-6063-980101 A GUIDE 20 MC-6056-981001 A BUTTON

8 MC-6038-980101 B HOUSING (L) 21 MC-6154-980102 B CONNECT (R)

9 MC-6010-980101 B WIRE 22 MC-6SDABB04-18 A SCREW

10 MC-6087-980101 B TUBE 23 MC-6SHDB-06-52 A SCREW

11 MC-9196-202601 B HANDLE 24 MC-6161-980101 A BRACKET

12 MC-6056-230302 A KNOB 25 MC-6038-980102 B HOUSING (R)

13 MC-6NAB-06 A NUT

Stocking Codes are:

A - Dealer stocked B - Distributor stocked C - Factory stocked

SPECIFY MODEL NO. WHEN ORDERING PARTS DATE REVISED

DATE

Trimmer Ass'y 4/7/2003

MODEL NO. 6238-980201

SERVICE SPARE PARTS LIST

6321

754

N/A

No. Parts No. STK

CODE Description NO. REQ % No. Parts No. STK

CODE Description NO. REQ %

1 MC-6129-980501 B TUBE 9 MC-6154-980501 B CONNECT (L)

2 MC-6097-980501 - LABEL 10 MC-6097-980502 - LABEL

3 MC-6MB-626-01 B BEARING 11 MC-6056-981001 A BUTTON

4 MC-6236-980501 A NUT 12 MC-6079-981001 A SPRING LAMINATION

5 MC-6014-220002 A WASHER 13 MC-6197-981001 A PIN

6 MC-6169-980501 B FAN 14 MC-6SVAB-05-10 A SCREW

7 MC-6014-220001 A WASHER 15 MC-6154-980502 B CONNECT (R)

8 MC-6228-980501 A PIVOT ASS'Y 16 MC-6SDABB03-18 A SCREW

Stocking Codes are:

A - Dealer stocked B - Distributor stocked C - Factory stocked

SPECIFY MODEL NO. WHEN ORDERING PARTS DATE REVISED

DATE

Blower Ass'y 4/7/2003

MODEL NO. 6238-980501

SERVICE SPARE PARTS LIST

N/A

No. STK

CODE Parts No. Description QNo. STK

CODE Parts No. Description Q

1 - MC-6228-18CP01 CHARGER ASS'Y 1 1-10 B MC-6256-CP1201 LIGHT-PIPE 1

1-1 - MC-6187-CP1202 GUIDE PAPER 1 1-11 A MC-6158-CP1201 PRESSURE PLATE 1

1-2 A MC-6023-CP1201 HANGER 2 1-12 A MC-6141-CP1201 PLUG 1

1-3 A MC-6SVAZA05-50 SCREW 6 1-13 A MC-6SDANB02-05 SCREW 2

1-4 A MC-6SDABB04-16 SCREW 12 1-14 A MC-6205-CP1201 CHARGER 1

1-5 A MC-6156-822001 ROLL PIN 6 1-15 A MC-6SDABB04-10 SCREW 2

1-6 B MC-6085-CP1201 BASE 1 1-16 - MC-6097-18CPXX LABEL 1

1-7 B MC-6164-18CP01 P.C.BOARD 1 1-17 B MC-6123-CP1201 HOUSING 1

1-8 A MC-6SDABB03-10 SCREW 1 2 MC-6205-SA1806 ADAPTOR 1

1-9 A MC-6SDABB03-10 SCREW 4

Stocking Codes are:

A - Dealer stocked B - Distributor stocked C - Factory stocked

SPECIFY MODEL NO. WHEN ORDERING PARTS DATE REVISED

DATE

Charger Ass'y 4/26/2004

MODEL NO.

SERVICE SPARE PARTS LIST

1-21-31-41-7

1-8

1-9

1-10

1-11

1-12

1-13

1-14

1-15

1-16

1-17

1-6

1-1

1-5

N/A

No. Parts No. STK

CODE Description NO. REQ % No. Parts No. STK

CODE Description NO. REQ %

1 MC-6SDAB-03-10 A SCREW 11 MC-6WFB-05 A WASHER

2 MC-6014-981003 A WASHER 12 MC-6077-981001 B COVER

3 MC-6MB-607-01 B BEARING 13 MC-6NAB-05 A NUT

4 MC-6228-981003 A TRANSMISSION ASS'Y 14 MC-6217-981001 B HOUSING (L)

5 MC-6017-981001 A BLADE COVER 15 MC-6056-981001 A BUTTON

6 MC-6250-981001 A BLADE 16 MC-6079-981001 A SPRING

7 MC-6PC04-20 B PIN 17 MC-6197-981001 A PIN

8 MC-6228-981002 A RECIPROCAL ASS'Y 18 MC-6SVAB-05-10 A SCREW

9 MC-6228-981001 A GEAR SHAFT ASS'Y 19 MC-6217-981002 B HOUSING (R)

10 MC-6SDAB-05-12 A SCREW 20 MC-6SDABB03-15 A SCREW

Stocking Codes are:

A - Dealer stocked B - Distributor stocked C - Factory stocked

SPECIFY MODEL NO. WHEN ORDERING PARTS DATE REVISED

DATE

Hedge Trimmer Ass'y 4/7/2003

MODEL NO. 6238-981001

SERVICE SPARE PARTS LIST

17 18
