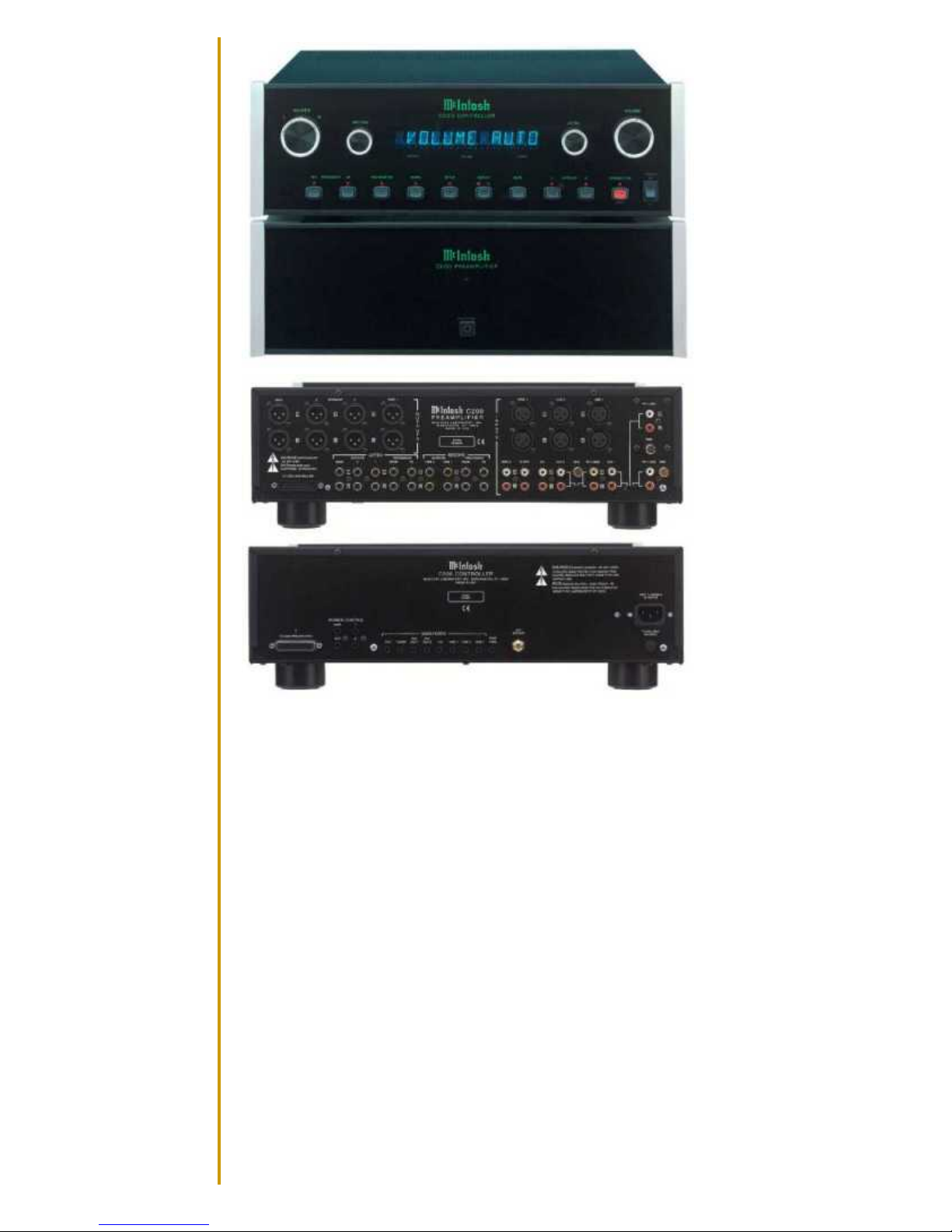

McIntosh Labs: C200

STEREO PRE-

AMPLIFIERS

C200

Preamplifier/

Controller

Copy from:

www.McintoshLabs.com

BE092004

Quick Facts

The extraordinary C200 is fully balanced from input to output - a configuration that

essentially cancels all distortion. The precision volume control has four matched

sections and the main gain stage uses four matched amplifiers operating in a push-

pull. Even unbalanced signals are converted to and processed as balanced signals.

The Preamplifier chassis, which contains only audio circuits and inputs/outputs, is

completely isolated from the power supply and the microprocessors, ensuring total

noise rejection.

The Controller chassis contains the selector switches, digital display, all control

microprocessors, and the power supply. After any switching operation, the control

circuits are automatically turned off to eliminate any possibility of microprocessor

noise reaching the audio circuits. The only connection between the Preamplifier and

Controller is a 25-pin shielded case.

About This Product

●Dual Chassis Stereo Preamplifier

●Fully Balanced - Input to Output

●Inputs Fully Isolated From Switching and Power Activities

●7 Source Inputs

●Balanced and Unbalanced Tape Loops

●Separate MM and MC Phono Stages

●Three Pairs of Outputs - Two Switched

●Wide Dynamic Range

●Discrete Output Stage

McIntosh Labs: C200

●Digital IR Remote Control

●C200 Controller Dimensions: 17.5W x 5.37H x 20D (26 lbs.)

●C200 Preamplifier Dimensions: 17.5W x 5.37H x 20D (20.5 lbs)

Separate Electronic

Regulators for Each Pre-

amplifier Section

Type of Volume Control VRV

Programmable Source Trim

Independent Listen and

Record Selection

Electromagnetic Switching

Low-Noise 1% Metal Film

Resistors

Glass Front Panel with

Illuminated Nomenclature

Connector for External IR

Sensor

Control Data Outputs

Dual-Chassis Design

Ultra-Low Distortion

Discrete Output Circuit

Extra-Wide Dynamic Range

Shielded Power Transformer

Polyester Coupling

Capacitors

Ultra-precision (.5%) metal

film resistors and 1%

polypropylene capacitors for

phono equalization

Dual Processor Loops

Balanced Input(s)

Phono Input MM/MC Phono Inputs

Balanced Output(s)

Type of Amplifier Solid State

Headphone Jack

Gold Plated Terminals

Frequency Response 10 Hz to 40 KHz +0 / -0.5 dB

Rated Output Voltage 2.5 Vrms

Maximum Unclipped Output 25 Vrms

Output Impedance 100 ohms balanced / 50 ohms unbalanced

Total Harmonic Distortion 0.002 %

Input Sensitivity 450 mV

Maximum Input Signal 5 v

Signal to Noise Ratio 98 dB

Input Impedence 44k ohms

Warranty (parts) 36 month(s)

Warranty (labor) 36 month(s)

Dimensions 3.375 in. H x 17.5 in. W x 20 in. D (13.7 cm. H x 44.5 cm. W x 50.8 cm.

Weight 40.4 lbs. (18.4 kg.)
