MCK PBXgateway Manuale utente

PBXgatewayQIG Page 1 G-6000G-SMM

PBXgateway

Quick Installation Guide Issue 2.1/December 1999

Purpose of this Document

This document provides the step-by-step process

for the complete installation, basic configuration,

and troubleshooting of the PBXgateway.

Safety Considerations

IMPORTANT SAFETY INSTRUCTIONS

!Do not install this product near water.

Example: In a wet basement location.

!Do not overload wall outlets, as this can

result in the risk of fire or electrical shock.

!Do not attach the power supply cord to

building surfaces. Do not allow anything to

rest on the power cord. Do not locate this

product where persons walking on it will

abuse the cord.

!Do not operate the system if chemical gas

leakage is suspected in the area. Use

telephones located in some other safe area to

report the trouble.

Table of Contents

PURPOSE OF THIS DOCUMENT ............... 1

SAFETY CONSIDERATIONS....................... 1

TABLE OF CONTENTS................................. 1

SUPPORT TELEPHONE NUMBER............. 2

SPECIFICATIONS.......................................... 3

PREREQUISITES FOR INSTALLATION .. 4

PARTS PROVIDED ........................................ 5

PARTS NOT PROVIDED............................... 6

TYPICAL INSTALLATION .......................... 6

POWER-UP...................................................... 9

BASIC CONFIGURATION.......................... 10

TYPES OF NETWORKS.............................. 15

SYNCHRONOUS-SERIAL DEVICE ................... 16

IP DEVICE..................................................... 17

OPTIONAL CONFIGURATION................. 18

PBXgatewayQIG Page 2 G-6000G-SMM

Support Telephone Number

Call the MCK Communications Helpline (1-888-454-5828) or your MCK Communications authorized

dealer if you need assistance when installing, programming, or using your system. Ask for Customer

Service. Outside the United States or Canada, contact your local MCK Communication representative.

PBXgatewayQIG Page 3 G-6000G-SMM

Specifications

Regulatory Approvals

FCC Parts 15 & 68, Subpart B Class B

CE Mark EN50081-1, EN50082-1,

EN60950

NRTL/C CSA Standard C22.2

No.0-M91 , 225-M90

Industry

Canada

CS-03

System Architecture

CPU Motorola 68MH360, 33MHz

DSP

8 Port

12 Port

Five Analog Devices 2187 52

MIPS

Eight Analog Devices 2187 52

MIPS

Memory

DRAM 4MB

Flash

Memory

4MB

Boot

ROM

512KB

WAN Design

Protocol Synchronous-Serial

Interface RS-232, V.35 or RS-530

Encapsul

ation

High level Data Link

Control (HDLC)

Interfaces

Ethernet Single 10BaseT

Serial EIA/TIA-232, EIA/TIA-

530

Management

Console

Serial RS-232, DB9

PBX/KSU 12 digital line interfaces,

RJ-21

Voice

compression

G.729a, ADPCM 32,

ADPCM 24

Protocols and

Services

WAN Remote Voice Protocol

(RVP) (proprietary) over

HDLC

LAN RVPover Internet

Protocol (IP)

Electrical

Line Voltage 100-240v, switchable

Frequency 50-60 Hz

Max Power

Consumption

0.8 Amps

Power Input

Filter

IEC (with 2A Fuse)

Mechanical

Dimensions 17” x 8” x 1 ¾” (432mm

x 203mm x 44mm)

Weight 6lbs 7 oz (3 kg)

Environmental

Temperature 32°- 130°F (0°- 55°C)

Relative

Humidity

5 to 95%

PBXgatewayQIG Page 4 G-6000G-SMM

Prerequisites for Installation

The following items are required before installing the PBXgateway.

!Proper wiring with adequate punch down blocks (wired according to Table 3, page 8).

!A 50 pin cable with an RJ-21 female connector.

!Appropriate network terminating device must be installed and functioning at both the corporate facility

and the branch office.

!The data connection between the corporate facility and the branch office MUST be operational and

configured properly.

!The network termination equipment must support: an RS-232, V.35 or V.530 synchronous interface or

support IP devices over Ethernet.

!The system has been designed to operate from 100-240 VAC, 50-60Hz. Power should not be applied

to the Gateway unit until specified in the installation procedures.

!The Gateway’s power supply and cabling should be installed away from high power/high RF noise

devices such as computers, fans, fluorescent ballast, power supplies, etc.

!Use good wiring practices. Do not run wires over fluorescent lights, computers, air conditioners, etc. as

this can introduce noise to the modems.

!The distance from the PBX to the PBXgatewayshould not exceed 500 feet.

PBXgatewayQIG Page 5 G-6000G-SMM

Parts provided with the PBXgateway

Qty Description Provided

Yes/No

1PBXgatewayYes

1PowerCord Yes

1 RS-530 cable Yes

1 50 pin, RJ-21 cable w/male

connectors

See note

- Mounting Hardware Yes

2 Mounting Brackets (2) Yes

1 System Administrator’s Guide Yes

1 Quick Installation Guide Yes

1 Application Guide Yes

Table 1. Parts provided with the PBXgateway

Note: The RJ-21 cable is not provided with the Gateway unit but can be ordered through MCK.

PBXgatewayQIG Page 6 G-6000G-SMM

Parts not provided with the PBXgateway

!Digital telephones and communication line cords are NOT supplied with this system.

Note: Use two-wire digital display phones only.

!Cat 5 Ethernet cable for 10baseT networks.

!Punch down blocks necessary to interface between the RJ-21 connector and the PBX.

!50 pin cable with RJ-21 connectors to interface between the punch down block and the

PBXgateway. (see Table 3, page 8)

!DB-9 serial RS-232 cable for the management console.

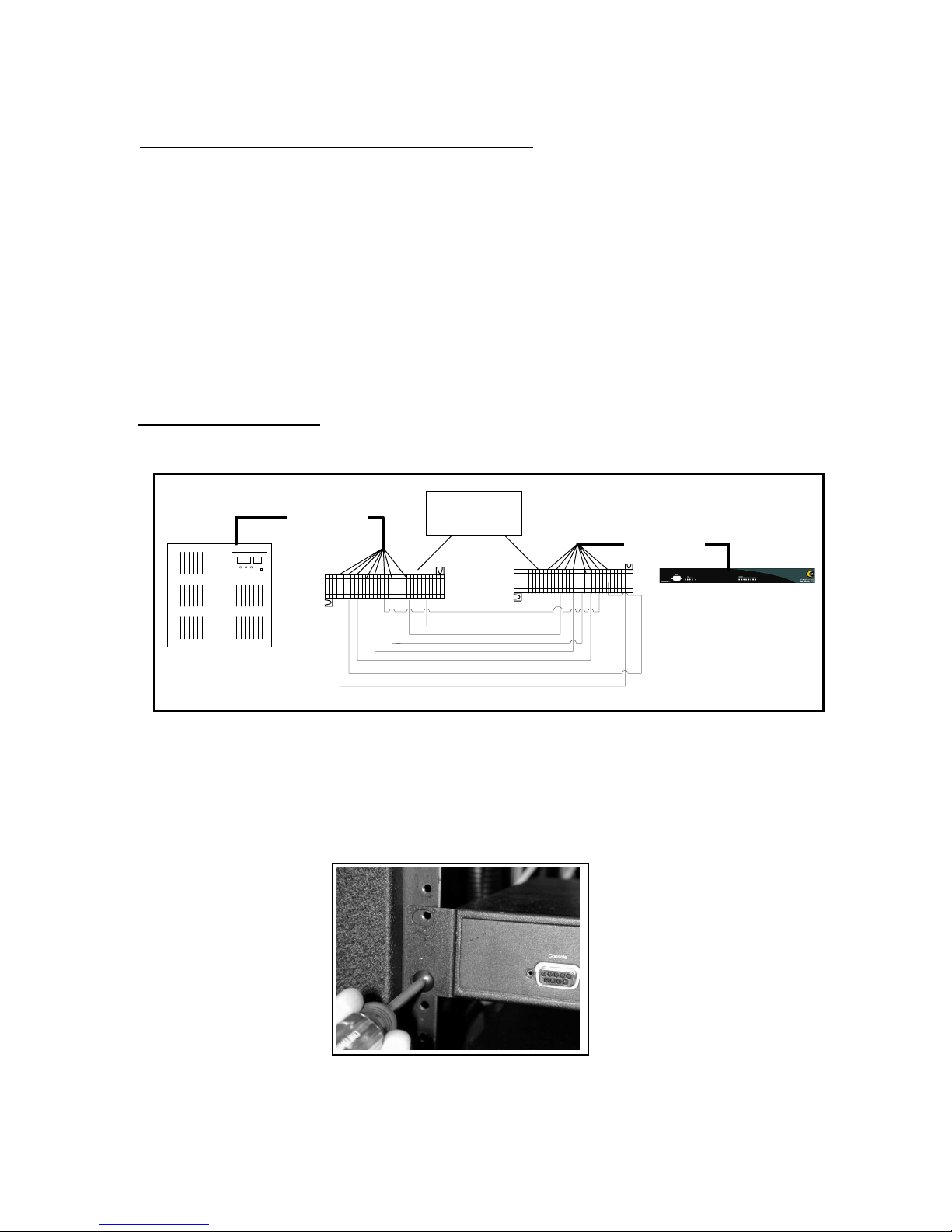

Typical Installation

A typical installation of the PBXgatewayis shown in Figure 2

Figure 2.

Mounting

The PBXgatewaycan be mounted in a standard 19-inch communication rack using

provided hardware (Figure 3) or simply placed on a shelf within the rack.

Figure 3.

PBX

Punch Blocks

RJ-21

(up to 12 Ports)

RJ-21

(up to 24 Ports)

Cross-Connect

Wires

PBXgateway

PBXgatewayQIG Page 7 G-6000G-SMM

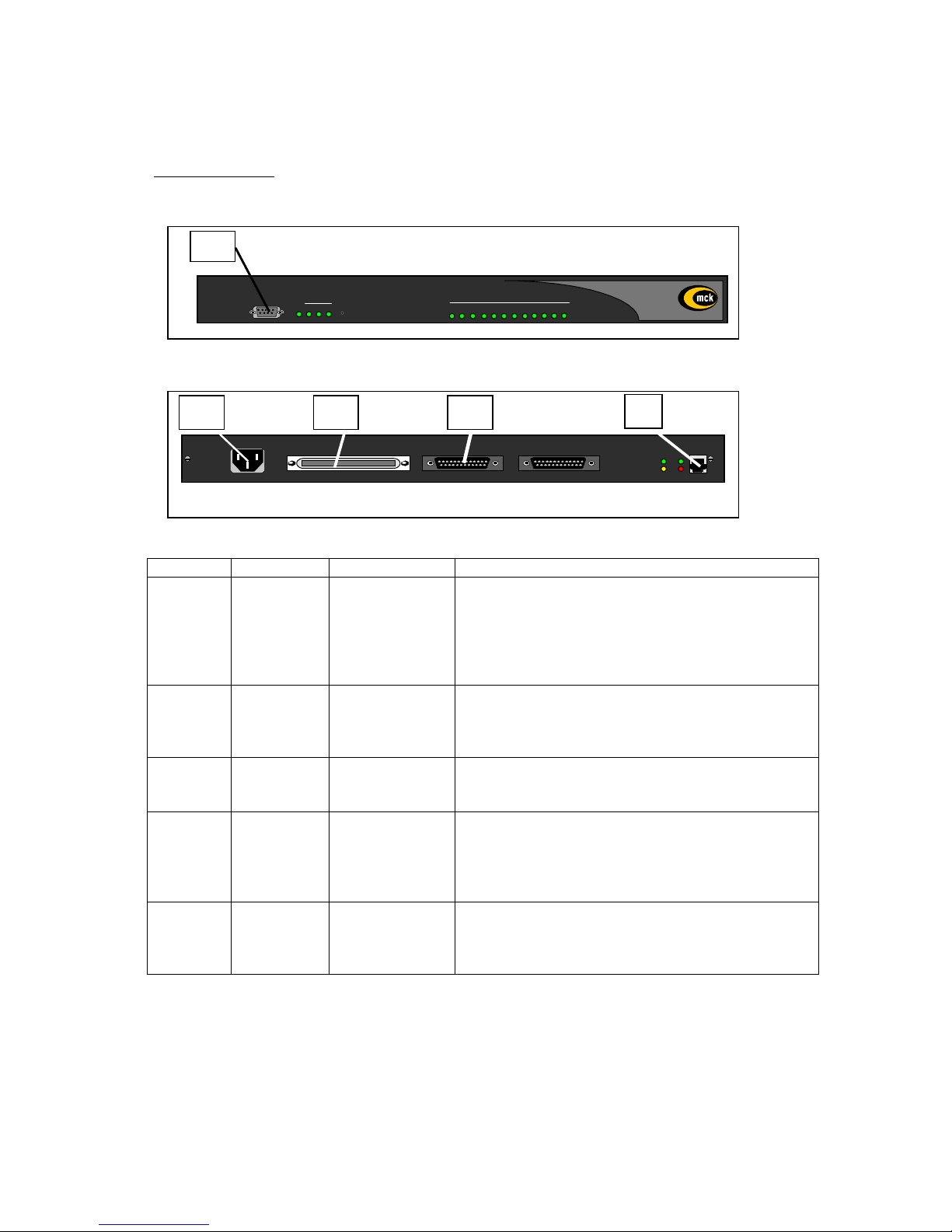

Connections

The PBXgatewayrequires connections A through E as shown below.

Letter Label Cable Type Description

A Console DB-9 Connect to a PCs COM port

Note: Set the COM port as follows; Baud rate: 9600,

Databits: 8, Parity: none, Stopbits: 1,

Software flow control: XON/XOFF

B - Power Connect to a 120VAC outlet.

Connect as the last step (se page 9)

C Telephony

Interface

RJ 21 Wire to a punch down block and then to the PBX.

(see Table 3, page 8)

D WAN1 DB 25, serial,

straight-through

Used for a synchronous-serial connection.

Connect to a CSU/DSU, or other network device

Note: An RS-530 type cable or DB-25 to M34 cable

should be used for high-speed links to V.35 equipment.

E LAN RJ 45 Ethernet Used for Telnet management or for connecting the unit

to the LAN for use in Voice over IP (RVP_IP)

applications.

Table 2. Connections

Front of Unit

Back of Unit

TELEPHONY INTERFACE WAN 1 WAN 2 XMT LNK

RCV CLN

100-240 V ~ 0.8A 50-60 HZ

B C D E

LNK

CLN

31 2 8 9 10 11 127654

Port Status

PWR 1 32

Console WAN

Reset

PBXgatewayQIG Page 8 G-6000G-SMM

Telephony Wiring

Pin Cable

Pair

Port Pin Cable

Pair

Port

WH/BL

BL/WH

138

BK/GN

GN/BK

WH/GN

GN/WH

240

BK/SL

SL/BK

WH/SL

SL/WH

342

YL/OR

OR/YL

RD/OR

OR/RD

444

YL/BR

BR/YL

RD/BR

BR/RD

546

VI/BL

BL/VI

BK/BL

BL/BK

648

VI/GN

GN/VI

Table 3. Pin Assignments (25-Pair Cable)

Wire Color Abbreviations:

BK=Black

BR=Brown

RD=Red

OR=Orange

YL=Yellow

GN=Green

BL=Blue

VI=Violet

WH=White

SL=Slate

PBXgatewayQIG Page 9 G-6000G-SMM

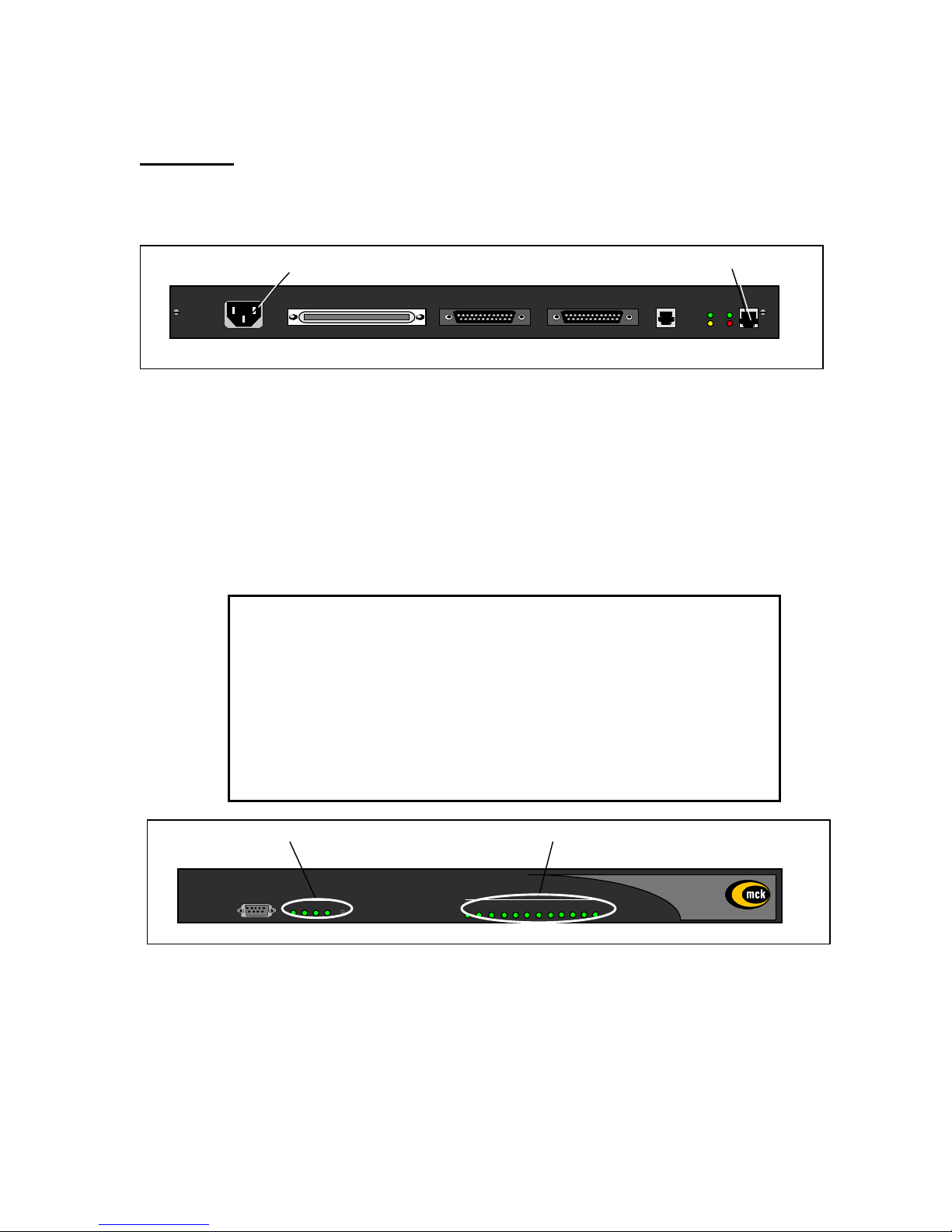

Power-Up

1. Once the PBXgatewayis properly connected, plug the unit into an AC outlet. The device will begin

a series of self-diagnostic tests, which are displayed as a series of LED flashes.

Back of Unit (for a VOIP connection, see Notes below)

VOIP Notes:

!The state for the LEDs labeled XMT (Transmit), RCV (Receive), and CLN (Collision) will vary

depending on the status of the network. These LEDs are not critical for verifying the "Power-up

Sequence".

!LNK LED Should be solid green.

!If you are connecting an PBXgatewayto an IP network, the unit needs an assigned IP address.

!The Ethernet port on the Remote unit only operates on 10 megabit Ethernet networks. It does not

support 100 megabits.

2. Once the power-up sequence has finished, the state of the following LEDs should be Green.

LED States:

PWR: Solid Green

WAN1: Solid Green if serial device connected to WAN 1.

Port LEDs: Solid Green if connected properly to PBX.

IMPORTANT:

If any of the LEDs DO NOT power-up under a “Green” state,

refer to the System Administrator’s Guide for troubleshooting information

Front of Unit

AC Power LAN Connection

LNK

CLN

ANALOG LAN

TELEPHONY INTERFACE WAN 1 WAN 2

XMT LNK

RCV CLN

100-240 V ~ 0.8A 50-60 HZ

PWR and WAN 1 (Connected) Ports

LNK

CLN

31 2 8 9 10 11 127654

Port Status

PWR 1 32

Console WAN

Reset

PBXgatewayQIG Page 10 G-6000G-SMM

Basic Configuration

The configuration, operational, and troubleshooting features of the EXTender6000 is managed and

accessible through a VT-100 Enhanced Terminal Interface (ETI). This interface is referred to as the

Management Interface (MI). The MI can be accesses with a PC or terminal connected to the console port

on the front of the unit or via telnet using IP over Ethernet. (refer to System Admin. Guide, Chapter 4-

Telnet Connection)

Procedure

1. Make sure the Remote unit is connected as shown on page Error! Bookmark not defined..

2. Using a PC, open any terminal program (IE: HyperTerminal).

Once the EXTender6000 Remote units and PC are powered-up the PC

displays the following message:

Press “Enter” to start the PBXgatewayshell…..

Note: If the PBXgatewayis powered up prior to opening the terminal program, this message will not

appear.

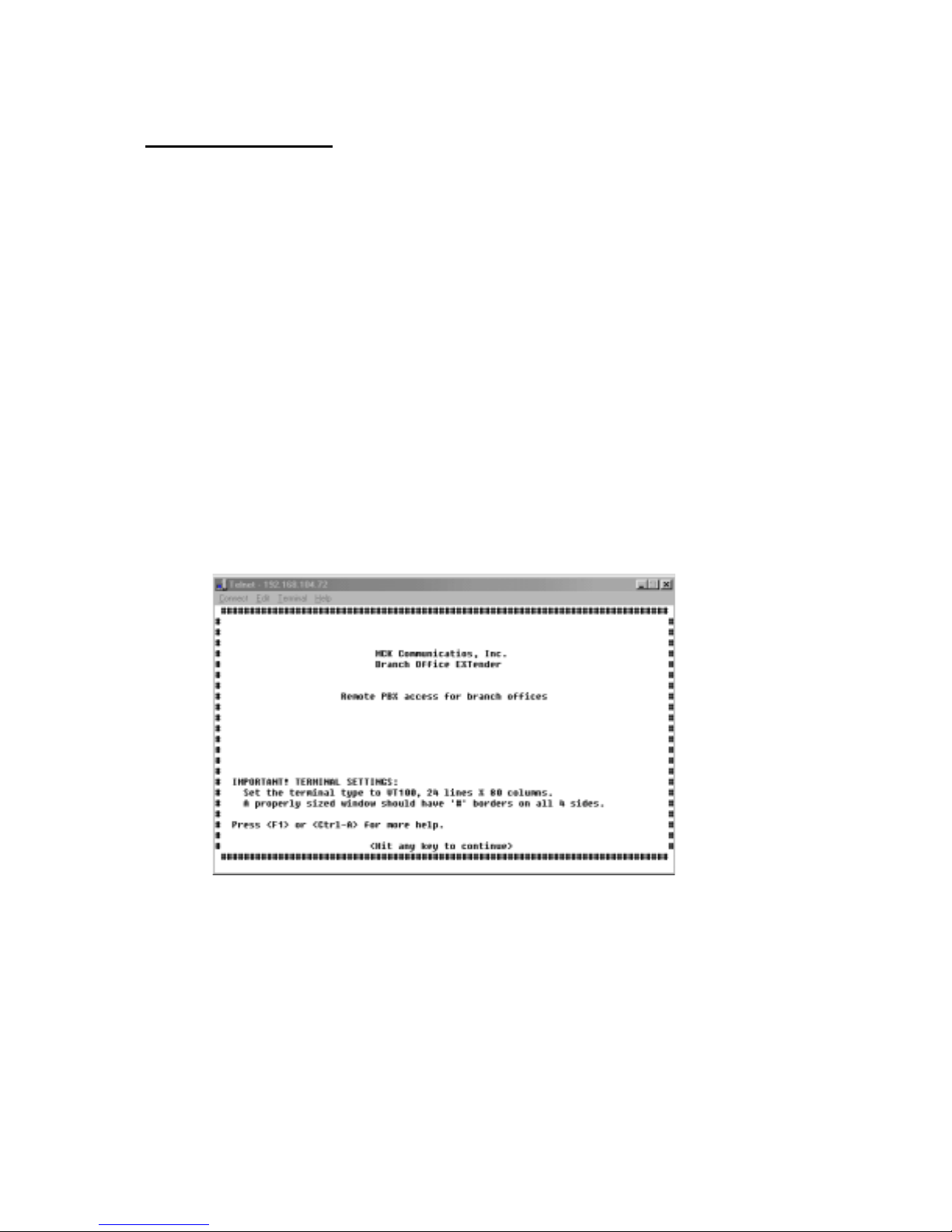

3. Press Enter and the Welcome Screen of the Management Interface (MI) will appear.

(see Figure 4)

Figure 4. Welcome Screen

IMPORTANT TERMINAL SETTINGS

The MI requires a screen size of 24 lines X 80 columns. Make sure the Welcome Screen

is bordered on all four sides with a # symbol, as shown in Figure 4.

To enlarge the screen (within the VT-100 application)

!Click any corner of the screen.

!Drag the screen to enlarge.

!Check that the screen is bordered by “#” symbols.
