MCM Custom Audio 50-14820 Manuale utente
Stereo Audio Line Pre-amplifier
WIRING

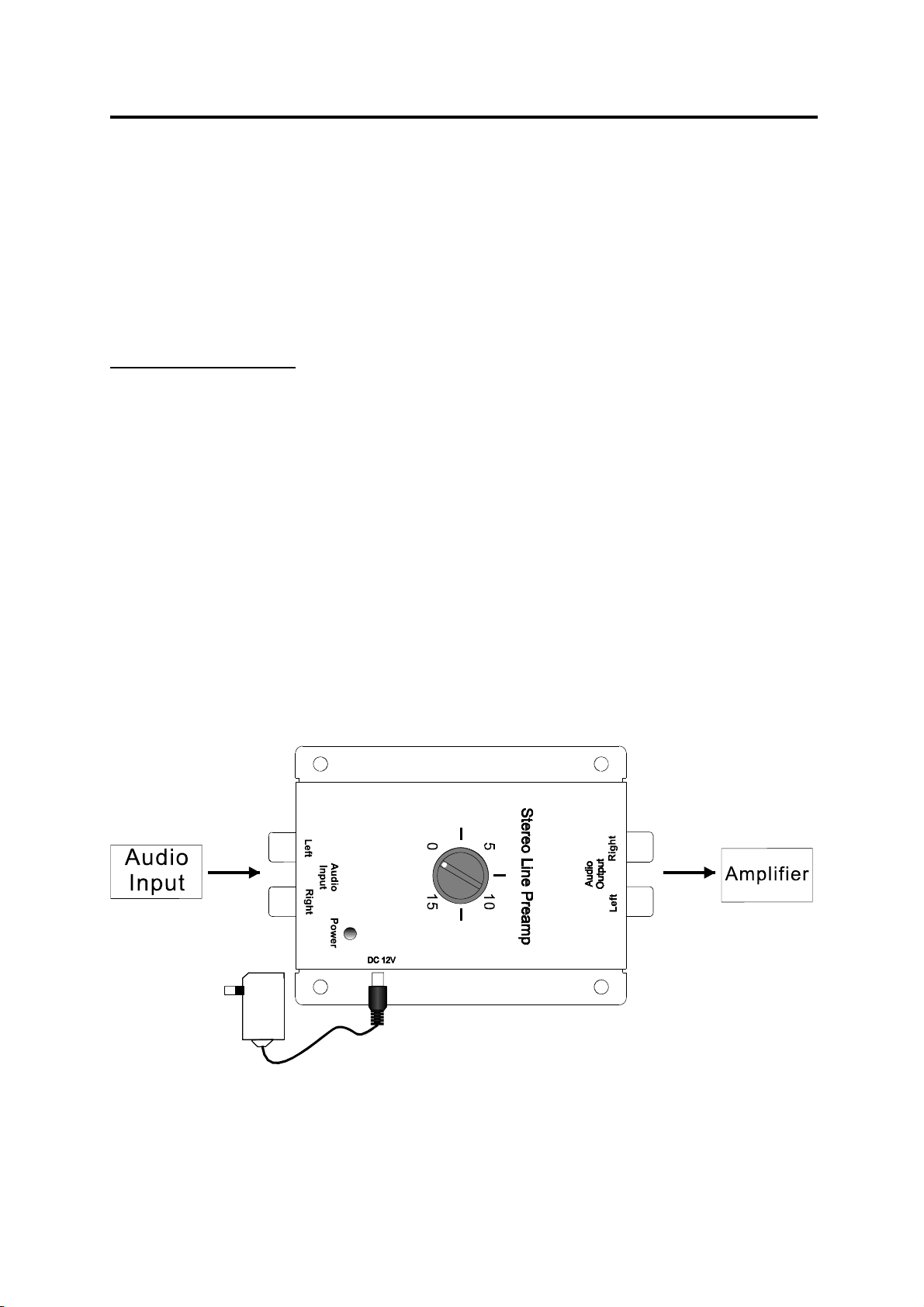

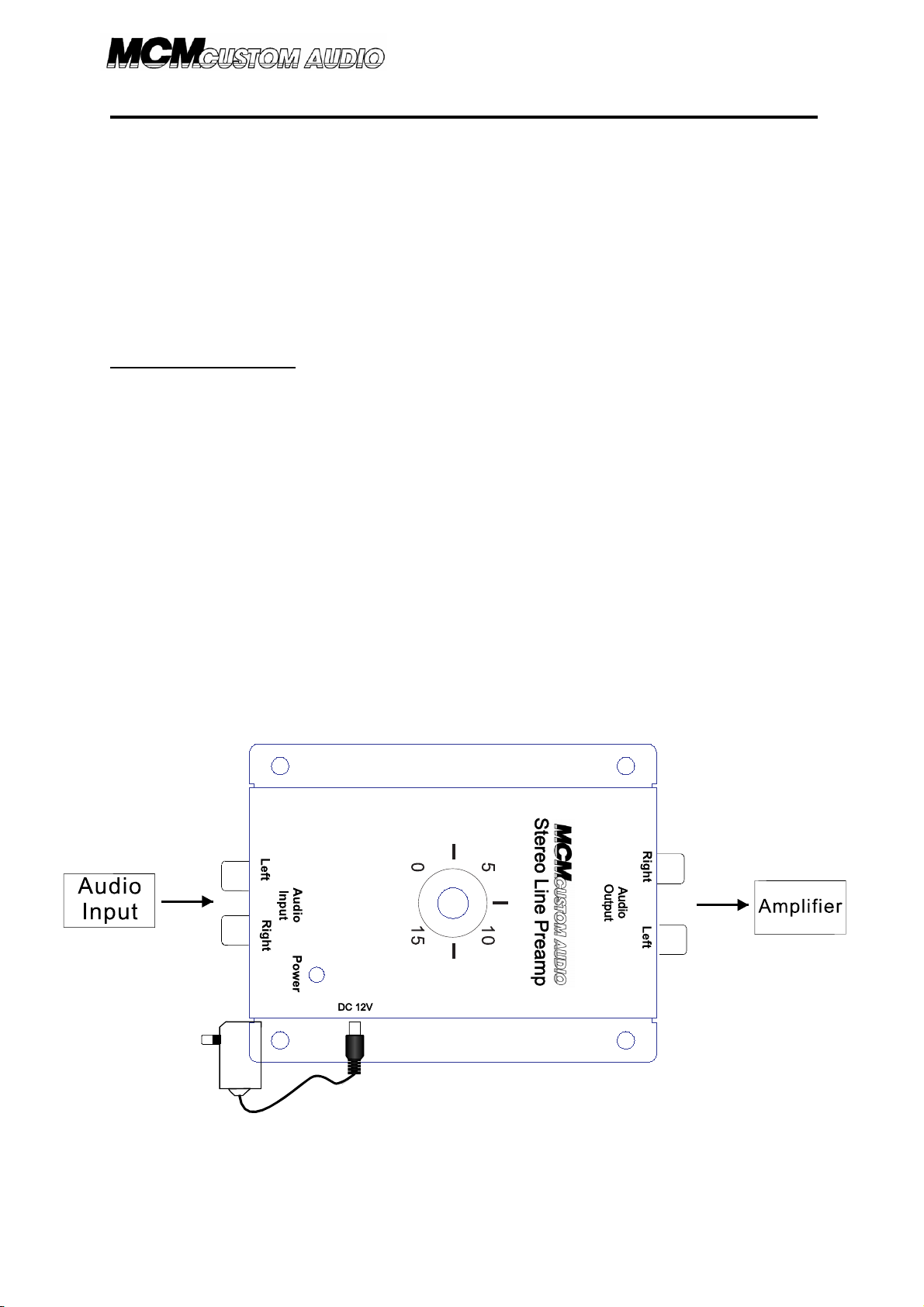

1. Connect the left and right channel outputs of the Stereo Audio Signal to the L (left)
and R (right) INPUT jacks of the Pre-amplifier.
2. Connect the L (left) and R (right) OUTPUTs of this pre-amplifier to the left and right
jacks of the Line input (AUX/CD/TUNER) of the stereo amplifier.
3. Connect a 12 VDC power supply to the power jack.
SPECIFICATIONS:
1. Input & Output Connectors: Stereo RCA
2. Frequency Response: 20Hz to 20kHz
3. Gain Control: 0-15dB
4. Max. Input Level :9Vpp(@0dB), 1.5Vpp(@15dB)
5. Input Impedance: 47K ohms
6. Output Impedance:100 ohms
7. THD (Total Harmonic Distortion)<0.002 %
8. S/N Ratio: >85 dB
9. Power Source: DC 12 Volts
10. Size: 1.7" (H) x 2.9" (W) x 4.3" (L)
11. Net Weight (Unit only): 5.7 oz.
Model 50-14820
dB Gain
MODEL 50-14820
Distributed by:
MCM Electronics
www.mcmelectronics.com
Stereo Audio Line Pre-amplifier Manual
WIRING
1. Connect the left and right channel outputs of the Stereo Audio Signal to the L (left)
and R (right) INPUT jacks of the Pre-amplifier.
2. Connect the L (left) and R (right) OUTPUTs of this pre-amplifier to the left and right
jacks of the Line input (AUX/CD/TUNER) of the stereo amplifier.
3. Connect a 12 VDC power supply to the power jack.
SPECIFICATIONS:
1. Input & Output Connectors: Stereo RCA
2. Frequency Response: 20Hz to 20kHz
3. Gain Control:0-15dB
4. Max. Input Level :9Vpp(@0dB), 1.5Vpp(@15dB)
5. Input Impedance: 47K ohms
6. Output Impedance:100 ohms
7. THD (Total Harmonic Distortion)<0.002 %
8. S/N Ratio: >85 dB
9. Power Source: DC 12 Volts
10.Size (LxWxH): 109 mm x73 mm x 43mm
11.Net Weight (Unit only): 160 g
