Mcombo 6056-1000 Manuale utente
User Manual
Outdoor Storage Shed
6056-1000
Note
● Please read this user manual carefully.
● Please keep this manual for future reference.
● Package quantity: 2
Pfillo GmbH
Adresse: Kreuzweg 60, 47809 Krefeld, Germany
E-Mail: [email protected] Webseite: www.mcombo.de
MCombo; 2. Auflage 2022
Ⅰ. Catalog Ⅱ. PRODUCT PRECAUTIONS
Ⅲ.DISCLAIMER
Ⅰ.
Ⅱ.
Ⅲ.
Ⅳ.
Ⅴ.
Ⅵ.
Ⅶ.
Ⅷ.
Ⅸ.
Ⅹ.
Catalog
PRODUCT PRECAUTIONS
DISCLAIMER
INSTALLATION PREPARATION
ACCESSORIES LIST
INSTALLATION INSTRUCTION
WARRANTY
RETURN/REPLACEMENT POLICY
CARE AND MAINTENANCE
MCOMBO CUSTOMER CENTER
------------------------------- 1
--------------- 1
--------------------------- 1
----------- 2
--------------------- 3
------------ 4
---------------------------- 7
--------- 8
--------------- 8
----------- 9
Read and follow the information in the user's manual.
Please keep kids away from small components to ensure safety.
Recommend to cover the item in extreme weather.
Recommend to cover the item in extreme weather.
The item is polished, can be DIY for freely.
To prolong the service life, recommend to oil.
Please handle wood and other accessories properly.
1
We ask that you read this manual completely before assembling and
operating your new item. We are not and cannot be held responsible for
any damage or injury incurred due to improper or unsafe use of the item.
We specifically disclaim responsibility for any bodily injury or property
damage that may occur during any use that does not comply with
applicable federal, state, or local laws or ordinances. Please keep this
manual for future reference.
1. Please prepare a carpet or mat to protect your floor. You need to
spread out all the accessories.
2. Pleaseprepare a pair of gloves to avoid being scratched by sharp
wooden sawdust that may occur during installation.
3. Please open all the boxes to check that the accessories are complete
and in good condition (The accessories list in page 3).
4. The box contains some small components, please place them
properly before installation to keep them away from kids and ensure
safety.
5. If you need to use power tools to install this product, please set the speed to low speed in advance. Due to the characteristics
of wood products, the use of high speed during installation is probably to damage the wood.
6. When installing, please align all the holes and do not tighten all the screws first, otherwise it may make the installation
difficult.
Ⅳ. INSTALLATION PREPARATION
2
Kindly Notes:
1.Please open all boxes to check the quantity and condition of accessories.
2.When installing, please align all the holes and do not tighten all the screws first.
Q: Is there any broken or missing part?
A: If yes, please feel free to contact us, we will do our best to assist you to solve the problem as soon as possible.

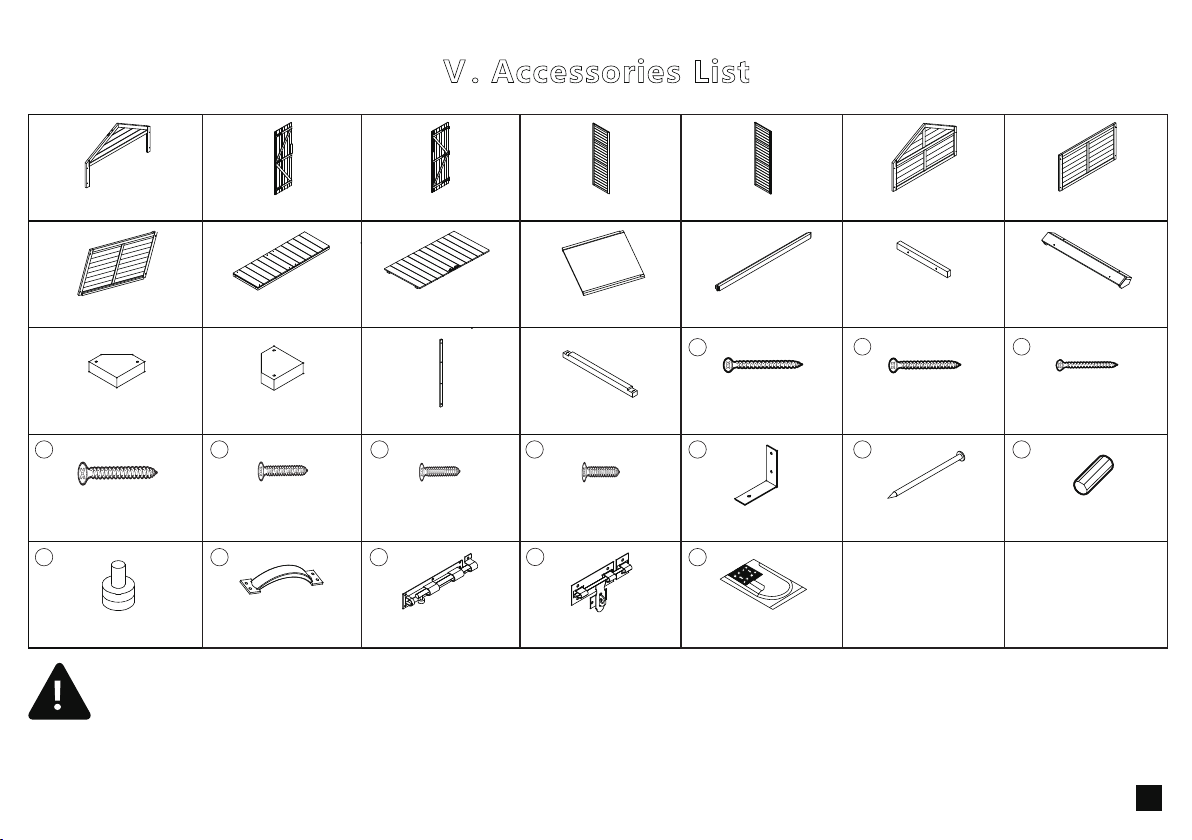

Ⅴ. Accessories List
3
3.5 x 60mm
2x, + 2PCS
1x, 900 x 559mm
4PCS 4PCS 12x, + 2PCS
6PCS 2PCS 2PCS 1PCS
3.5 x 40mm
36x, + 2PCS
3.0 x 38mm
8x, + 2PCS
3.5 x 35mm
8x, + 2PCS
3.0 x 25mm
4x, + 2PCS
3.0 x 16mm
40x, + 2PCS
3.5 x 16mm
12x, + 2PCS
2PCS
② ③ ④ ⑤ ⑥ ⑦
⑧⑨⑩
1x, 1350 x 410mm 1x, 1350 x 410mm 1x, 1448 x 440mm 1x, 1448 x 440mm 1x, 900 x 559mm 1x, 900 x 493mm
1x, 900 x 610mm 2x, 855 x 295mm 1x, 855 x 435mm 2x, 560 x 530mm 1x, 850 x 34mm 4x, 295 x 30mm 1x, 565 x 92mm
2x, 80 x 80mm 2x, 80 x 80mm 2x, 1150 x 34mm 1x, 480 x 30mm
①
⑪ ⑫ ⑬ ⑭
⑮ ⑯ ⑰ ⑱ ABC
D E F G HIJ
K L M N O
4

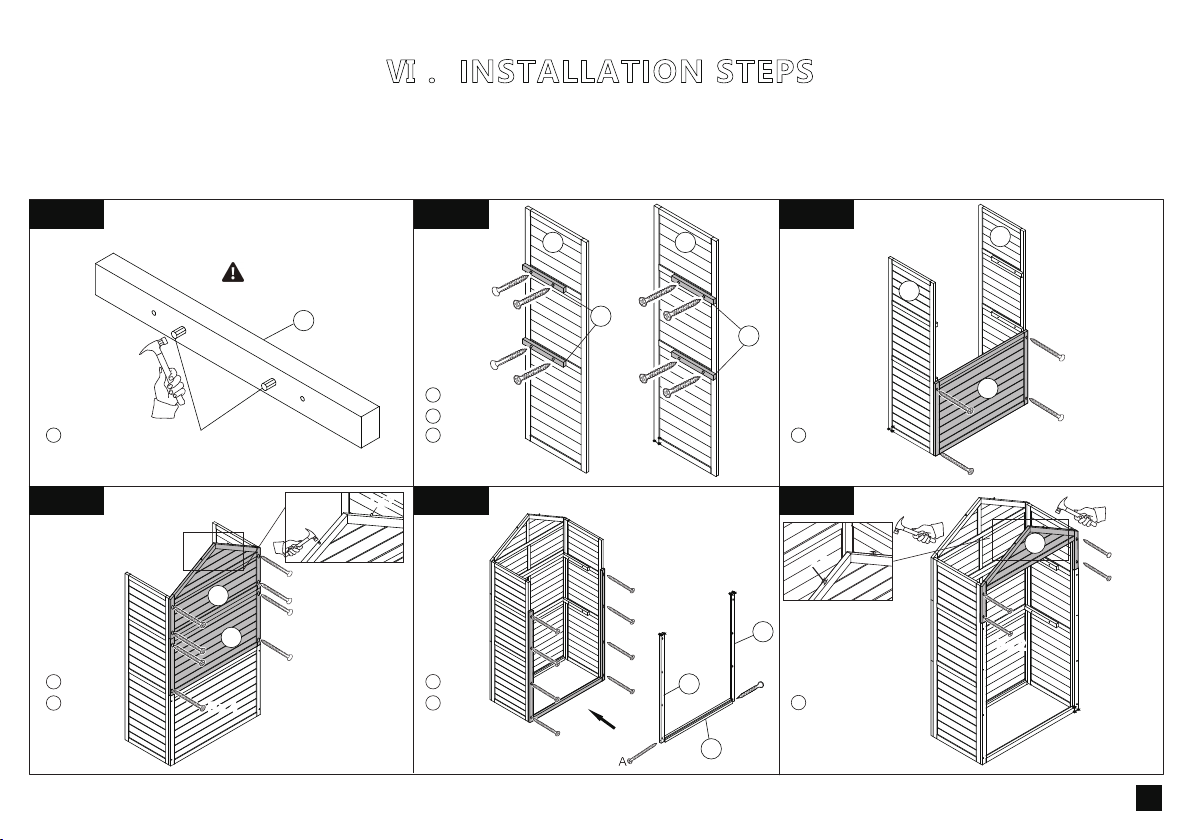

Ⅵ . INSTALLATION STEPS
Q: How to solve the hole misalignment?
A: Please do not tighten all the screws until aligning all the holes.
13
13 x 4
JJ x 2
B x 4 B x 4
A
B x 4
B x 4
C x 2
C x 2
C x 2
B x 2
B x 2
B x 2
C x 2
x 8PCS
13 x 4
Cx 8PCS
4 x 1
5x 1
B x 8PCS
x 2PCS
J
x 1
6
7x 1
A x 2PCS
12 x 1
17 x 2
Repeat STEP1 4 times.
8 x 1
Bx 4PCS
Bx 8PCS
B x 4PCS
1 x 1
Jx 2PCS
STEP 1 STEP 2 STEP 3
STEP 4 STEP 5 STEP 6
5
5
4
4
13
17
12
17
13
B x 4
6
7
J x 2J x 2
J x 2
J x 2
8
1
B x 2B x 2
5
Ⅵ . INSTALLATION STEPS
Q: How to solve the hole misalignment?
A: Please do not tighten all the screws until aligning all the holes.
10
x 12PCS
x 6PCS
x 2
B
K
16
15
18 x 1
x 8PCS
x 1
x 2
x 2
x 4PCS
x 4PCS
D
10
9
11
I
H
F x 8PCS
E x 4PCS
Gx 12PCS
3 x 1
2 x 1
14 x 1
N x 1PCS
L x 2PCS
F x 32PCS
Mx 2PCS
STEP 7
STEP 10
STEP 8 STEP 9
STEP 11 STEP 12
x 2
Finish
16
16
15
18
15
9
9
10
14
2
3
11
11
B x 2
D x 4
D x 4
F x 2
I x 1
H x 1
E x 4
G x 6
G x 6
B x 2
M x 1
L x 2
F x 8
F x 8
N x 1
F x 8
K
K
K
K
K
K
B x 2
B x 2
B x 2
B x 2
B x 2
B x 2
6
Ⅵ . INSTALLATION STEPS
Q: How to solve the hole misalignment?
A: Please do not tighten all the screws until aligning all the holes.

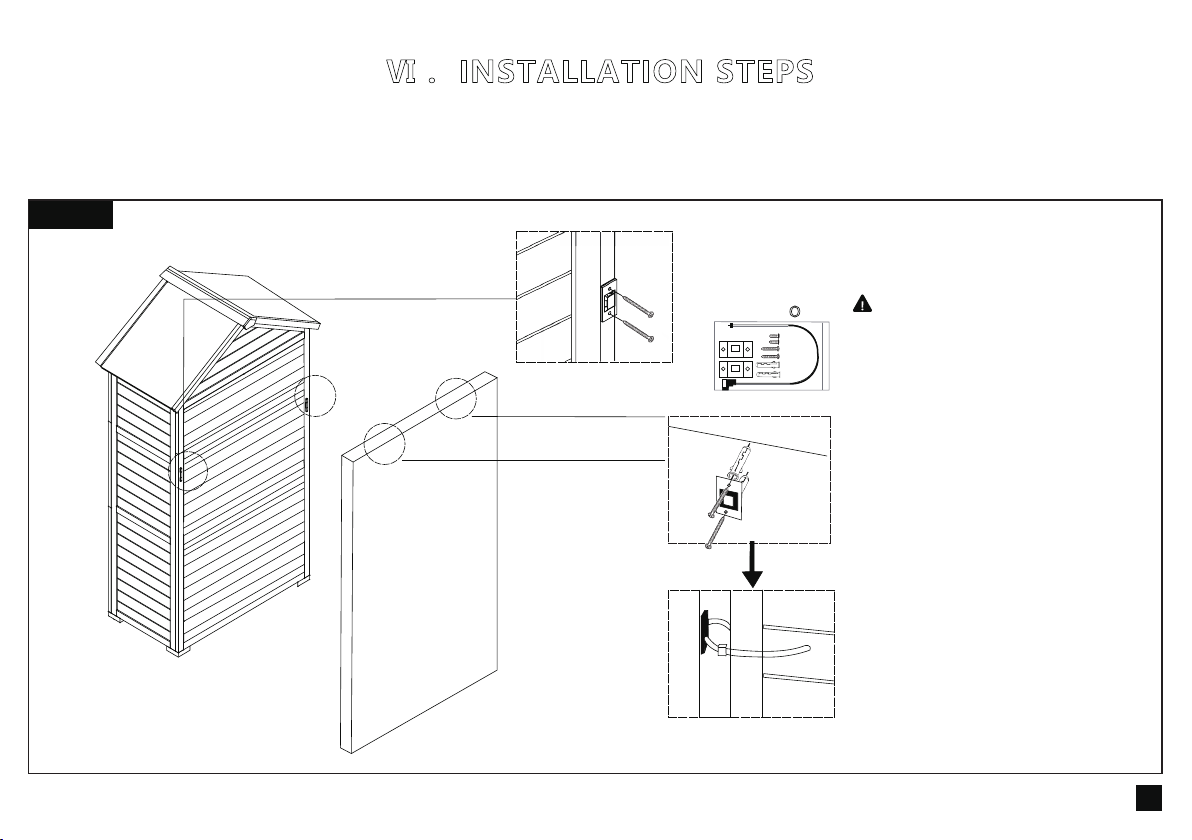

STEP 13
Attention:
Part O are anti-falling
devices,if they are
not needde,they can
not be installed.
O x2
Wall
Finish
7
WARRANTY DETAIL EXPLANATION
- Mcombo will replace the defective parts or send a replacement
item provided that the warranty parts have not been subjected to
misuse, abuse, or improper service by the consumer, for example,
damaged part arising in consequence of negligence or improper
operation.
- Exclusions also include components with damage caused by:
Contamination
Abuse, misuse, accident or negligence
Commercial use, or use other than normal
Improper operation maintenance, or storage
- Mcombo will pay standard shipping rates on all warranted parts for
the first year. We can also sell you the replacement part for a discount
price when your item is out of warranty policy.
Wood
Hardware 6 months
1 Year
Limitations Applicable to All Warranties
All warranties begin on the date of delivery.
All warranties are to the original purchaser
from MCOMBO /EXACME ONLY.
Ⅶ . WARRANTY
8
MCOMBO all items come with a 14-day return/replace policy during this time we will cover the shipping cost of return and replace-
ment for a defective and damaged item, and provide pre-paid return label or pick-up service for customer's convenience.
Note: Please disassemble the item before you return it, otherwise there will be a huge cost as oversized and it could even exceed
your order amount.
Please do not purchase return labels for a damaged defective item by yourself.
If you have any problem to return the item please contact us immediately we will do our best to help you.
Mcombo is not responsible for the returns that the customer bought by mistake or changed their mind and other non-quality issues.
But we can help customers arrange pick-up service at a reasonable price.
Ⅷ . RETURN/REPLACEMENT POLICY
Ⅸ . CARE AND MAINTENANCE
- We recommend covering the product under extreme weather outdoors.
- Due to the characteristics of wood and the gap between the boards, in order to prolong the service life of the product, we recommend
that you regularly coat a waterproof oil and sealant on the product.
If for any reason we have fallen short of your expectations or if you have any questions and suggestions please refer to the
following to contact us, we will do our best to work with you to make sure you are entirely satisfied.
If there is any problem with the product, how to solve it?
In order to efficiently help you solve the problem, please let us know your order number, the part number of the defective/miss-
ing part, the quantity of the issue parts, and send some pictures when contacting us. They can effectively assist us to solve the
problem for you quickly.
Please rest assured, you will receive a reply within 24 hours.
9
Ⅹ. MCOMBO CUSTOMER CENTER
Kreuzweg 60, 47809 Krefeld, Germany
www.mcombo.de
