MD SPORTS 1639021 Manuale utente
MODEL: 1639021
ASSEMBLY INSTRUCTIONS
TM
VM Innovations
ATTENTION
DO NOT RETURN
TO THE STORE
Contact
MD Sports
Customer Service
* For additional resources and Frequently
Ask Questions, please visit us at
themdsports.com
LIMITED 90 DAYS WARRANTY
NOTICE!
STAPLE YOUR RECEIPT HERE
This product is covered by a limited warranty that is effective for 90 days from the date of purchase. If, during
the limited warranty period, a part is found to be defective or breaks, we will offer replacement parts at no
cost to you, the customer. The only exceptions to the warranty include mainframes, table tops, playing
surfaces, batteries or tools.
The above warranty will not apply in cases of damages due to improper usage, alteration, misuse, abuse,
accidental damage or neglect.
This Limited Warranty gives you specific legal rights and you may also have other rights which vary from one
State (province) to another.
A PURCHASE RECEIPT (or other proof of purchase) will be required before any warranty service is initiated.
For all requests for warranty service, please feel free to contact our Consumer Service Department at :
Please be aware of your product’s Limited Warranty for the return/refund policy from the store, We, at Medal
Sports, can not handle the product which is out of product’s limited warranty since we only provide available
parts. Thank you!
PLEASE CONTACT US BEFORE RETURNING
THE PRODUCT TO THE STORE.
WEBSITE: www.themdsports.com
1 - Please leave your name, address, phone number, model number, parts needed on the answering
machine if there is no attendant. Failure to do so will result in a delay in shipping parts to you.
2 - Please review the replacement parts list and make sure that you have all of your parts before begin-
ning assembly. For questions that may arise or for missing/damaged parts, please contact us.
3 - Since you build all tables upside down, please inspect tabletops or playing surfaces right away before
putting together, all damaged table tops/playing surfaces need to be returned to the store. Please
contact with retailer for their return policy.
www.themdsports.com
1639021 1
(Continued on the next page.)

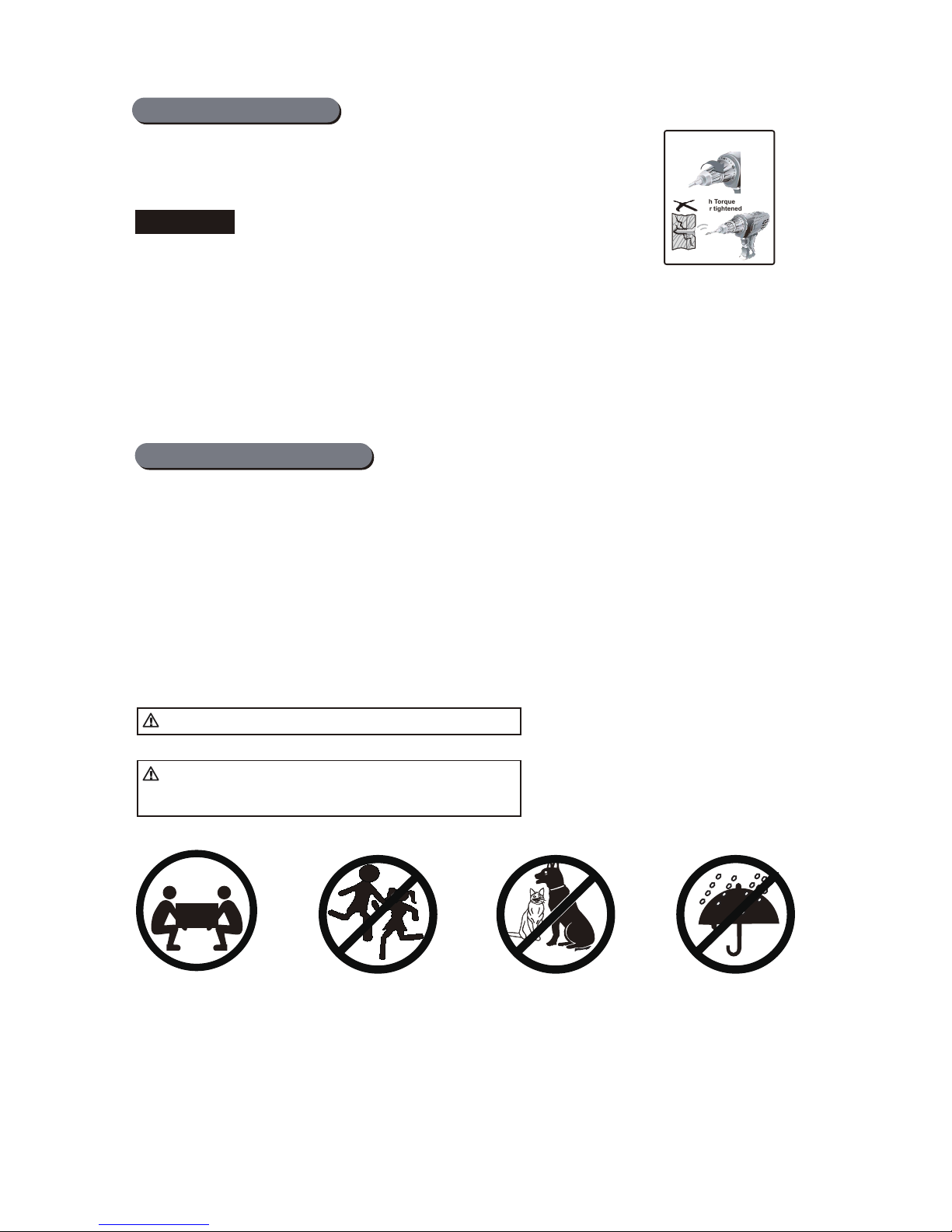

CAUTION !
ASSEMBLY TIPS
TOOLS REQUIRED
Phillips Screwdriver - Not Included
Standard (Flat Head Screwdriver) - Not Included
Wrench - Included
Allen Wrench - Included
WARNING:
WARNING: Adult Assembly Required.
IMPORTANT NOTICE!
Power Tools
-Set Low Torque
High Torque
over tightened
1 - Please read the instructions carefully, and follow all assembly, operation and safety
instructions properly in order to avoid damage and injury. For the assembly, at least four
adults are required.
2 - Some figures or drawings may not look exactly like your product. Please read and under-
stand the text before beginning each assembly step.
Do not use or keep product
outdoors. For indoor use only.
No wet/humid conditions.
Keep away from petsNo Children in
Assembly Area
Electric Screwdrivers may be helpful during assembly; however,
please set a low torque and use extreme caution.
1 - This product is intended for INDOOR use only.
2 - Please do not sit, climb or lean on the product.
3 - Please do not drag the product when moving it in order to avoid damaging the legs.
4 - Please only use spray furniture polish to clean the exterior surfaces of the product.
5 - This is not a child's toy, adult supervision is required for children playing this game.
X4
Strong Adults Needed
www.themdsports.com
1639021 2
(Continued on the next page.)

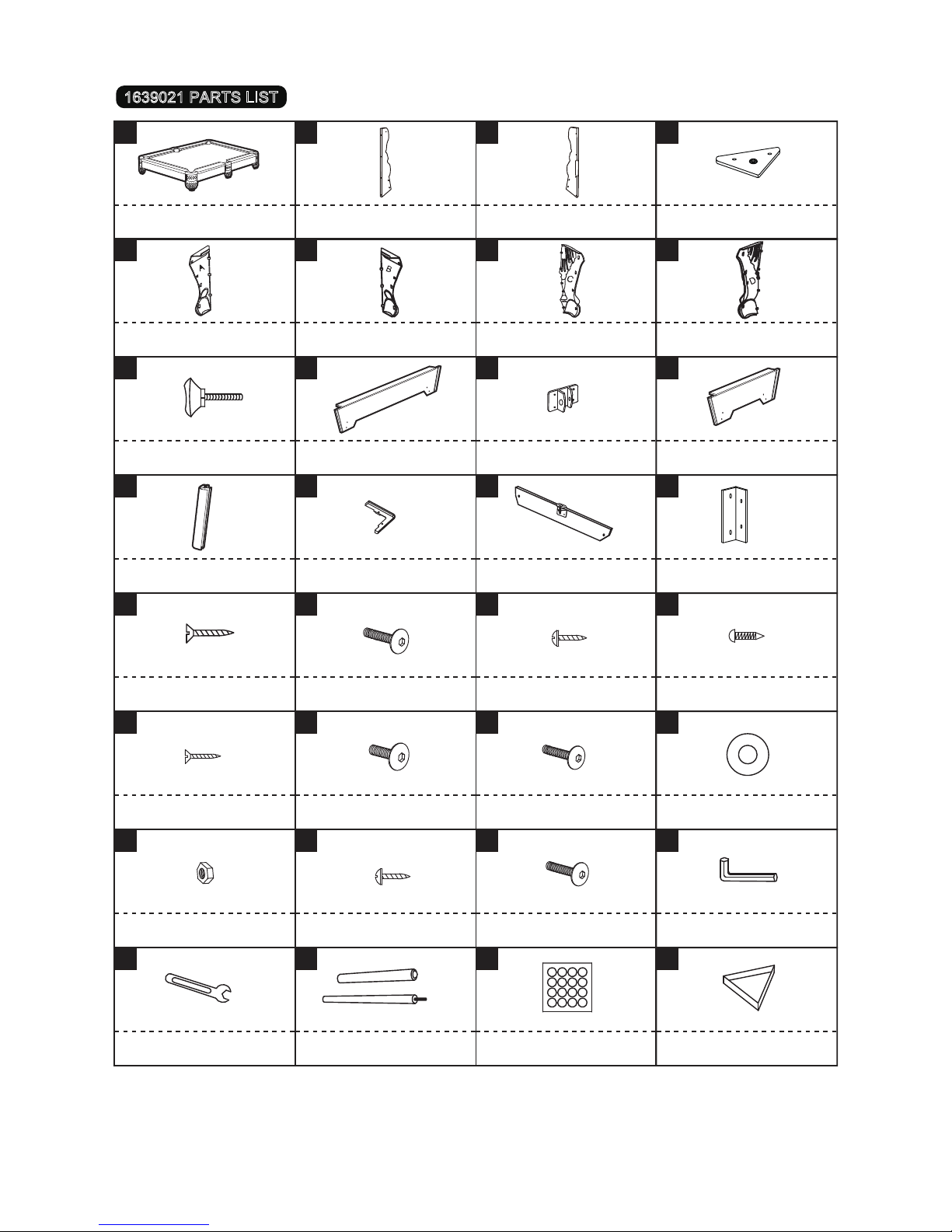

1639021 PARTS LIST
2 3 41
x1 x4 x4 x4
6 7 85
x4 x4 x4 x4
10 11 129
x2 x2
14 15 1613
x4 x4 x2 x8
18 19 2017
22 23 2421
26 27 2825
30 31 3229
x2
Mainframe Inside Leg - A Inside Leg - B Leg Base
Plastic Leg - A Plastic Leg - B Plastic Leg - C Plastic Leg - D
Lower Side Apron Lower End Apron
Apron Corner Leg Top Panel Support Board
x4
“U” Plastic
Bracket
Steel Bracket
x16
P3 x 1/2” Screw
x13
T4 x 1/2” Screw
x20
T4 x 5/8” Screw
x8
F3 x 5/8” Screw
x16
5/16” x 1” Bolt
x16
5/16” x 1/2” Bolt
x4
1/4” x 1-1/2” Bolt
x4
1/4” Nut
x12
1/4” x 1” Bolt
x4
1/4” Washer
Cue
www.themdsports.com
1639021 3
(Continued on the next page.)
x4
Leg Leveler
x40
F4 x 1-3/4” Screw
x1
Allen Key
x1
Wrench
x1
Billiard Ball Set
x1
Triangle
1639021 PARTS LIST
3433
x2 x1
Chalk Brush
P1 P2
x2 x4 x2
P3 P4
x16
1639021 PRE-INSTALLED PARTS
Adjustable
"L" Bracket Corner Pocket Side Pocket 5/16” Nut
P5
x12
1/4” Nut
www.themdsports.com
1639021 4
(Continued on the next page.)
ASSEMBLY INSTRUCTIONS:
1. Find a clean, level place to begin the assembly of your Billiard Table. The table will be assembled
upside down and then turned over on its legs once the assembly completed. This game table is heavy,
and turning it over will require at least four strong adults.
2. Remove all the parts from the box and verify that you have all of the listed parts as shown on the parts list page.
Carefully cut or tear the four corners of the box so that the bottom of the box can be used as your work surface.
35
x4
F3 x 1/2” Screw
37 38 39
x1 x1 x2
Cue Rack-Left Side Cue Rack-Right Side Cue Rack-Middle Shelf
40
x1
Cue Rack-Top Panel
Cue Rack Hook
36
x2
41
x1
Triangle Holder
43
x1
Cue Rack-Base Panel Cue Holder
42
x2
2
3
17
2
3
17
www.themdsports.com
1639021 5
(Continued on the next page.)
FIG.1
3. Attach the Inside Legs - B (#3) to the Inside Legs - A (#2) using four Screws (#17) per Inside Leg - B. See FIG. 1.
FIG.2
4. Attach the Steel Brackets (#16) to the legs using two Bolts (#18) per Leg. See FIG. 2.
X 4
X 4
X 16
FIG. 1
16
18
16
18
28
X 8
X 16
X 1
FIG. 2
16
18
28
Side View
NOTE: Outer edge of Steel Bracket
should be flush with edge of Leg.
www.themdsports.com
1639021 6
(Continued on the next page.)
FIG.3

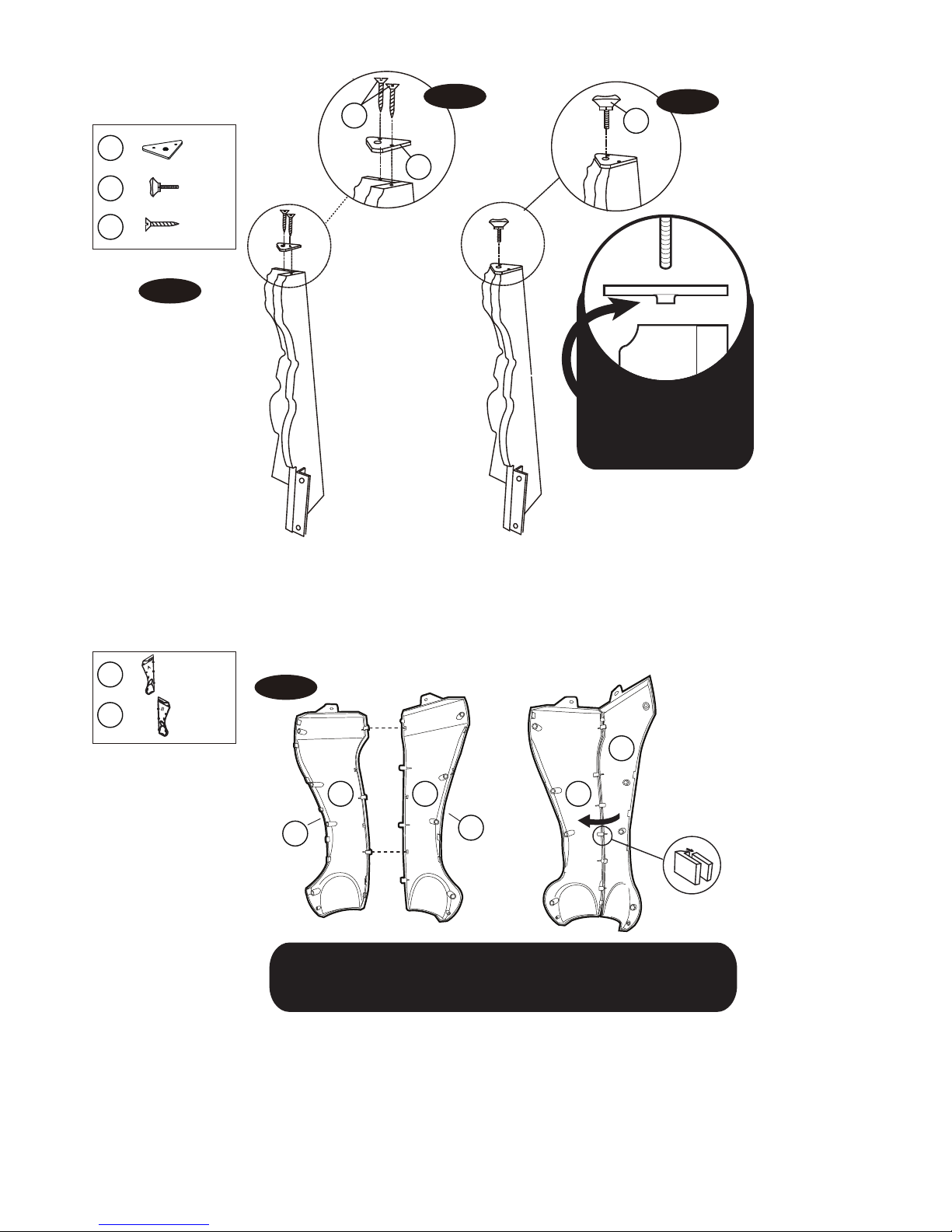

5. Attach the Leg Bases (#4) to the grooves using two Screws (#17) per Leg Base. See FIG. 3A.
6. Screw the Leg Levelers (#9) into the Leg Bases (#4). See FIG. 3B.
4
9
17
X 4
X 4
X 8
FIG. 3
IMPORTANT:
Male portion of Leg Base
points down on Leg.
(As shown above).
9
4
17
FIG. 3A FIG. 3B
5
6
X 4
X 4
FIG. 4
5 6
Locking piece
IMPORTANT: Listen for “CLICK” sound when snapping Legs
together. This will indicate that the Legs are locked firmly in
place. NO “CLICK” = NOT LOCKED.
A
B
A
B
FIG.4
7. Carefully align the seams of the Plastic Legs - A (#5) and Plastic Legs - B (#6); lock them together using the locking
pieces in the legs. See FIG. 4.
www.themdsports.com
1639021 7
(Continued on the next page.)
FIG.5
8. Lock the Plastic Legs - C (#7) and Plastic Legs - D (#8) together in the same way. See FIG. 5.
FIG.6
9. Attach the Plastic Legs (#5 & #6) to the Inside Legs (#2 & #3) and then place the other Plastic Legs (#7 & #8)
around the other side. See FIG. 6.
10. Align the holes of the Plastic Legs (#5 & #6, #7 & #8),then attach together using four Screws (#20) per Leg.
Note: it is not recommended to use a power screwdriver when assembling the Plastic Legs.
Over - tightening of the screw can cause damage to the legs.
7
X 4
8
X 4
FIG. 5
20
20
X 16 FIG. 6
7
8
D
C
Locking piece
IMPORTANT: Listen for “CLICK” sound when snapping Legs
together. This will indicate that the Legs are locked firmly in
place. NO “CLICK” = NOT LOCKED.
5 & 6
7 & 8
2 & 3
www.themdsports.com
1639021 8
(Continued on the next page.)
FIG.7
11. Tighten the pre-assembled Legs using two screws (#19) per Leg. See FIG. 7.
FIG.8
12. Align the Lower Side and End Aprons (#10 & #12) with Top Boards as shown in FIG. 8. Slide the Apron
Corners (#13) onto the Lower Side and End aprons (#10 & #12). See FIG. 8A.
19
19
X 8 FIG. 7
FIG. 8
10
X 2
12
X 2
13
X 4
10 12
13
TOP VIEW: Part # 13
SIDE VIEW: Part # 13
NOTE: Flush with Aprons
FIG. 8A
NOTE: Arrow on the backside of Apron Corners
shows direction to slide the Apron Corners down.
www.themdsports.com
1639021 9
(Continued on the next page.)
FIG.9

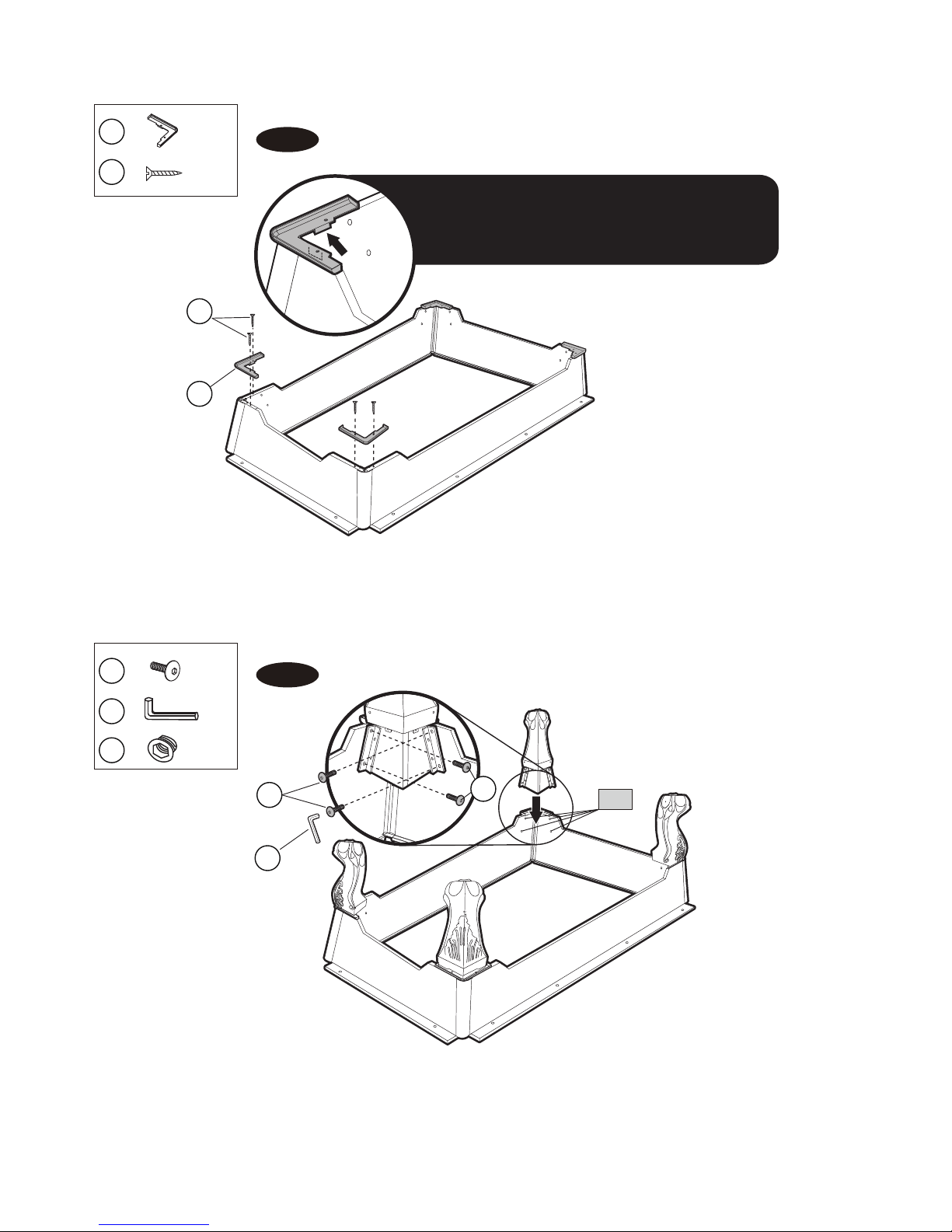

13. Attach the Leg Top Panels (#14) to the corners of the Aprons using two Screws (#21) per Leg Top Panel.
See FIG. 9.
FIG.10
14. Attach the pre-assembled Legs to the Aprons using four Bolts (#22) per Leg. See FIG. 10.
FIG. 9
FIG. 10
22
X 16
28
X 1
14
X 4
21
X 8
14
21
NOTE: Make sure “FLAPS” on Leg Top Panels are
FLUSH AGAINST APRONS before inserting Screws.
P4
X 16
22
28
22
P4
