Measy RC12 Manuale utente
《
RC12
Wireless air mouse manual》
I. Introduction
RC12 is an air mouse which can realize the dual function of the
traditional keyboard and mouse when you sliding your fingers on the
touchpad gently. You will find it comfortable and convenient when you
control it in your hands. It is unnecessary to like other traditional
keyboard and mouse, which must rely on the stationary flat desktop to
operate. It makes you easy to control your computer, Television and
entertainment when you lying down, or standing.

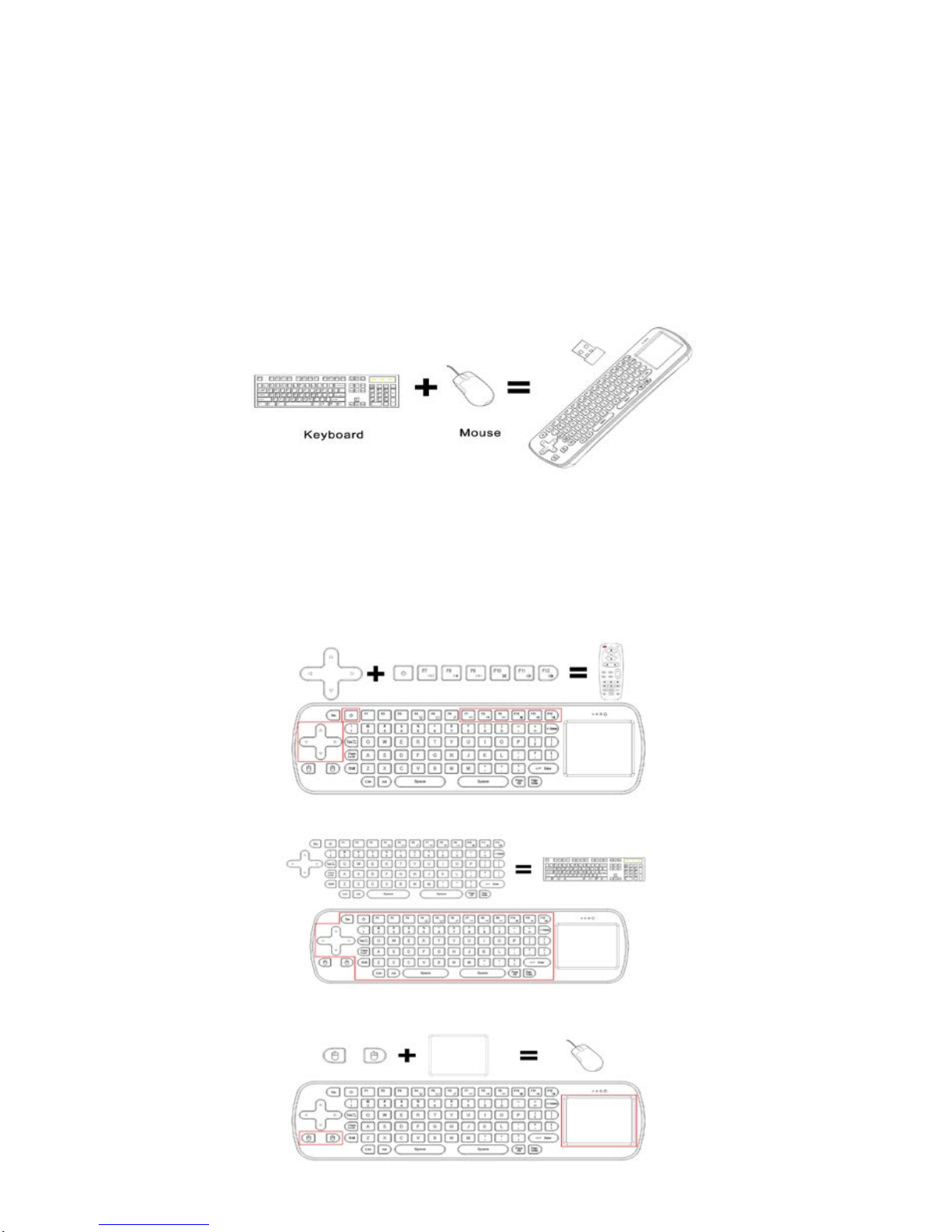

Three-in-one function
RC12 is a remote control? A computer keyboard? A computer mouse? The
answer is that RC12 a three-in-one multi-functional wireless air mouse
which has remote control function, computer keyboard function and
computer mouse function.
1. Remote control function
2. Computer keyboard function
3. Computer mouse function
II. Characteristics：
1. Standard AAA batteries design, can be used in all countries in the
world, also can avoid the drawbacks come from the built-in lithium
battery.(Heavy weight, easy to make the wrist fatigue; limited charging
times ,short lift; long charging time, hard to find the charging address
if need to be charged )
2. Whole-fish-soup-button design, to reduce the impedance of the general
carbon film key from the current, and improves the sensitivity of the
remote control
3. Wireless air mouse reserves storage space for the USB receiver, and
eliminates the worry about losing the receiver completely.
4. Standard keyboard design, make you can output at any time. No generally
omit keyboard and air mouse can match it.
5. The humane design of the artificial mechanics makes the users fell
extraordinary, comfortable and convenient.
6. The advanced power-saving technology improves the battery life a lot.
It will goes into dormancy in 2 minutes without working. The current of
dormancy is only 10uA.you can press any button to make it go on working.
7. Plug and play, no driver required. It can compatible with USB1.1 and
USB 2.0 interface.
8. Easy to connect, no cables required. Only if insert batteries, plug
the USB receiver into the devices’ USB interface, then you can use the
keyboard and mouse in the meantime.
9. Support Windows XP/Windows Vista/Windows 7 system; support Android
2.2/2.3/2.4/4.0/5.0.
10. Can be used for Computers, projectors, smart TV in sitting room, HDTC,
android tablet PC, android HD media player, Google smart TV player boxes.
III. The functions of buttons ：
A、Shortcut buttons function (the following functions are applied
to MEASY android media players )
Button Function
ESC Press to back or exit
Power Computer dormancy key, press to enter the relevant state
F4 Open the system default web browser home page
F5 Open the mailbox application
F6 Open the system default media player ,such as cool dog,
TT Player and so on
F7 The system default media player to play the last one
F8 The system default media player to play or stop
F9 The system default media player to play the next one
F10 Mute
F11 Press to increase volume
F12 Press to enter volume
B、The other functions of the keys are same as the
standard keyboards。
IV. Initialize settings
When the cursor appears to drift and cannot make it move, please follow
the operations of the air mouse to do initialize setting.
1. Please put the device on the desktop, press the up arrow and down arrow
and Enter key sequentially, do not release other keys when you press each
one. While holding down these three keys for 1 second, the LED key of
the air mouse will become flashing state.
2.Rleasing when the LED key become flashing state ,at the same time plug
the USB receiver into the USB interface of the device ,air mouse will
start to initialize code. The LED key will become lit state, that is mean
the air mouse do initialize setting successful.
V. The area of the function keys
1. Direction buttons: same function as the up, down, left and right
direction buttons of the standard keyboard.
2. The left button of the mouse: same function as the left button of the
standard mouse.
3. The right button of the mouse: same function as the right button of
the standard mouse.

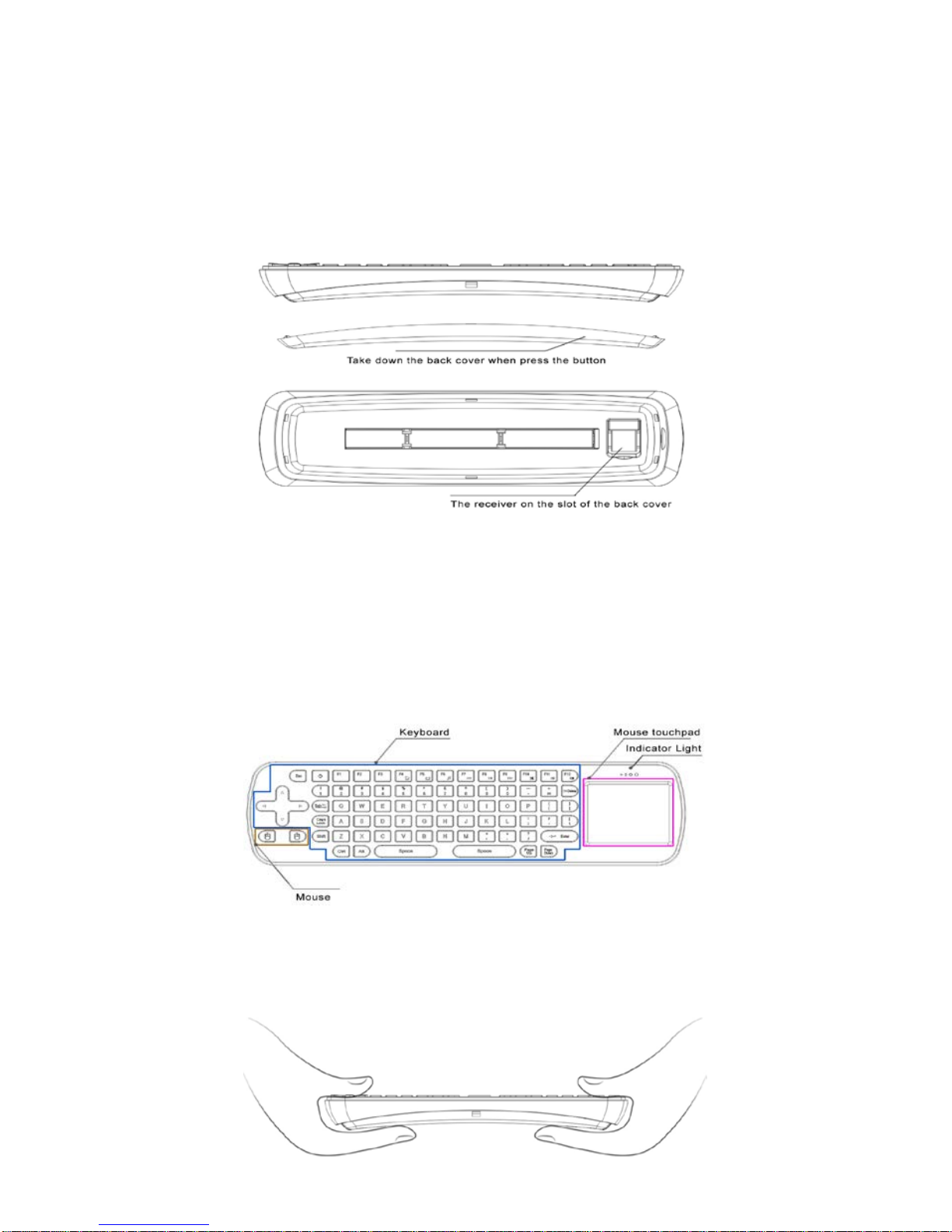

VI. Installation and connection :
1. Open the back cover of the air mouse, install three new AAA batteries
(Note make sure of the polarity of the batteries are not backwards), then
close the back cover.
2. Plug the USB receiver into USB interface of the computers or android
media players
VII. Using ：
1. Using of the air mouse：
Holding both ends of the air mouse with your hands , controlling the
direction buttons ,the left and right buttons of the air mouse with your
left hand ,and sliding on the touch air with your right thumb finger ,then
you can move the cursor freely through controlling the moving of the mouse
pointer .
2. Using of the wireless keyboard：
When moving the cursor to the specified location, you can use your left
and right hands to press any buttons to enter characters on the keypad
freely
VIII. Instruction of the LED light state：
1. It means that it connects failed when the LED of the air mouse flashes,
2. The LED keep lighting, means connect well and can work.
3. Press any button, the LED light will flash once
IX. Packing contents：
NO. Name Quantity（pc）
1 Wireless keyboard 1
2 USB receiver 1
3 User Manual 1
4 Repairing card 1
X. Product Specifications：
Technical Specifications
Hardware Specifications
RF radio frequency 2.4G RF
Power AAA Batteries.5V
Buttons life 1500,000 times
Main components Remote control+ USB receiver
The working current of the USB
receiver （A）
about 21.5 mA
The wo
rking current of the
remote control（A）
about 20 mA
Features
Signal transmission mode 2.4G RF
Keyboard layout QWERTY American standard keyboard（can be
modified according to the customers’
requirements）
Support operating system
Windows XP / Vista / 7 / MAC / Linux /
Android2.2/2.3/4.0/5.0
Power save time of the
mouse
2 minutes
《Warranty Card 》
Dear User, first of all, thank you very much for choosing iTARSAM
products. In order to make our service to give you more satisfaction,
please read this warranty card, fill out and keep the card after you
purchase our products
User Name
Address
ZIP code
Contact TET
Product Item
Purchasing
date
Dealer Name
Dealer Address
Sales department（stamp）：
《Warranty Instruction》
Consumer purchase our products lawful, if you find some performance
fault which caused by non-artificial damage, can enjoy the following
commitments which provided by our company
1. The warranty products must include warranty card, the purchasing
invoice labeled the product model and other documents.
2. The warranty card only can be effective after made seal by the sales.
Warranty cards are kept by the user, we will not make up if lost.
The altered card and expired card are not invalid.
3. From the purchasing date, if you find any performance fault which
caused by non-artificial damage, you can enjoy free warranty
service.
The following circumstances cannot enjoy free warranty service:
1. Damage caused by negligence or accident
2. Damage caused by failing to note the requirements ,proper
use ,maintenance of the manual
3. Damage cause by using, such as shell breakage.
4. The machine barcode torn up or destroyed, then we hard to recognize
the goods.
5. Damage caused by force majeure, such as dismantling the machine
without agreement.
6. Burn the software from the third part secretly.
7. Our company or our authorized service centers will get some
materials cost and maintenance costs from you if your device can
not meet the conditions of the warranty card .
Brand:
MEASY
Service website: www.measy.com.cn
