Introduction
General Overview
Installing a Hard Drive - Formatting the Hard Drive
Connections
Power Up & Standby / USB to PC
TV Output Settings
Remote Functionality - Firmware Upgrade
Home Page
Media Scanner
Media Library
File Manager - Single Files
File Manager - Multiple Files
Music Playlists
Music Playlists continued
Media Library Music Player
Video File CoverArt Preview
Time Bar - Info Screeen
Goto - Video Search
Subtitles
Pictures
Thank you for purchasing the Mede8er Multimedia Player.
Warranty
Mede8er products carry a 24 month from date of purchase warranty. In the event of warranty service please
provide proof of purchase. Return your product to the store that it was purchased from or return it directly to
Sanji Electronics (Pty) Ltd 106, 16th Rd Midrand, Gauteng, South Africa.
Warranty does not cover damage by
a) Lightning or over voltage
b) Water damage or liquid spill
c) Misuse or abuse
d) User tampering
e) Using non Mede8er approved Firmware
Sanji Electronics is not responsible for any loss of data irrespective of the cause.
Important Safety Instructions
· Read these instructions for all components before using this product.
· Do not use this apparatus near water or moisture. Do not use this product near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, near a swimming pool, or anywhere else that water or
moisture are present.
· Clean only with a soft dry cloth and as directed by the manufacturer. Unplug this product from the wall
outlet before cleaning.
· Do not block any ventilation openings. Install in accordance with the manufacturer instructions. To
ensure reliable operation of the product and to protect it from overheating, put the product in a position
and location that will not interfere with its proper ventilation. For example, do not place the product on
a bed, sofa, or similar surface that may block the ventilation openings. Do not put it in a built-in system,
such as a bookcase or a cabinet that may keep air from flowing through its ventilation openings.
· Do not install near any heat sources, such as radiators, heat registers, stoves or other apparatus that
produce heat.
· Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
· Only use attachments or accessories specified by the manufacturer.
· Unplug this apparatus during lightning storms or when unused for long periods of time to prevent
damage to this product.
Refer all servicing to qualified service personnel
The MED300X was developed by Sanji for those who demand the best in picture and audio without all the
fuss. Simple yet very functional in operation and design. The MED300X is ideal for large size internal 3.5"
Hard Drives and hosting of external USB Hard Drives.
Please check the Mede8er forum for the latest user guide. www.mede8erforum.com
Page2
On/Off

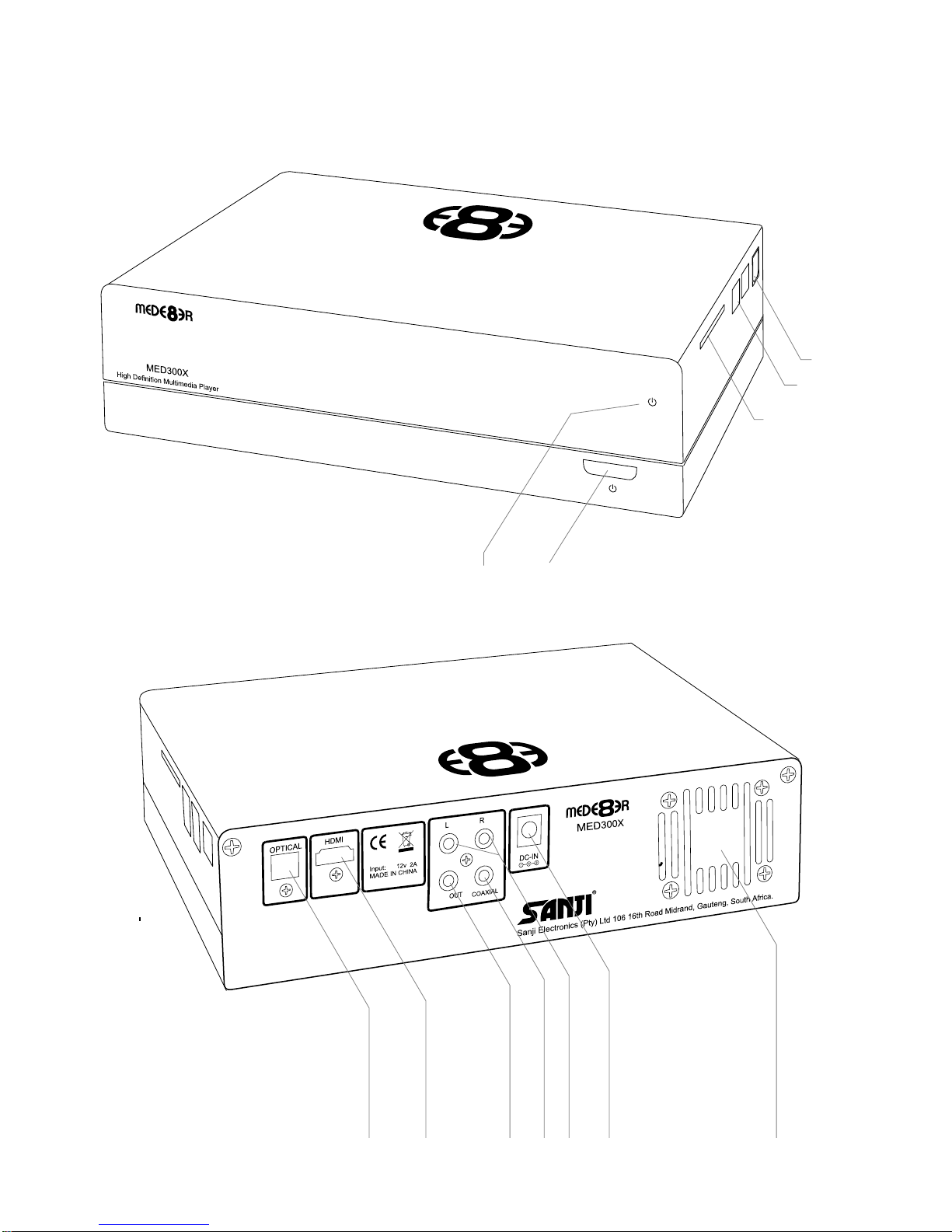

GENERAL OVERVIEW
SD Card
USB Host
USB Slave
Status Led
Page3
DC - 12Volt 3 Amp input
HDMI Connector
Optical Audio Out
Composite Video Out
Analogue Audio Out
Coaxial Audio Out
Cooling Fan
Page4

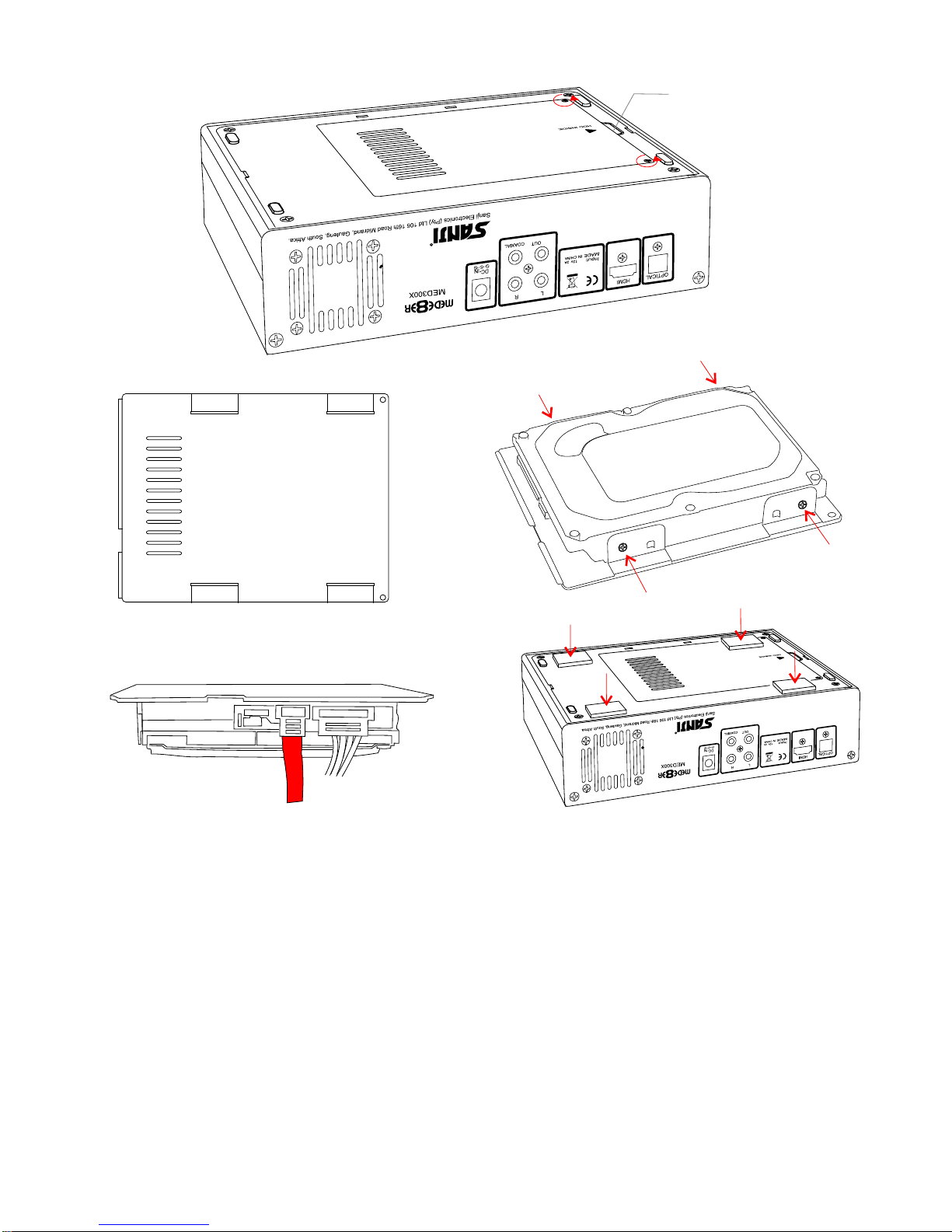

INSTALLING A HARD DRIVE
a) b)
c)
Make sure that the DC cable is unplugged.
cover screws x and y. Lift the hard drive cover and remove it, place it on a flat surface with the mounting
tabs facing upright. Fit a compatible SATA hard drive into place with the label facing upwards and the
connectors facing the side with the air vents. Secure the hard drive with the four screws provided.
Connect the hard drive power connector and the red SATA data connector from the player to the hard drive
diagram c. Re fit the hard drive cover into the Mede8er body and tighten the two securing screws x and y.
To reduce hard drive vibration noise you can use the supplied Neoprene pads. Just peel of the adhesive
side and stick onto the base as indicated in diagram d.
Turn the Mede8er upside down and unscrew the hard drive
SATA
d)
Lift cover from
this side
x
y
FORMATTING THE HARD DRIVE
To Format a new Hard Drive go to Setup Menu and select Hard Drive Format and follow onscreen
instructions.
WARNING: FORMATTING THE HARD DRIVE WILL ERASE ALL DATA
CONNECTIONS
Analogue Audio and Composite Video connection to TV.
Composite Video offers the most basic picture quality connection and should only be used if your TV does
not have a HDMI or Component input. Use RCA analogue audio outputs in the absence of HDMI or Digital
Audio inputs on your TV or Home Theatre system. RCA analogue outputs will output a downmix from mutli-
channel to stereo.
AUDIO IN
L R
VIDEO IN
HDMI
Coax Digital Optical Digital
HDMI - RJ45 Network - Coax Digital - Toslink Connection to a TV or Amplifier
For digital audio connection to your Home Theatre System you can either use the TOSLINK Optical or the
Coax Digital output. The MED300X supports both Passthrough and Downmix for both Dolby Digital and
DTS signals. If you want your Home TheatreAmplifier to decode the surround sound stream you should
use either Digital Audio output and set the Audio Output to SPDIF RAW in the Setup menu.
Page5

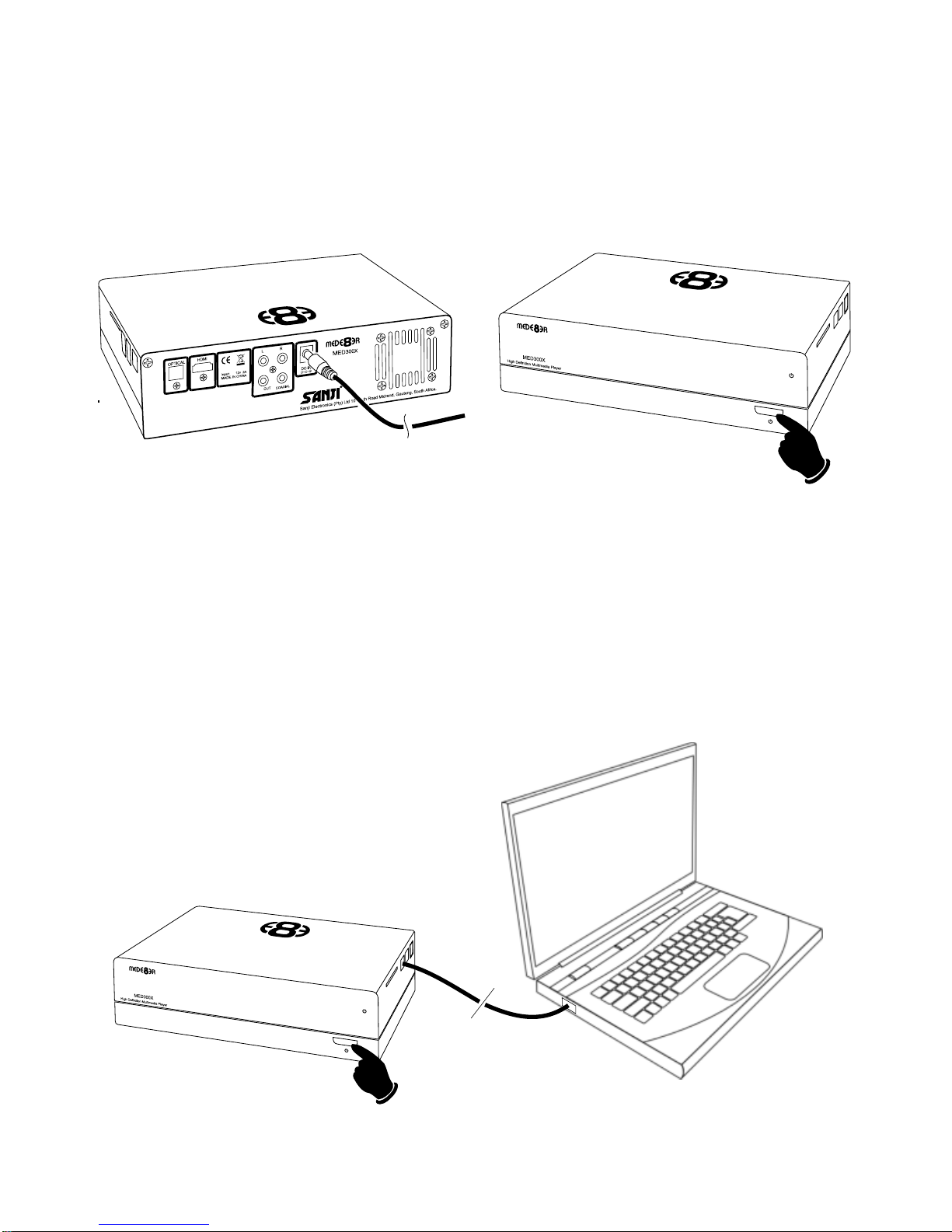

POWER UP AND STANDBY
Plug the AC/DC adapter into the mains outlet and plug the DC Jack into the DC IN at the rear of the
MED300X. DO NOT USEANYAC/DC ADAPTER AND ONLY USE THE ONE SUPPLIED otherwise you
may cause damage to the unit. Press the On/ Off button on the Mede8ers front panel and front facia LED
will turn on Blue. You can put your Mede8er into standby by pressing the On/ Off button on the remote.
When in standby the front facia LED will turn Red.
Page6
USB CONNECTION TO PC
You can transfer files to and from the Mede8er via fast USB2.0 transfer. Use the included USB cable to
connect the Mede8er MED300X to your PC. As soon as the USB cable from the Mede8er is connected to
your PC the Mede8er will connect. The computer will automatically install the correct drivers and you will be
able to navigate the Mede8er like any normal external USB drive. Note: Some Computers may take up to a
few minutes to install the correct USB drivers.
EXTERNAL USB DEVICE DRIVER NOT REQUIRED
Page7
TV OUTPUT SETTINGS
Connect the Mede8er to your TV by one of the connection options as shown on page 5 and change the
input option on your TV to match the option you selected. If you do not get to see the Mede8er GUI on your
TV you will need to toggle the Mede8er TV output until you get a picture.
TV SYS Toggle Procedure
The Mede8er has three video output options ie Composite Video
(yellow RCA connectors, Component Video (Red - Green- Blue
connectors) and HDMI. Each output option also offers different
screen resolution settings and these will need to be adjusted to
match the type of TV used.
To change the Video Output on the Mede8er just press the TV SYS
button on the remote and it will change the Video Output to the next
available output option. If after pressing the TV SYS button you still
do not get a picture then after a short pause press the TV SYS again
until you see the Mede8er GUI on your TV. Keep repeating this
procedure until you see a picture on your TV.
AUDIO SETTINGS
HDMI Downmix (2 channel)
Use this setting if you are connecting the Mede8er directly to the HDMI input on your TV. The
sound will be downmixed to 2 channel stereo.
HDMI Passthrough
Use this setting if you are connecting to the HDMI input of a Home TheatreAmplifier. The audio will be
passed through as Bitstream or LPCM and the amplifier will do the multichannel decoding.
SPDIF Downmix (2 channel)
Use this setting to connect to a Amplifier via Toslink optical cable or Co-Axial Digital RCA cable.
The sound will be downmixed to 2 channel stereo.
SPDIF Passthrough
Use this setting to connect to amplifier via Toslink optical cable or Co-Axial Digital RCAcable.
The sound will be passed through as Bitstream or LPCM and the amplifier will do the
multichannel decoding.
Once you see the Mede8er GUI on your TV then you must enter the Video Setup
mode and adjust the Video settings to match the screen size resolution of your
TV.
Page8
Audio Selection
Subtitle
Setup Menu
Return
Goto
Numbers
Info Screen
Audio Mute
On / Off
TV System
Rewind
Fast Forward
Home Page
DVD Menu / Menu
Slow / Zoom
Edit Menu
Skip Forward/Back Select
Confirm
Navigation Left

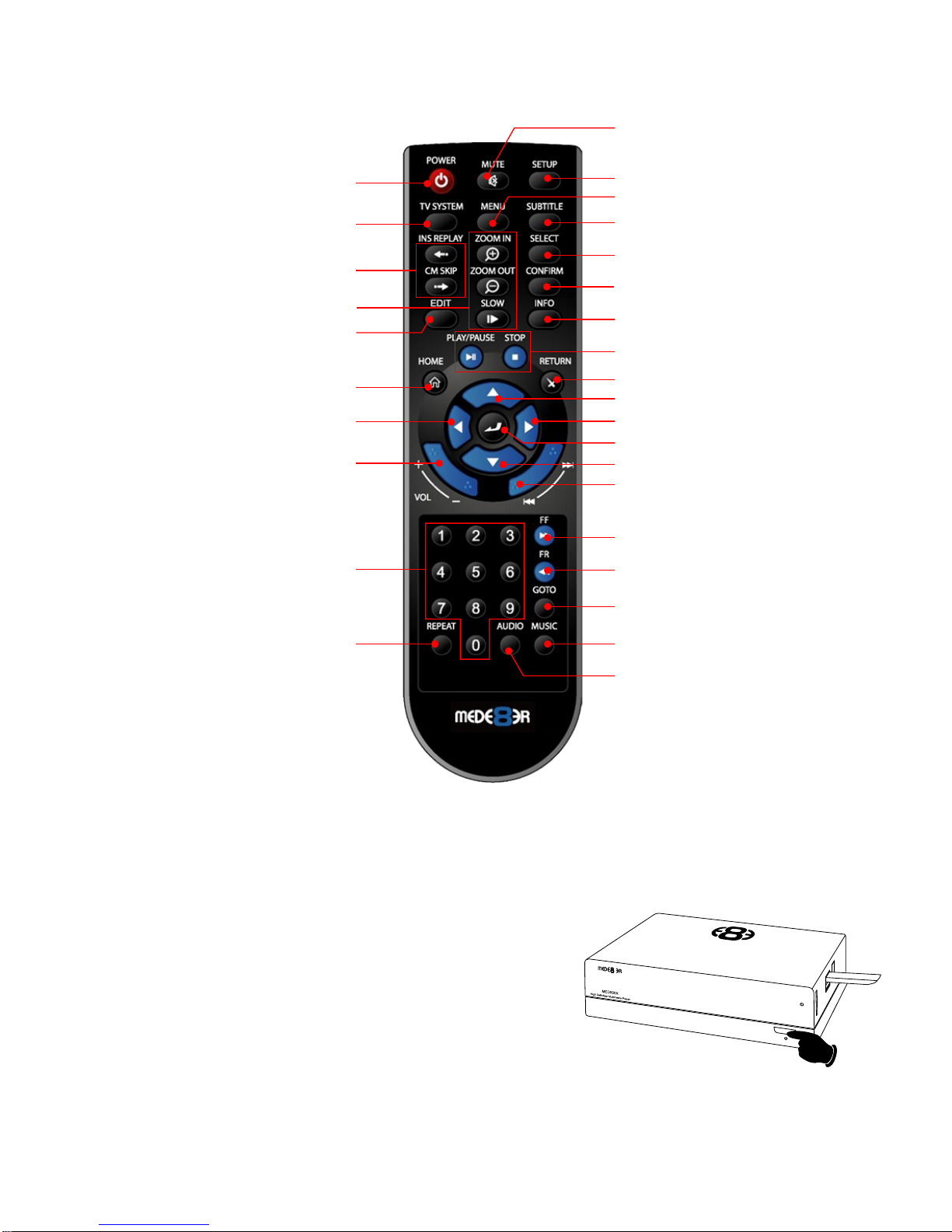

REMOTE FUNCTIONALITY
Repeat Shuffle
Play /Pause / Stop
Next/Previous
Volume Up/Down
Navigation Right
Navigation Up
Navigation Down
Navigation Enter
Music Playlist
Download the latest Mede8er Firmware from
www.mede8erforum.com.
UnZIP or UnRAR the file and you will find one file named
install.img. Copy this file to the root directory of a Flash Drive.
Plug the flash drive into the Mede8er. Disconnect the power jack
at the rear of the Mede8er then plug it back in - Now press the
on/off button and hold it pressed for 10 seconds and then release.
After approximately 15 seconds the LED on the Mede8er with flash
red-blue and you will get a progress bar on your TV display (some TV's will not display this) wait until the
Mede8er re boots itself +- 4 minutes. Your Mede8er is now be updated.
DO NOT REMOVE POWER DURING THE EMERGENCY RECOVERY PROCEDURE.
FIRMWARE UPDATE Power Up and hold on/off
button for 10 seconds

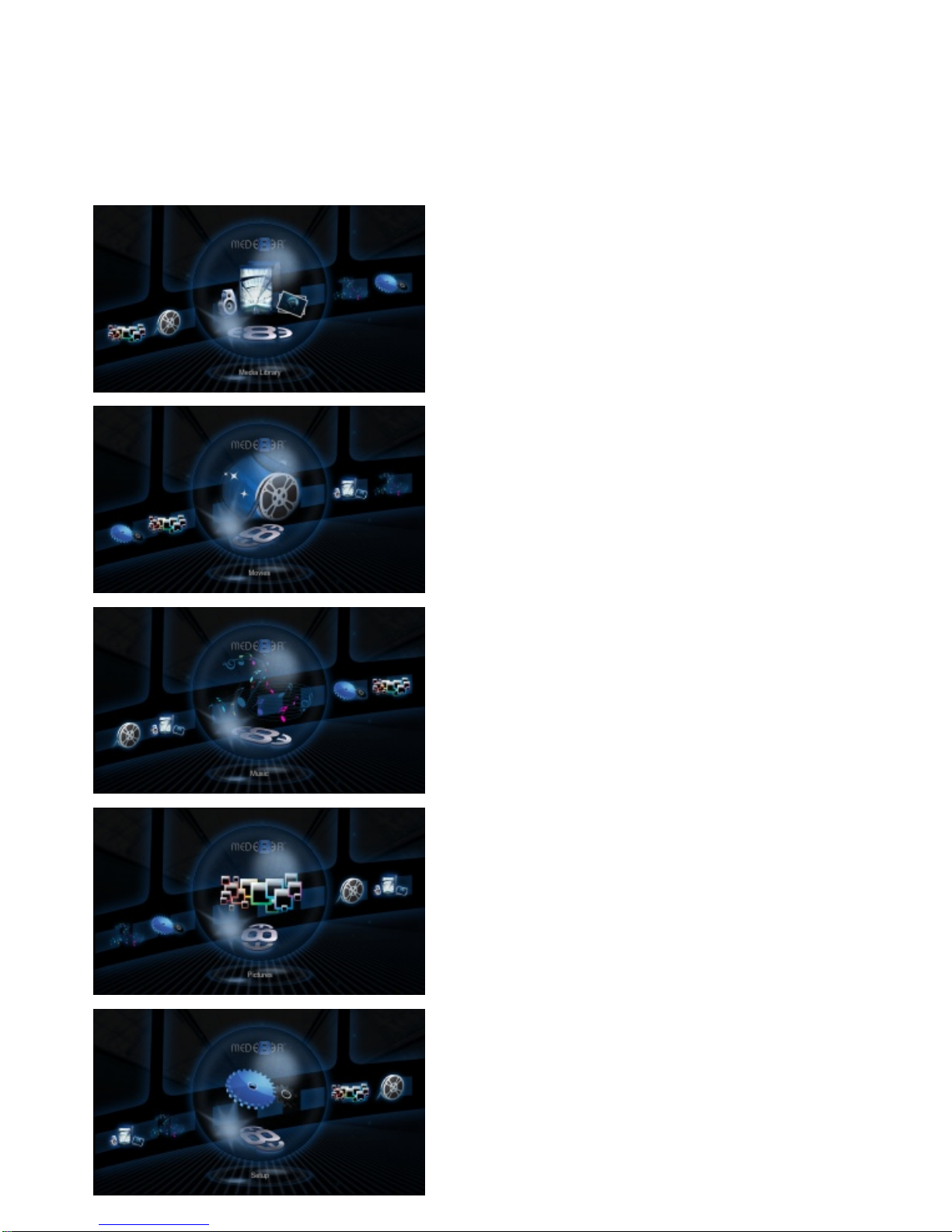

HOME PAGE
The Mede8er Home Page is the central point where you can launch all the user applications. Press the
Right/Left Navigation buttons on the remote to navigate the Home Page and press “Enter” to launch the
selected page.
MEDIA LIBRARY
In Media Library you can browse all your media
content and launch the built in File Manager to
manage and transfer your content.
MOVIES
The Movies page will display all information about
Video Files and allow you other functionality such as
search, most viewed and recently added.
MUSIC
The Music page will display all information about your
Music Files and allow you other functionality such as
Search and filtering options such as sort by --
Albums, Artists, Genres, Year and access to Playlists.
PICTURES
The Pictures page will display all information about
your Pictures and Images and allow you other
functionality such as Search and filtering by recently
added and recently viewed.
SETUP
The Setup page is the area where you personalize the
setup option for your needs
Page9
