Medeli CDP5200 Manuale utente
Owner’s Manual
DIGITAL PIANO
0
5
25
75
95
100
AW_CDP5200_Manual_G09_140718
2014718 17:19:09
2
INFORMATION FOR YOUR SAFETY!
THE FCC REGULATION WARNING (for USA)
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Unauthorized changes or modification to this system can
void the user's authority to operate this equipment.
CAUTION
The normal function of the product may be disturbed by
Strong Electro Magnetic Interference. If so, simply reset
the product to resume normal operation by following the
owner's manual. In case the function could not resume,
please use the product in other location.
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.
Power Supply
When removing the electric plug from an outlet, always hold
the plug itself and not the cord.
Do not connect the instrument to an electrical outlet using a
multiple-connector or an AC outlet of voltage other than that
for which your instrument is intended.
Remove the electric plug from the outlet when the
instrument is not to be used for extended periods of time, or
during electrical storms.
Connections
Before connecting the instrument to other devices, turn off
the power to all units. This will help prevent malfunction and
/ or damage to other devices.
Location
Do not expose the instrument to the following conditions to
avoid deformation, discoloration, or more serious damage:
Direct sunlight
Extreme temperature or humidity
Excessive dusty or dirty location
Strong vibrations or shocks
Close to magnetic fields
Interference with other electrical devices
Radios and televisions placed nearby may experience
reception interference. Operate this unit at a suitable
distance from radios and televisions.
Cleaning
Clean only with a soft, dry cloth.
Do not use paint thinners, solvents, cleaning fluids, or
chemical-impregnated wiping cloths.
Handling
Do not apply excessive force to the switches or controls.
Do not let paper, metallic, or other objects into the
instrument. If this happens, remove the electric plug from
the outlet. Then have the instrument inspected by qualified
service personnel.
Disconnect all cables before moving the instrument.
0
5
25
75
95
100
AW_CDP5200_Manual_G09_140718
2014718 17:19:09
Contents
3
Panel & Display Description
Front Pane ..................................................................4
LCD.............................................................................4
Rear Panel..................................................................5
Pedal...........................................................................5
Setup

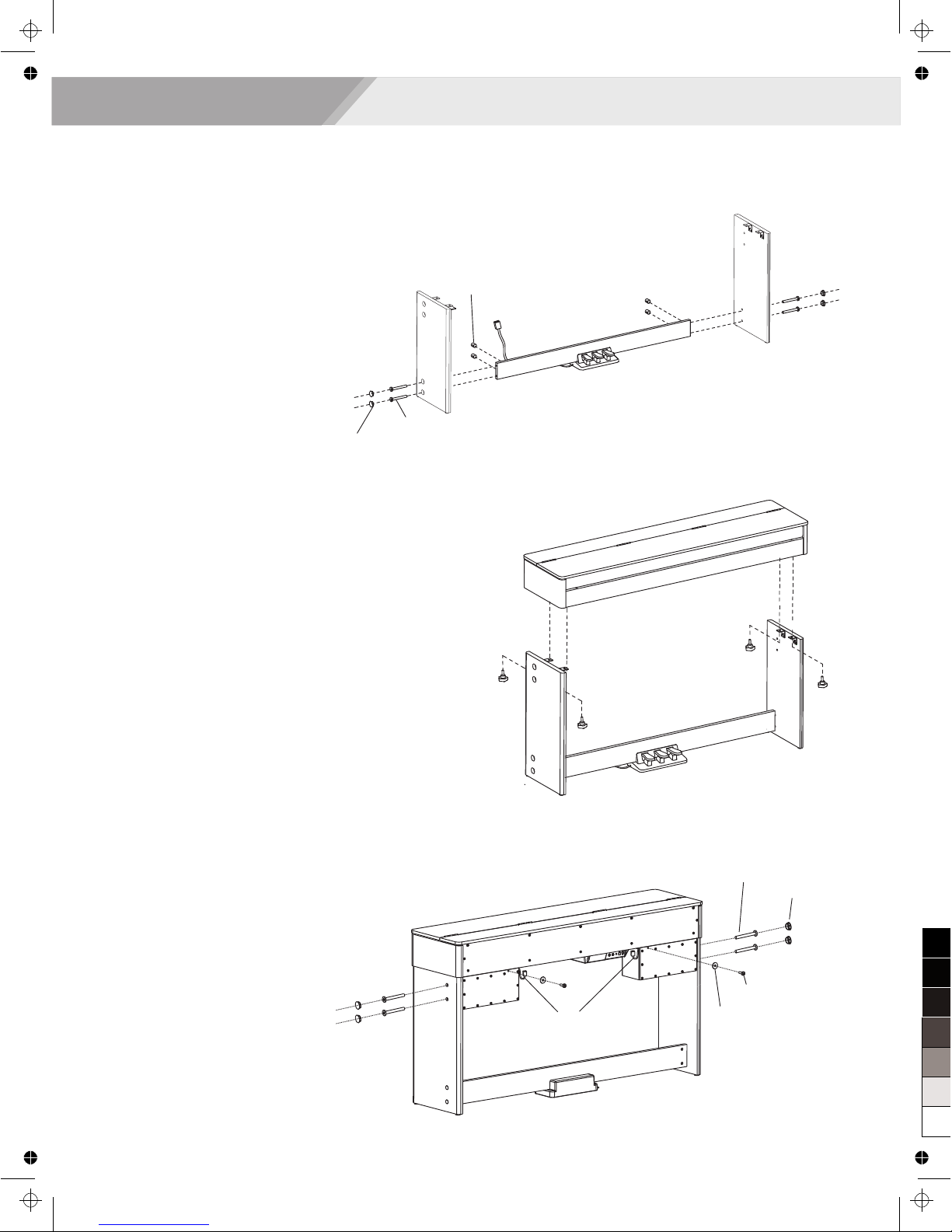

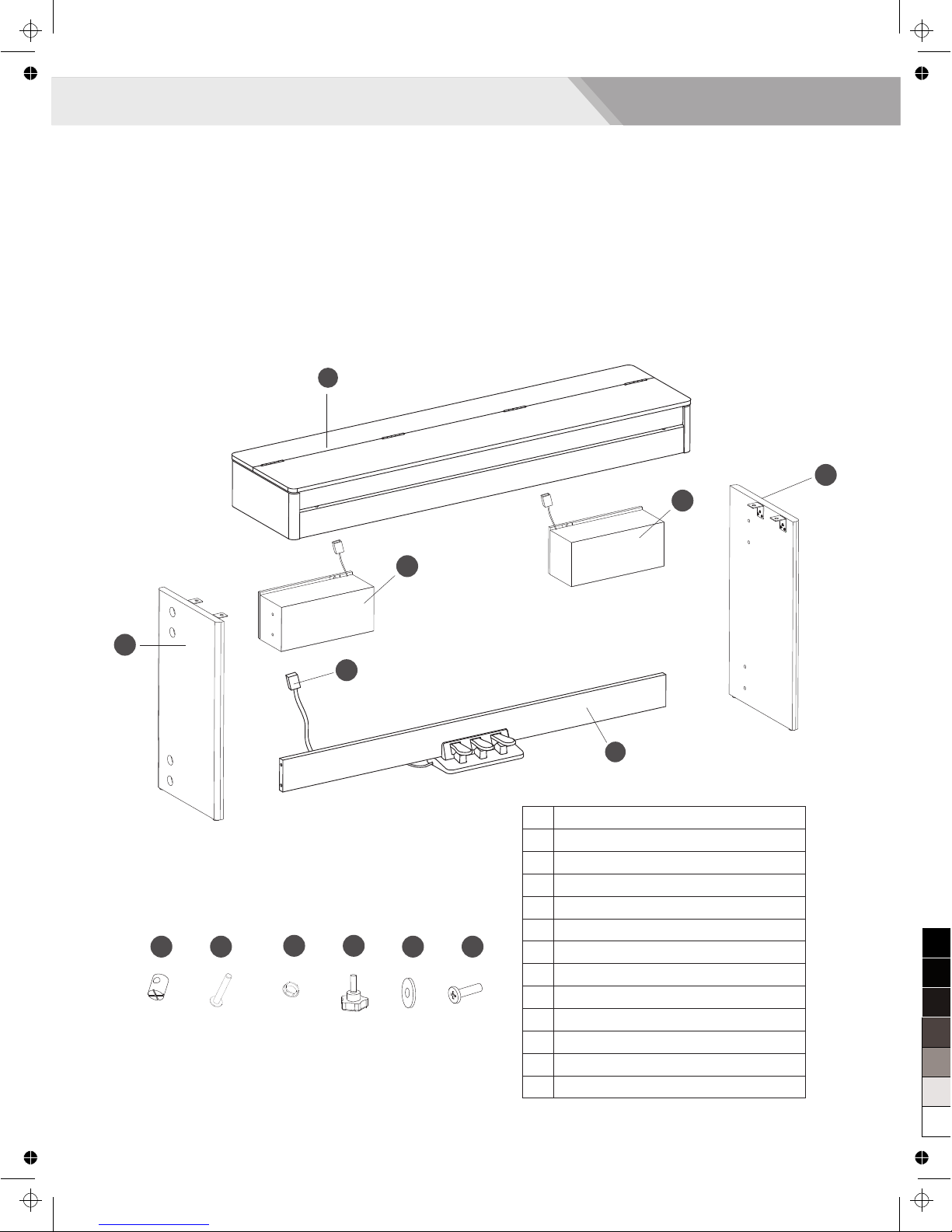

Setup Guide................................................................6
Power Supply..............................................................8
Connections

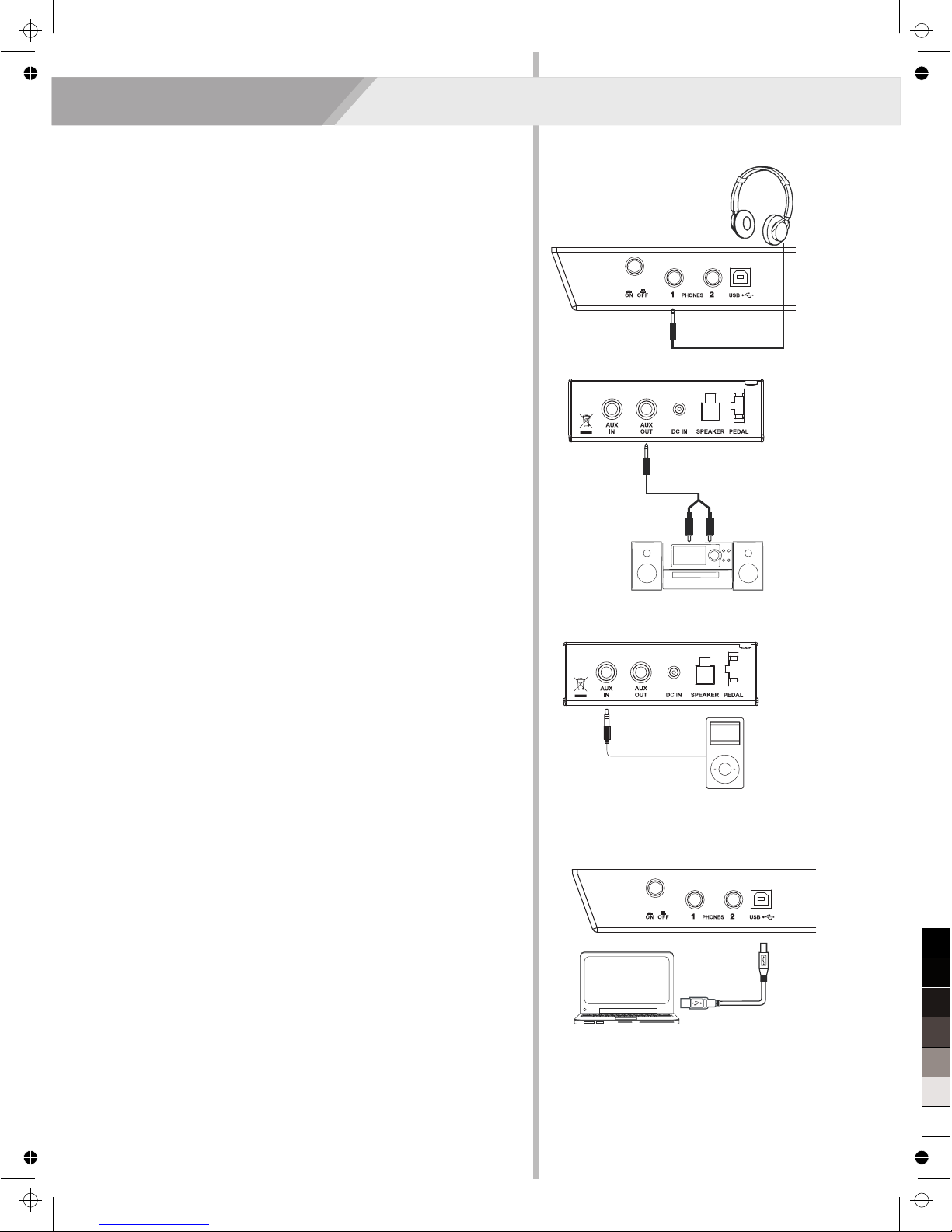

Connecting a pair of Headphones...............................9
Connecting an Audio Equipment.................................9
Connecting an MP3/CD Player...................................9
Connecting a Computer..............................................9

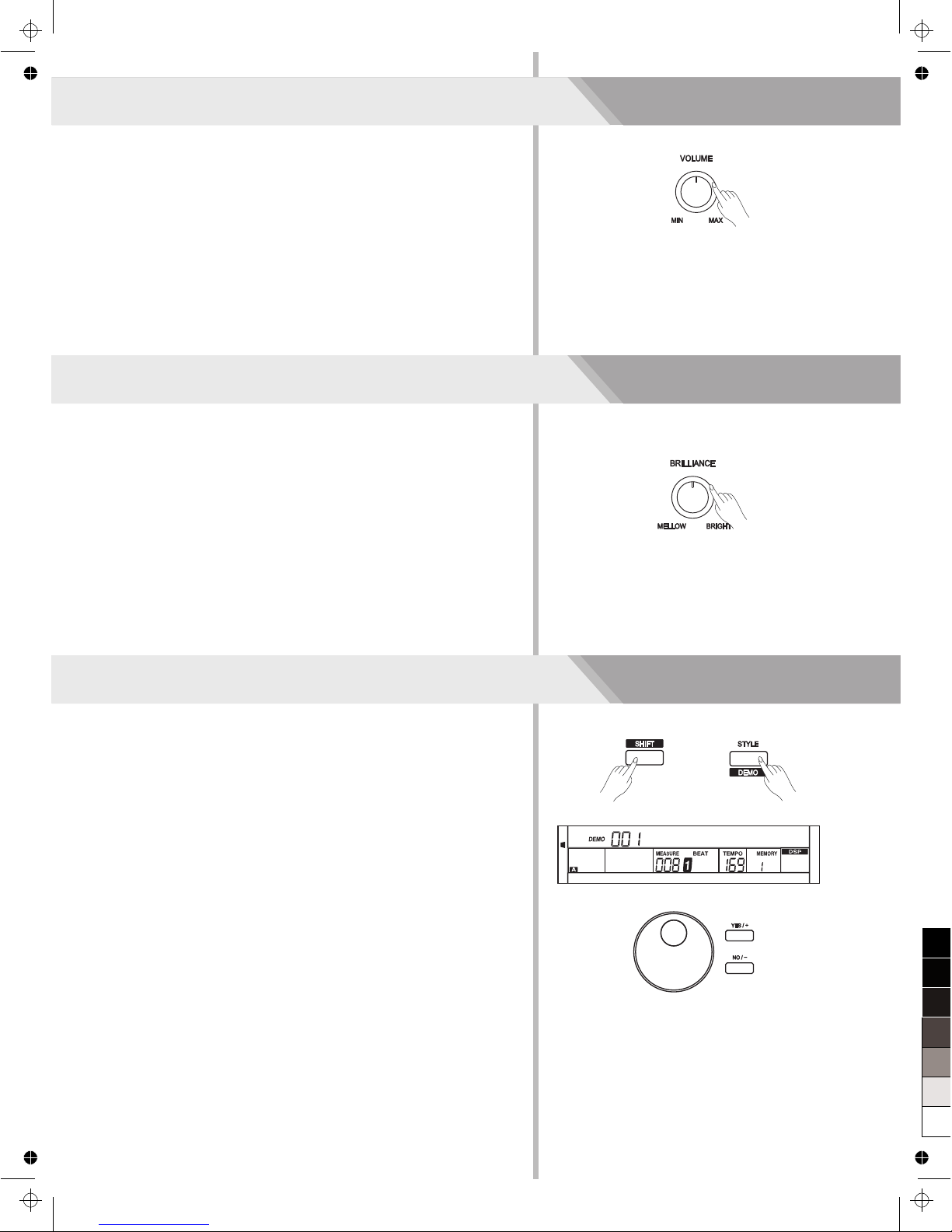

Adjusting the Master Volume.................................10
Adjusting the Voice Brilliance................................10
Playing the Demo Song..........................................10
Playing Voices
Playing Voices...........................................................11
Playing two voices simultaneously-DUAL.................11
Playing Different Voices with Both hands-LOWER....11
Touch.........................................................................12
Transpose..................................................................12
Piano mode...............................................................13
Metronome................................................................13
Twinova.....................................................................13
Scale.........................................................................14
Auto Accompaniment
Play Auto Accompaniment (rhythm track only)..........15
Play Auto Accompaniment (all tracks).......................15
Accompaniment Sections..........................................15
Playing Different Accompaniment Sections...............16
Accompaniment Volume............................................17
Chord Fingering.........................................................17
Tempo........................................................................18
One Touch Setting.....................................................18
Harmony
Harmony Switch........................................................19
Play with harmony effect...........................................19
Performance Assistant
What's the performance assistant?...........................20
Enter the Performance Assistant...............................20
Guitar Mode...............................................................20
Playing in Guitar Mode..............................................21
Piano Mode...............................................................21
Playing in Piano Mode...............................................21
Exit the Performance Assistant.................................21
DSP Effect................................................................22
l
Mixer 22
Pedal Function.........................................................23
Function Menu
Tune..........................................................................24
KeySplit.....................................................................24
Beat Type..................................................................25
Metro Volume............................................................25
Pedal Type................................................................25
Reverb Volume..........................................................25
Chorus Volume..........................................................26
Harmony Type...........................................................26
Harmony Speed........................................................26
MIDI In.......................................................................27
MIDI OUT..................................................................27
PowerOff...................................................................27
Performance Beat Type.............................................27
Restore Factory Setting..........................................28
Register Memory
Registering the Panel Setting....................................29
Recalling the Registered Panel Settings...................29
Selecting a Registration Bank...................................29
Accompaniment Freeze............................................29
Song Album.............................................................30
Song Recording
Start Recording.........................................................31
Stop Recording..........................................................32
Playback Recording..................................................32
Delete User Song......................................................32
Song
Listen to the songs....................................................33
Song Control.............................................................33
Practice Song ...........................................................33
MIDI
What's MIDI?.............................................................34
Upload/Download Data from the Computer..............34
Troubleshooting......................................................35
Specifications..........................................................35
Appendices
Voice List...................................................................36
Style List....................................................................41
Song List...................................................................43
Album List..................................................................43
Chord List..................................................................45
MIDI Implementation Chart.......................................46
.................................................47
.........................................................................
Scale Tuning System
0
5
25
75
95
100
AW_CDP5200_Manual_G09_140718
2014718 17:19:09
Panel & Display Description
4

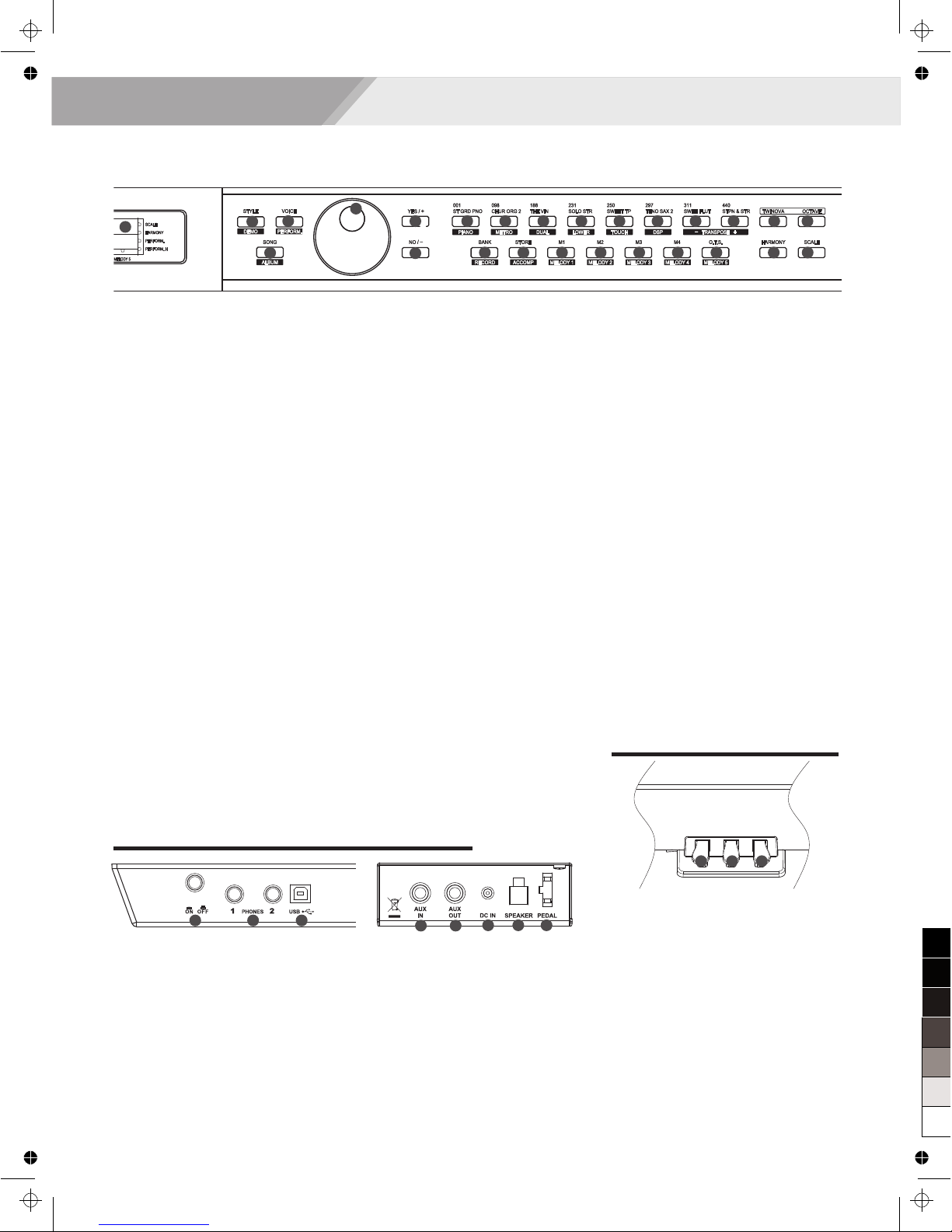

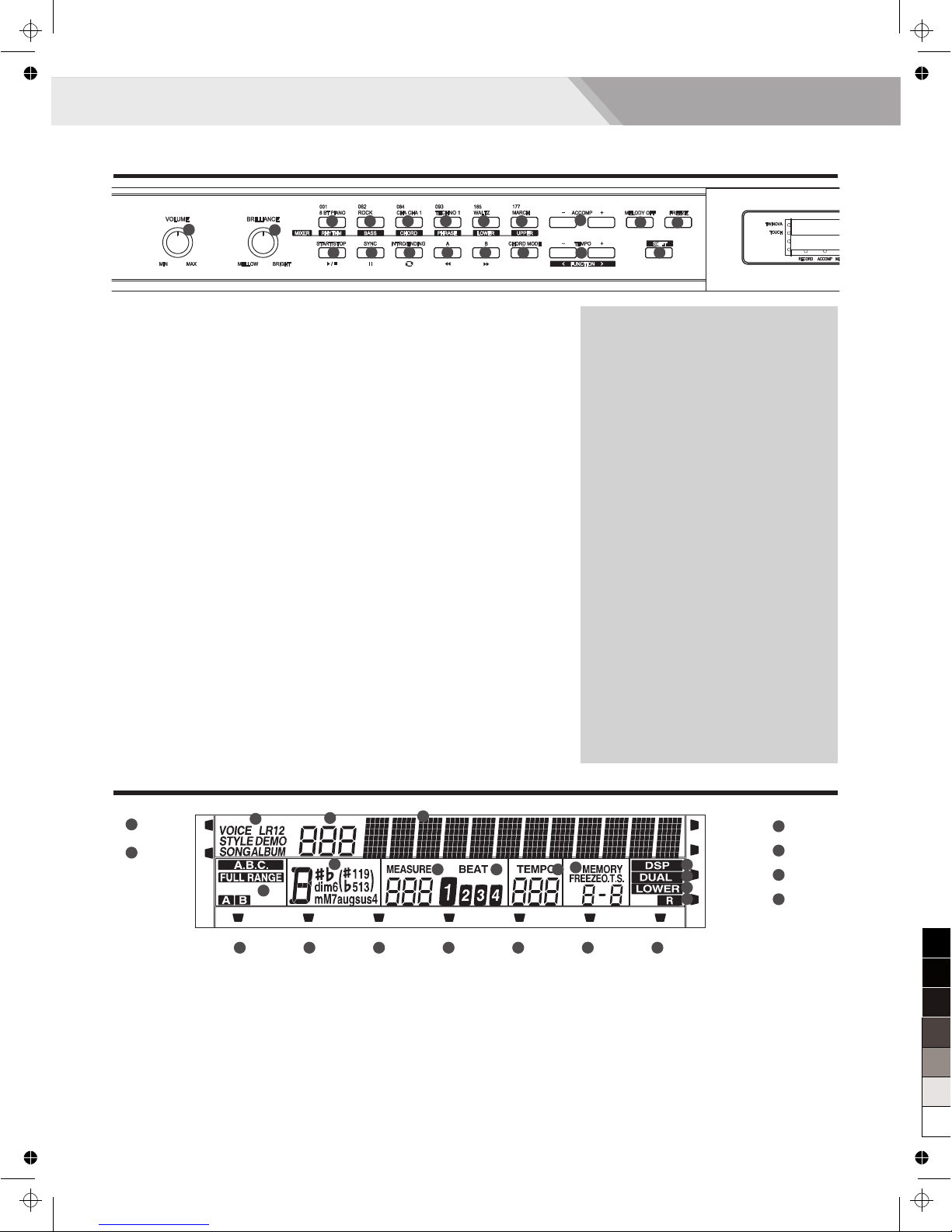

Front Panel
LCD
1. Twinova
2. Touch
3. Voice/Style/Demo/Song/Album
4. Number
5. A.B.C/Full range/Accompaniment
section
6. Chord
7. Character
8. Measure
1
2
34
5
6
7
89
16
17
18
19
11
20 21 22
10
23 24 25 26
1456 7 89
12 13 14 15 16 17
10 11
18 19
23
1. [VOLUME] knob
Adjust master volume
2. [BRILLIANCE] knob
Adjust voice brilliance
9. [ACCOMP] button
Adjust the ACCOMP volume
10. [MELODY OFF] button
Enter MELODY OFF state
11. [FREEZE] button
Freeze the style parameter.
17. [CHORD MODE] button
Choose chord mode
19. [SHIFT] button
Select the second function of
some buttons
RECORD ACCOMP MELODY 1 MELODY 2 MELODY 3 MELODY 4 MELODY 5
TWINOVA
TOUCH
SCALE
HARMONY
PERFORM
PREFORM.H
When [SHIFT] button pressed
3. [RHYTHM] button
Adjust the RHYTHM volume
4. [BASS] button
Adjust BASS volume
5. [CHORD] button
Adjust CHORD volume
6. [PHRASE] button
Adjust the PHRASE volume
7. [LOWER] button
Adjust LOWER volume
8. [UPPER] button
Adjust UPPER volume
18. [FUNCTION+/-] button
Choose the function menu
When [SHIFT] button released
3~8. Style direct button
Shortcut to select a style
18. [TEMPO+/-] button
Adjust the tempo
SONG MODE:
12. [START/STOP] button
Start or stop playing the song
13. [PAUSE] button
Pause or continue playing the song
14. [REPEAT A/B] button
Set the beginning and ending location
of loop to the current song
15. [REW] button
Rewind the song
16. [FF] button
Fast forward the song
STYLE MODE：
12. [START/STOP] button
Start or stop playing the style
13. [SYNC START] button
Turn the Sync Start on or off
14. [INTRO/ENDING] button
Play the Intro or Ending
15. [FILL A] button
A Fill-in A plays
16. [FILL B] button
A Fill-in B plays
12
13
14
15
9. Beat
10. Tempo
11. Memory/Freeze/O.T.S./Bank
12. DSP effect
13. Dual voice
14. Lower voice
15. Right hand
16. Scale
17. Harmony
18. Performance assistant
19. Performance assistant high
20. Record
21. ACCOMP track
22. MELODY 1 track
23. MELODY 2 track
24. MELODY 3 track
25. MELODY 4 track
26. MELODY 5 track
0
5
25
75
95
100
AW_CDP5200_Manual_G09_140718
2014718 17:19:11
Panel & Display Description
5
Rear Panel
46. POWER ON / OFF
Turn the power on or off
47. PHONES 1 AND 2
Connect the headphone
48. USB Jack
Connect to a computer.
49. AUX. IN Jack
Connect an external sound
source, Such as an Mp3 or
CD player.
54. Soft Pedal
When you step on the soft pedal, all
notes played on the keyboard will
have a softer effect.
55. Sostenuto Pedal
When you step on the sostenuto
pedal, the notes played before you
step on the pedal would have a
sustain effect.
56. Sustain Pedal(multi function pedal)
When you step on the sustain pedal,
all notes played on the keyboard will
have a longer sustain
54 55
Pedal
20. LCD
Display the information of the piano
24. Data dial
Adjust the value
25~26. [YES/+]/[NO/-] button
Adjust the value
35. [TWINOVA] button
Turn the TWINOVA on or off
36. [OCTAVE] button
Set octave in TWINOVA mode
44. [HARMONY] button
Turn harmony effect on or off
45. [SCALE] button
Turn the scale effect on or off
When [SHIFT] button released
21. [STYLE] button
Enter style mode
22. [VOICE] button
Enter voice mode
23. [SONG] button
Enter song mode and play songs
27~34. Voice direct button
Shortcut to select a voice
37. [BANK] button
Adjust the memory bank
38. [STORE] button
Register the current panel settings
39~42. M1~M4 button
Recall the registered panel settings
43. [O.T.S] button
Turn one touch setting on or off
24
25 27
26
28 29 30 31 32 33 34 35 36
37 38 39 40 41 42 43 44 45
23
56
22
20 21
When [SHIFT] button pressed
21. [DEMO] button
Enter demo mode
22. [PERFORM] button
Enter the Performance Assistant
mode
23. [ALBUM] button
Enter album mode
27. [PIANO] button
Select the piano mode
28. [METRONOME] button
Turn the metronome on or off
29. [DUAL] button
Turn the Voice R2 on or off
30. [LOWER] button
Turn the Voice L on or off
31. [TOUCH] button
Choose a keyboard touch setting
32. [DSP] button
Turn the DSP effect on or off
33~34. [TRANSPOSE+/-] button
Adjust the transpose
37. [RECORD] button
Enter record mode
When [SHIFT] button pressed
38. [ACCOMP] button
Select the accomp track to record
39~43. MELODY 1-5 button
Select the melody1-5 track to record
50. AUX. OUT Jack
Connect the audio equipment.
51. DC IN Jack
Connect the DC 15V power adaptor.
52. SPEAKER Jack
Connect the speaker.
53. PEDAL Jack
Connect to the pedals.
49 50
46474851 52 53
0
5
25
75
95
100
AW_CDP5200_Manual_G09_140718
2014718 17:19:11
Setup
This section contains information about setting up your instrument and preparing to play. Carefully read this section before
turning the power on.
Setup Guide
Before you begin assembling the instrument, check that all the parts
below were supplied.
You also need to have a Phillips screwdriver.
6
11
Piano body
Left leg component
Right leg component
Foot pedal assembly
Foot pedal cable
Left
Right
Phillips head screws M6x50 (8PCS)
Plastic screw cap (8PCS)
Hand screws (4PCS)
Gasket (2PCS)
Phillips head screws M4x15 (2PCS)
sound box
sound box
Turned nut (4PCS)
10
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
1
3
2
5
4
6
7
9
813
12
0
5
25
75
95
100
AW_CDP5200_Manual_G09_140718
2014718 17:19:12
Setup
7
A. As shown below, firstly four turned back nuts of the pedal should be
used to stuff the corresponding holes. And then both the left and the
right feet should be connected to each side of the pedal,
respectively. In the next step, the Phillips screws should be aligned
with the tuned nuts through the feet screw holes, tightened with a
screwdriver and finally covered by a plastic screw cap.
(Make sure the devices in the right direction before installing.)
B. As shown below, align the holes on the piano body and tighten them
to install the piano body on its feet.
Turned nut (4PCS)
Phillip s head screws M6x50 (4PCS)
Plastic screw cap (4PCS)
Plastic screw cap (4PCS)
Phillips head screws M6x50 (4PCS)
Gasket (2PCS)
Screw M4x15 (2PCS)
Sound box cables
C. After the installation ,the foot pedal cable,the host box hole and
the corresponding sound box cables are inserted into the piano
through the bottom of the body and then connected to the
power. Especially, either the left or the right sound box cable is
inserted into the socket at the bottom of the piano body.
0
5
25
75
95
100
AW_CDP5200_Manual_G09_140718
2014718 17:19:12
Setup
E. Enjoy the perfect performance after the installation has been
completed.
Power Supply
1. Make sure that the piano is turned off. Before you switch your piano
on or off, turn down the volume of piano and any connected audio
equipments first.
2. Connect the AC adaptor to the DC power jack instrument.
3. Connect the power cable to the AC outlet.
4. Press the [POWER] switch, the LCD will display “Loading.” which
indicates the piano has powered on.
5. If you are ready to turn off the piano, press the [POWER] switch
again.
Note:
1. In the idle mode, the piano will automatically shutdown in 30 minutes
if you do not take any action on the piano.
2. When the keyboard is not in use or during thunderstorm, please
disconnect the power for safety purpose.
8
Loading.
D. After the installation , the pedal cord is inserted into the piano body at
the bottom of the foot line jack ,and the foot pedal cable need to be
fixed on the backplane of the sound box with a tie line before turning
on the power to boot the devices.
Foot pedal cable
Power cable
0
5
25
75
95
100
AW_CDP5200_Manual_G09_140718
2014718 17:19:12
Connecting a pair of Headphones
A standard pair of stereo headphones can be plugged in here for
private practice or late-night playing.
Jack1: when a pair of headphones is plugged into the jack 1,
internal stereo speaker system is automatically shut off. The
sound can only be heard from headphones.
Jack2: when a pair of headphones is plugged into the jack 2, the
sound can be heard from both headphones and speakers of the
instrument.
Note:
To avoid the risk of hearing loss when using headphones, please
do not play the piano with a high volume level for a long time.
Connecting an Audio Equipment
The rear-panel AUX.OUT jack delivers the output of the instrument
for connection to a keyboard amplifier, stereo sound system, a mixing
console, or tape recorder. Use an audio cord to plug into the AUX OUT
jack located on the rear panel then plug the other end of the cord into
AUX.IN of the amplifier.
Note:
To avoid damaging the speakers, please ensure that the volume
has been set to the minimum level before connecting the power
and other devices.
Connecting an MP3/CD Player
Connect the audio output of an MP3/CD player or other audio
source to the stereo AUX IN jack on the rear panel.
The input signal is mixed with the piano signal, allowing you
to play along the music.
Connecting a Computer
The instrument receives and transmits MIDI messages via the
USB connector.
Connecting the MIDI IN /OUT to Computer via The MIDI/USB
converter.
Note:
If this product does not work correctly when connected to a USB 3.0
port, you will need to connect to a USB 2.0 port.
the
9
Connections
0
5
25
75
95
100
AW_CDP5200_Manual_G09_140718
2014718 17:19:13
Adjusting the Master Volume
Turn the [VOLUME] knob clockwise, the volume increases and vice
versa.
Adjusting the Voice Brilliance
Turn the [BRILLIANCE] knob clockwise, the voice sounds brighter
and vice versa. You can change the piano brilliance as you wish.
Playing the Demo Song
The instrument features 5 wonderful demos. Please refer to Demo
List.
1. Holding down [SHIFT] button, then press the [DEMO] button to start
demo song playing, and the LCD will display the number and name
of demo.
2. You can use the data dial, the [+/YES]/ [-/NO] button to select a
demo song.
3. Press the [START/STOP] button to stop playing. Holding down
[SHIFT] button, then press the [demo] button to exit demo mode.
Note:
In the demo status, all the demo songs will loop playing. And all
buttons and keys are unavailable except [DEMO], [START/STOP],
[TEMPO+/-], [+/YES], [-/NO] button, data dial, [VOLUME]
knob,[BRILLIANCE] knob and POWER SWITCH.
10
Fantaisie
0
5
25
75
95
100
AW_CDP5200_Manual_G09_140718
2014718 17:19:13
Indice
Altri manuali Medeli Strumento musicale
Medeli
Medeli Sp5500S Manuale utente
Medeli
Medeli DP269 Manuale utente
Medeli
Medeli DP250 Manuale utente
Medeli
Medeli sp 5100 Manuale utente
Medeli
Medeli SP4200 Manuale utente
Medeli
Medeli SP3000 Manuale utente
Medeli
Medeli sp 5100 Manuale utente
Medeli
Medeli Grand 1000 Manuale utente
Medeli
Medeli DP370 Manuale utente
Medeli
Medeli DP460K Manuale utente
Medeli
Medeli DP760K Manuale utente
Medeli
Medeli DP88 Manuale utente
Medeli
Medeli DP388 Manuale utente
Medeli
Medeli sp 5100 Manuale utente
Medeli
Medeli DP420K Manuale utente
Medeli
Medeli DP263 Istruzioni operative
Medeli
Medeli AW GRAND 300 Manuale utente
Medeli
Medeli CDP6200 Manuale utente
Medeli
Medeli DP660 Manuale utente
Medeli
Medeli SP4200/WH Manuale utente
