Medeli DP70EU Manuale utente
DIGITAL
PIANO
0
5
25
75
95
100
aw_DP70EU_Manual_G11_130920
2013920 15:41:20
INFORMATION FOR YOUR SAFETY!
THE FCC REGULATION WARNING (for USA)
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Unauthorized changes or modification to this system can
void the user's authority to operate this equipment.
CAUTION
The normal function of the product may be disturbed by
Strong Electro Magnetic Interference. If so, simply reset
the product to resume normal operation by following the
owner's manual. In case the function could not resume,
please use the product in other location.
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.
Power Supply
When removing the electric plug from an outlet, always hold
the plug itself and not the cord.
Do not connect the instrument to an electrical outlet using a
multiple-connector or an AC outlet of voltage other than that
for which your instrument is intended.
Remove the electric plug from the outlet when the
instrument is not to be used for extended periods of time, or
during electrical storms.
Connections
Before connecting the instrument to other devices, turn off
the power to all units. This will help prevent malfunction and
/ or damage to other devices.
Location
Do not expose the instrument to the following conditions to
avoid deformation, discoloration, or more serious damage:
Direct sunlight
Extreme temperature or humidity
Excessive dusty or dirty location
Strong vibrations or shocks
Close to magnetic fields
Interference with other electrical devices
Radios and televisions placed nearby may experience
reception interference. Operate this unit at a suitable
distance from radios and televisions.
Cleaning
Clean only with a soft, dry cloth.
Do not use paint thinners, solvents, cleaning fluids, or
chemical-impregnated wiping cloths.
Handling
Do not apply excessive force to the switches or controls.
Do not let paper, metallic, or other objects into the
instrument. If this happens, remove the electric plug from
the outlet. Then have the instrument inspected by qualified
service personnel.
Disconnect all cables before moving the instrument.
2
0
5
25
75
95
100
aw_DP70EU_Manual_G11_130920
2013920 15:41:20
Contents
3
Panel Description
Front Panel....................................................................................................................................4
Rear Panel.....................................................................................................................................4
Setup.............................................................................................................................................6
Part List..........................................................................................................................................6
Setup Guide...................................................................................................................................7
Power Supply.................................................................................................................................8
Connections.................................................................................................................................9
Connecting a pair of Headphones.................................................................................................9
Connecting an Audio Equipment...................................................................................................9
Connecting an MP3/CD Player......................................................................................................9
Connecting a Computer.................................................................................................................9
Adjusting the Volume................................................................................................................10
Listening to the Song................................................................................................................10
Playing Demo song......................................................................................................................10
Playing Song................................................................................................................................10
Practice Song...............................................................................................................................10
Playing Voices ............................................................................................................................11
Selecting Voice.............................................................................................................................11
Playing two Voice Simultaneously................................................................................................11
Playing a Lower Voice..................................................................................................................11
Playing Voice Demo.....................................................................................................................11
Touch Response..........................................................................................................................11
Digital Effects.............................................................................................................................12
Reverb and Chorus Effect............................................................................................................12
EQ Effect..........................................................................................................................12
Metronome..................................................................................................................................12
Tempo...........................................................................................................................................12
Transpose...................................................................................................................................13
Tune.............................................................................................................................................13
Beep Tone...................................................................................................................................13
Troubleshooting.........................................................................................................................14
Specifications.............................................................................................................................14
Appendices.................................................................................................................................15
Voice List......................................................................................................................................15
Song List......................................................................................................................................17
Demo List.....................................................................................................................................18
MIDI Implementation List.............................................................................................................19
.........................................................................................................................4
0
5
25
75
95
100
aw_DP70EU_Manual_G11_130920
2013920 15:41:22
SopSax
TenoSax
SwOboe
PanFl
Piano
Piano2
EPiano
EPiano2
Harpsic
Clavi
MBox
Vibraph
Marimba
DrawOr
PercOr
ChurOr
RockOr
Acordio
Harmnic
StStr
StStr2
SynStr
ChoAah
SweetTp
ChurOr2
ReedOr

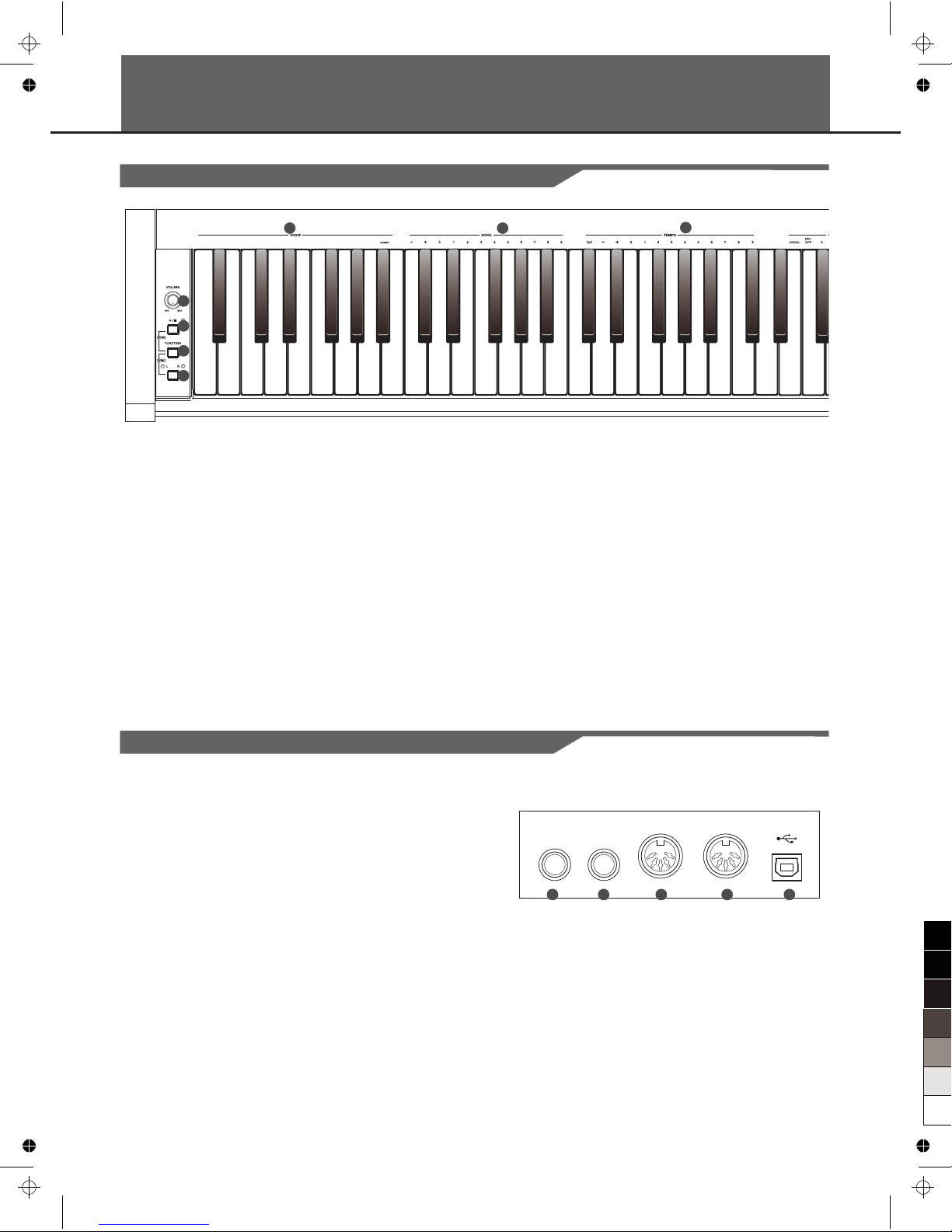

Panel Description
Front Panel
1
2
3
4
5
4
1. MASTER VOLUME
Adjust the master volume.
2. START/STOP Button
Start/stop the song playing.
3. FUNCTION Button
Hold down this button and press the special keys to
realize different functions.
4. L/R Button
In song mode, you can press [L/R] button to select
which hand to practice.
5. VOICE SELECT Key
Hold down the [FUNCTION] button and press the
key to select a voice.
6. SONG SELECT Key
Hold down the [FUNCTION] button and press the
key to select a song.
7. TEMPO ADJUST Key
Hold down the [FUNCTION] button and press the
key to adjust the current tempo.
8.AUX IN Jack
Connect an external sound source, such as an MP3 or
CD player.
9. AUX OUT Jack
Connect the audio equipment.
10. MIDI IN Interface
Connect the MIDI OUT of other device to the MIDI
IN jack on the rear panel.
11. MIDI OUT Interface
Connect the MIDI IN of other device to the MIDI
OUT jack on the rear panel.
12. USB-MIDI Interface
Connect to a computer.
67
Rear Panel
8 9 121110
MIDI OUT
MIDI IN
AUX OUTAUX IN USB
0
5
25
75
95
100
aw_DP70EU_Manual_G11_130920
2013920 15:41:22
EQ
1 2 3
VOICE
DEMO
BEEP

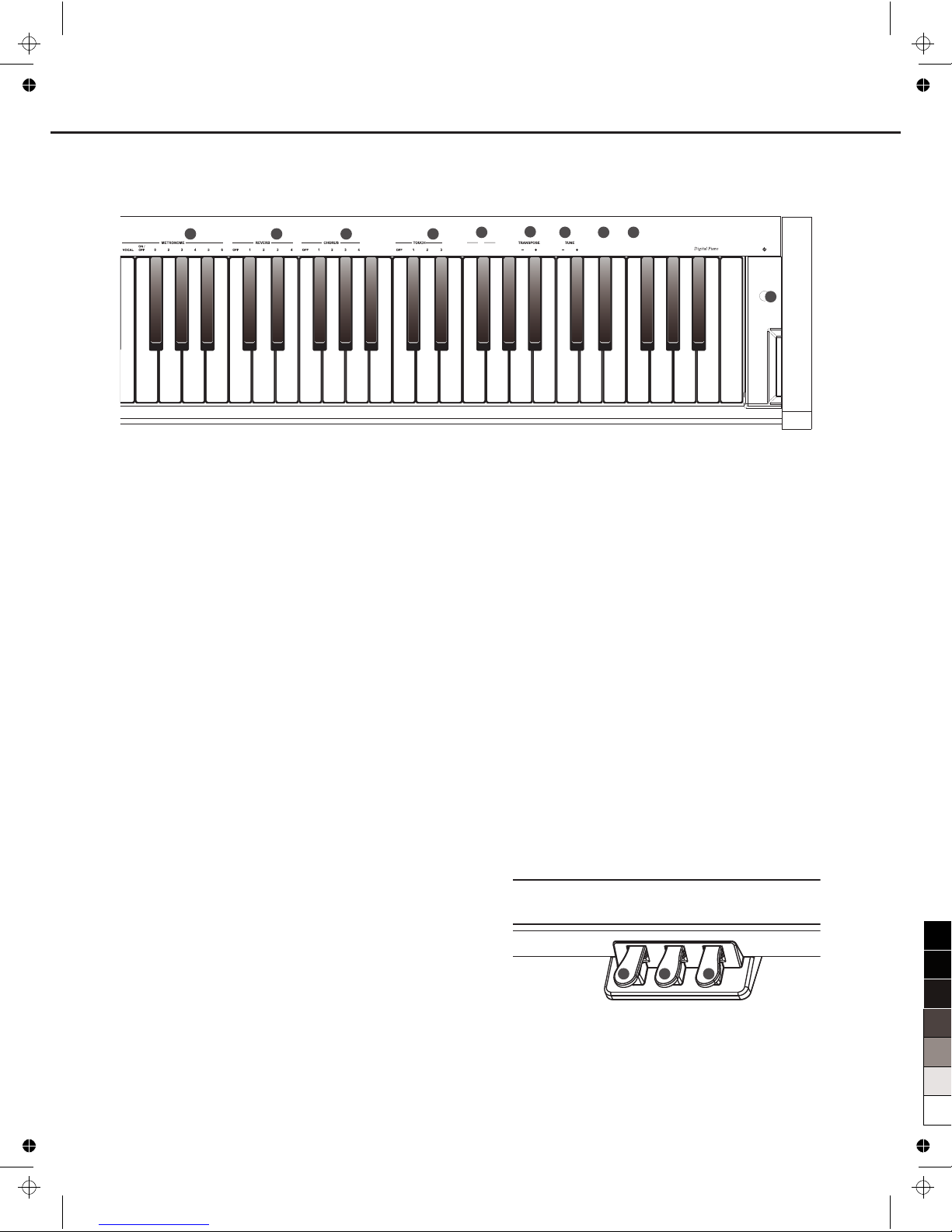

Panel Description
5
13 14 15 16
13. METRONOME Key
Hold down the [FUNCTION] button and press the
[ON/OFF] key to turn the metronome ON or OFF.
Hold down the [FUNCTION] button and press the
other key to select the time signature.
14. REVERB Key
Hold down the [FUNCTION] button and press the
[ON/OFF] key to turn reverb effect ON or OFF.
Hold down the [FUNCTION] button and press the
other key to select the reverb type.
15. CHORUS Key
Hold down the [FUNCTION] button and press the
[ON/OFF] key to turn chorus effect ON or OFF.
Hold down the [FUNCTION] button and press the
other key to select the chorus type.
16. TOUCH Key
Hold down the [FUNCTION] button and press the
key to select different touch response level.
17. EQ Key
Hold down the [FUNCTION] button and press the
key to select the EQ type.
18. TRANSPOSE Key
Hold down the [FUNCTION] button and press the
key to adjust the transpose value from -12 to 12
semitones.
19. TUNE Key
Hold down the [FUNCTION] button and press the
key to adjust the tune value from -50 to 50 (stand
for -100 to 100 cents).
20. VOICE DEMO Key
Hold down the [FUNCTION] button and press the
key to start/stop the voice demo playing.
21. BEEP Key
Hold down the [FUNCTION] button and press the
key to turn the prompt tone ON or OFF.
22. POWER ON / OFF
Turn the power ON or OFF.
17 18 19
15
23. SOFT Pedal
Step on the soft pedal, all notes played on the
keyboard would have a softer effect.
24. SOSTENUTO Pedal
Step on the sostenuto pedal, the notes played
before you step on would have a sustain effect.
25. SUSTAIN Pedal
Step on the sustain pedal, all notes played on the
keyboard would have a longer sustain.
23 24 25
20 21
0
5
25
75
95
100
aw_DP70EU_Manual_G11_130920
2013920 15:41:23
Setup
This section contains information about setting up your instrument and preparing to play. Please go through this section carefully
before turning the power on.

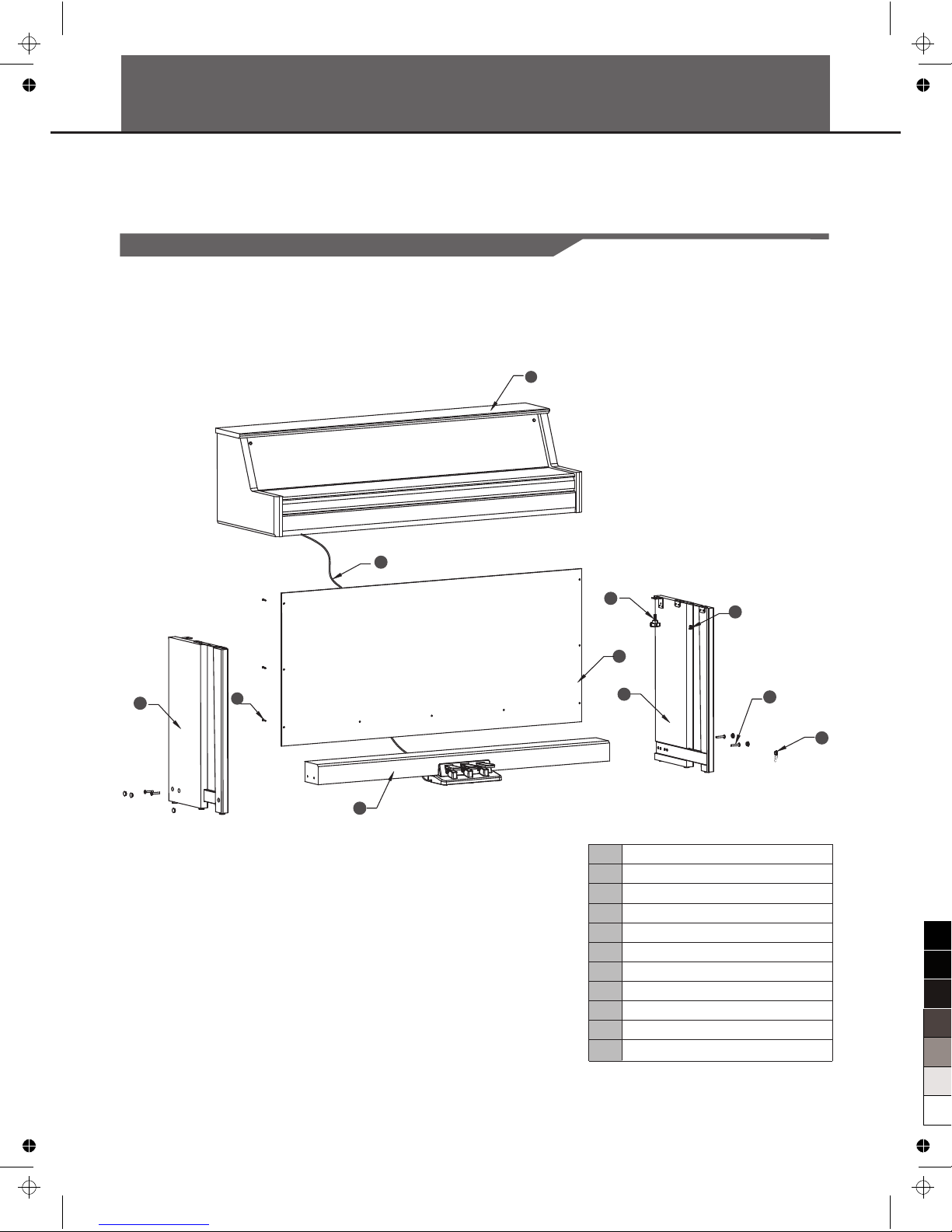

Part List
6
Before you proceeding to assemble the stand, get a Philip's
screwdriver (not supplied).
Make sure you have the following parts, which are supplied into
package.
34
5
6
7
8
9
2
1
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
10
11
Piano Body
Right Leg Component
Left Leg Component
Tapping Screw 4x20 (9pcs)
Foot Pedal Unit
Screw 6x40 (4pcs)
Foot Pedal Cable
Rear Board
Hand Screws (2pcs)
Screws M6x12 (2pcs)
Screw Rubber Cap (6pcs)
0
5
25
75
95
100
aw_DP70EU_Manual_G11_130920
2013920 15:41:24
Setup

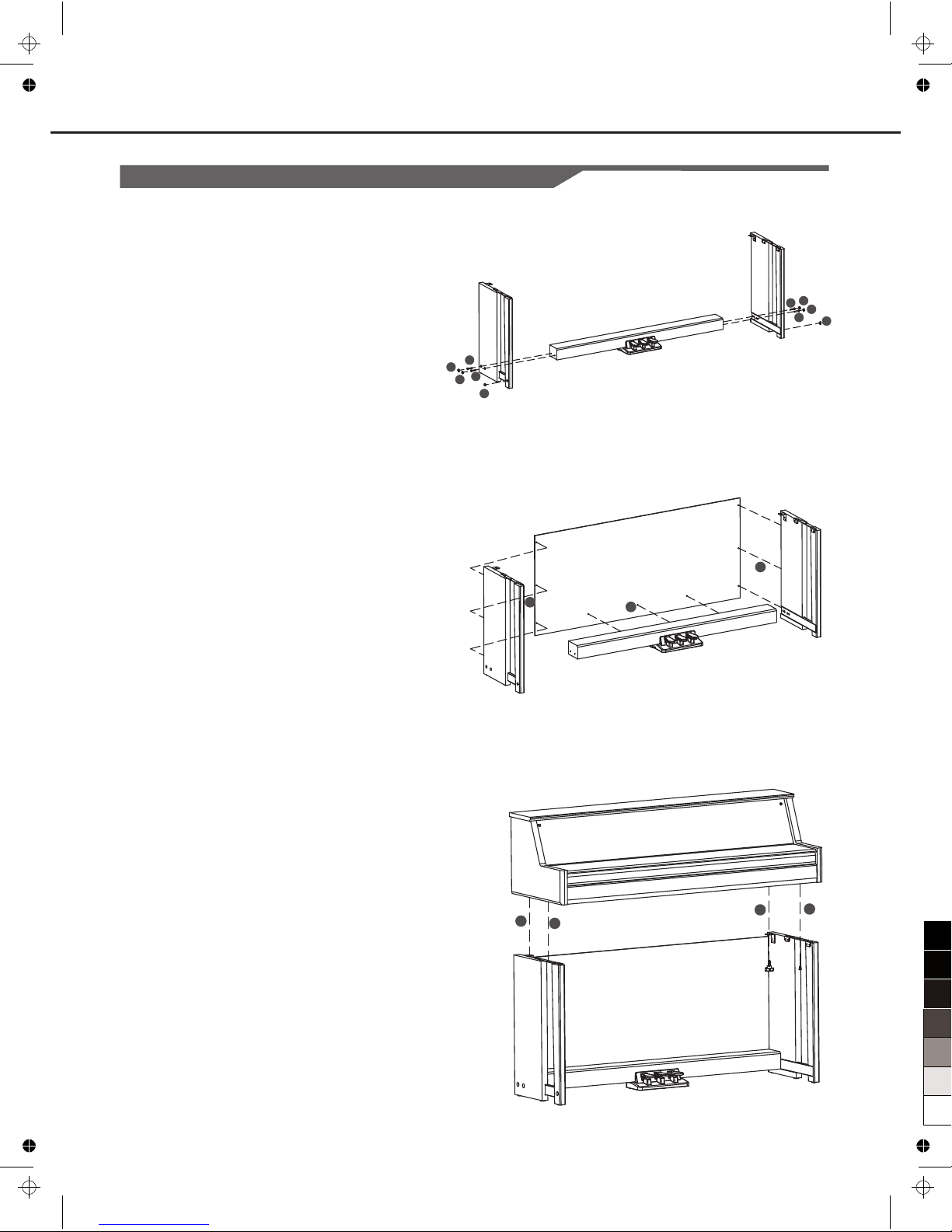

B. Use 9 pieces screw, make the Rear board fixed on the Foot
pedal unit and right leg component, the left leg component
finished in part A on the previous page.
7
C. Put the piano body on the top of the assembly finished in part B,
use 2 pieces of hand screws and 2 pieces of screws M6x12
to stable afterward.
A. Put the foot pedal unit(6) in between the left and right legs
components, use 4 pieces of screws(2 on each side) to
stable the legs onto the foot pedal unit. (Make sure the direction
of the placement is correct before screwing)
Setup Guide
6
11
11
11 6
6
6
11
11
11
4
4
4
9
9
10
10
0
5
25
75
95
100
aw_DP70EU_Manual_G11_130920
2013920 15:41:24
SopSax
TenoSax
SwOboe
PanFl
Piano
Piano2
EPiano
EPiano2
Harpsic
Clavi
MBox
Vibraph
Marimba
DrawOr
PercOr
ChurOr
RockOr
Acordio
Harmnic
StStr
StStr2
SynStr
ChoAah
SweetTp
ChurOr2
ReedOr
EQ
1 2 3
VOICE
DEMO
BEEP

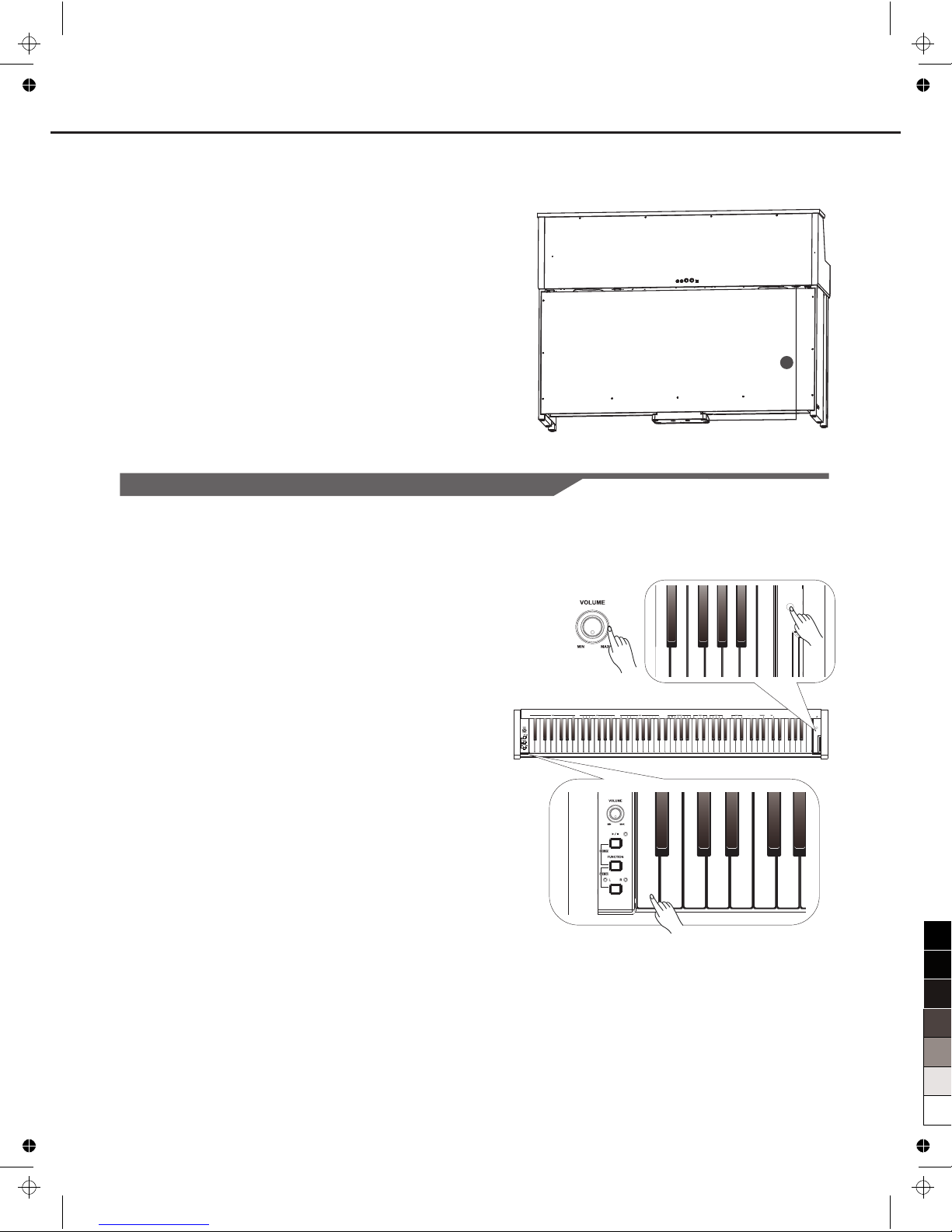

Setup
Power Supply
1. Make sure that the piano is turned off. Before you switch your
piano on or off, turn down the volume of piano and any connected
audio equipments first.
2. Connect the power cable to the AC outlet.
3. Press the [POWER] button, the LED display will lights up, that
indicates the piano has power on.
4. If you are ready to turn off the piano, press the [POWER] switch
again.
Notes:
1. In order to save energy, we have designed the “Automatic
Power Off” function to the piano. With this function, the keyboard
will be powered off automatically when being idle for more than 30
minutes. If you want to temporary disable this function, just press
and hold the first white key on the left from keyboard and turn the
power on simultaneously.
2. When the piano is not in use or during thunderstorm, please
disconnect the power for safety purpose.
8
D. After the initial set-up, connect pedal cable in the foot pedal unit
to the bottom-panel PEDAL jack.
7
0
5
25
75
95
100
aw_DP70EU_Manual_G11_130920
2013920 15:41:25

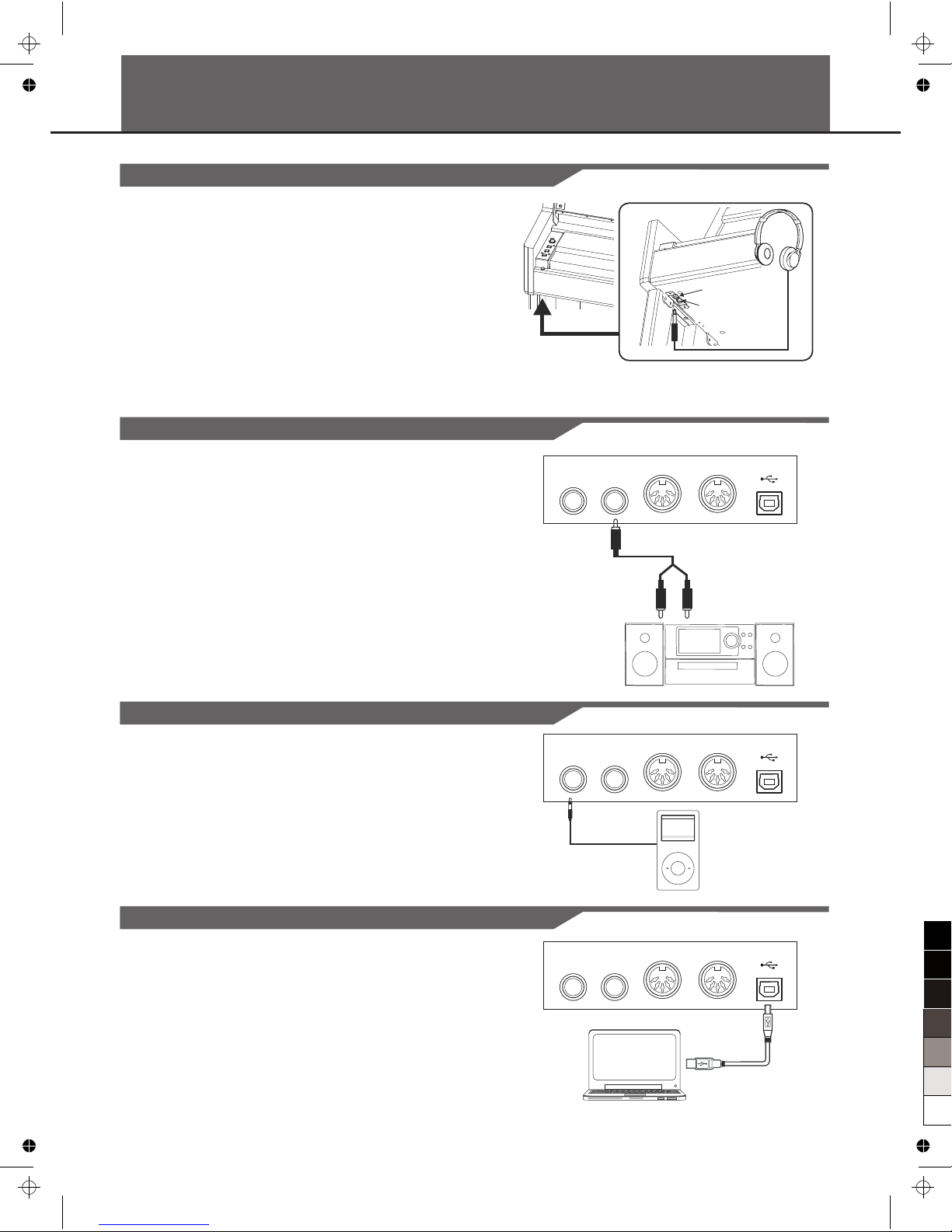

Connections
Connecting a pair of Headphones
A standard pair of stereo headphones can be plugged in here for
private practice or late-night playing.
Jack1:
sound can be heard from headphones and speakers of the
instrument.
Jack2: When a pair of headphones is plugged into Jack 2, the internal
stereo speaker system is automatically shut off . The sound can
be heard from headphones.
Note：
Do not listen with the headphones at high volume for long periods of
time. Doing so may cause hearing loss.
When a pair of headphones is plugged into the Jack 1, the
Connecting an Audio Equipment
The rear-panel AUX OUT jack delivers the output of the instrument for
connection to a keyboard amplifier, stereo sound system, a mixing
console, or tape recorder. Use an audio cord to plug into the AUX OUT
jack located on the rear board then plug the other end of the cord into
AUX IN of the amplifier.
Note:
To avoid damaging the speakers, please ensure that the volume has
been set to the minimum level before connecting the power and other
devices.
Connecting a Computer
Connect PC or other USB host devices that support USB audio.
For devices with USB cable, you can simply connect the MIDI/USB
converter to your USB connector on the device and plug the USB cable
into the piano, after the driver is installed and initialization is finished,
you can choose USB Audio Device in the device menu of the software
to transfer midi data.
Note:
Do not select USB audio device in both of input and output setting
together, otherwise the sound overlaps.
9
Connecting an MP3/CD Player
Connect the audio output of an MP3/CD player or other audio source
to the stereo AUX IN jack on the rear panel.
The input signal is mixed with the piano signal, allowing you to play
along.
Jack 1
Jack 2
MIDI OUT
MIDI IN
AUX OUTAUX IN USB
MIDI OUT
MIDI IN
AUX OUTAUX IN USB
MIDI OUT
MIDI IN
AUX OUTAUX IN USB
0
5
25
75
95
100
aw_DP70EU_Manual_G11_130920
2013920 15:41:27

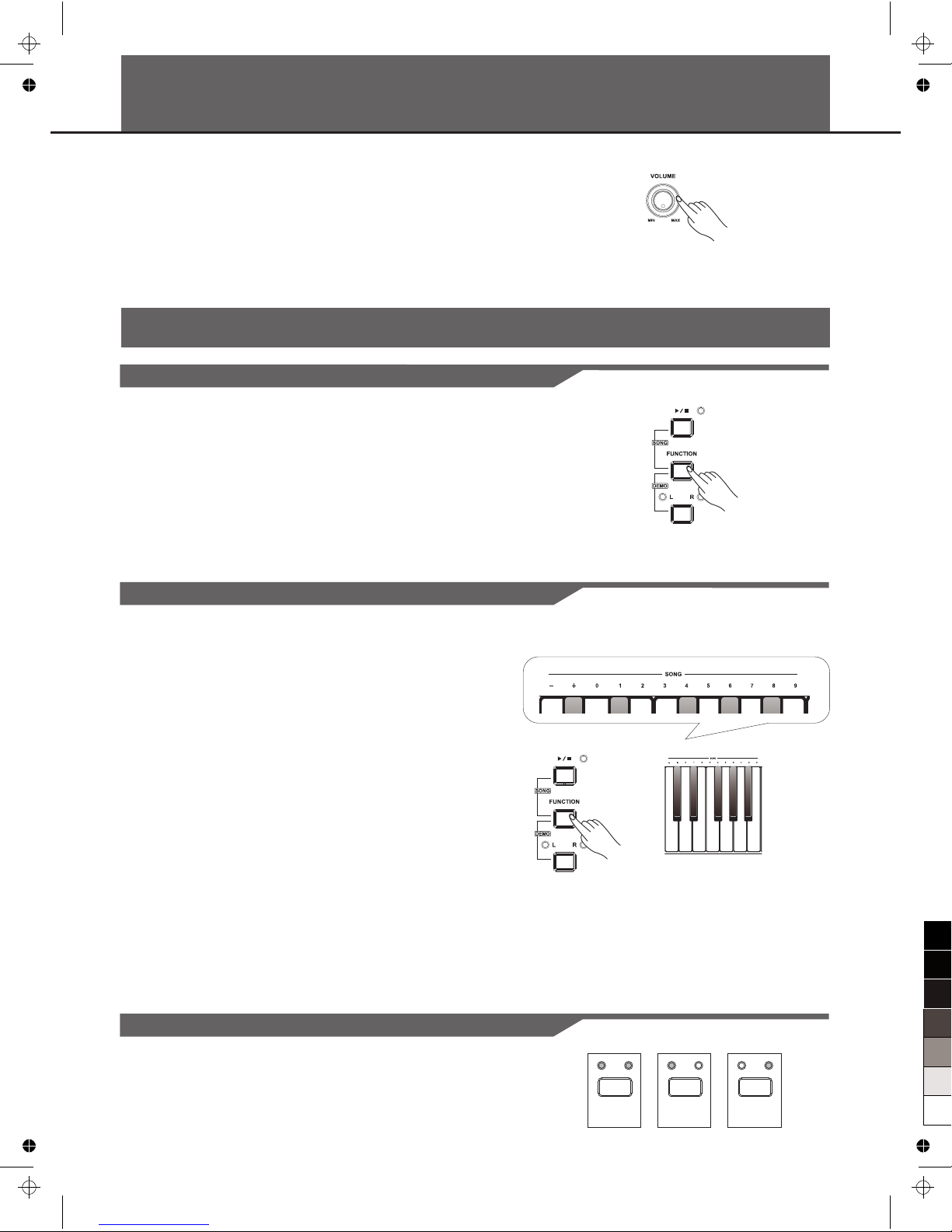

Adjusting the Volume
While holding down the [FUNCTION] button, press [L/R] button to
start the demo song playing. And all the LEDs on the panel will flash
simultaneously.
Do it again or press [Start/Stop] button to stop playing, and the LED
will stop flash.
Note:
The keyboard would be disabled when the demo song is playing.
Listening to the Song
10
Rotate the [VOLUME] knob rightwards, the volume increases and vice
verse.
Playing Demo song
Playing Song
There are total 60 songs in this digital piano (see Appendix).
Each song can be practiced in the MELODY OFF mode.
Start Song
While holding down the [FUNCTION] button, press [Start/Stop]
button to start the song playing. All songs will be played in a loop.
Loop
While only press [Start/Stop] button, it will play the current song
repeatedly.
Stop Song
Press [Start/Stop] button to stop the song playing.
Select Song
While holding down the [FUNCTION] button, press corresponding
keys in SONG selection area to select your desired song.
Note:
1. Press [song +] and [song –] keys simultaneously to select the first
song.
2. If you want to select song by the number keys, you should input 2
numbers. For example, if you want to select the eighth song, you
should input “08”.
Practice Song
In the song mode, you can press [L/R] button to select which
hand to practice and the status switch as following.
RL
L ON
R ON
R RL L
L ON L OFF
R OFF R ON
0
5
25
75
95
100
aw_DP70EU_Manual_G11_130920
2013920 15:41:27
Indice
Altri manuali Medeli Strumento musicale
Medeli
Medeli Grand200 Manuale utente
Medeli
Medeli DP370 Manuale utente
Medeli
Medeli SP5500 Manuale utente
Medeli
Medeli CDP6000 Manuale utente
Medeli
Medeli SP4200 Manuale utente
Medeli
Medeli UP81 Manuale utente
Medeli
Medeli DP263 Istruzioni operative
Medeli
Medeli DP740K Manuale utente
Medeli
Medeli sp 5100 Manuale utente
Medeli
Medeli SP40A Manuale utente
Medeli
Medeli SP3000 Manuale utente
Medeli
Medeli Grand 1000 Manuale utente
Medeli
Medeli CDP5200B Manuale utente
Medeli
Medeli GRAND1000 Manuale utente
Medeli
Medeli DP 100 Manuale utente
Medeli
Medeli DP280K Manuale utente
Medeli
Medeli DP388 Manuale utente
Medeli
Medeli DP760K Manuale utente
Medeli
Medeli DP420K Manuale utente
Medeli
Medeli St430 Manuale utente
