User Manual

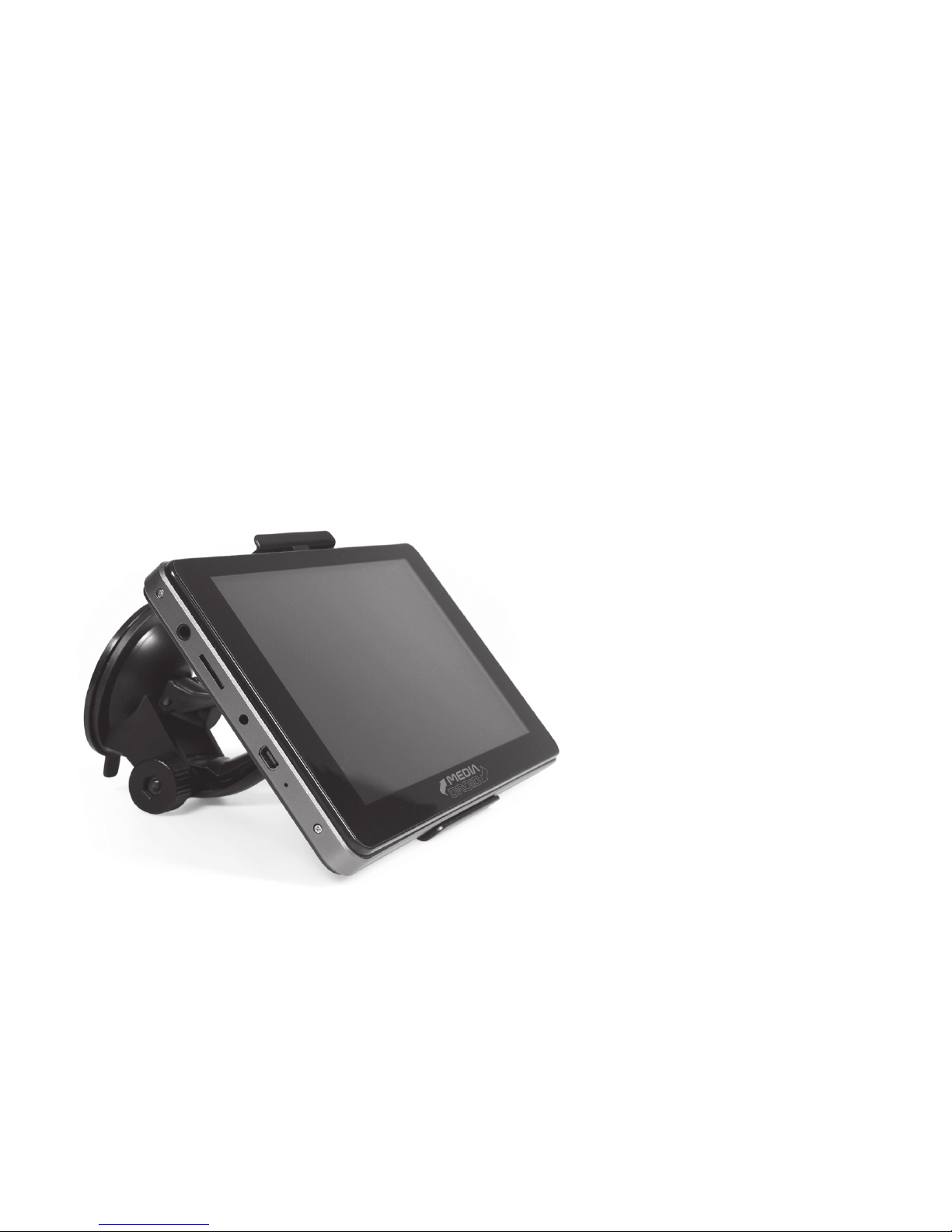

MASTER-MID GPS

Mobility, Versatility, Flexibility

MT7000

EN Introduction ................................................................................................ 2

Package contents ...................................................................................... 2

Overview ...................................................................................................... 2

Buttons.......................................................................................................... 3

Power On / Power Oﬀ .............................................................................. 3

Suspend mode ........................................................................................... 4

Installing microSD card........................................................................... 4

Uninstalling microSD card ..................................................................... 4

Connecting / Disconnecting USB pendrive..................................... 4

Storage space ............................................................................................. 4

Interface........................................................................................................ 4

Keyboard ...................................................................................................... 4

Touch screen ............................................................................................... 5

Desktop......................................................................................................... 5

Icons on status bar.................................................................................... 5

System settings .......................................................................................... 5

Language setting ...................................................................................... 6

Date setting................................................................................................. 6

Wi-Fi connection........................................................................................ 6

UMTS connection...................................................................................... 6

Application Management ...................................................................... 7

Install.............................................................................................................. 7

Uninstall........................................................................................................ 7

Access to free applications..................................................................... 8

Web Browser ............................................................................................... 8

E-mail............................................................................................................. 8

Watching on-line videos......................................................................... 9

Photo browsing........................................................................................10

Music player ..............................................................................................10

Video player...............................................................................................11

Watching on TV set.................................................................................11

Introduction

Thank you for buying this cutting edge media inter-

net device. MT7000 is equipped with Wi-Fi interface,

GPS receiver, internal built-in rechargeable battery

and touch screen. Please take a moment and read this

manual before using the device.

Package contents

¯tablet with stylus,

¯power adaptor AC 220V,

¯microUSB to USB adaptor,

¯on-glass mounting support,

¯car charger DC 12V

¯user manual.

Overview

DesktopBack

ON/OFF Menu

GPS Navigation ........................................................................................12

Screen/device unlock.............................................................................12

Restore default settings........................................................................12

Power

LED

Headphones

TF Card

DC 5V Input

USB

RESET

Power On

Press and hold ON/OFF button

until you see system logo.

Power Oﬀ

Press and hold ON/OFF button for about 3 seconds, de-

vice shutdown options will appear as below:

Use ﬁnger and select desired option. If you do not

use for short period your tablet you can switch it into

“suspend” mode for energy saving. If you want to shut-

down device select “power oﬀ” option and then click

OK when prompted.

Buttons

ON/OFF - to power on/oﬀ device.

Back – back to previous window.

Menu – show menu options.

Desktop – show main desktop.

System is loading, it takes

about 1 min.

EN Suspend mode

In this mode screen is switched oﬀ, Wi-Fi is switched

oﬀ, all button except ON/OFF button are disabled. To

recover from suspend mode to normal mode press ON/

OFF button once.

Note! When boarding an airplane turn device into

“suspend mode”. If you want to use tablet during

ﬂight go to“Settings/Wireless&networks/Wi-Fi”and

uncheck this option to disable Wi-Fi network card.

Note! Device will automatically switch into “sus-

pend mode”after a time of idle according to“Screen

timeout” setting.

Installing microSD card

Put gently microSD/T-ﬂash card into TF card slot. Pin

connectors should face bottom of tablet. Use your ﬁn-

gertip to slide card into slot until it is hatched.

Uninstalling microSD card

Exit all applications, go to “Settings/SD card& storage

settings”and click “Unmount SD card”.

In the system notiﬁcation area “safely remove SD” will

pop-up, you can take out microSD card.

Connecting USB pendrive

Go to “Settings/USB mode select/Host mode” and ena-

ble it. Now plug pendrive using attached microUSB ->

USB adaptor.

Disconnecting USB pendrive

Exit all applications, then unplug pendrive.

Storage space

There are three storage devices:

¯SD Card (available when connected), ¯Internal

Memory, ¯USB (available when connected).

Interface

Keyboard

Whenever there is need to enter a text – a screen key-

board will appear automatically.

Touch screen

Click: simply tap with one ﬁnger.

Long press: press and hold on selected item until con-

text menu pop-up.

Drag&Drop: select item and drag it. You can also tap

and slide your ﬁnger to change desktops or to view an-

other picture (when in photo mode).

Note! Touch screen has auto rotation function

enabled by default. If you do not like this feature

you

can disable it in “Settings/Display/Auto-rotate

screen”.

Icons on status bar

Battery level

Actual time

Volume up

Volume down

Wi-Fi connection

Back

Show menu options

Back to main desktop

System settings

On the main desktop click icon and then click„Set-

tings”icon to enter system settings:

Desktop

EN Language setting

Select “Language & keyboard”, then click “Select lan-

guage” and select desired system language.

Date setting

Go to “Settings/Date & time settings” and set manually

or mark option “Automatic”– date will be synchronized

automatically when tablet will logon to cell network (it

requires an active UMTS connection).

Wi-Fi connection

Go to “Settings/Wirelles & networks” and click “Wi-Fi”

to enable Wi-Fi card. Then click “Wi-Fi settings” to enter

next menu, then click “Add Wi-Fi network”. Enter pa-

rameters provided by your Wi-Fi network administrator.

Note! When you go out of reach of Wi-Fi network or

go to “Suspend mode” or “Power oﬀ mode” you will

be disconnected. Device will automatically estab-

lish connection when power on. If it does not, go to

“Wi-Fi settings” to uncheck and check again “Wi-Fi”

option to force establishing Wi-Fi connection.

UMTS connection

Power oﬀ device and then plug USB UMTS modem.

Power on the device. Go to “Wirelles & networking” set-

tings and turn oﬀ “Wi-Fi” connection and then turn on

“Mobile network” .

When connection is established under “Wi-Fi” option

there will be information “Connected to [name of net-

work]”. Also Wi-Fi network icon will be displayed on the

status bar.

Next click “Mobile network settings”and enter parame-

ters provided by UMTS operator.

Application Management

Install

On the main desktop click icon, then“explorer” ap-

plication. Click desired *.apk ﬁle to run installation. Fol-

low on-screen messages to ﬁnish installation.

Uninstall

Go to “Settings/Applications/Manage applications”.

Select desired icon and then click “Uninstall” button.

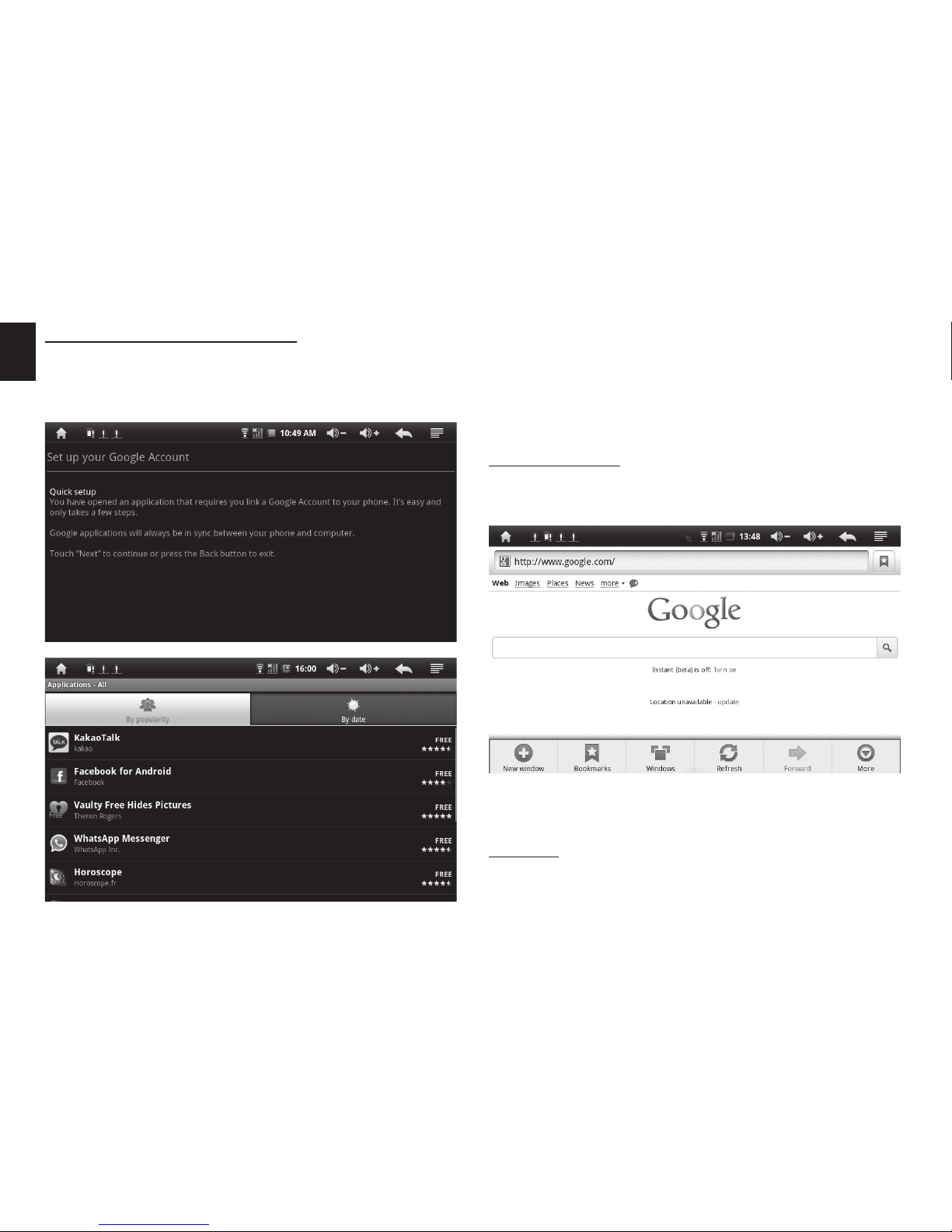

EN Access to free applications

Open“E-Market”icon on desktop, when you run for ﬁrst

time you will be asked to setup a google account, fol-

low on-screen messages.

Click in the address bar, then screen keyboard will ap-

pear, you can enter desired webpage.

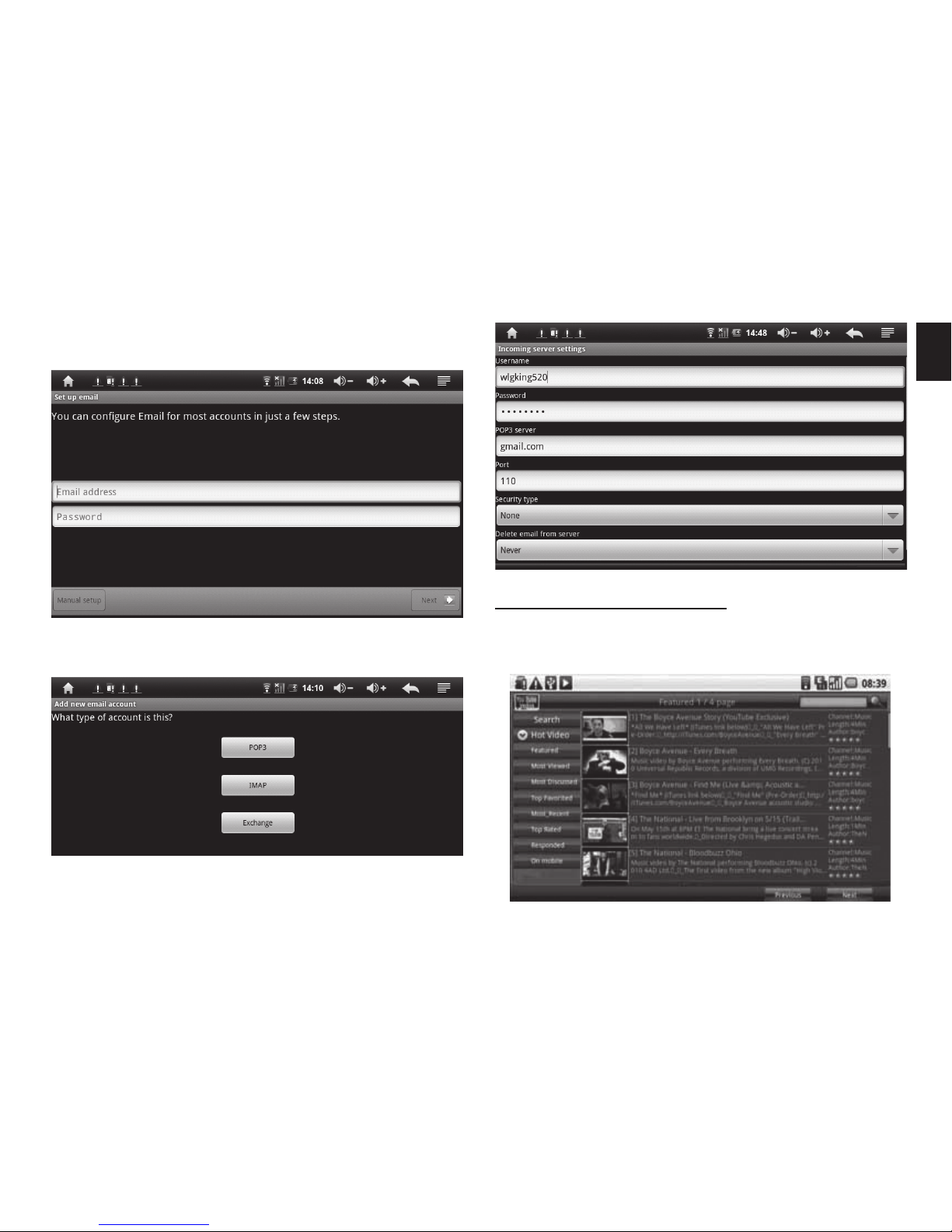

E-mail

On the main desktop in the right lower corner click

“Envelope” icon, an e-mail application will be started.

Web Browser

On the main desktop in the right upper corner click

“Earth” icon, a web browser will be started:

When google account has been set you can browse

available application, those marked as “free” are free of

charge.

Note! You can also set google account in “Settings/

Accounts & sync/Add account”.

Follow on-screen messages to conﬁgure e-mail box.

For standard e-mail box select POP3 type account.

Enter parameters provided by your e-mail account ad-

ministrator.

When running for the ﬁrst time you will be asked to

conﬁgure your e-mail account ﬁrst.

Watching on-line videos

On the main desktop click“YouTube”icon, in the search

ﬁeld enter phrase to locate video you want to play.

Click on selected ﬁle to start playing. Following screen

will appear:

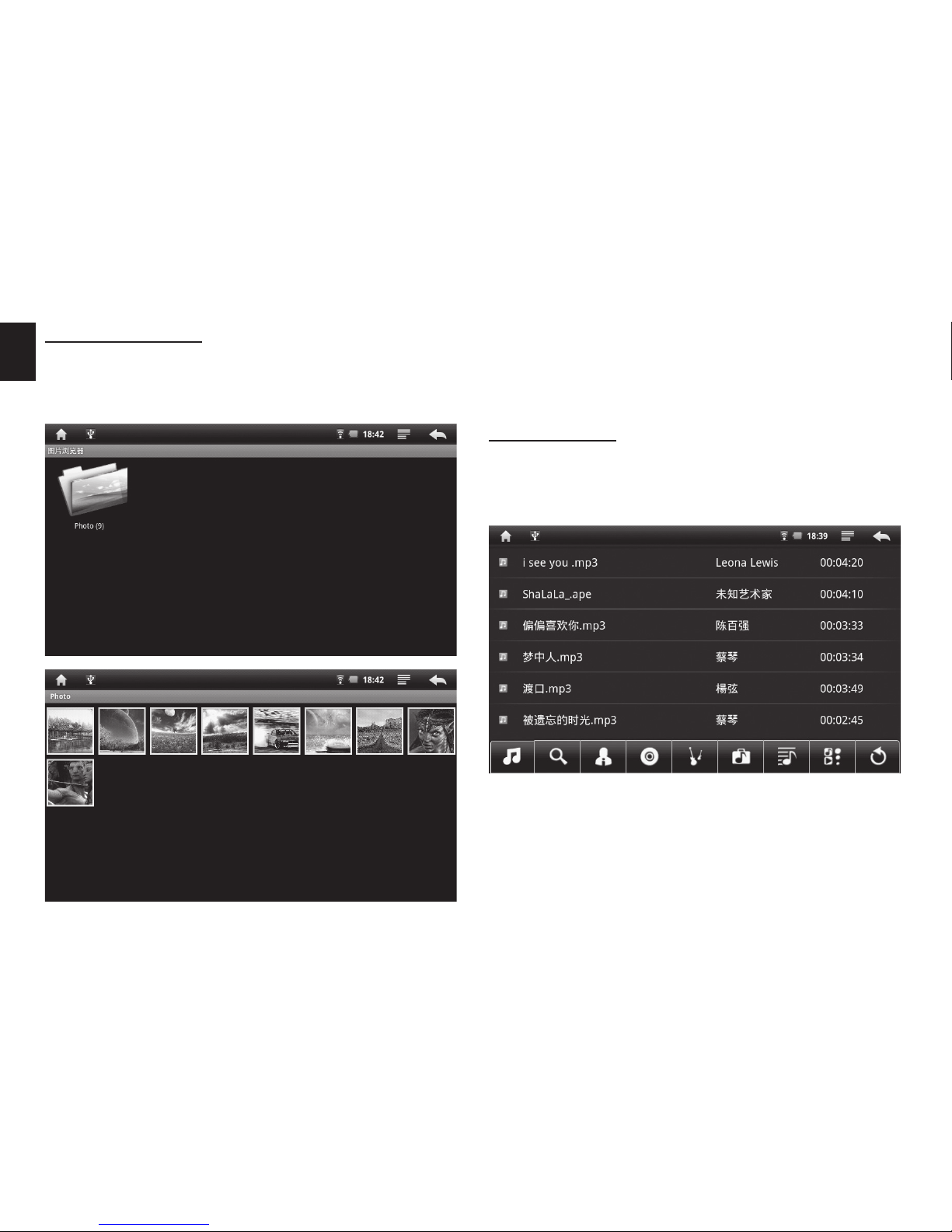

Music player

On the main desktop click“Audio Player”icon to run au-

dio player. Application will scan all accessible devices

and will show only supported music ﬁles.

Photo browsing

On the main desktop click “Photo” icon to run photo

browser. Application will scan all accessible devices

and will show only supported photo ﬁles.

Select ﬁle, click it to view in full screen mode. Use ﬁnger

to swipe across screen to view next/previous ﬁle. Tap

on screen to pop-up menu options: slideshow, rota-

tion, crop, set as wallpaper, info.
