Mediclinic M02A-UL Manuale utente

HAND DRYERS

www.saniflowcorp.com

INSTALLATION AND OPERATING MANUAL

M02A-UL / M02AC-UL / M02ACS-UL

M03A-UL / M03AC-UL / M03ACS-UL

USA

SANIFLOW CORPORATION

2655 LeJeune Rd.,

Suite 810. Coral Gables, FL 33134.

Tel.: 305 424 24 33

Fax: 305 424 24 35

[email protected]

www.saniflowcorp.com

SPAIN

MEDICLINICS, S.A.

Industria, 54

E-08025BARCELONA

Tel.: +34 93 446 47 00

Fax: +34 93 348 10 39

[email protected]

www.mediclinics.com

04 / 04Cod.: 82917UL

Mounting

The assembly should be preferably prepared for rear ducting.

• Drill holes of 5/16” (8 mm) in the wall, using the template

supplied. Clean the holes of the resulting dust and insert

the plugs.

• Pass the power cables from the wall through the 7/8”

(22 mm) hole situated beneath the connection board of

the appliance.

• Screw the base of the appliance tightly to the wall ensuring

the 4 silent-blocks are correctly positioned.

• Enter the power cables and earth wire into the inside

space containing the terminal strip, passing them through

the entry hole.

• To reach the terminal strip the protective top should be

opened.

• Connect the cables from the mains and earth wire to their

locations in the terminal strip. Once the electrical connection

has been made, close the protective cover again.

• Fit the metallic cover into the base, placing it from top to

bottom with a certain inclinations. Make sure the upper

rib has entered in their location in the base.

• Place the lower screws, tightening with the specially

supplied key.

• The hand dryer is supplied with the metallic cover coupled to the base in a unscrewed stated.

• The cover should be extracted taking into account its upper rib placed in its fitting on the base.

• The cover must be removed obliquely until the upper rib has been extracted.

Take care to avoid:

• Damaging the internal parts (mainly electronic components)

• Damaging the cover. It is recommended placing it on a flat

surface facing upwards and on a cloth.

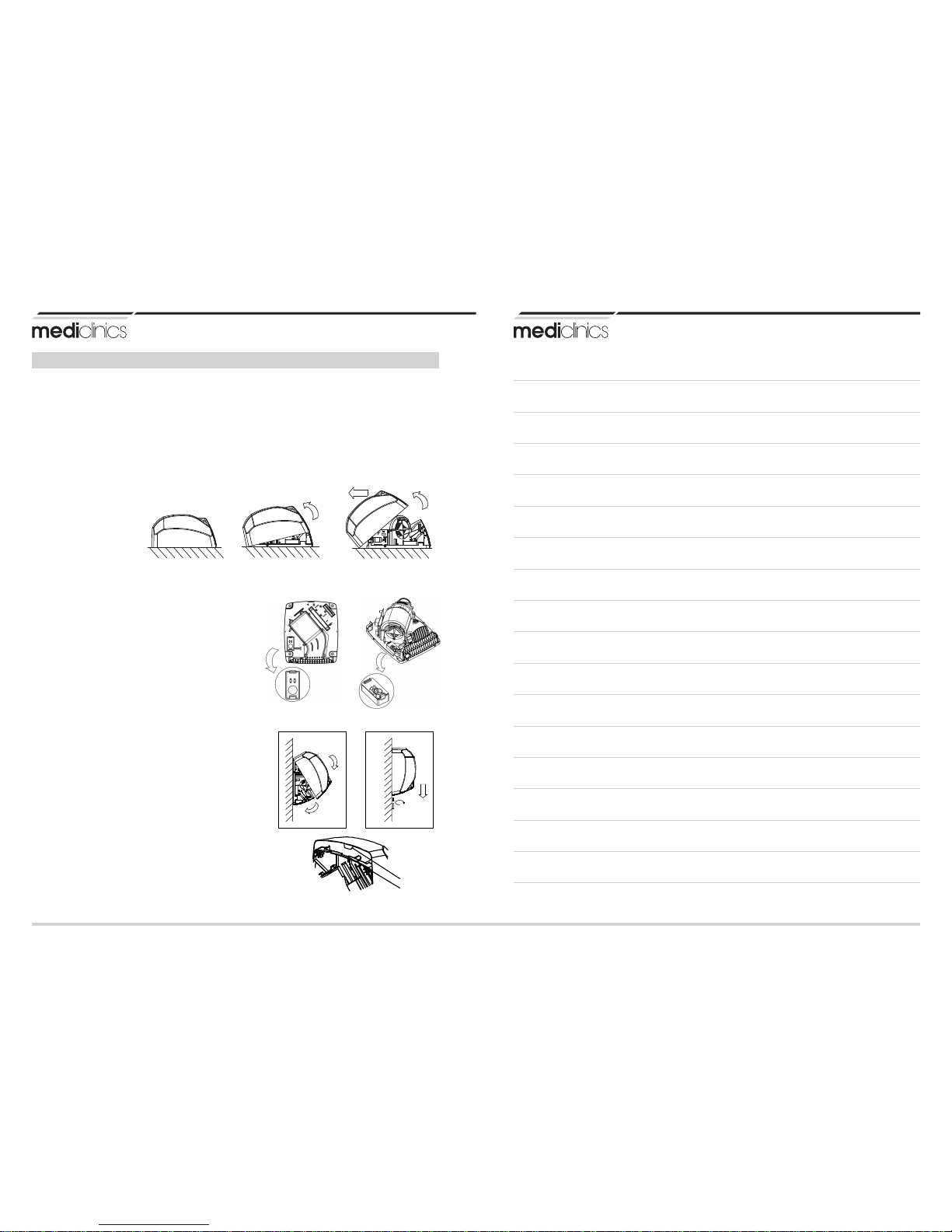

INSTALLATION

Dismantling for installation

www.saniflowcorp.com

Upper ribe

Location in the base

This Product covered by this limited warranty is warranted to be free

from defects in material and workmanship under normal conditions

for a period of ten years from the date of purchase.

The manufacturer’s obligation under this Limited Warranty is applicable

only where a product defect has been claimed during the warranty

period. The manufacturer’s obligation under this Limited Warranty is

limited to either (I) replacement of the Product; or (II) replacement

of defective parts. To claim under this Limited Warranty, contact one

of Mediclinics, S.A. official dealers.

Mediclinics, S.A. shall not be responsible for any other damage, including,

but not limited to, any defects or damage caused by or resulting from:

(a) alterations to the product; (b) use of the product in an incorrect

manner or for an unreasonable use; (c) failure to use the product in

a safe and reasonable manner, and (d) repair of the product by

unauthorized personnel.

LIMITATION ON LIABILITY

THE WARRANTY SET FORTH ABOVE IS EXCLUSIVE AND NO OTHER

WARRANTY, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED.

MEDICLINICS, S.A. SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALL MEDICLINICS, S.A. BE LIABLE FOR INDIRECT,

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING,

BUT NOT LIMITED TO, LOSS OF PROFITS, LOSS OF CUSTOMERS, LOSS

OF USE, DAMAGE TO GOODWILL OR TO BUSINESS REPUTATION) OR

FOR ANY OTHER LOSSES FROM ANY CAUSE, INCLUDING DAMAGES

CAUSED BY THE PRODUCT, WHETHER OR NOT MEDICLINICS, S.A. HAS

RECEIVED NOTICE OF THE POSSIBILITY OR CERTAINTY OF SUCH

DAMAGES OR LOSSES.

SOME STATES DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION

MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY

FROM STATE TO STATE.

LIMITED WARRANTY

WARRANTY · WARRANTY · WARRANTY · WARRANTY

GARANTIA · WARRANTY · GARANTIE · GARANZIA

WARRANTY · WARRANTY · WARRANTY · WARRANTY · WARRANTY · WARRANTY

www.saniflowcorp.com

White painted steel cover

Satin finish stainless steel cover

Bright finish stainless steel cover

Motor

Fan wheel

Heating element

Electronic circuit set

IR sensor circuit

Main electronic card

Coal brushes set

www.saniflowcorp.com

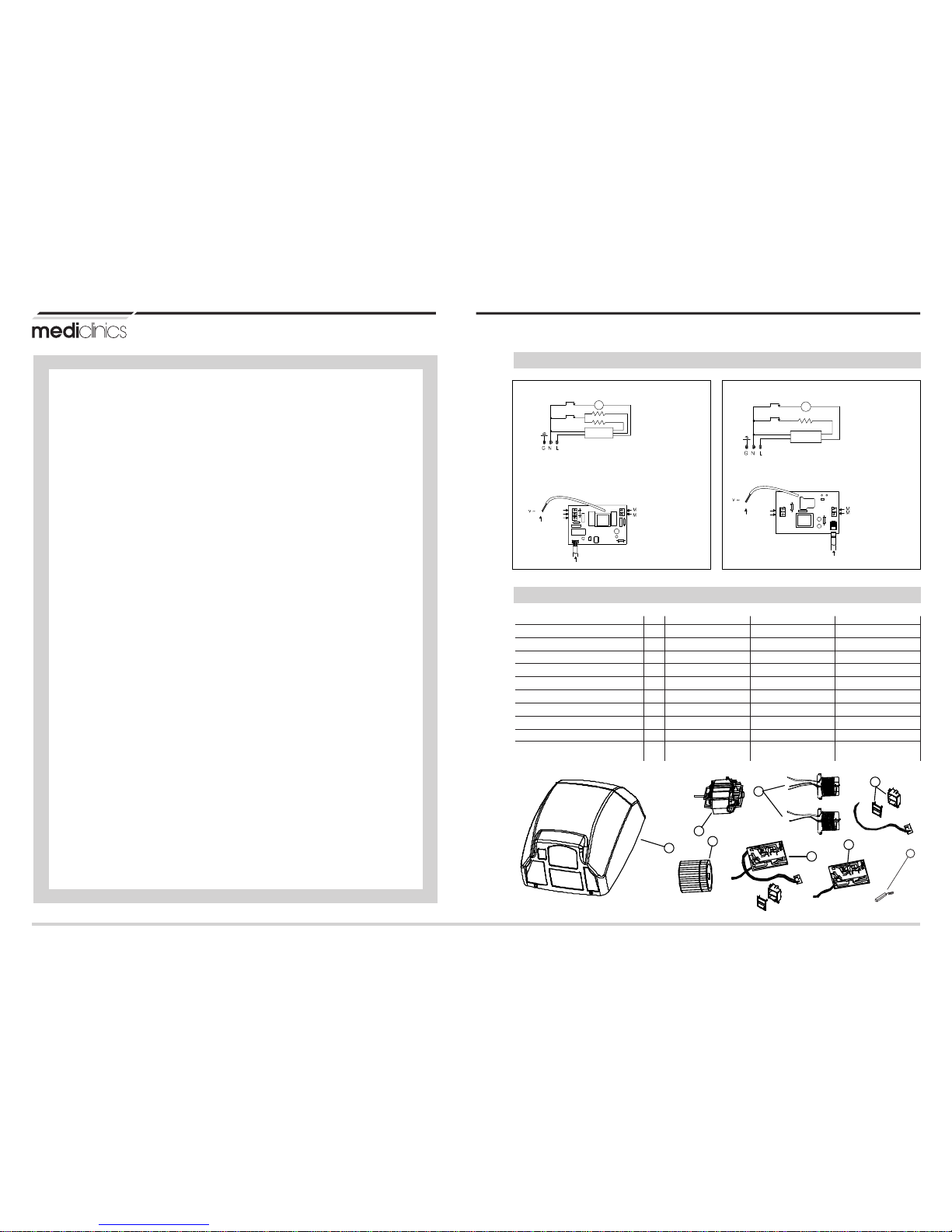

WIRING DIAGRAM

BREAKDOWN LIST OF BASIC PARTS

M- Motor

S- Sensor

H- Heating element

H(C)- Black heating element wire

H(L)- White heating element wire

M- Motor wire

Connection wires to IR E/R sensor circuit

MO3A-UL, MO3AC-UL and MO3ACS-UL models

ELECTRIC DIAGRAM

CONNECTION TO ELECTRONIC CARD

Power supply wires

110-120V

50/60Hz

ELECTRIC DIAGRAM

CONNECTION TO ELECTRONIC CARD

M- Motor

S- Sensor

H- Heating element

H(C)- Black heating element wire

H(L)- White heating element wire

H(H)- Red heating element wire

M- Motor wire

Connection wires to IR sensor circuit

MO2A-UL, MO2AC-UL and MO2ACS-UL models

Power supply wires

110-120V

50/60Hz

MO2-UL & MO3-UL

RC82010

RC82020

RC82030

RC82748UL

RC82777

RC95750-AMT

RC95750-STC

MO2-UL

RC82770UL

RC82600UL

RC82601UL

RC82602UL

MO3-UL

RC82720UL

RC82610UL

H (C)

H (L)

H(H)

H (C)

H (L)

www.saniflowcorp.com

3 4

METHOD OF USE

M02A-UL / M02AC-UL / M02ACS-UL models

• The detection distance is approximately 4 3/4” - 5 7/8” (12 - 15 cm), but other levels

may be set by adjusting the potentiometer wich is located in the IR sensors circuit.

• After removing the hands the appliance stops in 2 - 3 seconds.

• The heating element turns off 0.5 seconds before the motor.

• The appliance includes a protection system against continuous improper use

(it stops after 120 seconds of continuous use).

• These models of hand dryer has an automatic temperature control system. It supplies

the adequate heating power from 4 possible levels according to the value of room

temperature.

• These models detect the presence of fixed objects (as fixed targets) and in this case

it stops automatically after 4 - 5 seconds of starting operation.

Correct cleaning of the machine will lenghten its working life considerably.

It is recommended to carry out the cleaning process at least once a year.

CLEANING METHOD

• Disconnect the dryer from the mains supply.

• Remove the 2 lower holding screws from the cover using the special key.

• Remove the cover and place it carefully on a cloth avoiding scratches and scrapes.

• Clean the dust from the surface and the parts of the main card of the electronic circuit. To do this, use a soft brush.

• Use the same brush to clean the motor surface , the entrance inlet of the volute, the air outlet and the air inlet grille.

• With a soft cloth, clean the surface of the IR sensor closure screen and remove any dust covering on its surface.

• Open the volute removing the safety screw and folding the closure clips and clean the turbine and heating element of

dust. Close the volute again, putting in the closure clips and tightening the safety screw.

• Clean the dust from the perimeter of the base, especially the upper section.

• Assemble the cover, place the lower screws and connect the dryer once again.

• Start up the machine repeatedly in order to expel remains of dust after the cleaning process.

PREVENTATIVE MAINTENANCE AND CLEANING

M02A-UL and M03A-UL

families of hand dryers operate by hand detection. To achieve optimum drying of

hands, it is advisable to rinse them well first, eliminating any soap left on them. Then, once the dryer is working,

place the hands at the distance of approximately 2 3/8” - 2 3/4” (6 -7 cm) from the air outlet and rub the hands

toguether. The detection of hands is based on the emission/reception of an IR light beam.

Do not damage or force any part during the entire process.

All cleaning procedures of the machine must be carried out by qualified technical staff.

Pontenciometer

M02A-UL, M02AC-UL and

M02ACS-UL Models

M02A-UL M02AC-UL

10.7 lb (4.85 Kg)

12.6” (320 mm)

10.7” (272 mm)

6.5” (164 mm)

White Epoxy enameled

IR sensor

-processor

M02ACS-UL M03A-UL M03AC-UL M03ACS-UL

2.7 Hp (

00 W)

Chrome bright Chrome satin

UL 499

Chrome satinChrome bright

IR sensor

110 - 120 V 50/60 Hz

HEATING ELEMENT:

Power

Input voltage

Consumption

Rated power

Weight

MOTOR:

Power

Type

SCROLL-FAN

TIMER:

Type

DIMENSIONS:

Height

Widht

Depth

COVER:

Type

Thickness

Finish

Certified in

accordance with:

Air flow :

Air velocity

Air temperature

MODEL

318 CFM (9,005l/min)

5,195 LFM (95 Km/h)

120ºF (50ºC)

1/3 Hp (250 W)

Universal

Fireproof

2.1

18.75 A

0.34

Hp (

250

2,250

18.75 A

Hp (

2,250

9.4 lb (4.25 Kg) 10.7 lb (4.85 Kg) 9.4 lb (4.25 Kg)

2.7 Hp (

00 W)

12.8” (325 mm)

10.7” (272 mm)

6.5” (164 mm)

12.6” (320 mm)

10.7” (272 mm)

6.5” (164 mm)

Steel

5/64” (1,9 mm) Stainless

Steel

1/6” (1.5mm)

12.8” (325 mm)

10.7” (272 mm)

6.5” (164 mm)

Steel

5/64” (1,9 mm) Stainless

Steel

1/6” (1.5mm)

White Epoxy enameled
