Machflow hand dryer

Safety regulations

All installation, maintenance and repair tasks must be carried out by qualified

technicians.

Mediclinics remembers the importance of:

1. Becoming familiar with the equipment and carefully reading the user manual prior to

operating.

2. Disconnecting power prior to beginning any repair or maintenance action.

3. Exercising care in accordance with the procedures included herein.

General maintenance

Preventive Maintenance - Cleaning

Inspect the units annually or quarterly, depending on the dryer’s operating cycles.

Clean the active parts of the unit, such as: the motor, the heating element, the fan and

the electronic circuit board with a soft brush.

Maintain the air inlet and outlet free of dust and other obstructions; use a soft flat ended

brush.

Removal of the casing

Removal of the casing

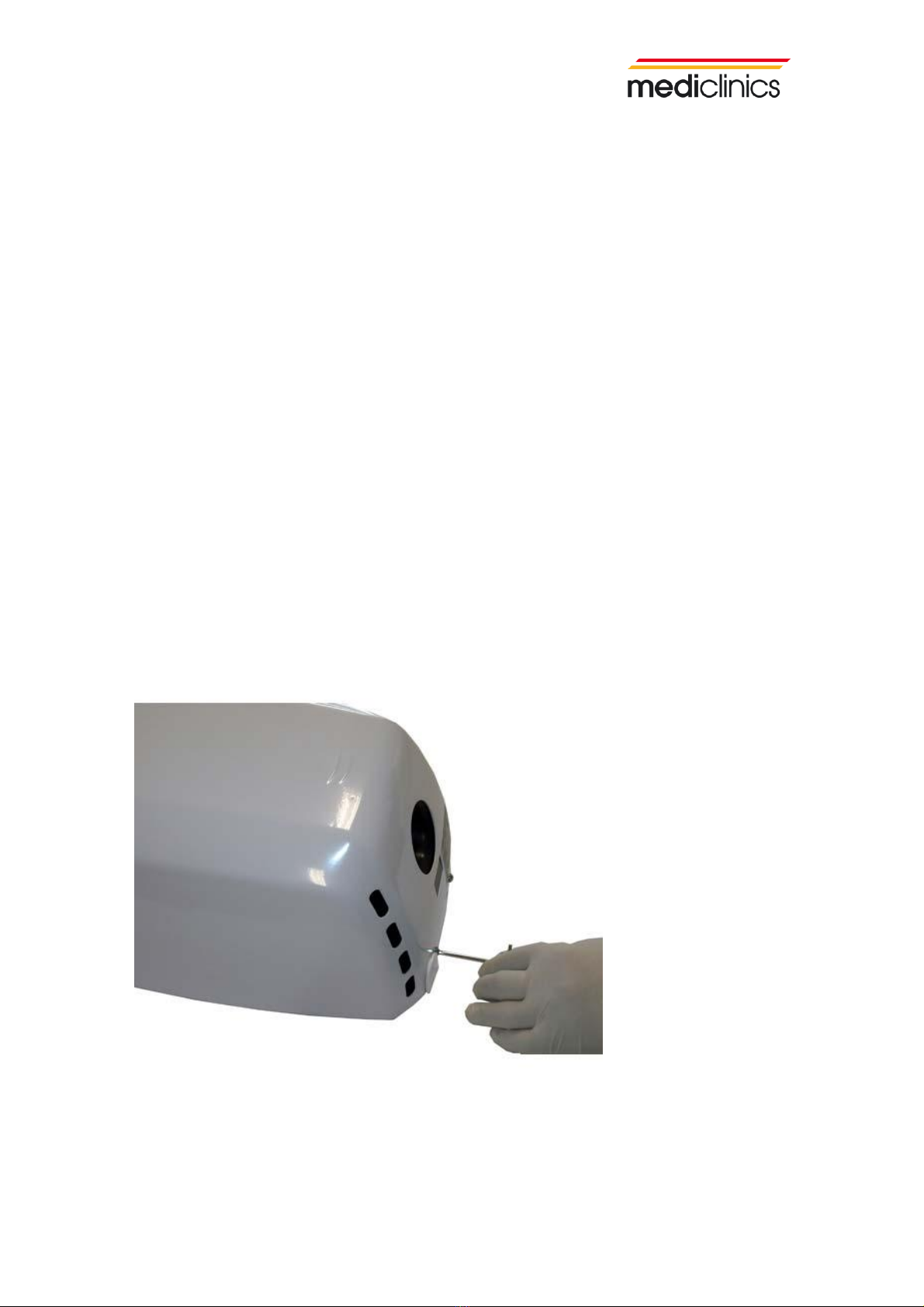

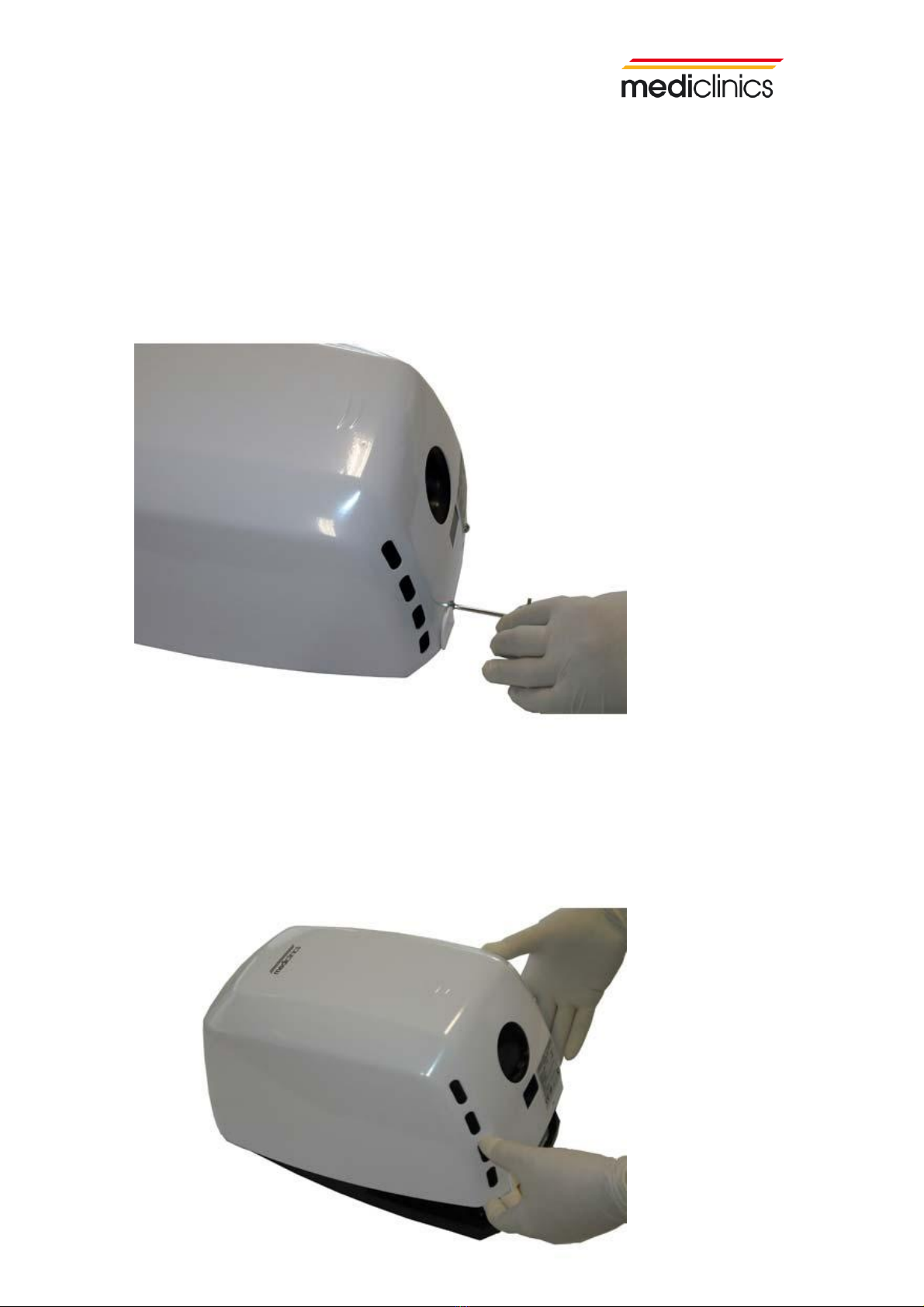

Using a Machflow security screwdriver, release the two screws located at the lower

part of the casing.

Carefully remove the casing, trying not to damage the LED viewing screen.

Motor

Characteristics

- Type: Universal high pressure brushes.

- Adjustable power: 420-1150 W.

- Speed of rotation: 19,000-30,000 rpm

- Class F

Maintenance

As preventive maintenance, we recommend using a soft brush to remove dust and dirt

on an annual or bi-annual basis, depending on the dryer’s operating cycles.

Replacement of the motor

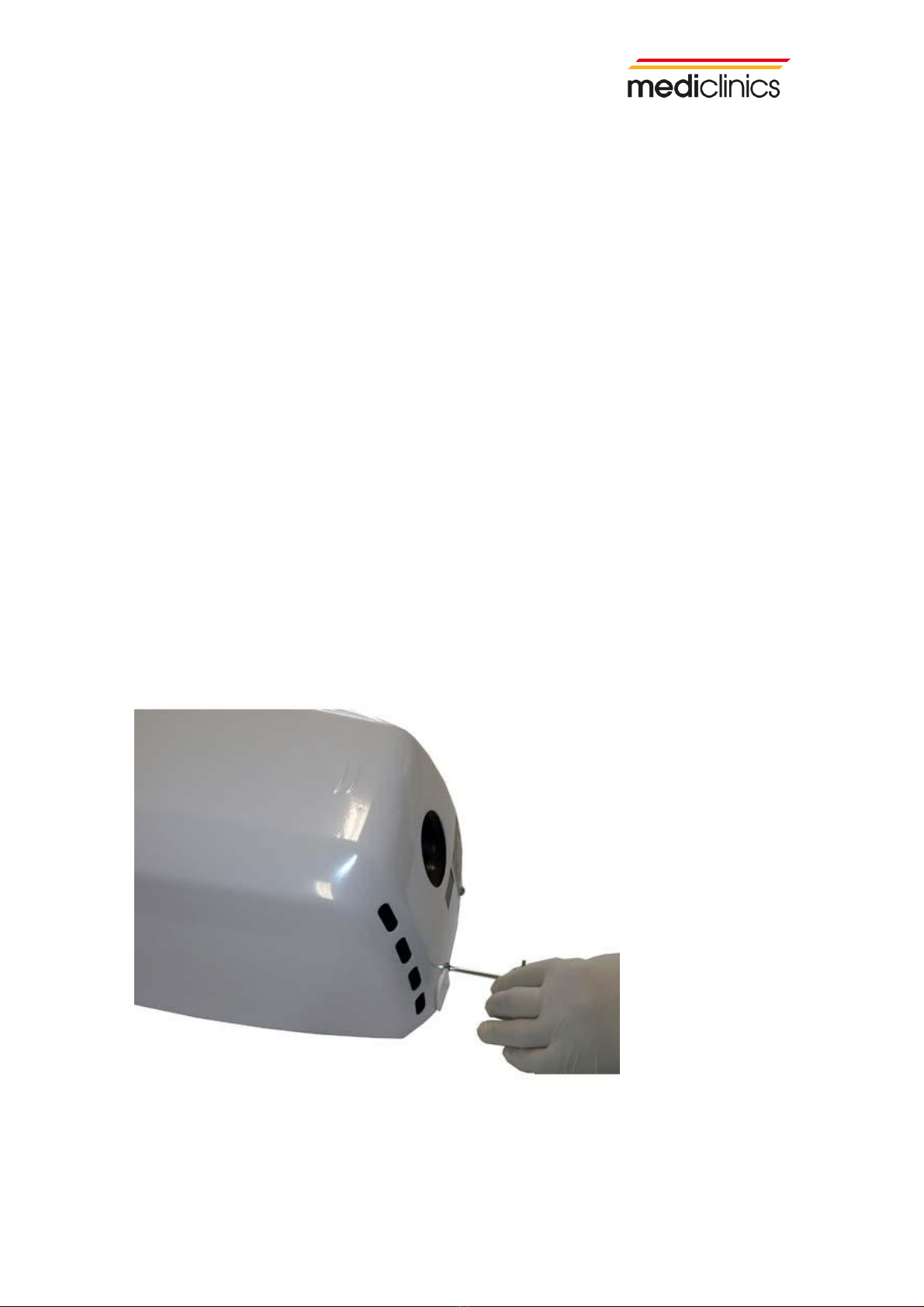

Using a Machflow security screwdriver, release the two screws located at the lower

part of the casing.

Carefully remove the casing, trying not to damage the LED viewing screen.

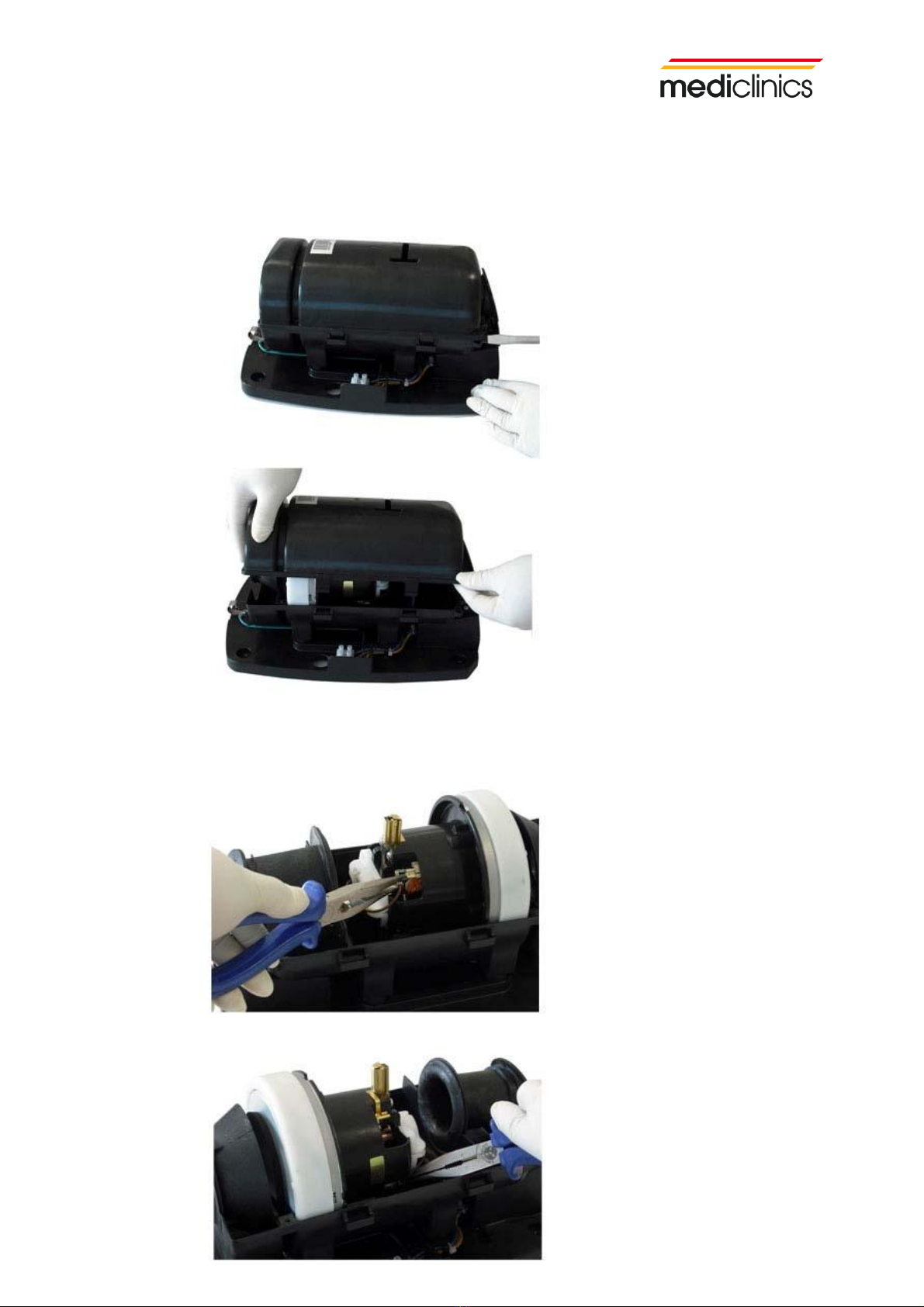

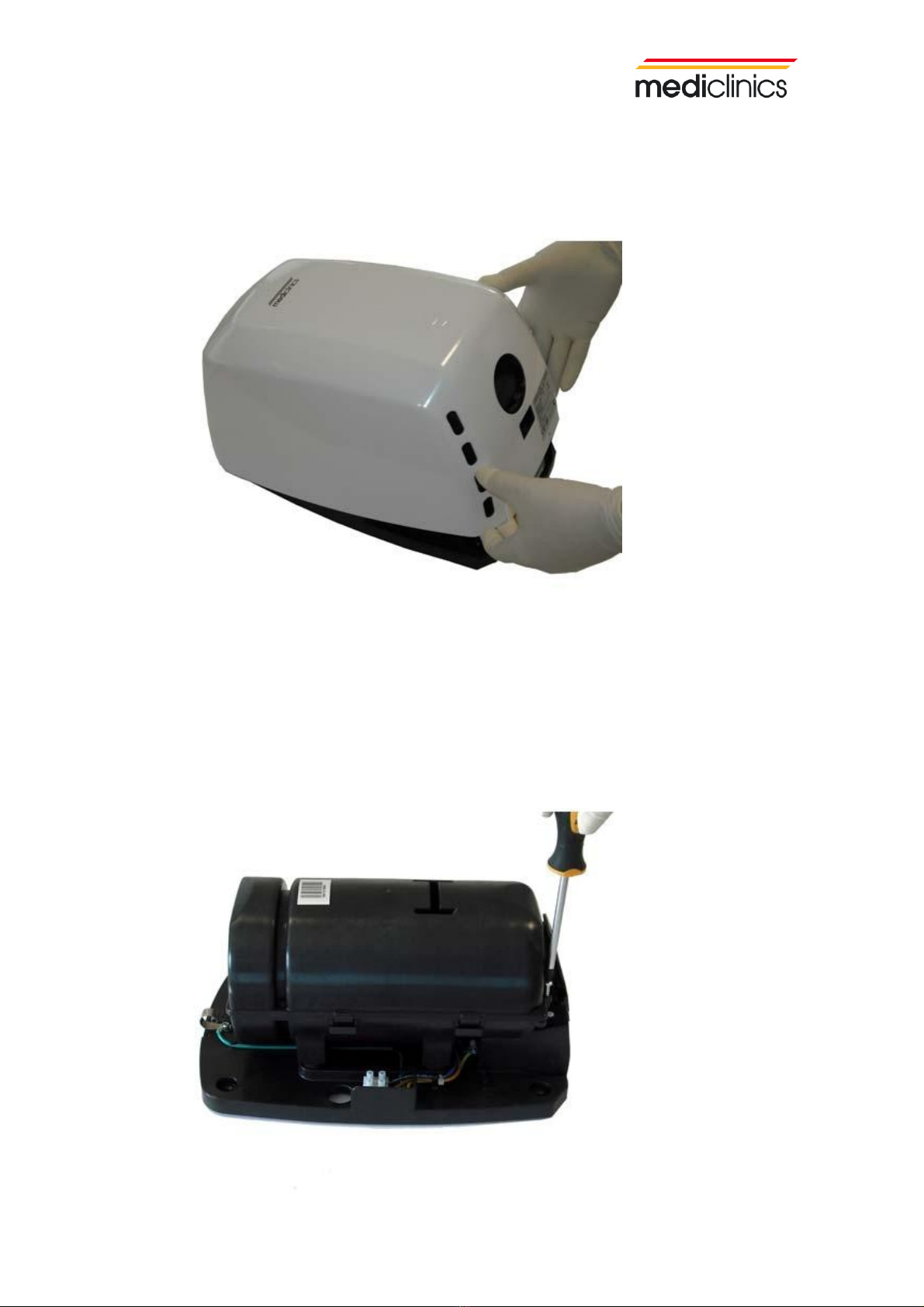

Use a Phillips head screwdriver to remove the four screws in the upper nozzle.

Remove the upper nozzle. (If the nozzle is difficult to remove, use a flathead screwdriver to

help extract it, taking care not to damage the plastic parts).

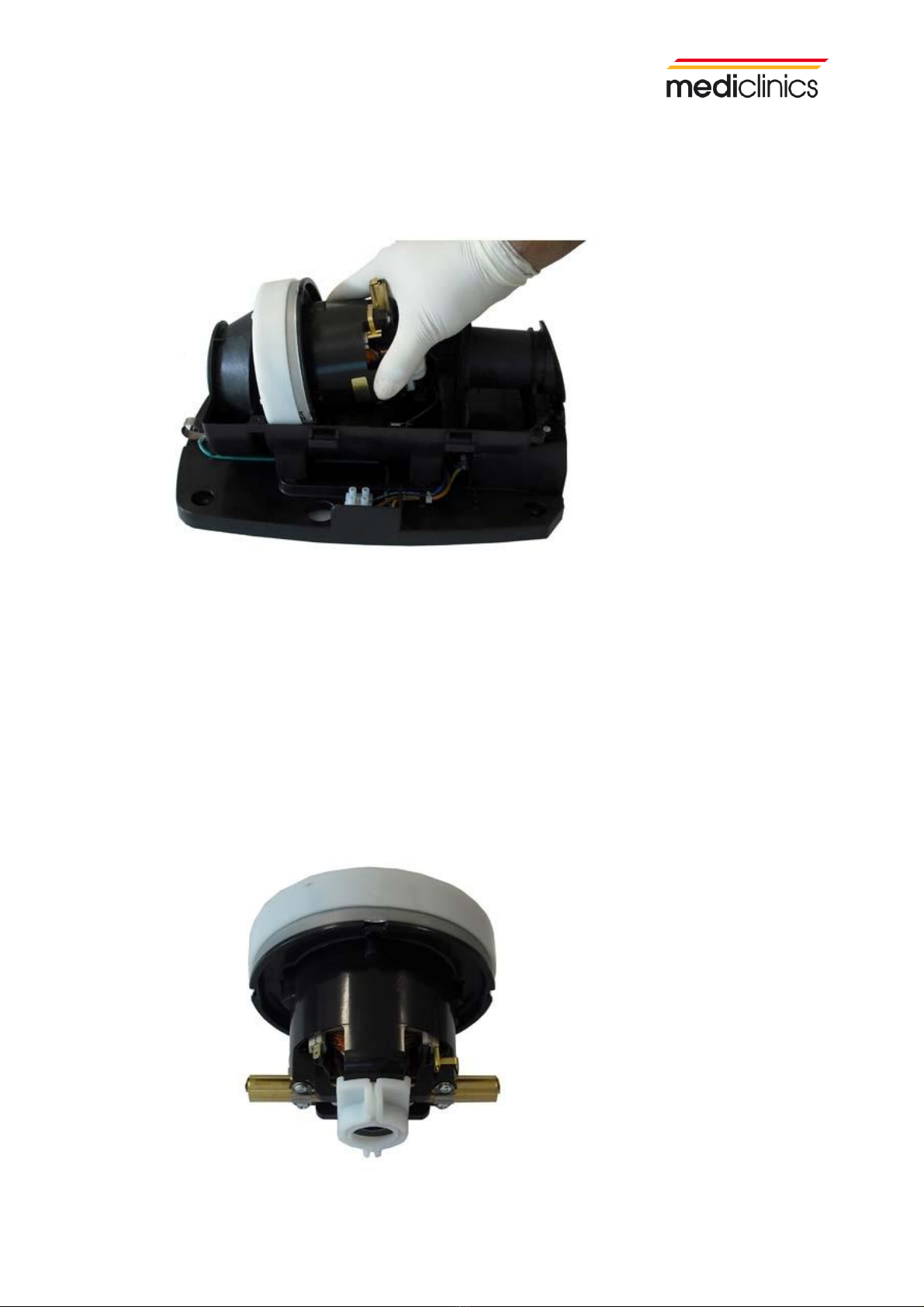

Once the motor is visible, remove the two terminals from the motor.

Remove the motor and replace it.

To fit the new motor, follow the steps above in reverse order.

Electronic Circuit Board

Characteristics

- Electronic sensor, with infrared beam.

- Detection distance adjustable by potentiometer (5-25 cm).

Maintenance

As preventive maintenance, we recommend using a soft brush to remove dust and

dirt on an annual or bi-annual basis, depending on the dryer’s operating cycles.

It is also recommended to clean the LEDs regularly using a cloth dampened with

alcohol to ensure the signal is emitted and received properly.

Replacement of the electronic circuit board

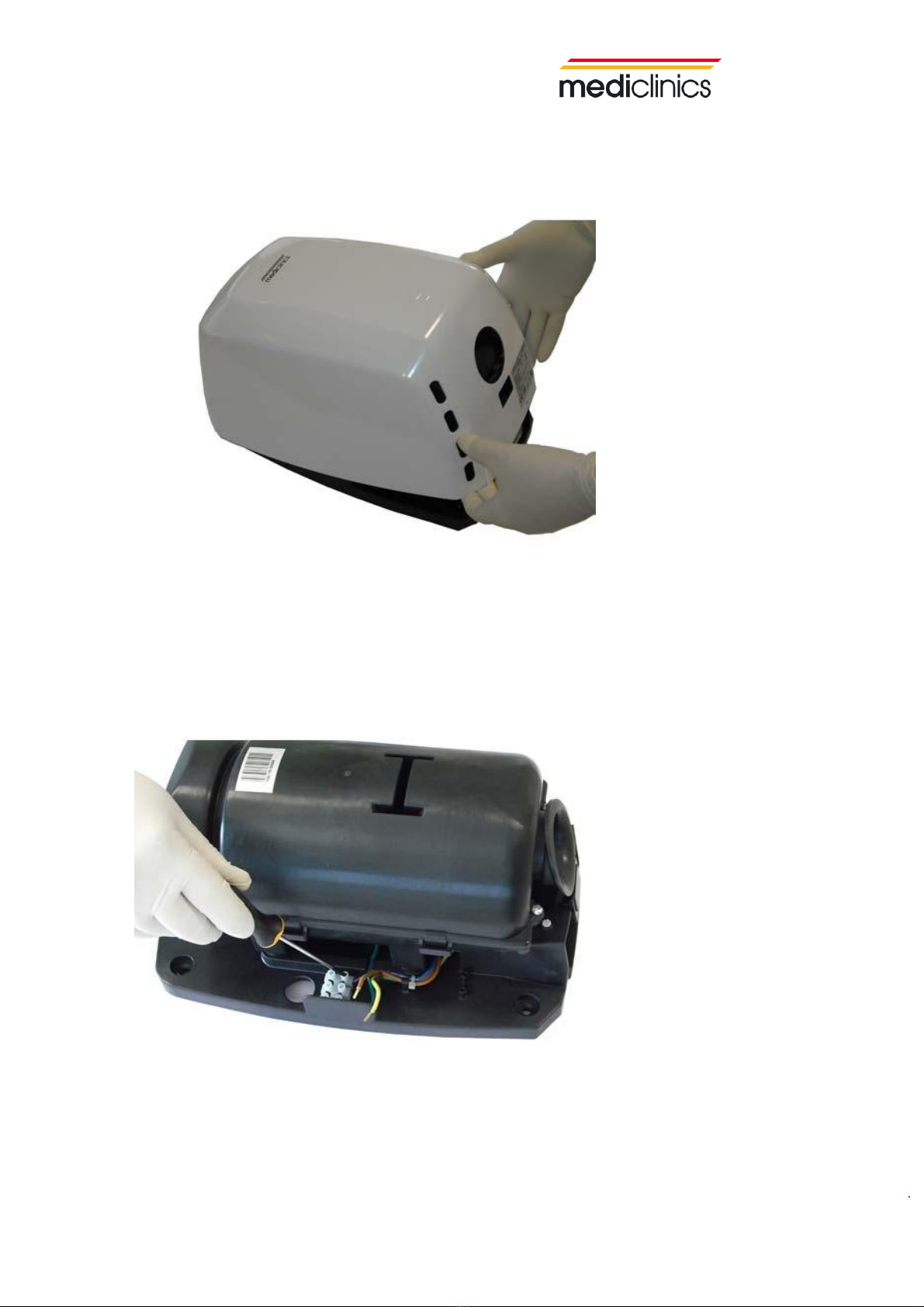

Using a Machflow security screwdriver, release the two screws located at the lower

part of the casing.

Carefully remove the casing, trying not to damage the LED viewing screen.

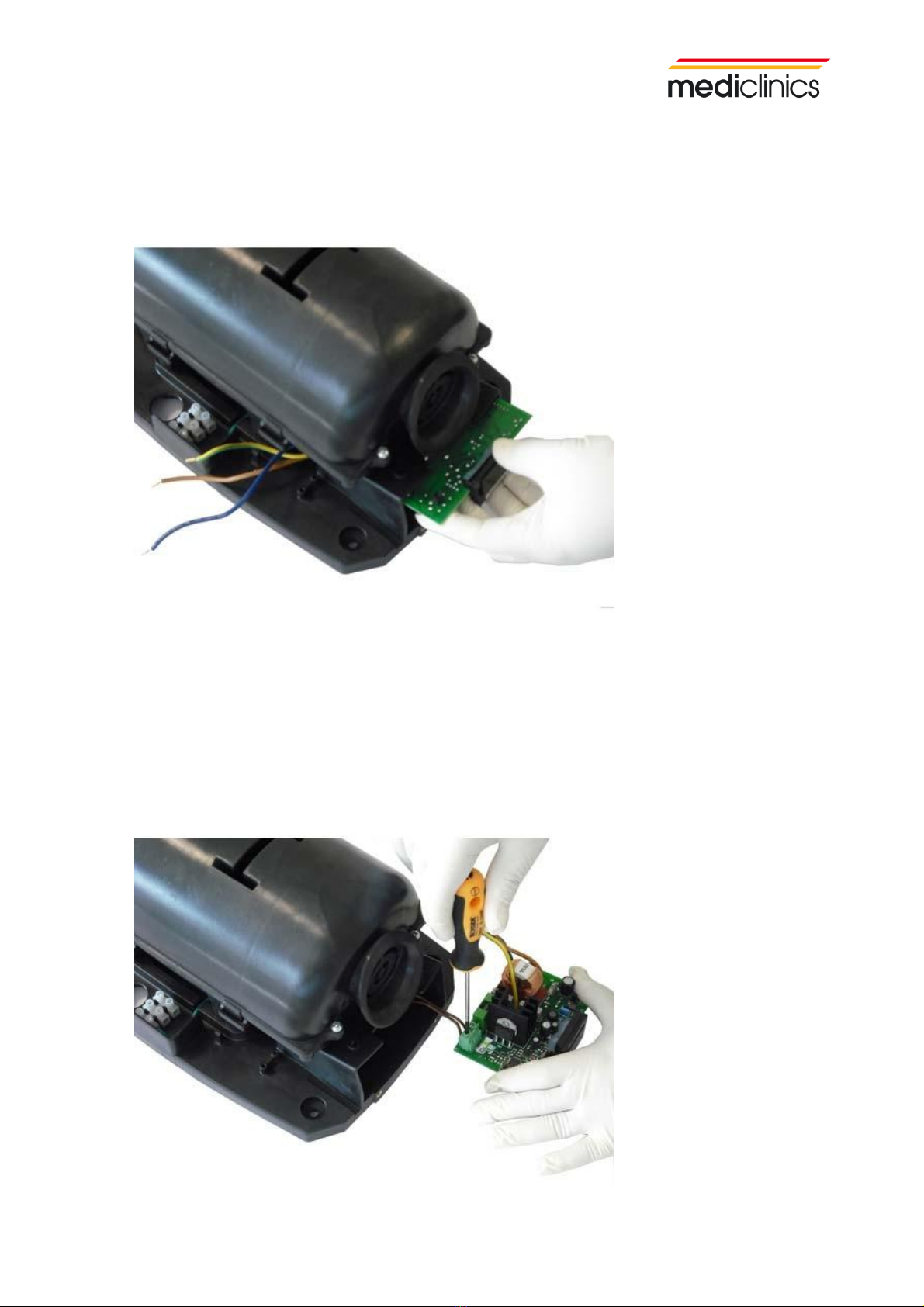

Unscrew the power supply cables from the electronic circuit board.

.

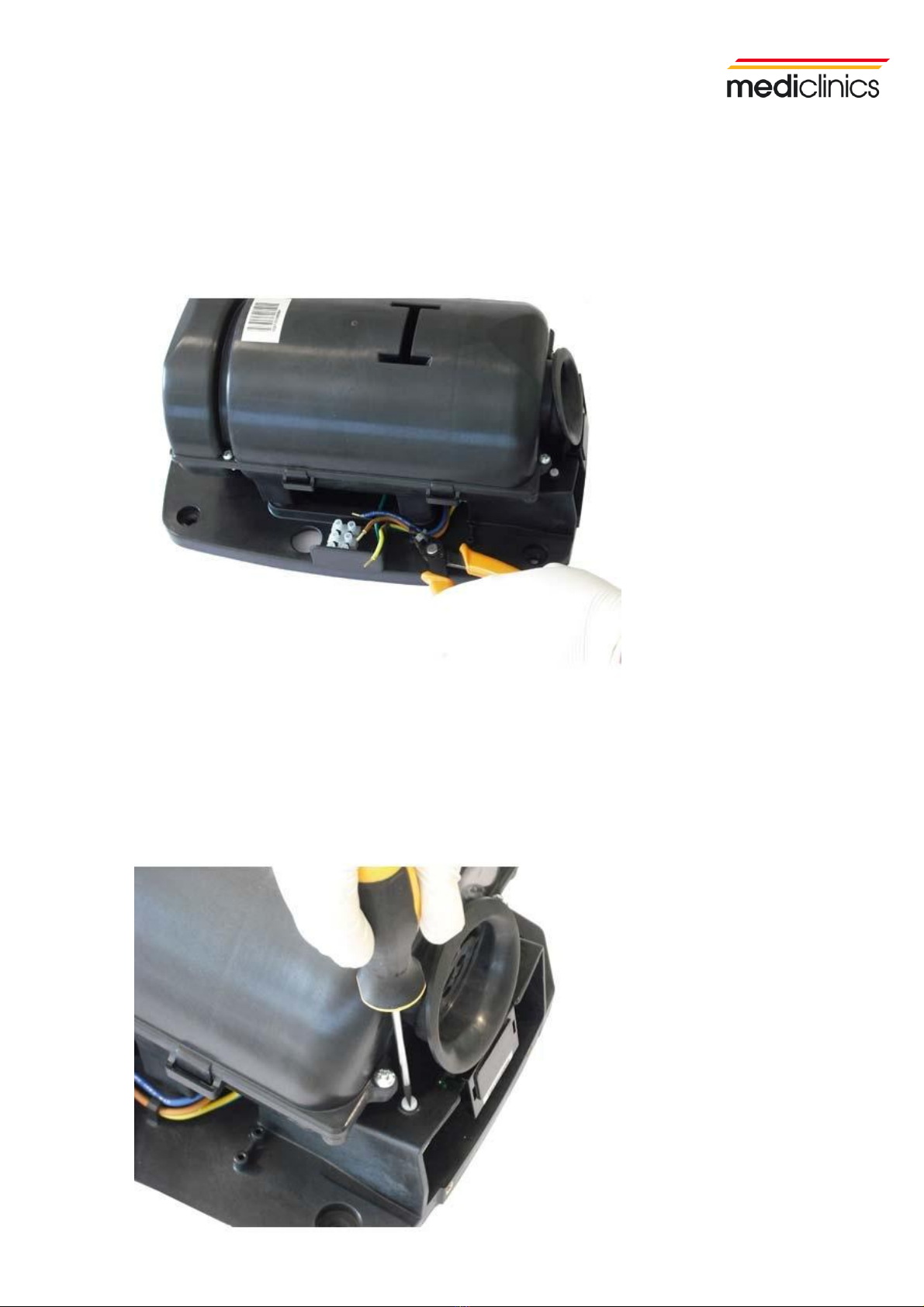

Remove the ties that secure the cables to the base with the help of cutting pliers.

With a flat screwdriver, remove the Nylon screw that fixes the electronic circuit board to the base.

Carefully remove the electronic circuit board, trying not to damage the cables.

Once the electronic circuit board is out of its housing, unscrew the two motor cables

connected to the terminal block.
