UTILITY SHARPENER
CAT 139 4500
CAUTION: FOR YOUR OWN SAFETY; Read and follow all Safety and Operang Instrucons
before operang this Ulity Sharpener.
2
SAFETY INSTRUCTIONS
WARNING
GENERAL SAFETY INSTRUCTIONS
Operang a Ulity Sharpener can be dangerous if safety and common sense are ignored. The operator
must be familiar with the operaon of the tool. Read this manual to understand this Ulity Sharpener.
DO NOT operate this Ulity Sharpener if you do not fully understand the limitaons of this tool. DO NOT
modify this Ulity Sharpener in any way.
BEFORE USING THE UTILITY SHARPENER
To avoid serious injury and damage to the tool, read and follow all of the Safety and Operang Instruc-
ons before operang the Ulity Sharpener.
1. Some dust created by using power tools contains chemicals known to cause cancer, birth defects, or
other reproducve harm. Some examples of these chemicals are:
Lead from lead-based paints
Crystalline silica from bricks, cement and other masonry products.
Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how oen you do this type of work. To reduce
your exposure to these chemicals: work in a well-venlated area, and work with approved safety
equipment, such as dust masks that are specially designed to lter out microscopic parcles.
2. READ the enre Owner’s Manual. LEARN how to use the tool for its intended applicaons.
3. GROUND ALL TOOLS. If the tool is supplied with a 3-prong plug, it must be plugged into a 3-contact
electrical receptacle. The 3rd prong is used to ground the tool and provide protecon against elec-
tric shock. DO NOT remove the 3rd prong. See grounding instrucons on page 6.
4. AVOID A DANGEROUS WORKING ENVIRONMENT. DO NOT use electrical tools in a damp environ-
ment or expose them to rain.
5. DO NOT use electrical tools in the presence of ammable liquids or gases.
6. ALWAYS keep the work area clean, well lit and organised. DO NOT work in an environment with
oor surfaces that are slippery from debris, grease or wax.
7. KEEP VISITORS AND CHILDREN AWAY. DO NOT permit people to be in the immediate work area,
especially when the electrical tool is operang.
8. DO NOT FORCE THE TOOL to perform an operaon for which it was not designed. It will do a safer
and higher quality job by only performing operaons for which the tool was intended.
9. WEAR PROPER CLOTHING. DO NOT wear loose clothing, gloves, neckes, or jewellery. These items
can get caught in the machine during operaons and pull the operator in to the moving parts. You
must wear protecve cover on your hair, if your hair is long, to prevent it from contacng any mov-
ing parts.
3
SAFETY INSTRUCTIONS (cont.)
10. ALWAYS WEAR EYE PROTECTION. Any power tool can throw debris into the
eyes during operaons, which could cause severe and permanent eye damage.
Everyday eyeglasses are NOT safety glasses.
11. ALWAYS WEAR HEARING PROTECTION. Plain coon is not an acceptable protecve device. Hearing
equipment should comply with ANSI S3.19 Standards.
12. ALWAYS UNPLUG THE TOOL FROM THE ELECTRICAL RECEPTACLE when making adjustments,
changing parts or performing any maintenance.
13. KEEP PROTECTIVE GUARDS IN PLACE AND IN WORKING ORDER.
14. AVOID ACCIDENTAL STARTING. Make sure that the power switch is in the “OFF” posion before
plugging in the power cord to the electrical receptacle.
15. REMOVE ALL MAINTENANCE TOOLS from the immediate area prior to turning “ON” the Ulity
Sharpener.
16. USE ONLY RECOMMENDED ACCESSORIES. Use of incorrect or improper accessories could cause se-
rious injury to the operator and cause damage to the tool. If in doubt, check the instrucon manual
that comes with that parcular accessory.
17. NEVER LEAVE A RUNNING TOOL UNATTENDED. Turn the power switch to the “OFF” posion. DO
NOT leave the tool unl it has come to a complete stop.
18. DO NOT STAND ON THE TOOL. Serious injury could result if the tool ps over or you accidentally
contact the tool.
19. DO NOT store anything above or near the tool where anyone might try to stand on the tool to reach
it.
20. MAINTAIN YOUR BALANCE. DO NOT extend yourself over the tool. Wear oil resistant rubber soled
shoes. Keep oor clear of debris, grease and wax.
21. MAINTAIN TOOLS WITH CARE. Always keep tools clean and in good working order. Keep all blades
and tool bits sharp.
22. EACH AND EVERY TIME, CHECK FOR DAMAGED PARTS PRIOR TO USING THE TOOL. Carefully check
all guards to see that they operate properly, are not damaged, and perform their intended func-
ons. Check for alignment, binding or breaking of moving parts. A guard or other part that is dam-
aged should be immediately repaired or replaced.
23. CHILDPROOF THE WORKSHOP AREA by removing switch keys, unplugging tools from the electrical
receptacles, and using padlocks.
24. DO NOT OPERATE TOOL IF UNDER THE INFLUENCE OF DRUGS OR ALCOHOL.
25. SECURE ALL WORK. Use clamps or jigs to secure the workpiece. This is safer than aempng to
hold the workpiece with your hands.
4
KNOW YOUR UTILITY SHARPENER
The Ulity Sharpener is designed with numerous features to quickly and safely sharpen various items
around the house and shop. A ne grit grinding wheel is used to produce a sharp and precise cung
edge. Two mul-posion tool rests provide a rm work surface at a variety of angles. A water trough is
used to keep the grinding wheel and the workpiece cool during sharpening operaons., The Ulity Sharp-
ener addionally has been ouied with an electrical power switch that permits the grinding wheel to
rotate in the Forward and Reverse direcons.
The Ulity Sharpener will put a sharp edge on knives, scissors, and at chisels with a minimal amount of
eort and skill needed by the user. Sharp tools cut more quickly, safely and eciently. A dull edge will
require the user to apply more pressure to the workpiece, possibly causing injury to the user. Keeping the
cung tools sharp will provide many years or useful service. Periodic sharpening will prevent the tools
from losing the bevel that was put on by the manufacturer originally. The factory bevel is what you
should use when sharpening any tool.
5
KNOW YOUR UTILITY SHARPENER (cont.)
Sharpening is an easy operaon to perform as long as the following items are followed:
1. CLEAN the item to be sharpened prior to beginning any sharpening operaons.
2. ALWAYS use the factory bevel (cung edge angle) as a guide to sharping the tool.
3. SHARPEN the tools prior to starng any job involving the tools. The user will then be less likely to
rush the sharpening procedure, and then will do a safer and beer job.
4. SHARPEN the tools in numerous light pressure passes instead of heavily pressing the tool against
the grinding wheel. Light passes will be safer and produce a much sharper edge on the tool. Heavy
passes will create a ragged and rough edge on the tool.
5. DO NOT sharpen tools that are cracked or bent. A damaged tool should be discarded.
6. The Ulity Sharpener IS NOT to be used as a Bench Grinder to remove large amounts of material.
The grinding wheel rotates much slower than a Bench Grinder. The grinding wheel uses a much n-
er grit grinding wheel than a Bench Grinder’s grinding wheel.
6
OPERATING THE UTILITY SHARPENER
The Ulity Sharpener is designed for sharpening knives, scissors, at chisels, and more.
ALWAYS WEAR EYE PROTECTION! Hot sparks may be produced during sharpening operaons.
1. The electrical power switch must be in the OFF posion.
2. The power cord must be unplugged from the electrical receptacle.
3. Place the Ulity Sharpener on at, rm, and water resistant surface.
4. Loosed the two lock knobs that hold the front tool rest unl the tool rest can be moved away from
the stone. The lock knobs may be reposioned by pulling the knob out slightly. This permits the
knob to be rotated for addional loosening or ghtening.
5. Parally ll a measuring cup with tap water. Proceed to
slowly pour approximately 80mls - 180mls of water over
the stone as shown in Fig. C.
Do not have the Ulity Sharpener operang while pouring
the water. The rotang grinding wheel will cause water to
be splashed possibly on to the electrical switch.
6. Plug in the power cord and turn ON the Ulity Sharpener. Let the tool run for one minute. This will
let the grinding wheel absorb some of the water and provide a cool grinding surface.
7. Aer one minute, turn OFF the Ulity Sharpener and unplug the power cord from the electrical re-
ceptacle. Proceed to ll water trough unl water is almost about to spill out of the drainage opening
in the rear of the Ulity Sharpener.
8. The Water Trough will need to be relled occasionally during extended sharpening operaons.
9. Return the front tool rest back into posion.
10. Adjust both the front and rear tool rests unl they are approximately 1/8” from the grinding wheel.
Firmly ghten all four of the lock knobs.
11. Carefully inspect the item to be sharpened. Look for any cracks or bends. If the item is damaged,
then discard it. DO NOT aempt to sharpen a damaged tool.
WARNING
7
OPERATING THE UTILITY SHARPENER (cont.)
12. If the item to be sharpened is in good condion, then proceed to lay the item at on either of the
tool rests as shown in Fig. D. Loosen the lock knobs and adjust the tool rest unl the original bevel
angle of the item to be sharpened is matched. Maintain a 1/8” distance from the grinding wheel
aer the tool rest has been adjusted to the proper angle. Firmly ghten the lock knobs.
NOTE: To sharpen scissors, hold as shown in Fig. E. You must sharpen the bevel side of each scissors
blade. DO NOT aempt to sharpen the at side of the blade. This will ruin the scissors.
13. Pracce a few mes while the Ulity Sharpener is OFF, slowly pulling the tool across the grinding
wheel while keeping the tool at on the tool rest. ALWAYS pull the item to be sharpened across the
wheel from the angle to the p of the blade. DO NOT ever push the item across the grinding wheel.
14. Plug the power cord in to the electrical receptacle and turn ON the Ulity Sharpener. Ordinarily,
cung edges are sharpened with the grinding wheel turning toward the blade. However, if you nd
it more comfortable, you may sharpen with the wheel turning away from the blade.
15. Proceed to lay the item to be sharpened at onto the tool rest and hold onto it rmly with both
hands. Slowly and lightly pull the item across the rotang grinding wheel. Inspect the item aer a
few passes to check the progress. The cung edge should have a shiny appearance the enre
length of the cung surface. If the surface has dark and shiny spots, the angle of the tool rest is not
properly adjusted or the user is not keeping the item at on the tool rest. Make adjustments as nec-
essary.
16. Alternate sharpening on both sides of the tool.
17. Upon compleng the sharpening operaons, a small burr might form on the cung edge. Remove
the burr by turning the Ulity Sharpener OFF and unplugging it from the electrical receptacle. Light-
ly pull the blade across the staonary grinding wheel unl the small burr is removed.
18. Dump out the water that was poured into the water trough earlier by lng the Ulity Sharpener
backward.
19. Wipe the Ulity Sharpener o with a clean dry rag and inspect for any damage to the grinding
wheel.
8
MAINTENANCE
Turn the power switch “OFF” and unplug the power cord from its power source prior to any mainte-
nance.
CLEANING
With the Ulity Sharpener unplugged, rotate the abrasive wheel slowly and inspect for any damage.
CAUTION: REPLACE the abrasive wheel if there is any damage at all. FAILURE to replace a damaged wheel
can cause serious injury to the operator.
CAUTION: DO NOT USE FLAMMABLE MATERIALS to clean the Ulity Sharpener. A clean dry rag or brush
is all that is needed to remove dust and debris build-up.
Repairs to the Ulity Sharpener should be performed by trained personnel only. Contact your retailer for
authorized service. Unauthorized repairs or replacement with non-factory parts could cause serious injury
to the operator and damage to the Ulity Sharpener.
TO PREVENT INJURY TO YOURSELF or damage to the Ulity Sharpener, turn the switch to “OFF” posion
and unplug the power cord from the electrical receptacle before making any adjustments.
TROUBLESHOOTING GUIDE
WARNING
PROBLEM LIKELY CAUSE SOLUTION
Motor does not run Machine not plugged in
Power switch in “OFF” posion
Power cord is faulty
Fuse or circuit breaker are open
Damaged motor
Plug power cord into electrical receptacle
Push switch to Forward or Reverse
Return to retailer
Overloaded electrical circuit
Return to retailer
Motor does not have
full power
Incorrect line voltage
Damaged motor
Have a qualied electrician check line for proper voltage
Return to retailer
Motor runs hot Motor is overloaded
Poor air circulaon around motor
Reduce pressure on workpiece
Remove any blockage around openings in the base
Motor stalls or runs
slow
Motor is overloaded
Incorrect line voltage
Capacitor has failed
Reduce pressure on workpiece
Have a qualied electrician check line for proper voltage
Return to retailer
Fuse blows or circuit
breaker trips
Motor overloaded
Overloaded electrical circuit
Wrong fuse or circuit breaker
Undersized or excessive length of extension cord,
see manual
Grinding wheel is blocked
Reduce pressure on workpiece
Reduce the amount of items on circuit
Replace with correct fuse or circuit breaker
Use correct size
Unplug machine and remove obstrucon
9

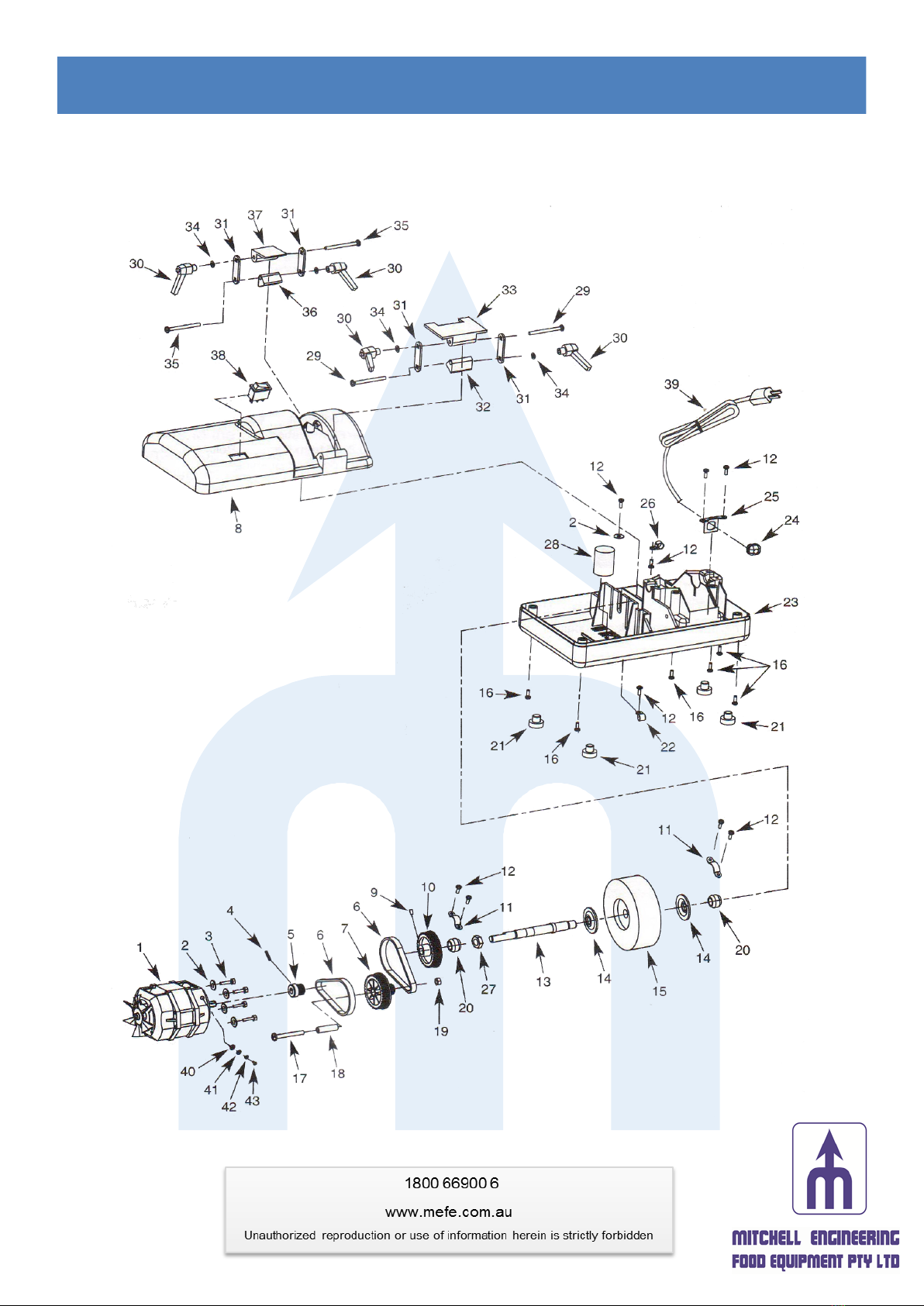

PARTS LIST
Key No. Descripon Qty. Key No. Descripon Qty.
1Motor 123 Boom housing 1
25mm at washer * 524 Strain relief 1
34-0.7 x 12mm hex head bolt 425 Plate 1
43 x 22mm dowel pin 126 Cord clamp 1
511T pulley 127 14-1.0mm hex nut 1
6Drive belt 228 Capacitor 1
735/11T pulley 129 5-0.8 x 55mm carriage bolt 2
8Top housing 130 Locking handle 4
94-0.7 x 8mm set screw * 131 Link 4
10 35T pulley 132 Front tool rest bushing 1
11 Clamp 233 Front tool rest 1
12 4.2 x 12.7mm tap screw * 834 5mm at washer 4
13 Drive sha 135 5-0.8 x 51mm carriage bolt 2
14 Flange 236 Rear tool rest bushing 1
15 Sharpening wheel #120 137 Rear tool rest 1
16 4.2 x 16mm tap screw * 638 Switch 1
17 6-1.0 x 50mm pan head screw 139 Line cord 1
18 Sleeve 140 4mm serrated washer 1
19 6-1.0mm ber hex nut * 141 4mm at washer * 1
20 Bearing 242 4mm lock washer * 1
21 Foot 443 4.0-7 x 8mm pan head screw * 1
22 Cord clamp 1^Operator’s manual
* Standard hardware item available locally.
^ Not shown
10
PARTS LIST
UTILITY SHARPENER PARTS LIST
Indice
Altri manuali MEFE Utensili elettrici
