Mega Electronics EXPANDER GSM NV3.3T Manuale utente

EXPANDER GSM NV3.3 T manual www.megaelektronik.pl page 1

EXPANDER GSM NV3.3T

GSM noticing module

Function of alarm central unit

Remotely controlled GSM

GSM ug

Thermostat GSM

NV3.3T Cooperates with Nokia NOKIA

Nokia 5110/5130/6130/6150/3330/3410

EXPANDER GSM NV3.3 T manual www.megaelektronik.pl page 2

Warnings!

Exact study of this instruction will provide proper and safe

usage of the device. It is not allowed to conduct any

repairs or modifications. Due to safety reasons installation

should take place only by qualified personnel. This device

is a source of electromagnetic waves, thus in specific

configurations may cause distortion in proper work of

other radio devices.

Fulfills directive EU, WEEE

According to the assumptions of directive EU, WEEE, electrical devices must be

handed over to local waste assembly point. Our company provided, for our clients to

whom we delivered new device, collecting and transportation service of old devices

produced by our company and delivering it to the sorting and utilizing facility. After

accommodating new device, our clients have a right to receive a document certifying

utilization of the old product. This action corresponds to all products that are provided

as a ready to use product as well as elements that are individual parts of our solutions.

In case of conducting work, all materials said to be hazardous and following the

assumptions of directive WEEE that are exchanged by devices and elements installed

by our company are collected during the process and handed over to a proper

assembly point free of charge.

EXPANDER GSM NV3.3 T manual www.megaelektronik.pl page 3

Characteristic

Expander GSM NV3.3T after connecting to and external mobile phone NOKIA 110, 130,

6130, 61 0, 3330, 3410 enables:

-cooperation with every mobile phone network

-efficiency and reliability as well as simple handling

-quick assembly and start up

-connection to all alarm systems

-construction of local GSM W-LAN RESTARTER system, SERWER

-construction of local alarm system, function of alarm central unit

-cooperation with all types of sensor.

-standalone diagnostics of connected phone. Turning on and entering PIN code

-remote reading of inputs and outputs

-remote change of outputs states

-remote temperature reading

-two independent thermostats range - 0C up to +12 C with GMS noticing function

-wire tap in GSM networks

-cooperation with speech synthesizer

-controls correctness of temperature sensors functioning

- independent high voltage remote control canals via GSM network

Functioning of GSM module is determined by means of rogramming it and connected signals, of

which state it is su osed to inform or control. Module rogramming takes lace by entering

articular entries on SIM card, which is laced in the hone connected to the module. All

configurations are saved in non-volatile SIM card memory, which can be restored even after ower

su ly failure and after module ower su ly is turned on it starts u the hone and loads the

reviously stored configuration. Calling time is constant and equal to 25sec.

Connected hone works without batteries or charger.

Destination

•

Alarm systems for mechanical and floating vehicles and objects

•

Power su ly su ervision, control and correct functioning systems of devices used to

transfer data or other media

•

Su ervision, measurement and regulation of tem erature

•

Where it is necessary to maintain high security and control level combined with effortless

and sim le handling

Functions

Method of arming the module

Module can be armed or disarmed

• Via SMS secured by access code from any mobile hone

• Via ring tone signal from authorized number

•Arming can also be erformed by means of additional external devices ie. radio line or

hidden switch (using ARM out ut)

Additional reaction on arming a module via line IN-A can be:

•Turned on out ut OUT –S for a remote time 1 u to 99999 sec after arming the module and

setting u the delay after which OUT –S should turn on after arming the module from the

range 1 u to 999999sec.

Arming and disarming function can be broadened by acknowledgement of correctly erformed

o eration via SMS.

EXPANDER GSM NV3.3 T manual www.megaelektronik.pl page

Example of arming and disarming line IN-A

Configuration of Input lines

In order to revent excessive utilization costs, es ecially false alarms, the device contains a set of

ossibilities of rogramming and alarm in ut analysis. Any device in ut can be configured as

normally o ened or normally closed. It means, that in a state set for in ut NO, active state will be

short-circuit to + of ower su ly or bulk of the module thus in a set state for in ut NC, active

state will be o en-circuit to + of ower su ly or bulk of the module. Besides the method of

setting u in ut lines, it is ossible to declare the time, after which change of state can be

conceded as a violation of 1 u to 999999sec. Additionally it can be set, which of the lines should

be two-stated, meaning reacting to agitation state as well as non–agitation state. Maintaining

active signal on in ut for a longer eriod of time than minimal results only in a single alarming.

Next in ut realize is ossible after agitation signal disa ears. All in uts react only to changes of

state so alarming will take lace only if there will be active signal on the in ut and it will maintain

for rogrammed eriod of time. In order to have active lines, module must be armed.

Example of connecting input lines

Reaction to input lines agitation

Module can send different reaction to every user (in given order)

•SMS

•Ring

•SMS + Ring

•Ring + SMS

•Turn on out ut OUT S for a set time

Calling time is constant and equal to 25sec. Module check the correctness of receiving signal

Remote control function

Module out uts OUT 1 i OUT 2 can be turned on or off via SMS on remote time from range

1 u to 999999sec or turned on or off ermanently.

This o eration, as in case of remote arming, requires entering access code.

Remote control function can be enchanted by a re ort of executed o eration, which is send back to

the number, which send a SMS with a command to change out ut status. Out uts are of

transmitting ty e 10A/230V with change-over contact.

EXPANDER GSM NV3.3 T manual www.megaelektronik.pl page 5

Report function –exacted test

Module can be remotely „asked” about it’s status via SMS. In res onse, module will send a SMS

and in this way one can get information about current status: armed/disarmed and in uts and

out uts, number of currently connected sensors and current tem erature. Re ort is send to a

number from which such request was send. This o eration, as in case of remote arming, requires

entering access code.

Bug function

Module will receive connections from authorized numbers and maintain them as long as the caller

won’t terminate connection. Thanks to that bug from micro hone located in the hone connected

to the module or other connected device is ossible (in ut MC) Connections to unauthorized users

will automatically be rejected.

ECHO function

Module will automatically receive „foreign” incoming SMS and forward them to authorized users.

Thanks to that function it is very easy to detect any attem ts of attack by unauthorized eo le or

one can receive information from GSM network in which the device is working.

Temperature measurement function

If tem erature sensors have been connected to the module Je CT-1 (max.2units) there are

available such ossibilities:

Noticing about exceeding set tem erature..

Turning on or off out uts de ending on set tem erature. Each change of tem erature besides set

range or turning on or off o erations of articular out ut connected to a sensor can be also

confirmed via SMS on authorized numbers. Module checks if connected tem erature sensors work

ro erly and in case of any roblems notices about them via automatically generated status

re orts

Back-up power supply system

In case of ower loss, module contains back-u ower su ly system.

The source of su ly is a 9V battery or other 7.5V...15V voltage source

Standby time on new battery is a rox. four hours. This value can be less if at a articular moment

ie. high voltage out uts or other devices are turned on.

V-BAT in ut is used to connect backu ower su ly ie. 9V battery

Diagnostics of connected phone

Device checks correct work of connected GSM hone at all the time and maintains it in turn on and

logged on to GSM network state Connected GSM hone works without battery or external charger.

While starting u the module, hone is automatically turned on and PIN code is given.

Power saving and work at low temperatures

Advanced solution a lied in this construction allows a few times less ower consum tion then in

other roducts.

In standby mode module and hone consumes a rox. 10-15mA

Module handles erfectly in low tem eratures

Main

power

supply

Back up power

supply

EXPANDER GSM NV3.3 T manual www.megaelektronik.pl page 6

Technical data

•Power su ly +12V (+- 20%). (or 24V de ending on the version)

•Current consum tion - 10mA in stand-by mode, 500mA in agitation mode.

•Work tem erature -20°C u to 50°C.

•Number of in ut lines -3 NO or NC tri ing (+) or GND configure.

•Number of out ut lines-3 max 10A 220V

•Number of users noticed by CLIP and SMS: five stationary and mobile numbers.

•Two inde endent tem erature sensors, measurement:– 55C u to + 120C (T1- T2)

•Coo erating hones - NOKIA 5110/5130//6130/6150/3330/3410

•Case ty e: ABS

•Dimensions (mm) 120x80x38

LED noticing

ARM -gleams module armed, ON links 2/s correct communication with hone, system

ready.

EXPANDER GSM NV3.3 T manual www.megaelektronik.pl page 7

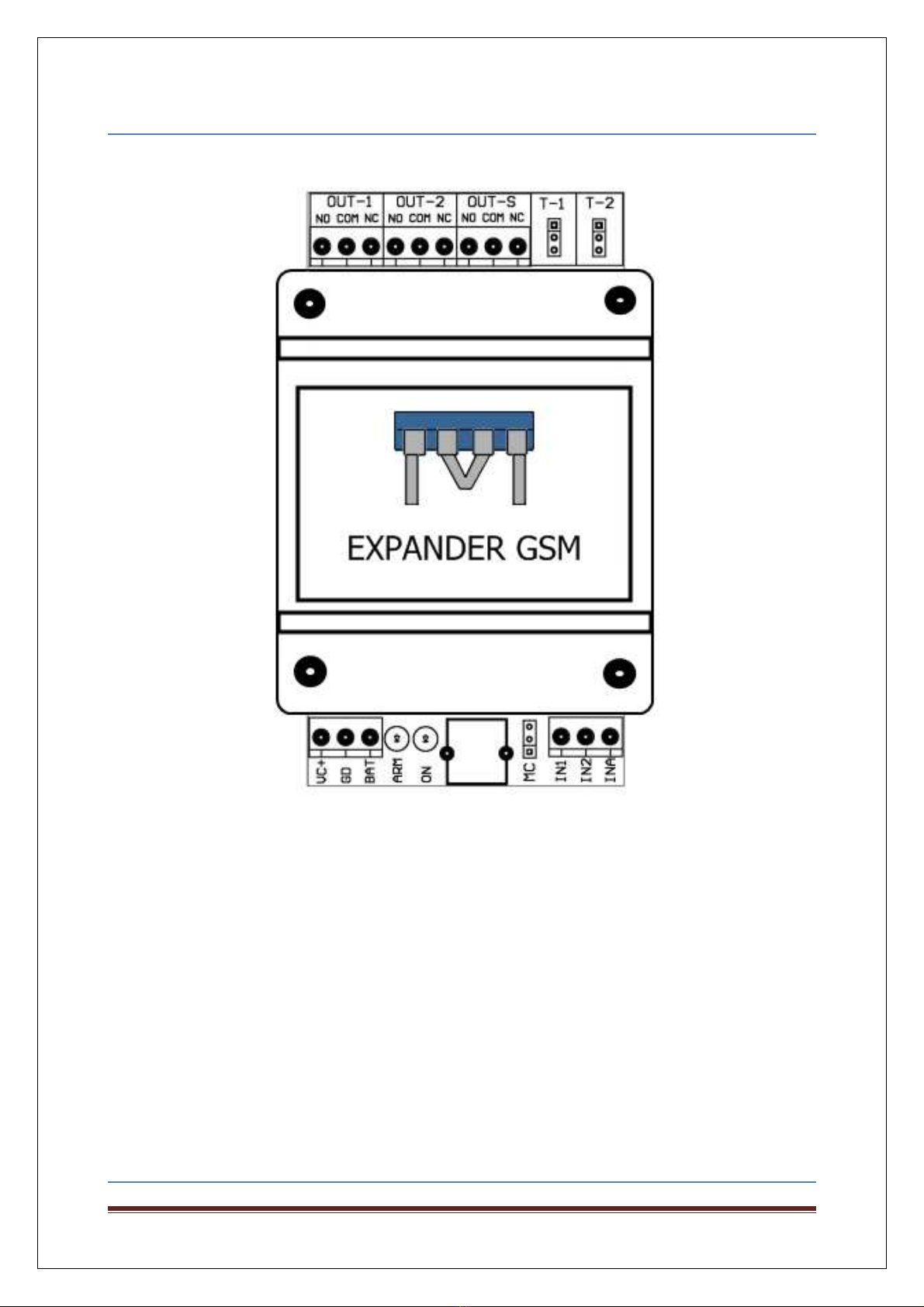

Connecting

EXPANDER GSM NV3.3T

module should be assembled in closed remises, with normal air

humidity, tem erature in range -20°C u to +50°C.

While selecting assembly oint follow given criteria:

GSM network range ( rovider for the used SIM card),

•Availability and distance from alarm and ower su ly sources

• Availability of the remises to unauthorized ersonnel and sabotage attem ts

•

Kee safe distance from otential sources of distortions (ie. WN distribution lists–,

radio, etc.)

MODULE STARTING UP PROCEDURE

1. Execute com lete wiring: signaling and su lying

2. Install SIM card in the module

3. Connect additional modules (o tional)

4. Connect wires to corres onding module clam s

5. Turn on module ower su ly

6. Configure module according to articular

7. Execute tests and trials

Phone and SIM card preparation efore connecting to the module

In a hone connected to the module one must:

•Turn off all rings, forwards, screensavers, voice mail. It is crucial to remem er to change

SIM card PIN to 1976 because other code may lead to a SIM card blockage. Delete all

number and SMS saved on SIM card

Warning: enter all entries and SMS on SIM card regardless of the amount of used

options and inputs.

Assem ly must take place with unplugged power supply.

GSM hone is a source of electromagnetic interferences, thus it’s forbidden to install it near

sensitive radio devices ie. radio lines, wireless sensors. It’s also not advisable to lace hone in

direct neighborhood of the module. While connecting the wire between hone and the module it is

crucial to check the connection reliability. Unstable connection may be a source of incorrect system

functioning. While connecting module ower su ly, one should take notice of ro er ower

su ly voltage olarization. Warning: module may overheat, which is a natural sym tom. Touching

internal elements may lead to electrocution. It is not allowed to conduct any re airs or

modifications .

•Program module–enter ro er entries on SIM card

•Slid late in lace of battery in such a manner that late contacts were in contact with

hone contacts (if needed, solder to hone ins)

•Plug connector in charger slot

•Plug system junction to the hone

•Turn on ower su ly

•Wait till the moment of entering PIN and logging on the hone to the network (a .30sec)

•Plug sensors or other devices to the in uts or out uts of the module

•Check if module and hone works ro erly by agitating in ut lines and sending SMS to the

module

Module is ready to work after approximately 90 seconds from turning on power

supply (cyclical phone turning on and off causes set up error)

EXPANDER GSM NV3.3 T manual www.megaelektronik.pl page 8

Programming SMS communicators

In SIM CARD memory it is possi le to save four SMS regardless how many inputs will e

used. Length of written message can’t exceed 160signs.

Entering SMS

[messages],

[write message]

[enter]

(enter any text)

[o tions]

[save]

First SMS is send in case of agitating in ut IN-1

Second - SMS is send in case of lack of agitating in ut - IN1

Third - SMS is send in case of agitating in ut - IN2

Fourth - SMS is send in case of lack of agitating in ut - IN2

Programming inputs, thermostats and user num ers

On each position only one register can be made depending on the ay of module operates

SIM CARD

position

(entry

number)

Entry in name Entry in name Descri tion of

functioning

1 A CODE Four digits

ie. 1234

Access code to the

module

B SMS No entry Arm ith SMS

B SMS R No entry Arm ith SMS and

confirmation

B CLIP No entry Arm ith ring

B CLIP R No entry Arm ith ring ith

confirmation

B NO PLUS ie. 1*1 Arm module using

input IN-A

By applying + po er

supply voltage

First digit means delay

for arming.

Second digit means

delay for disarming

Max values are

99999*99999

Time given in seconds

B NO PLUS R ie. 2*2 As above ith SMS

confirmation of

arming and disarming

B NO GND ie. 3*3 Arm module using

input IN-A

By applying po er

supply voltage bulk

First digit means delay

for arming.

Second digit means

delay for disarming

Max values are

99999*99999

Time given in seconds

EXPANDER GSM NV3.3 T manual www.megaelektronik.pl page 9

B NO GND R

ie. 4*4 JAs above ith SMS

confirmation of

arming and disarming

B NC PLUS

ie. 1*1

Arm module using

input IN-A

By dropout + po er

supply voltage

First digit means delay

for arming.

Second digit means

delay for disarming

Max values are

99999*99999

Time given in seconds

B NC PLUS R

ie. 1*1

As above ith SMS

confirmation of

arming and disarming

B NC GND

ie. 1*1

Arm module using

input IN-A

By dropout + po er

supply voltage

First digit means delay

for arming.

Second digit means

delay for disarming

Max values are

99999*99999

Time given in seconds

B NC GND R

ie. 1*1 As above ith SMS

confirmation of

arming and disarming

C 1 NO PLUS

Digit 1 or 2 stands for one or t o

–state line

ie. 1 Agitating first line by

applying po er supply

voltage

Delay on this line is

equal to 1sec.

Max value is

99999sec.

C 1 NO GND

Digit 1 or 2 stands for one or t o

–state line

ie.. 1 Agitating first line by

applying po er supply

bulk

Delay on this line is

equal to 1sec.

Max value is

99999sec.

EXPANDER GSM NV3.3 T manual www.megaelektronik.pl page 10

C 1 NC PLUS

Digit 1 or 2 stands for one or t o

–state line

ie..1 Agitating first line by

po er supply voltage

dropout

Delay on this line is

equal to 1sec.

Max value is

99999sec.

C 1 NC GND

Digit 1 or 2 stands for one or t o

–state line

ie.1 Agitating first line by

po er supply bulk

dropout

Delay on this line is

equal to 1sec.

Max value is

99999sec.

4 D 2 NO PLUS

Digit 1 or 2 stands for one or t o

–state line

ie. 1 Agitating second line

by applying po er

supply voltage

Delay on this line is

equal to 1sec.

Max value is

99999sec.

D 2 NO GND

Digit 1 or 2 stands for one or t o

–state line

D 2 NC PLUS

Digit 1 or 2 stands for one or t o

–state line

ie.1

Agitating second line

by applying po er

supply bulk

Delay on this line is

equal to 1sec.

Max value is

99999sec.

Agitating second line

by po er supply

voltage dropout

Delay on this line is

equal to 1sec.

Max value is

99999sec.

Manuali Portale popolari di altre marche

LST

LST M500RFE-AS Manuale utente

Kinnex

Kinnex Media Gateway Manuale utente

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuale utente

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuale utente

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuale utente

Telsey

Telsey CPVA 500 - SIP Manuale utente

RTA

RTA 460A-NNA4 Scheda tecnica

Shaw

Shaw Gateway HDPVR Manuale utente

ABB

ABB VSN900 Guida rapida

Commander

Commander Pulse Manuale utente

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuale utente

NETGEAR

NETGEAR C6300BD Manuale utente

Amit

Amit CDW531AM Manuale utente

HMS

HMS Netbiter EasyConnect EC150 Manuale utente

Huawei

Huawei EchoLife HG620 Manuale utente

AT&T

AT&T U-verse 3801 Manuale per l'uso e la cura

Logic IO

Logic IO RTCU MX2 turbo Manuale utente

Suttle

Suttle MediaMAX MXM-521 Manuale utente
