I: TRANSMITTER CODE-LEARNING
1. Put red dip switch 1 to ON.
2. Parking lights will flash 2 times to indicate entered code-learning mode.
3. Press and hold any button on new transmitter for 2 seconds.
4. Parking lights will flash 4 times to confirm code is learned.
5. For 2nd transmitter, put red dip switch to OFF, then repeat steps 1 –3.

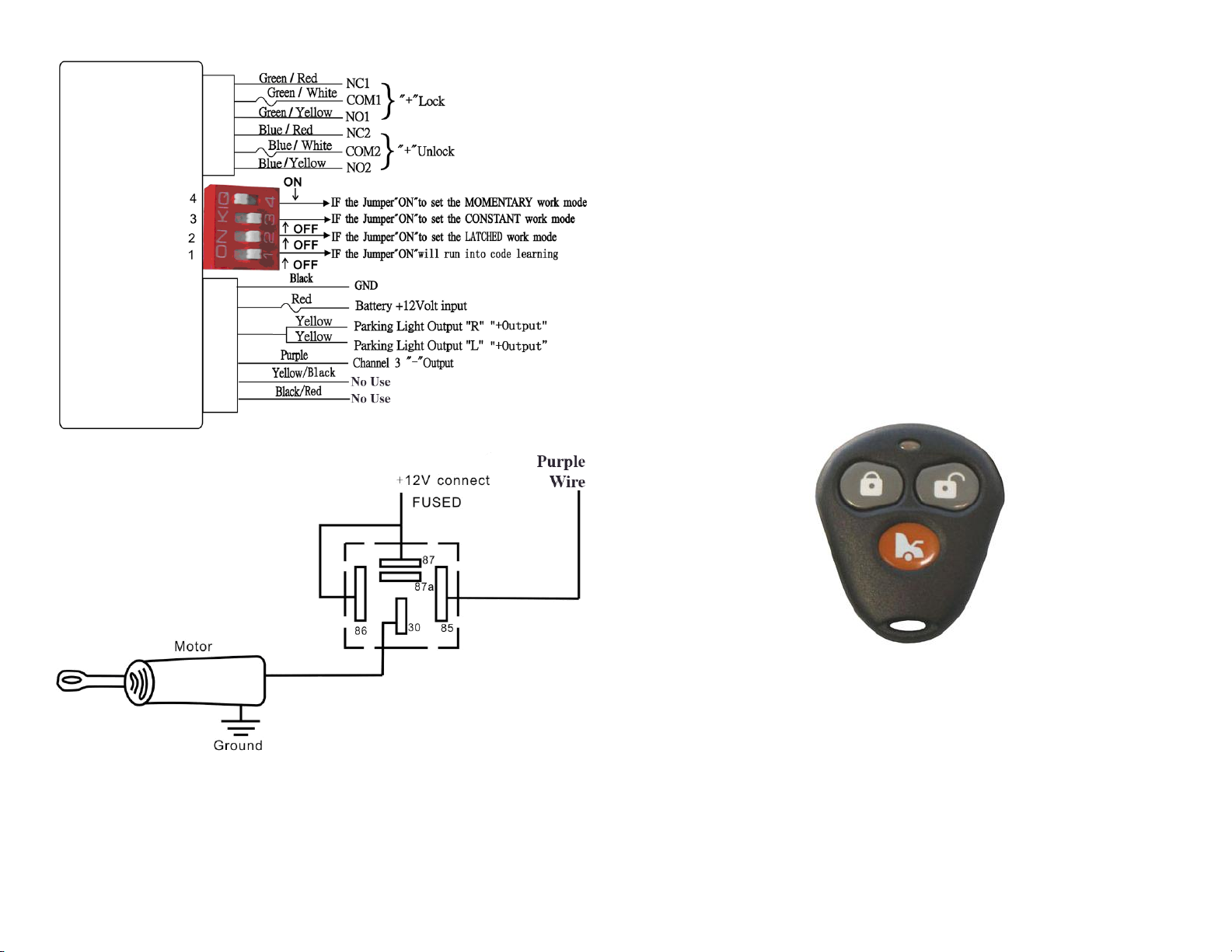

II: MOMENTARY OUTPUT (1 SECOND) (DEFAULT SETTING) (PUT
RED DIP SWITCH 4 ON)
1．Button 1:
Channel 1: Press button 1 on remote. Signal will be given to LOCK
relay. Parking lights will flash once. Output timing will be 1 second.
2．Button 2:
Channel 2: Press button 2 on remote. Signal will be given to UNLOCK
relay. Parking lights will flash twice. Output timing will be 1 second.
3．Button 3:
Channel 3: Press button 3 on remote. Negative (300ma) signal will be
given to PURPLE wire to control external relay. Parking lights will flash
three times. Output timing will be 1 second.
III: CONSTANT OUTPUT (HOLD) (PUT RED DIP SWITCH 3 ON)
1．Button 1:
Channel 1: Press button 1 on remote. Signal will be given to LOCK
relay. Parking lights will flash once. Output timing is as long as button
1 is being pressed down and ends when button is released.
2．Button 2:
Channel 2: Press button 2 on remote. Signal will be given to UNLOCK
relay. Parking lights will flash twice. Output timing is as long as button
is being pressed down and ends when button 2 is released.
3．Button 3:
Channel 3: Press button 3 on remote. Negative (300ma) signal will be
given to PURPLE wire to control external relay. Parking lights will flash
three times. Output timing is as long as button 3 is being pressed
down and ends when button is released.
down and ends when button is released.
IV: LATCHED OUTPUT (ON / OFF) (PUT RED DIP SWITCH 2 ON)
1．Button 1:
Channel 1: Press button 1 on remote. A signal will be given to LOCK
relay. Parking lights will flash once. Output will stay on until button 1 is
pressed again.
2．Button 2:
Channel 2: Press button 2 on remote. A signal will be given to
UNLOCK relay. Parking lights will flash twice. Output will stay on until
button 2 is pressed again.
3．Button 3:
Channel 3: Press button 3 on remote. A negative (300ma) signal will
be given to PURPLE wire to control an external relay. Parking lights
will flash 3 times. Output will stay on until button 3 is pressed again.
V: DEFAULT SWITCHING
If both red dip switch 4 and 3 are on, system will default to MOMENTARY.
If both red dip switch 3 and 2 are on, system will default to CONSTANT.
