M5-N Series Servo System

User Manual

Document Version: V1.0

Archive Date: 2023/12/14

BOM Code:

Shenzhen Megmeet Electric Co., Ltd. provides full technical support for our

customers,customers can contact local Megmeet offices or customer service centers, or

directly contact Megmeet headquarters.

Shenzhen Megmeet Electric Co., Ltd.

Address: 5th Floor, Block B, Unisplendor Information Harbor, Langshan Rd., Science &

Technology Park, Nanshan District, Shenzhen, 518057, China

Website: www.megmeet.com

Tel: +86-755-86600500

Fax: +86-755-86600562

Service Email: driveservice@megmeet.com

Customer Service Tel: +86-400-666-2163

Foreword

Thank you for choosing the M5-N series servo system of Shenzhen Megmeet Electric Co., Ltd.

M5-N servo system use a new hardware design platform and a new generation of control algorithms, this series

of drive with excellent performance, perfect function, compact structure, convenient installation, simple

debugging, easy maintenance, is the cost-effective products for drive generic and OEM markets. This series of

servo supports EtherCAT communication protocol and can realize network operation of multiple sets of servo

systems with the host computer. With the functions of rigid table setting, inertia identification and oscillation

suppression, making the servo easy to use, it is applicable for machine tool, robot, semiconductor, glass

manufacturing, lithium battery equipment, woodworking machinery, textile machinery, packaging machinery,

spraying machinery and other industries, realizing rapid and accurate position,speed and torque control.

M5-N servo system can realize high mechanical time constant and stable operation together with medium inertia

servo motor. This series of servo supports absolute encoder.

The relevant precautions during the installation, wiring, parameter setting, troubleshooting and daily maintenance

will be detailed in this manual. To ensure the correct installation and operation of the M5-N series servo system

as well as its high performance, please read carefully this user manual before installing the equipment. This

manual shall be kept properly and delivered to the actual users of the drive.

Precautions for unpacking inspection

Please check carefully when unpacking the product:

·Whether the product has the damage signs;

·Whether the rotating shaft of the servo motor rotates smoothly(except for motor with brake);

·Whether the rated value in the nameplate is consistent with your order requirement;

·Whether the wiring is damaged and whether the wiring can be used.

We have implemented strict inspection on the manufacturing, package and delivery of the product. If there is any

error, please contact us or your distributor immediately.

We are engaged in the continuous improvement of drive. The relevant manuals provided by us are subject to

change without prior notice.

Safety Precautions

Operation without following instructions can cause death or severe personal injury.

Operation without following instructions can cause medium or slight personal injury or

damage to the product and other equipment.

◆Please install the product on the incombustible materials (e.g., metal), otherwise, fire may be caused.

◆Do not place any combustible material near the product, otherwise, fire may be caused.

◆Do not install the product in the environment with explosive gas, otherwise, explosion may be caused.

◆Only qualified personnel can wire the drive, otherwise, electric shock may be caused.

◆Never wire the drive unless the input AC supply is completely disconnected, otherwise, electric shock

may be caused.

◆The grounding terminal of the drive must be reliably grounded, otherwise, electric shock may be caused.

◆The cover must be properly closed before power up, otherwise, electric shock and explosion may be

caused.

◆When powering up the drive that has been stored for over 2 years, the input voltage must be gradually

increased with the voltage regulator, otherwise, electric shock and explosion may be caused.

◆Do not touch the terminals when the product is powered up, otherwise, electric shock may be caused.

◆Do not operate the drive with wet hands, otherwise, electric shock may be caused.

◆Maintenance operation can not be conducted until 10 minutes has passed after disconnecting the power

supply. Meanwhile, be sure to confirm that the charge LED is completely off and the DC bus voltage is

below 36V, otherwise, electric shock may be caused.

◆Only qualified personnel can replace the components. Do not leave any wire or metal parts inside the

drive, otherwise, fire may be caused.

◆The bare parts of the terminal lugs in the main circuit must be wrapped with insulation tape, otherwise,

electric shock may be caused.

◆Please install the drive on the place that can withstand the weight of the drive, otherwise, the drive may

drop and cause human injury or property damage.

◆Do not install the drive in the environment with water splash (e.g., near the water pipe), otherwise, you

may suffer the property loss.

◆Take care not to drop any foreign objects, such as the screws, gaskets and metal bars, into the drive,

otherwise, fire and property damage may be caused.

◆Do not install and operate the drive if it is damaged or its components are not complete, otherwise, fire

and human injury may be caused.

◆Do not install the product in the place exposed to direct sunlight, otherwise, property damage may be

caused.

◆Cable lugs must be firmly connected to the terminals of main circuit, otherwise, property damage may

be caused.

◆When removing the servo motor, we can not just pull the cable or hold the rotating shaft to pull the

motor, otherwise, the motor may drop and cause human injury or property damage.

◆Do not directly strike the axis core, for example: tap or beat, this may cause the axis core and the

encoder attached to the opposite side of the axis damaged, otherwise, property damage may be

caused.

◆Do not store the servo motor in the place that exceeds predetermined vibration, otherwise, property

damage may be caused.

Contents

M5-N Series Servo System .......................................................................................................1

Chapter 1 M5-N Servo System Selection ................................................................................. 8

1.1 Servo motor and drive model ..........................................................................................................................8

1.2 Servo system configuration specifications ...................................................................................................12

1.3 Applicative cables and models ..................................................................................................................... 12

Chapter 2 Servo System Specifications ..................................................................................15

2.1 Servo drive standard specifications ............................................................................................................. 15

2.2 Servo motor standard specifications ............................................................................................................17

2.3 Servo drive dimensions .................................................................................................................................18

2.4 Servo motor dimensions and interface definition ........................................................................................ 19

Chapter 3 Installation Description ........................................................................................... 22

3.1 Servo drive installation ..................................................................................................................................22

3.1.1 Installation site .........................................................................................................................................................22

3.1.2 Installation environment requirements .................................................................................................................... 22

3.1.3 Servo drive installation precautions .........................................................................................................................22

3.2 Servo motor installation ................................................................................................................................ 24

3.2.1 Installation site .........................................................................................................................................................24

3.2.2 Installation environment requirements .................................................................................................................... 24

3.3 System wiring diagram ..................................................................................................................................25

3.4 Recommended specifications for circuit breakers and fuses ..................................................................... 27

3.5 Related specifications of braking resistor .................................................................................................... 27

Chapter 4 Wiring of Servo System ..........................................................................................28

4.1 Servo drive main circuit connection ............................................................................................................. 29

4.1.1 Main circuit specifications ........................................................................................................................................29

4.1.2 Main circuit cable dimensions ................................................................................................................................. 29

4.2 Servo motor encoder signal connection (CN2) ............................................................................................30

4.3 Control signal interface definition ................................................................................................................. 31

4.3.1 Digital input and output signals ............................................................................................................................... 31

4.4 Communication port wiring ........................................................................................................................... 35

Chapter 5 Operation Panel ..................................................................................................... 36

5.1 Interface introduction .....................................................................................................................................36

5.2 Working status display .................................................................................................................................. 37

5.3 Working status display and parameter setting flowchart .............................................................................37

5.4 Parameter value display ............................................................................................................................... 38

Chapter 6 Commissioning Instructions ................................................................................... 39

6.1 Check before running ....................................................................................................................................39

6.2 Commissioning ..............................................................................................................................................39

6.3 Electronic gear ...............................................................................................................................................40

6.4 Brake settings ................................................................................................................................................44

6.4.1 Servo motor brake wiring diagram .......................................................................................................................... 44

6.4.2 Brake timing ............................................................................................................................................................ 44

6.4.3The brake timing when the servo motor is stationary ...............................................................................................44

6.4.4 The brake timing when the servo motor is rotating ................................................................................................. 46

6.4.5 Servo drive fault status brake timing ....................................................................................................................... 48

Chapter 7 EtherCAT Communication ......................................................................................49

7.1 Overview of EtherCAT bus ........................................................................................................................... 49

7.2 M5-N drive bus function introduction ............................................................................................................49

7.2.1 M5-N communication specifications ........................................................................................................................49

7.2.2 EtherCAT Network reference model ........................................................................................................................50

7.2.3 EtherCAT network state machine ............................................................................................................................51

7.2.4 Process Data PDO .................................................................................................................................................. 52

7.2.5 Mailbox data SDO ................................................................................................................................................... 53

7.2.6 Distributed Clock (DC) .............................................................................................................................................54

7.3 CiA402 Device Control (Device Protocol) ....................................................................................................54

7.3.1 CoE state machine .................................................................................................................................................. 54

7.3.2 Object dictionary ......................................................................................................................................................56

7.3.3 Device control word and status word ...................................................................................................................... 56

7.3.4 Common conversion factor ..................................................................................................................................... 59

7.4 Bus operation mode ...................................................................................................................................... 60

7.4.1 Profile Position Mode .............................................................................................................................................. 61

7.4.2 Profile Velocity Mode ............................................................................................................................................... 64

7.4.3 Profile Torque Mode ................................................................................................................................................ 67

7.4.4 Homing Mode .......................................................................................................................................................... 70

7.4.5 Cyclic Synchronous Position Mode ....................................................................................................................... 102

7.4.6 Cyclic Synchronous Velocity Mode ....................................................................................................................... 104

7.4.7 Cyclic Synchronous Torque Mode.........................................................................................................................106

Chapter 8 Drive Parameter Object ........................................................................................ 110

8.1 M5-N Drive parameters ...............................................................................................................................110

Index 2000h(P00): Drive parameters ............................................................................................................................. 110

Index 2001h(P01): Servo motor parameters .................................................................................................................. 111

Index 2002h(P02): Basic control parameters ................................................................................................................. 113

Index 2003h(P03): Digital input and output terminal parameters ................................................................................... 116

Index 2005h(P05): Position control parameters ............................................................................................................. 120

Index 2006h(P06): Speed control parameters ............................................................................................................... 125

Index 2007h(P07): Torque control parameters ...............................................................................................................127

Index 2008h(P08): Gain parameters .............................................................................................................................. 129

Index 2009h(P09): Adjustment parameters ....................................................................................................................131

Index 200Ah(P10): Fault and protection parameters ..................................................................................................... 135

Index 200Bh(P11): Display parameters ......................................................................................................................... 143

Index 200Ch(P12): Servo positioning parameters ......................................................................................................... 147

Index 2011h(P17): EtherCAT communication parameters ............................................................................................ 150

Index 2012h(P18): Advanced parameters ......................................................................................................................153

Index 2014h(P20): Bus configuration group parameters ............................................................................................... 153

8.2 Slave station address assignment function ............................................................................................... 154

8.3 User unit selection .......................................................................................................................................154

8.3.1 Position user unit ................................................................................................................................................... 154

8.3.2 Speed user unit ..................................................................................................................................................... 154

8.3.3 Torque user unit .................................................................................................................................................... 154

Chapter 9 Troubleshooting ....................................................................................................155

Appendix 1 Warranty and Service .........................................................................................167

Chapter 1 M5-N Servo System Selection

1.1 Servo motor and drive model

1．Servo motor model

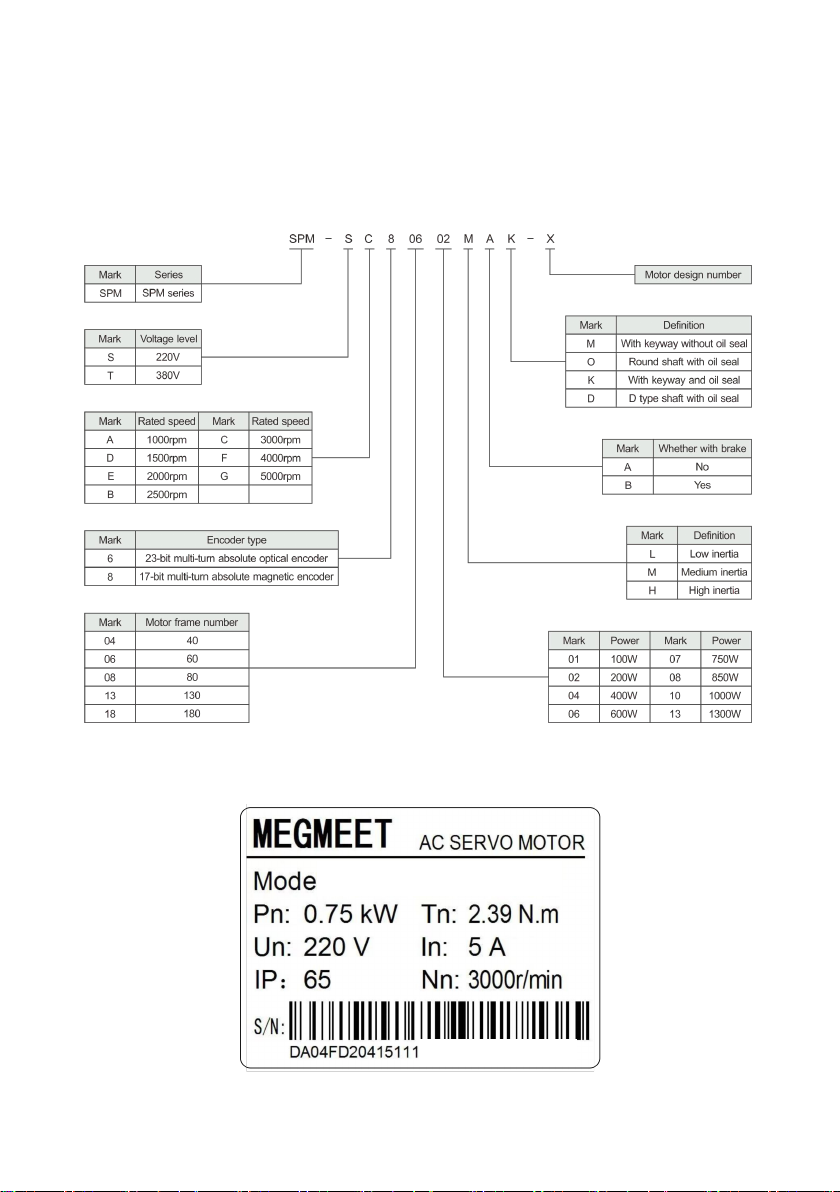

Fig.1-1 M5-N servo motor model

2．Servo motor nameplate

Fig.1-2 M5-N servo motor nameplate

SPM-SC80401MAK-L

Chapter 1 M5-N Servo System Selection

3．Servo drive model

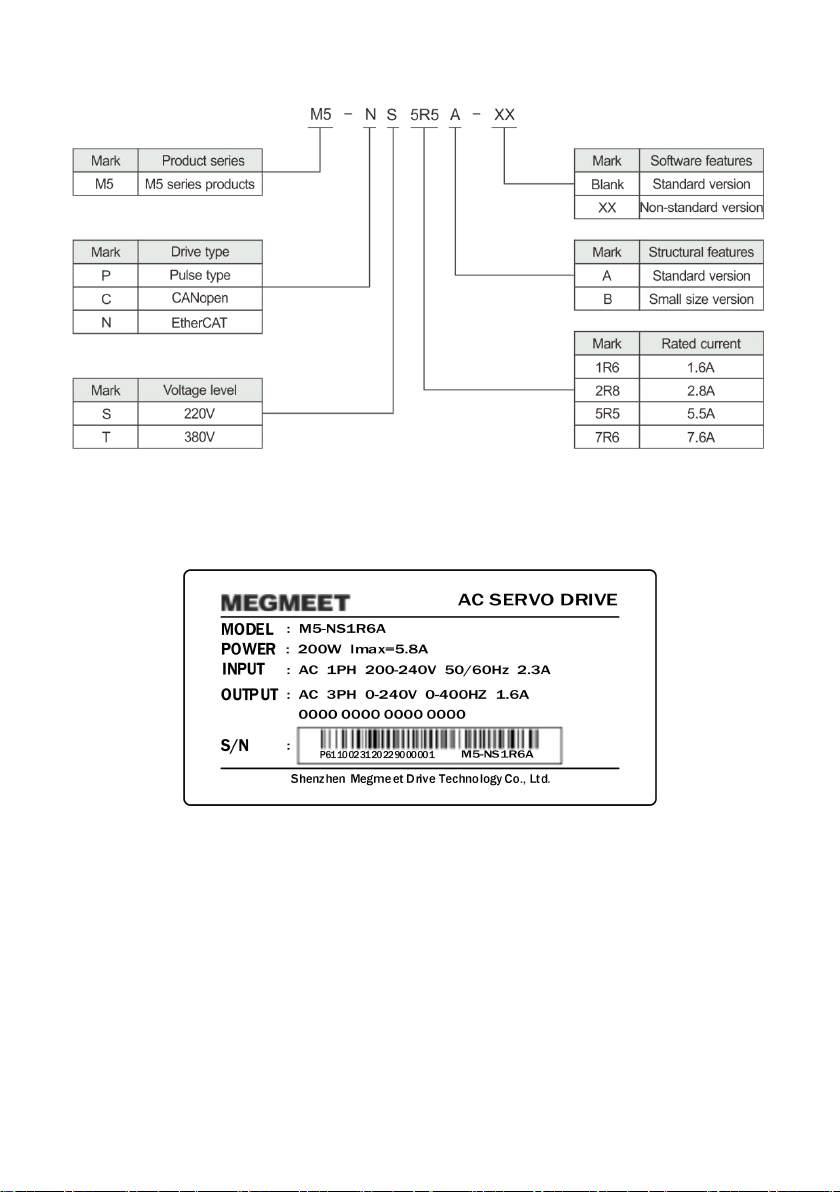

Fig.1-3 M5-N servo drive model

4．Servo drive nameplate

Fig.1-4 M5-N servo drive nameplate

Chapter 1 M5-N Servo System Selection

5．The name and introduction of each part of the servo drive

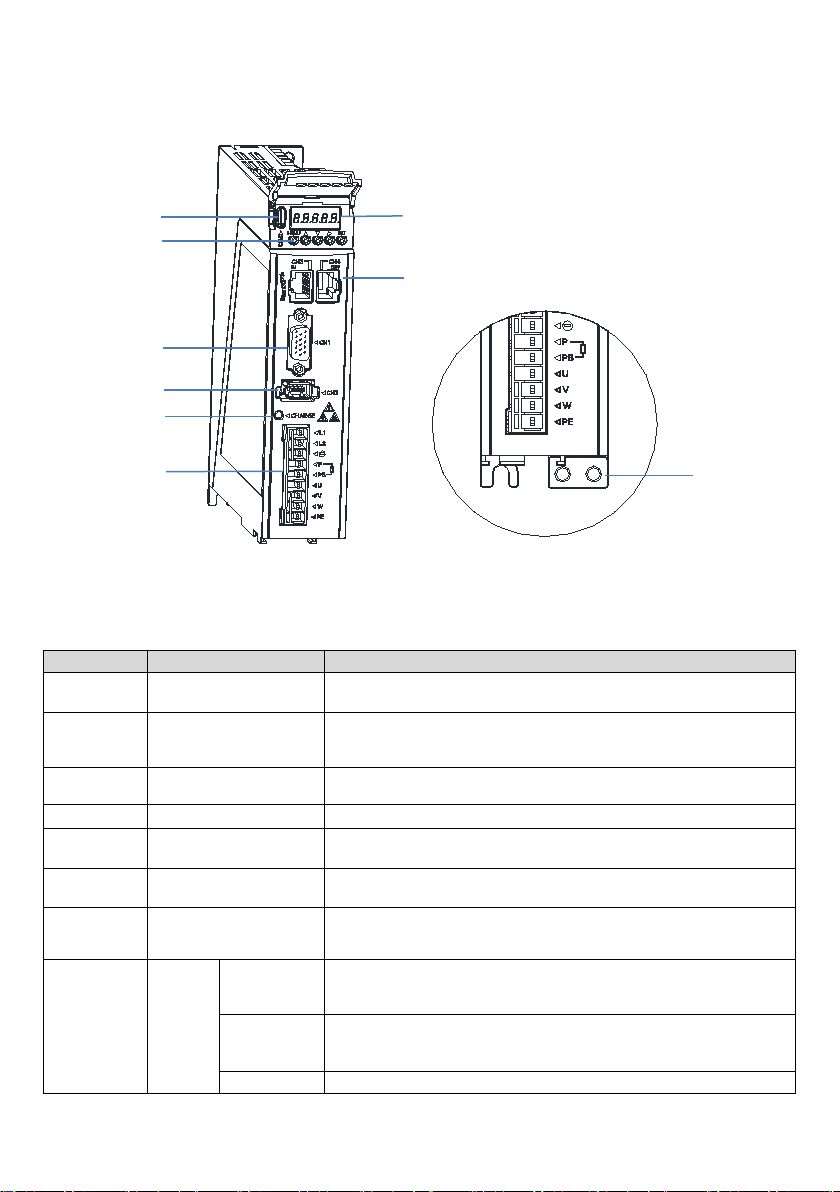

Fig.1-5 Schematic diagram of each part of M5-N servo drive (SIZEA)

Table 1-1 Description of each part of M5-N servo drive (SIZEA)

No.

Name

Description

①

CN3, CN4

Communication interface

Two RJ45 ports for EtherCAT communication

②

CN5

Type-C USB

communication port

Connect the USB of the computer through this port, you can adjust the

parameters of the drive and debug the performance.

③

LED digital tube

5-digit 8-segment digital tube for status monitoring, parameter display and

setting.

④

Operation keys

5 keys for parameter adjustment and display status switching, etc.

⑤

CN1

Control IO interface

DB15 female connector, control IO interface, used to connect with external IO

and host controller.

⑥

CN2

Encoder interface

1394 female connector for connecting motor encoder

⑦

CHARGE

Bus power indicator

It is used to indicate the state of the bus power. The indicator light indicates

that the capacitor of the bus is charged. Do not touch the power terminal even

if the main power supply is cut off to avoid electric shock.

⑧

Main

circuit

terminal

L1, L2

Main power

supply input

Main power supply input, single-phase 220V.

○—, P

DC bus

terminal

DC bus terminal for common bus connection

P, PB

Braking resistor wiring terminals, connect between P and PB for external

①

②

④

③

⑤

⑥

⑦

⑧

⑨

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Megmeet Servoazionamento

Megmeet

Megmeet SPS-NE Series Manuale utente

Manuali Servoazionamento popolari di altre marche

Mitsubishi Electric

Mitsubishi Electric MELSERVO-J5 MR-J5-G Series Manuale utente

Robotis

Robotis XH430-W350-T Manuale utente

NTI AG

NTI AG LinMot C1250 Series Manuale utente

Welcon

Welcon WE2A D048 Series Manuale utente

Parallax

Parallax 900-00005 Manuale utente

Festo

Festo TP 1410 Manuale utente

Axor

Axor MAGNUM 400 Manuale utente

Siemens

Siemens SINAMICS S120 Manuale utente

Danfoss

Danfoss 176F6494 Manuale utente

THORLABS

THORLABS TDC001 Manuale utente

TECO

TECO JSDAP Series Manuale utente

Rockwell Automation

Rockwell Automation Allen-Bradley Kinetix 6000 Manuale utente

GSK

GSK DA98D Manuale utente

Lenze

Lenze m850 Guida

Baumuller

Baumuller b maXX 3000 Manuale

Baumuller

Baumuller b maXX 5000 Manuale

Baumuller

Baumuller b maXX 5500 Manuale

Danfoss

Danfoss VLT HVAC Drive FC 102 Manuale utente
