This manual can guide you to use this player with proper

operation and correct setting.

Please read it carefully and optimize the performance in

accordance with your preference.

User Manual

02 03

103mm+-1

140mm+1-2

103mm+-1

02 0302 0302 03

Table Of Contents Features

Video & MP3 player, and photo viewer

Built-in 2 Mega Pixels Camera, 4X Digital Zoom

Built-in DV function

Built-in PC Camera function

AV-in function for TV/DVD/VCD player recording

Built-in speaker & microphone

Voice recording

E-Book

FM Radio

Calendar

Games

Supported sound & video file formats: MP3, WMA,

MOV, ASF, WAV, AVI

Supported picture format: JPG

Compatible with Windows ME/2000/XP

Power: built-in 1500mA Li-polymer rechargeable

battery

USB 2.0 Full Speed Interface

Dimensions: 88x58x16mm

Weight: 92g

Features------------------------------------------------------------------------------------- 03

Safety Instructions-------------------------------------------------------------------- 04

Overall Introduction------------------------------------------------------------------ 05

Accessories-------------------------------------------------------------------------------- 05

External View and Key Function Buttons------------------------------------------- 06

Getting Ready---------------------------------------------------------------------------- 07

Advanced Functionality Settings----------------------------------------------- 12

Under Video M ode-------------------------------------------------------------------------- 12

Under Audio Mode-------------------------------------------------------------------------- 15

Under Photo Mode------------------------------------------------------------------------- 17

Under AV IN Mode-------------------------------------------------------------------------- 22

Under Recording Mode-------------------------------------------------------------------- 23

Under Voice Recording Mode------------------------------------------------------------ 25

Under Camera Mode----------------------------------------------------------------------- 26

Under PC Camera Mode------------------------------------------------------------------- 28

Under FM Mode----------------------------------------------------------------------------- 30

Under Accessory Mode-------------------------------------------------------------------- 32

1. MEMORY Info-------------------------------------------------------------------------- 32

2. CALENDAR I nfo----------------------------------------------------------------------- 33

3. E-Book---------------------------------------------------------------------------------- 33

4. USB:Priter s etting--------------------------------------------------------------------- 34

Under Game Mode------------------------------------------------------------------------- 35

Under SETUP Mode----------------------------------------------------------------------- 37

1. LCD SAVE settings-------------------------------------------------------------------- 37

2. PWR SAVE settings------------------------------------------------------------------- 38

3. LANGUAGE settings------------------------------------------------------------------ 38

4. FORMAT settings---------------------------------------------------------------------- 38

5. DATE & TIME s ettings----------------------------------------------------------------- 39

6. DATE TYPE settings------------------------------------------------------------------- 39

7. IMPRINT settings---------------------------------------------------------------------- 39

8. VIDEO settings------------------------------------------------------------------------- 40

9. RESET settings------------------------------------------------------------------------ 40

10. SOUND settings---------------------------------------------------------------------- 40

11. S. IMAGE settings-------------------------------------------------------------------- 41

12. BRIGHTNESS settings-------------------------------------------------------------- 41

13. FREQUENCY settings--------------------------------------------------------------- 42

14. STORAGE settings------------------------------------------------------------------- 4 2

Printer Connection (PictBridge settings)----------------------------------- 43

TV Connection--------------------------------------------------------------------------- 46

PC Connection--------------------------------------------------------------------------- 47

Appendix----------------------------------------------------------------------------------- 55

02 03

103mm+-1

140mm+1-2

103mm+-1

02 0302 0304 05

The manual contains the important safety instructions

and information of the device's proper usage. Make

sure to read carefully and understand all the

instructions to avoid accident.

Do not expose the device to extreme temperature

(above 40C), especially in cars with shutting

windows in summer.

Do not expose to moisture. Do not store in humid or

dirty areas.

Avoid the device falling and bumping strongly. Do

not make LCD suffer from violent shake; otherwise,

LCD could be damaged or displayed abnormally.

Choose the suitable volume. Do not turn up the

volume of the earphones too high while using it. If

you get ringing in your ears stop using the device or

turn the volume down.

Do not disassemble the device yourself and do not

wipe the surface of device with alcohol and benzene

and thinners.

Do not using the device in areas with prohibiting

electronic devices, such as in plane.

Do not use the device while driving an automobile or

walking in the street, otherwise, an accident may

result.

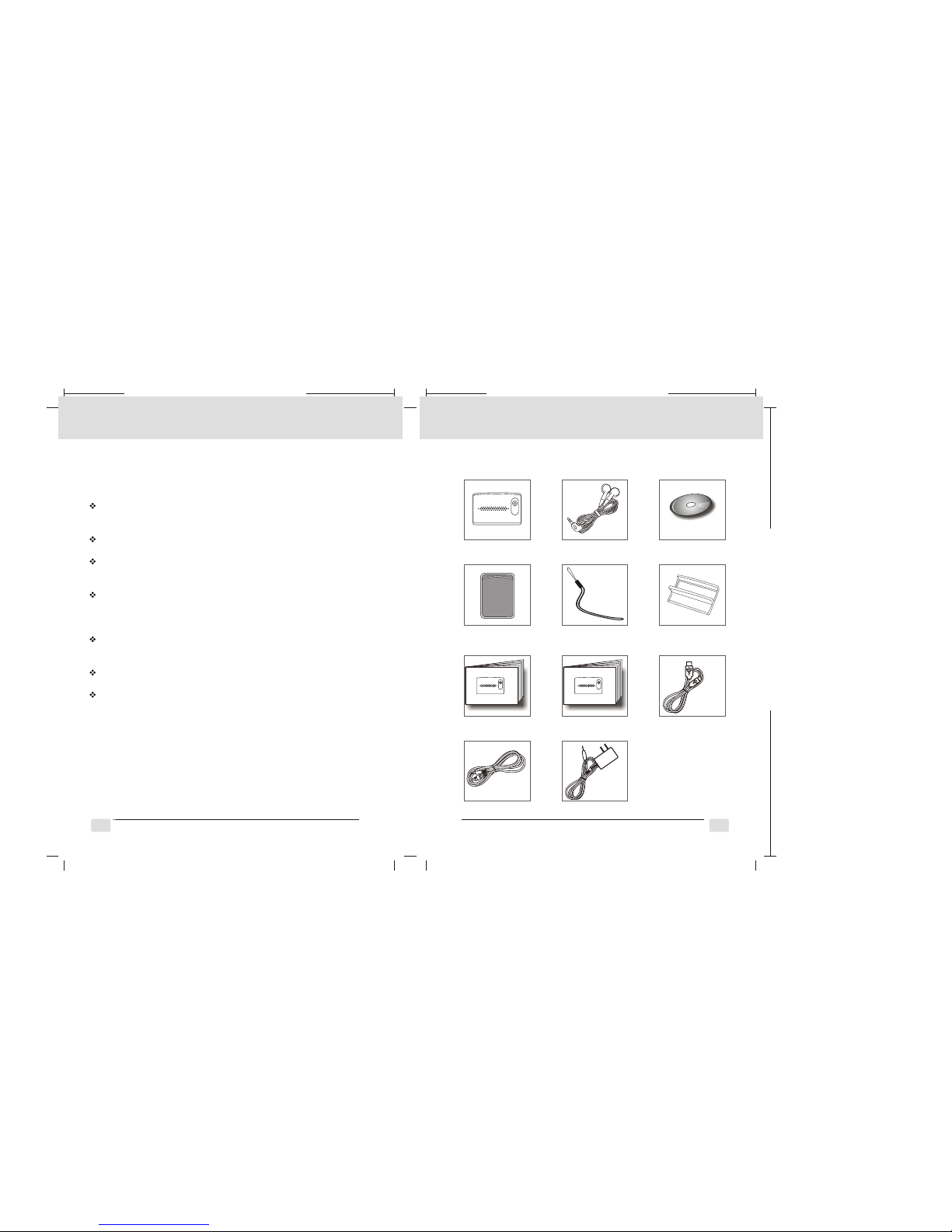

Safety Instructions Overall Introduction

Accessories

Player Earphone Software

Pouch Strap Stand

User Quick Start USB

Manual Guide Cable

AV Cable Adaptor

02 03

103mm+-1

140mm+1-2

103mm+-1

02 0302 0306 07

Getting Ready

Overall Introduction

External View and Key Function Buttons 1. Battery Charging

You can charge your

battery by connecting

the adaptor in DC IN

Port.

2. Turn On or Off the player

2.1 Trun On

You can press down POWER Button on the top of

player. You will see the screen is showing a start-up

image after you turn on the player.

2.2 Trun Off

Press down POWER Button again will turn off

the player.

Play/

Pause

(Shutter)

Side

Top

Front

Back

Main Menu

Button Power

On/Off

Camera Lens

OK Button

LED

Up Button

Right Button

Down Button

Left Button

Bottom

SD Card Socket

Earphone &

AVOUT

AV IN

DC IN

USB Port

Strap Evelet

Lock Switch

Reset Button

Note:

Power Save: When the player idles for a time that reaches

what the user specifies to turn off the player, the player will

be turned off automatically.

LCD Save: When the LCD monitor idles for a time that

reaches what the user specifies to turn off the LCD, the

LCD will be turned off automatically.(Please refer to SETUP

Mode for details.)

Note: Normally, the charging time for the

player is about 3.5 hours. When charging,

LED turns red. After complete charging,

LED will be off.

Note: About SD/MMC Card

1. Befor you insert card, plaese

make sure the performance

of this card is normal.

2. Never remove or insert a

memory card or disconnect

USB cable while data is

transmitted.

02 03

103mm+-1

140mm+1-2

103mm+-1

02 0302 0308 09

3.Basic Operation

3.1 Menu Introduction (including 12 icons/modes)

3.2 Basic Operation & Key Button Definition

Note: Each icon stands for one mode. You can use the

direction buttons to move the red frame and press OK

Button to enter the mode you've chosen.

Video Audio Photo AV IN

FM Accessory Game Setup

PC Camera

Camera

Video

Recording

Voice

Recording

Note:

Troubleshooting:

If you cannot power on the player, please check and make

sure the LOCK Switch is switch off.

When lock is on , the screen will show “ ” to

remind you.

Switch down LOCK Switch to

disable all the operations

Main Menu Button

Under any mode, you can press MENU Button

to go back to Main Menu.

OK Button

Confirm your selection

Under Video, Audio,Photo,and

Camera modes, you can press it

for further adjustment.

LED Indicator

When turn on the player,

LED turns green.

When charging the player,

the LED turns red.

UP & Down Button

Under Video, and Audio modes,

you can press them to adjust Volume.

Getting Ready

Play/Pause Button

Key function is to play or pause the contents.

When under the Camera mode, you can operate

this button as a shutter button.

Left & Right Button

Under Video, Audio

modes, you can

long-press them to

rewind or fast-forward

the contents.

You can short-press

them to go to previous

or next file and play.

Under FM modes, you

can press them to adjust

Volume.

02 03

103mm+-1

140mm+1-2

103mm+-1

02 0302 0310 11

03:10

00:35

3.3 Select a mode

You can choose any mode for playing files or operating setup.

When you press direction button and select one icon on the

screen (the red frame will circle the icon), please press OK

button to enter the mode you've chosen.

Note: Before you play, please make sure you have video

file in the player or inserted the SD card into it. If there's

no file, the player will remind you.

3.4 Icon Display Introduction

2 3

45 6

910

1.Current Mode

( ) VIDEO

( ) AUDIO

( ) PHOTO

( ) AV IN

( ) RECORDING

( ) VOICE

RECORDING

( ) CAMERA

( ) PC CAMERA

( ) FM

( ) ACCESSORY

( ) GAME

( ) SETUP

5.Battery Status

( ) Battery Full

( ) Battery Half

Drained

( ) Battery Drained

( ) Charging

10.Available Playback

Time (Min : Sec.)

under Audio mode.

11. Fast-forward &

Rewind Bar

3. Repeat Mode

( ) ONE

( ) ALL

( ) RANDOM

6. Memory Status

( ) Memory card

4. Protectd File

7. Current Time

(Hour:Min.)

8. Current Playback

Position (Min: Sec.)

9. Volume Adjust Bar

Getting Ready

VIDEO

15:2505/15

15:25

Main Menu

VIDEO

2. Lock

Note: Only under

Main Menu, “ “ will

show “month/date

” as “05/15”.

123

02 03

103mm+-1

140mm+1-2

103mm+-1

02 0302 0312 13

VIDEO

Under Video Mode ( )

Play Video

Under Video mode, you will see your video files showing as

Thumbnails on screen. You can choose the video file you

want to play and press to play it. If you want to go back to

Main Menu, please press MENU button.

Advanced Functionality Settings

MP4_0001.ASF

Play: EXIT: MENU

Note: File name and format of

the video file you choose will

show in yellow.

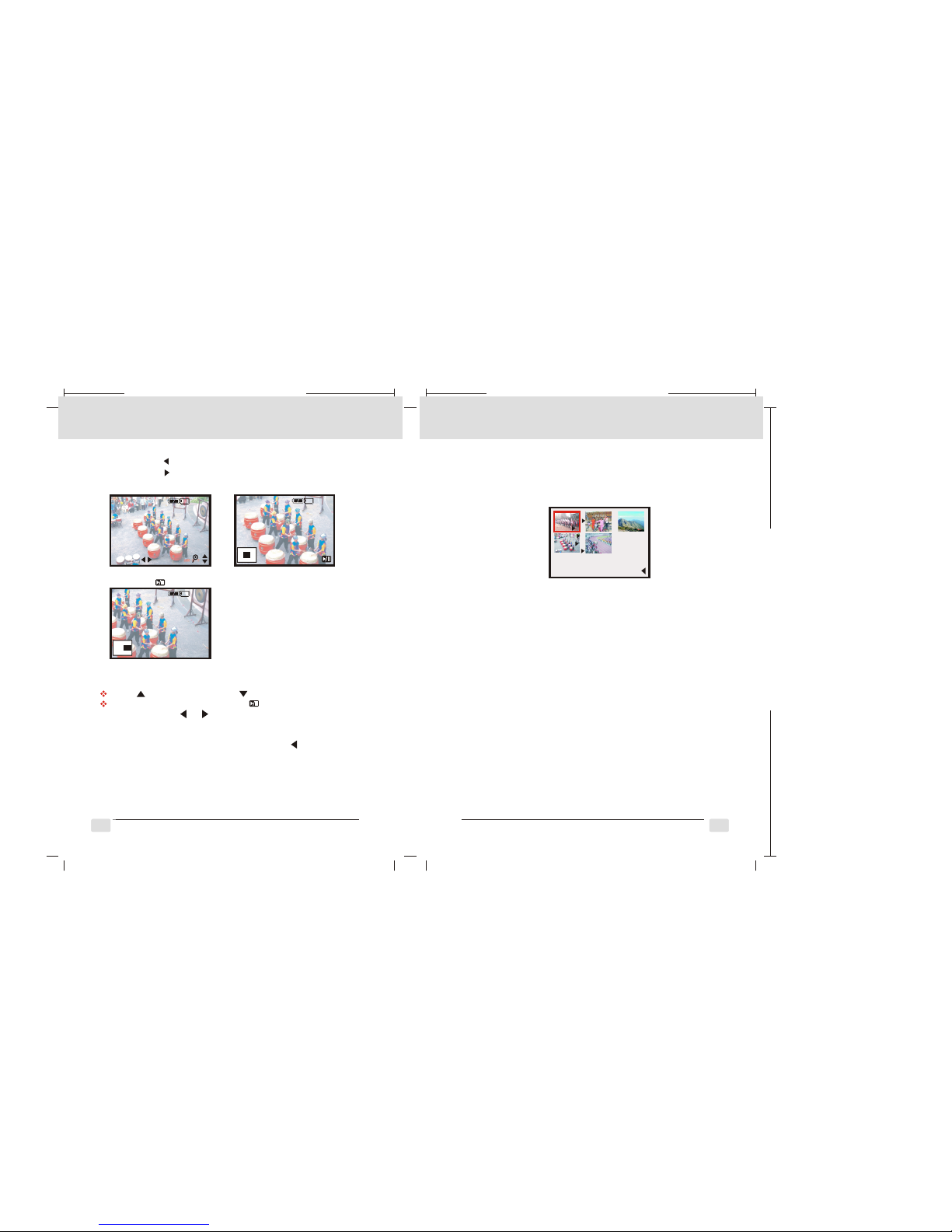

When Playing Video...

1. Short press to play the previous video

2. Short press to play the next video

3. Short press to adjust the volume louder

4. Short press to adjust the volume lower

5. Long press to rewind the video

6. Long press to fast-forward the video

7. Press to pause it.

8. Press OK button and press to return to Video

Thumbnails

OK Button for advanced settings

If you press OK button under Video mode, you can have

advanced settings as follows:

1.PLAY: It will play the file you choose after you press OK

button again.

2.REPEAT:

You can choose REPEAT and press to enter the REPEAT

mode as follows to select the way you want to play and

press OK button.

The sound will come out from the built-in speaker if

no earphone is used. If you prefer to play the music

through an earphone, please have the earphone

connected to the Earphone Jack ( ).

PLAY: OK EXIT:

Note:REPEAT Icon Display

( ) Repeat ONE file

( ) Repeat ALL the files

( ) Repeat Randomly

PLAY

REPEAT

PROTECT

DELETE

INFO.

SET: OK BACK:

REPEAT

OFF

ALL

RANDOM

Advanced Functionality Settings

Video

15:25

Video Thumbnails

15:25

123

02 03

103mm+-1

140mm+1-2

103mm+-1

02 0302 0314 15

3. PROTECT:

This function allows you to prevent your specific videos

from being deleted. If you choose LOCK, the “ “ icon will

show on the screen when you select the specific file. You

can select UNLOCK to cancel the protection.

4.DELETE:

You can delete the file you've selected , if you select delete

ONE. You can also delete all video files once if you select

delete ALL.

5. INFO.:

You can see the related information about this video file and

press to EXIT (go back to Video Thumbnail page).

EXIT:

File name and file format

Video length

File size

The Last Editig File Time

Looked or Unlocked

PROTECT

LOOK

UNLOCK

SET: OK BACK:

DELETE

ONE NO

ALL YES

FILE NAME:

XXX.ASF

TOTAL TIME : 03:54

DIMENSIONS : 320X240

03/24/2006 15:00:48

PROTECTED

Advanced Functionality Settings

Under Audio Mode ( )

Play Music

Select the folder you want to play and press to enter this

folder. When entering this folder, select the song you want to

play and press to play it.

When Playing Music...

Please refer to Video mode.

You can press OK button and press to return to the music

folders.

AUDIO

CHANGE: EXIT:MENU

folder name

15:25

AUDIO

DMP3_0001.MP3

DMP3_0002.MP3

DMP3_0003.MP3

15:25

SET: OK BACK:

05/15

02 03

103mm+-1

140mm+1-2

103mm+-1

02 0302 0316 17

15:25

Showing Lyrics, While Playing Music

You can download the lyric file (only supports .Irc format) and

copy it to the "Removal Disk" of your player or memory card.

The file name of song and lyric should be the same, so that

you can see the lyric on LCD automatically matching with the

music you're playing.

OK Button for advanced settings

Note: If the words turn unrecognizable, please go to

SETUP mode to adjust the language.

Advanced Functionality Settings

Under Photo Mode ( )

Photo Playback

Under Photo mode, you will see your photo files showing as

Thumbnails on screen. You can choose the photo file you

want to play and press to play it.


Advanced Functionality Settings

Note: File name and format of

the image file you choose will

show in yellow.

CHANGE: EXIT:MENU

100-0004


15:2505/15

1. The settings for REPEAT, PROTECT, and DELETE, please

refer to Video mode.

2. EQUALIZER: There are 8 options to setup the sound effect,

including JAZZ, LARGE HALL, POP, ROCK, SOFT, DEFAULT,

BASS, and CLASSICAL.

3. The INFO will include Title, Artist, Album, Total Time, Size,

and Sample Rate, Bit Rate.

Photo Thumbnails

02 03

103mm+-1

140mm+1-2

103mm+-1

02 0302 0318 19

When Viewing Photo...

1. Short press to play the previous photo

2. Short press to play the next photo

3. Zoom in for viewing details

Press to zoom in and press to zoom out.

After zooming in, you can press for setting the central

point and press or to make the red square (central

point) move left or right.

4. EXIT: You can press OK button and press to back to

Photo Thumbnails.

Advanced Functionality SettingsAdvanced Functionality Settings

CHANGE: :

100-0004


When zooming in

After pressing

OK Button for advanced settings

If you press OK Button under Photo mode, you can have

advanced settings as follows:

1. PLAY playing the file you chose.

2. PROTECT and DELETE settings : please refer to Video

mode.

PLAY: OK EXIT:

X2.2

X2.2 MOVE:


15:25

PLAY

PROTECT

SLIDE

ROTATE

DELETE

S. IMAGE

INFO.

Altri manuali per M1

Altri manuali Megxon Lettore multimediale portatile

Megxon

Megxon M1 Manuale utente

Megxon

Megxon M500 Manuale utente

Manuali Lettore multimediale portatile popolari di altre marche

Epson

Epson P3000 - Digital AV Player Dimensioni

VIETA

VIETA VM-HS247BK Manuale utente

Epson

Epson P6000 - Multimedia Photo Viewer Manuale utente

Apantac

Apantac Tahoma LE-4 Manuale utente

Polaroid

Polaroid PMP120-4 Manuale utente

Creative

Creative ZEN Vision Manuale utente

Mattel

Mattel Juice Box Manuale utente

Creative

Creative ZEN Vision Manuale utente

Denon

Denon HEOS Amp Manuale utente

Espow

Espow RM Manuale utente

Philips

Philips HMP3000 Manuale utente

Archos

Archos 604 - Digital AV Player Manuale utente

Aigo

Aigo MV5920 Manuale di istruzioni

Yoo Digital

Yoo Digital YOOMOVE 2401 Manuale utente

Cowon

Cowon iAUDIO CW200 Manuale utente

Kodak

Kodak mc3 Manuale utente

Shiro

Shiro VJ Manuale utente

Philips

Philips GoGear SA3085/02 Manuale utente
