Memorex MMP8563 Manuale utente
User’s Guide
Personal FM Stereo
MP3/WMA/WAV Player
MMP8563
Before operating this product,
please read these instructions completely.
COPYRIGHT:
• Distributing copies of MP3, WMA with DRM or WAV tracks without
permission is a violation of international copyright laws.
SAFETY:
• Vibration experienced during walking or exercising will not affect the player.
However, dropping the player or dropping a heavy object on the player may result
in damage or sound distortion.
• Avoid spilling any liquid onto or into the player.
• Do not leave the player in a location near heat sources; in a location subject to direct
sunlight, excessive dust, sand, moisture, rain or mechanical shock; on an unlevel
surface; or in a car with the windows closed during periods of excessive heat.
ROAD SAFETY:
• Do not use headphones while driving, cycling or operating any motorized vehicle. It
may create a traffic hazard and it is illegal in some areas. It can be potentially
dangerous to play your headset at a high volume while walking, especially at
pedestrian crossings. You should exercise extreme caution or discontinue use in
potentially hazardous situations.
FCC WARNING:
• This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual. The user could
lose the authority to operate this equipment if an unauthorized change or
modification is made.
PRECAUTIONS
1
2
FCC DECLARATION
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: 1) This device may not cause interference, and 2) This
device must accept any interference received, including interference that may cause
undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However,there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Shield cable must be used with this unit to ensure
compliance with class B FCC limits.
Dear Customer:
Selecting fine audio equipment such as the unit you’ve just purchased is only the start
of your musical enjoyment. Now it’s time to consider how you can maximize the fun
and excitement your equipment offers. This manufacturer and the Electronic Industries
Association’s Consumer Electronics Group want you to get the most out of your
equipment by playing it at a safe level. One that lets the sound come through loud and
clear without annoying blaring or distortion and, most importantly, without affecting
your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher
volumes of sound. So what sounds “normal” can actually be loud and harmful to your
hearing. Guard against this by setting your equipment at a safe level BEFORE your
hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future.
After all, we want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment.
Since hearing damage from loud noise is often undetectable until it is too late, this
manufacturer and the Electronic Industries Association’s Consumer Electronics Group
recommend you avoid prolonged exposure to excessive noise. This list of sound levels
is included for your protection.
3
Decibel
Level Example
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet
THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE:
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet engine
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
4
A
S
S
O
C
I
A
T
I
O
N
EST. 1924
E
L
E
C
T
R
O
N
I
C
I
N
D
U
S
T
R
I
E
S
EIA
We
LISTENING
For A Lifetime
Want You
LOCATION OF CONTROLS
5
3
2
110
4
5
6
7
8
9
11
14
15
13
12
1. USB Port
2. LOCK Switch
3. Power/Stop Button
4. Display
5. EQ/UP (Equalizer/
Navigation Up) Button
6. Skip/Search oButton
7. MODE Button
8. /DN (Playback Mode/
Navigation Down) Button
9. Headphone Jack
(Bottom of Unit)
10. VOLUME +/– Buttons
11. PLAY/PAUSE ®p Button
12. Battery/Card Cover
13. Memory Card Compartment
(Under Cover)
14. Skip/Search nButton
15. Battery Compartment
(Under Cover)
BATTERY INSTALLATION
6
When the bars in the battery indicator (in the display) become low
(see figure 1), replace the battery as follows.
1. Open the Battery/Card cover by pressing in and pulling off the
cover as shown in figure 2.
2. Insert one (1) “AAA” battery as shown in figure 3. An alkaline
battery is recommended for the longest playing time.
3. Put the cover back on until it snaps in place.
BATTERY PRECAUTIONS
Follow these precautions when using a battery in this device:
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated. Reversed
batteries may cause damage to the device.
3. If the device is not to be used for a long period of time, remove the battery to prevent damage
or injury from possible battery leakage.
4. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.
(Follow battery manufacturer’s directions.)
Figure 3Figure 2
Figure 1
Batt.
Low
Batt.
Full
USING THE ARM STRAP
7
Insert the arm strap into the slot on
the rear of the unit and pull through.
1
Pull the arm strap and insert it into
the buckle.
2
Insert the arm strap into the slot on
the rear of the unit and pull through.
3TO INSERT UNIT IN THE HOLDER:
Lift up the top flap on the holder, then
insert the unit.
TO REMOVE UNIT FROM
THE HOLDER:
Lift up the top flap on the holder, then
remove the unit.
TO INSTALL THE "DIGITAL AUDIO PLAYER" CD SOFTWARE
For Windows ME, Windows2000 or Windows XP:
Windows will automatically detect the audio player without installing the CD software
when the USB cable is connected.
For Macintosh OSX:
Macintosh OSX will automatically detect the audio player without installing the CD
software. Do not install the software when using a Macintosh.
For Windows98SE:
The USB mass storage function will not be activated without driver installation. To
activate the USB mass storage function, please use the installation CD-Rom to install
the driver.
For Windows 98SE, if you are connecting your player to your computer for the first
time, please follow these instructions:

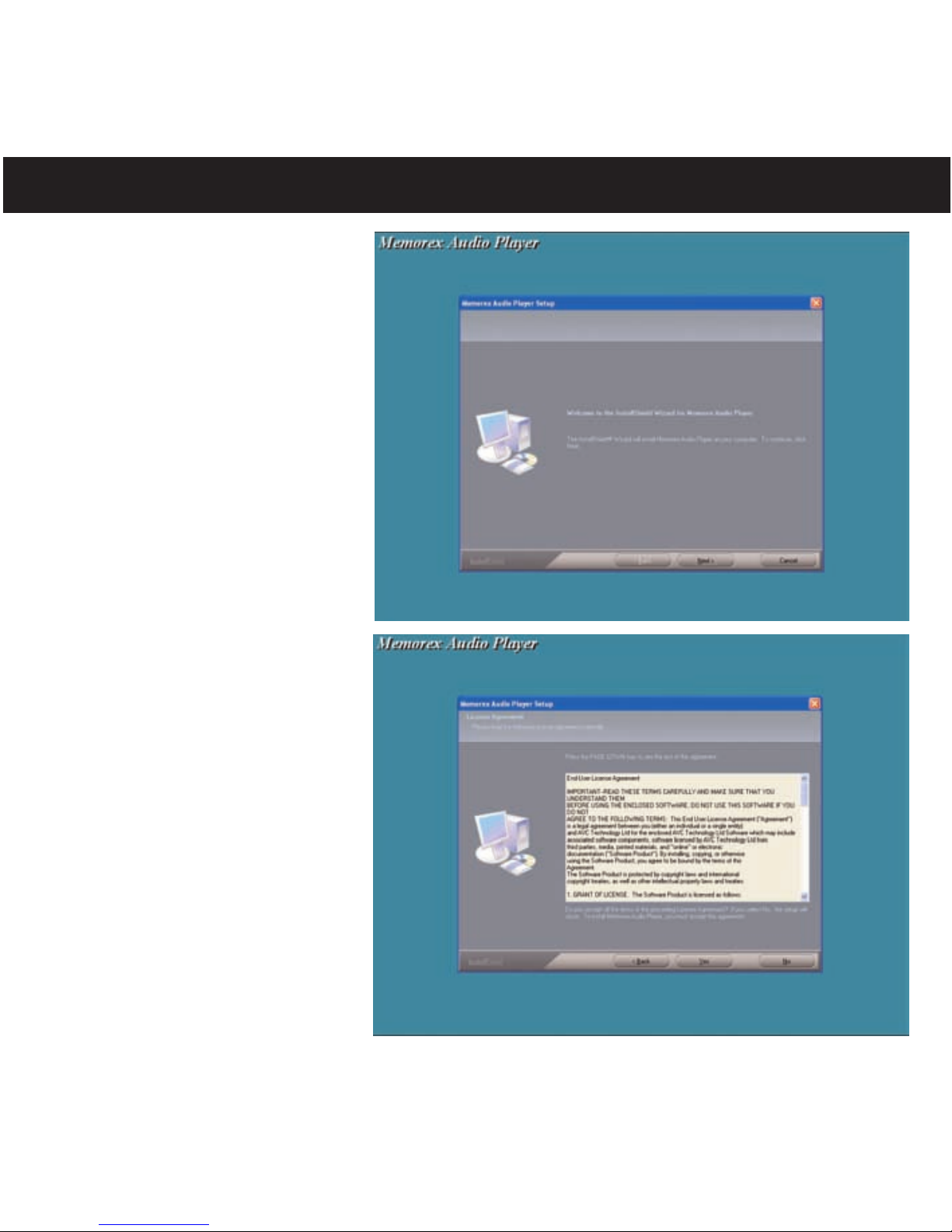

Procedure to Install Player Driver
1. Insert the Installation CD-Rom
into the CD Drive; the auto-run
program will display the Main
Menu window. Click “Software
Drivers”.
NOTE:If the Main Menu window
does not appear, double click
“Memorex Startup CD” application
file on the Installation CD to open
the Main Menu window.
INSTALL “DIGITAL AUDIO PLAYER” SOFTWARE
8
2. Click “MMP8563” to run the
Windows 98SE driver.
3. Follow the on-screen
instructions to install the
software.
WINDOWS 98 DRIVER INSTALLATION
9
