Istruzioni di montaggio
Fitting instructions
Montageanleitung
Instructions de montage
Instrucciones de montaje
Návod na montáž
Monteringsvejledning
Οδηγίες συναρμολόγησης
Paigaldusjuhend
Asennusohje
Uputa za sastavljanje
A felszerelés módja
Stiprināšanas instrukcija
LV
NL
NO
PL
PT
RO
RU
SK
SL
SV
TK
ZH
AR
Pritvirtinimo instrukcijos
Instrukcja montażu
Monteringsveiledning
Instrukcja montażu
Instruções de Montagem
Instrucțiuni de montare
Инструкции по установке
Návod na montáž
Navodila za pritrjevanje
Monteringsanvisning
Uydurma talimat
裝修指導
Made in Italy
free time on the move
Watch video
Universal
Watch video
T-system
All manuals and user guides at all-guides.com
all-guides.com
xxxx
NQNQ
1
M6x25 13mm
0.5”
Sx
Dx
Sx
Dx
M6x60
4mm/0.1”
1
2 2
3 2
4 2
5 1
6 1
7 3
8 2
9 1
10 1
11 3
12 3
13
14
3
1
2
3
4
5
6
7
8
2
2
3
2
3
3
1
1
1
1
7
12 M6x60
71
1
13
4mm/0.1”
700015500000
700021500000
700017400000
700021600000
9
700021700000
10
14
2
1
700017600000
A+1700040000000
700033300000

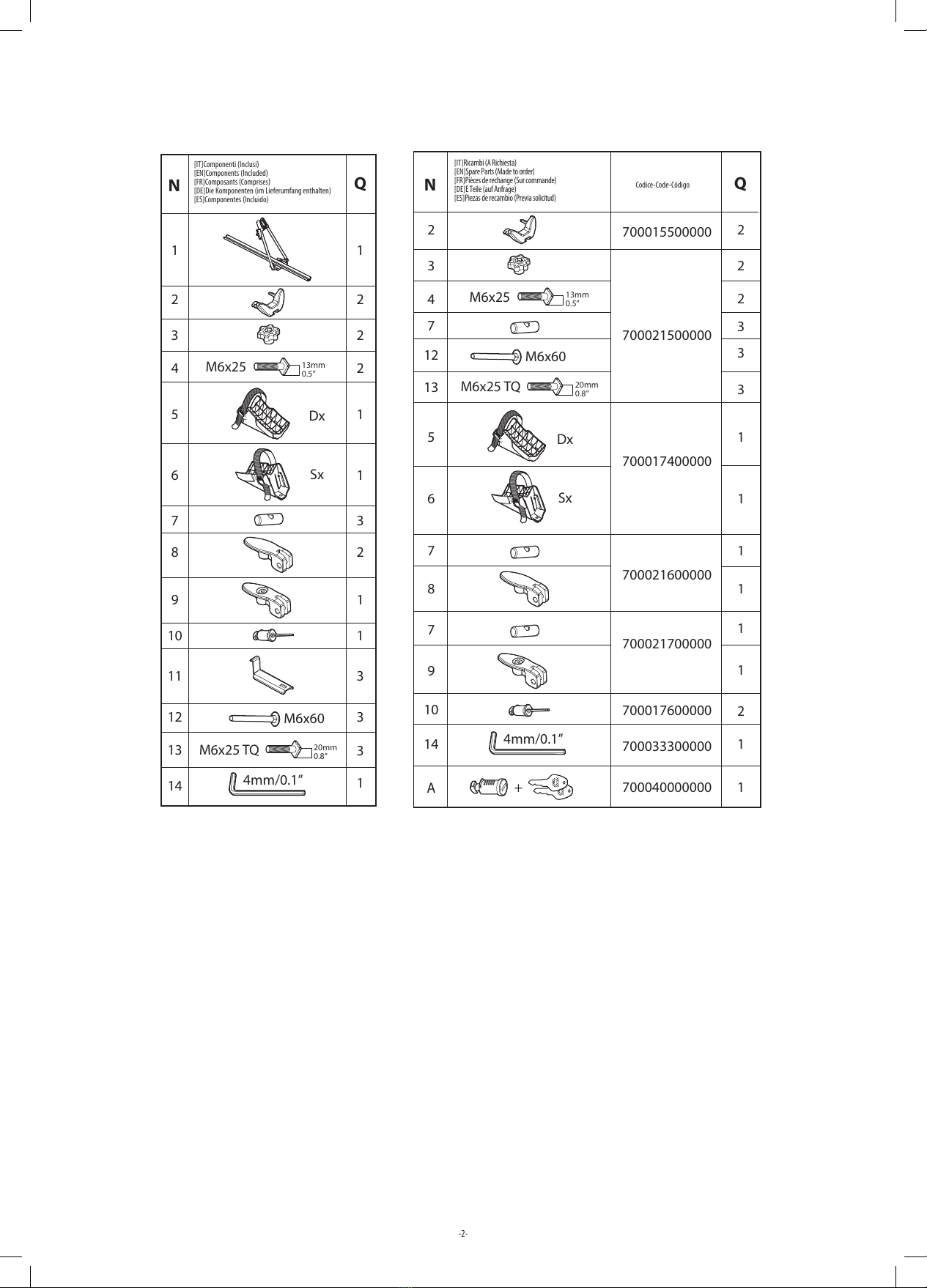

[IT]Componenti (Inclusi)
[EN]Components (Included)
[FR]Composants (Comprises)
[DE]Die Komponenten (im Lieferumfang enthalten)
[ES]Componentes (Incluido)
[IT]
Ricambi (A Richiesta)
[EN]
Spare Parts (Made to order)
[FR]
Pièces de rechange (Sur commande)
[DE]
E Teile (auf Anfrage)
[ES]
Piezas de recambio (Previa solicitud)
Codice-Code-Código
M6x25 13mm
0.5”
M6x25 TQ 20mm
0.8”
M6x25 TQ 20mm
0.8”

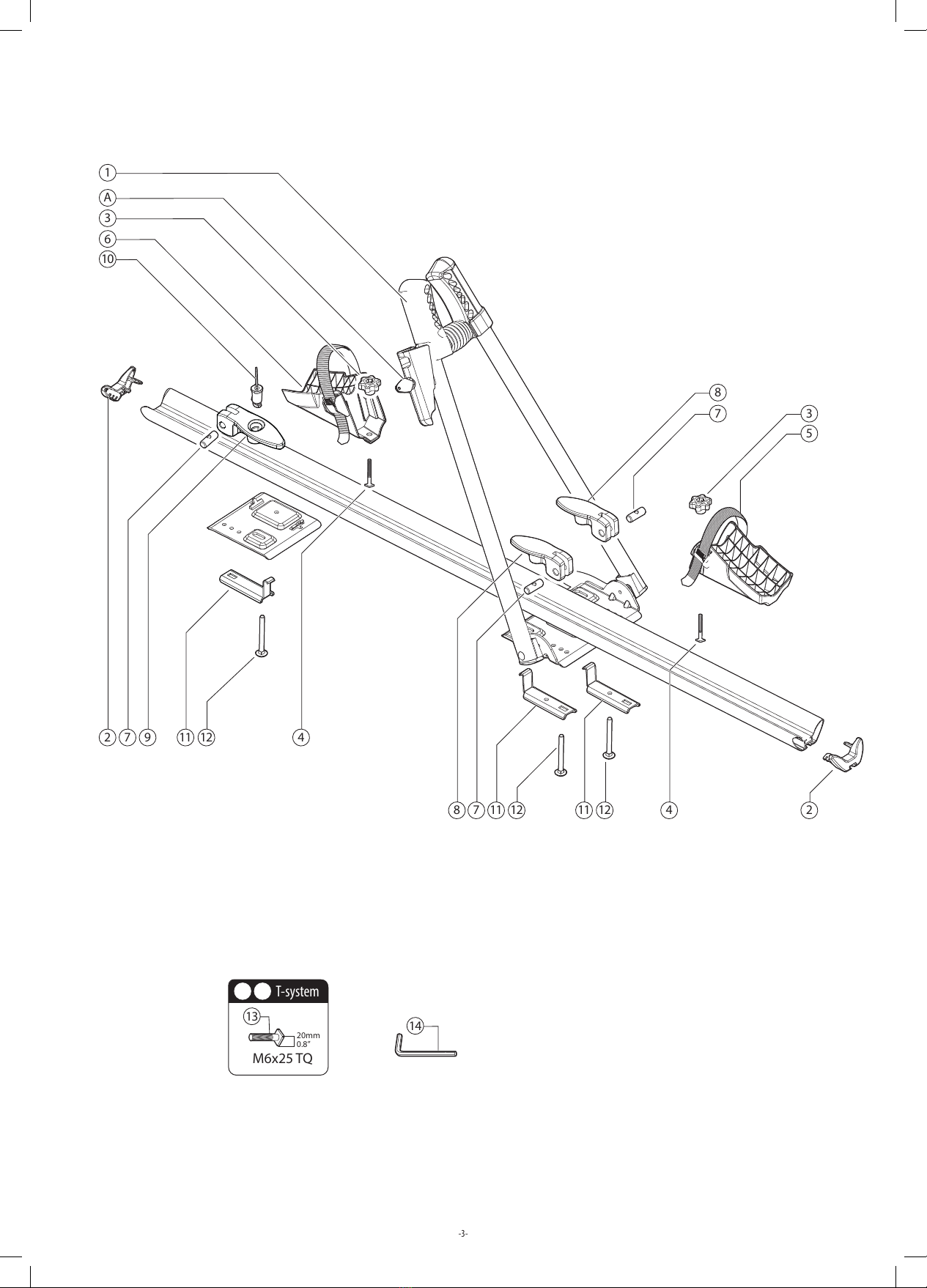

xxxx
6
3
A
1
10
14
8
7 3
5
2 7 9 11 12
8 7 11 12 11 12 4 2
4
T-system
13
M6x25 TQ
20mm
0.8”
-2-
All manuals and user guides at all-guides.com
6
3
A
1
10
14
8
7 3
5
2 7 9 11 12
8 7 11 12 11 12 4 2
4
T-system
13
M6x25 TQ
20mm
0.8”
-3-
All manuals and user guides at all-guides.com

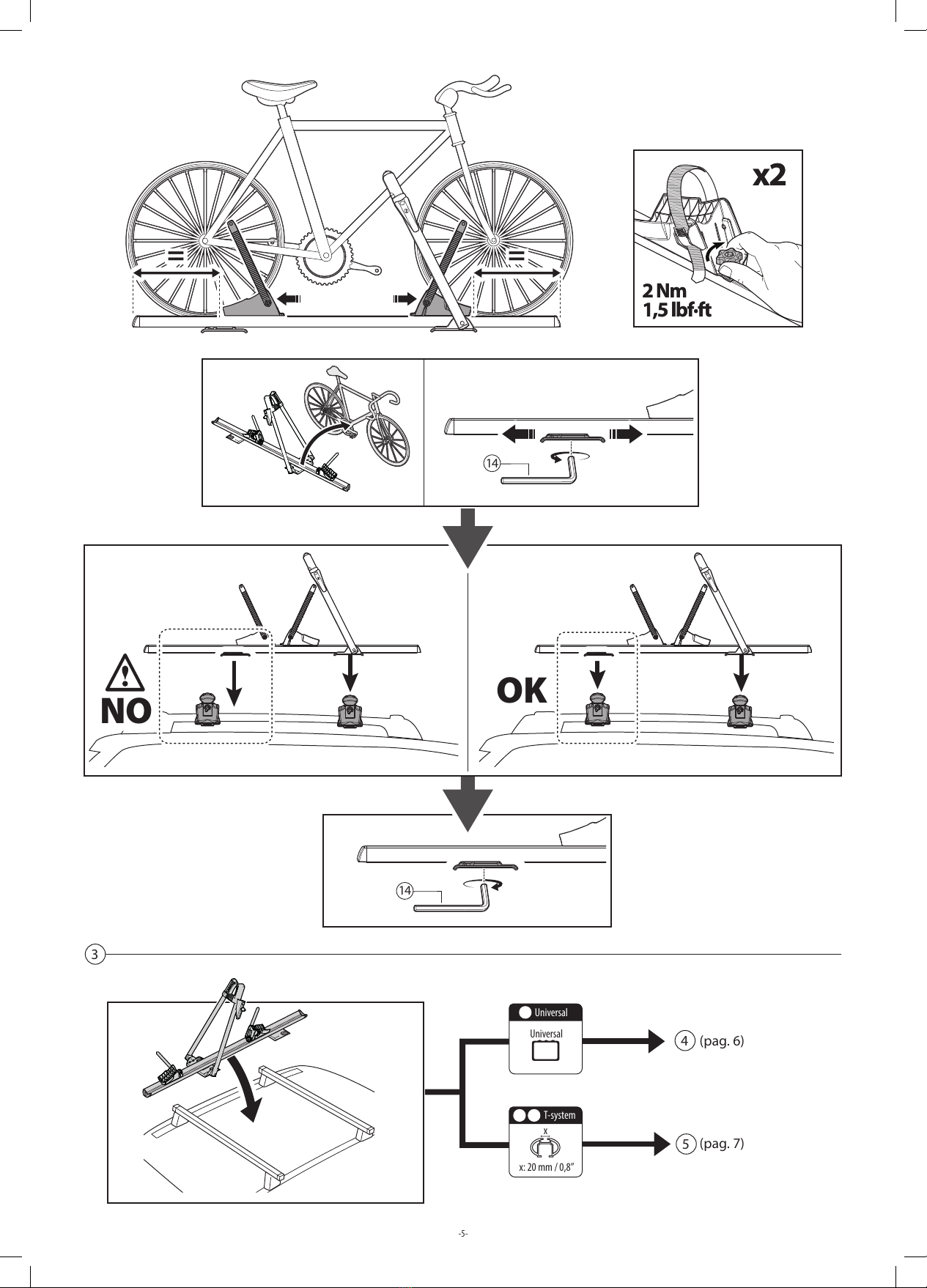

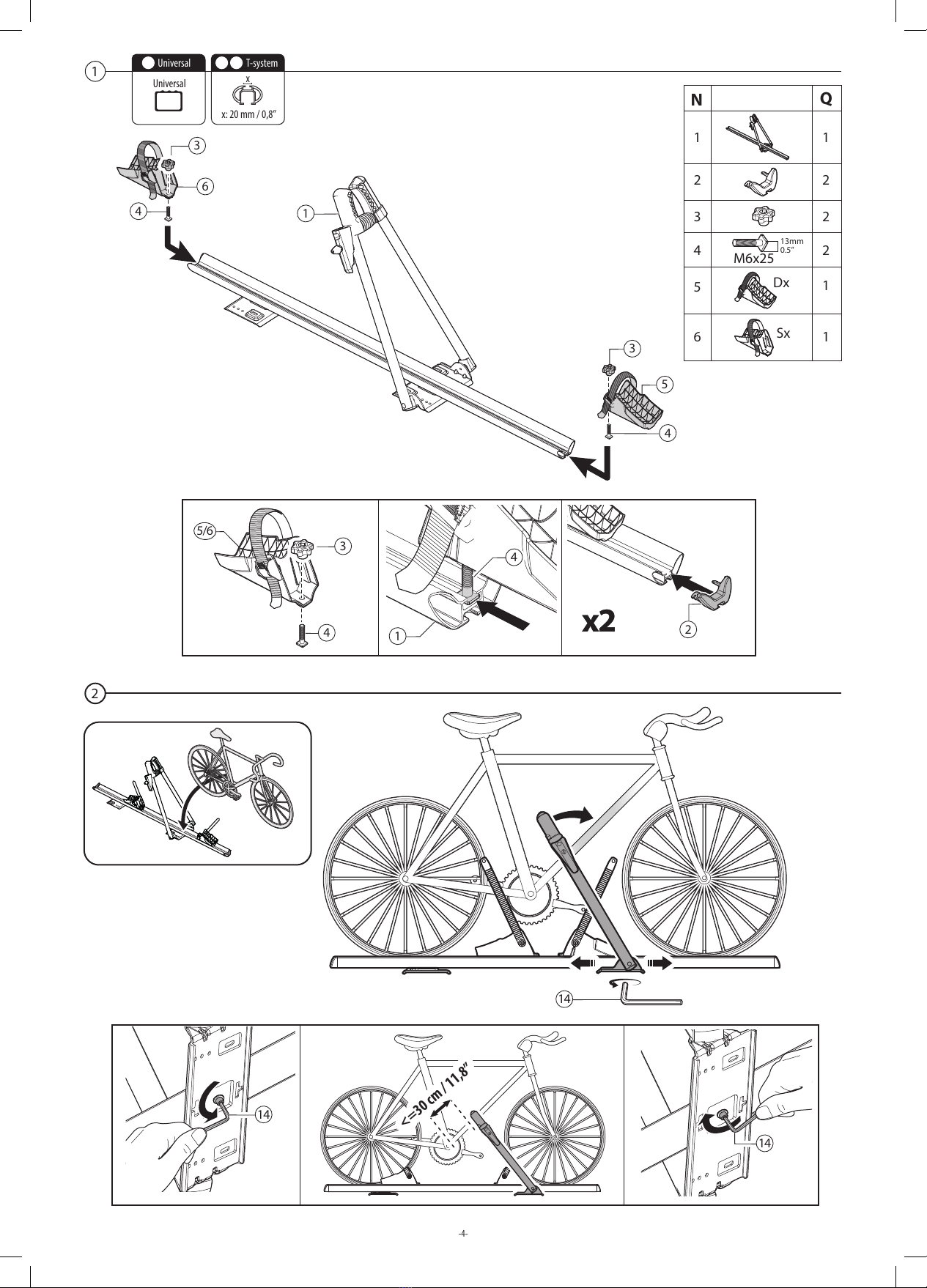

NQ
1
Sx
Dx
1
3 2
2 2
4 2
51
6 1
M6x25
13mm
0.5”
1
5/6
3
4
3
4
4
6
5
3
x: 20 mm / 0,8”
x
T-system
Universal
Universal
1
4
2
x2x2
1
14
2
14
14
<=30 cm / 11,8”
(pag. 7)
(pag. 6)
5
4
Universal
Universal
x: 20 mm / 0,8”
x
T-system
14
3
= =
NO OK
2 Nm
1,5 lbf·ft
2 Nm
1,5 lbf·ft
14
x2x2
-4-
All manuals and user guides at all-guides.com
NQ
1
Sx
Dx
1
3 2
2 2
4 2
51
6 1
M6x25
13mm
0.5”
1
5/6
3
4
3
4
4
6
5
3
x: 20 mm / 0,8”
x
T-system
Universal
Universal
1
4
2
x2x2
1
14
2
14
14
<=30 cm / 11,8”
(pag. 7)
(pag. 6)
5
4
Universal
Universal
x: 20 mm / 0,8”
x
T-system
14
3
= =
NO OK
2 Nm
1,5 lbf·ft
2 Nm
1,5 lbf·ft
14
x2x2
-5-
All manuals and user guides at all-guides.com

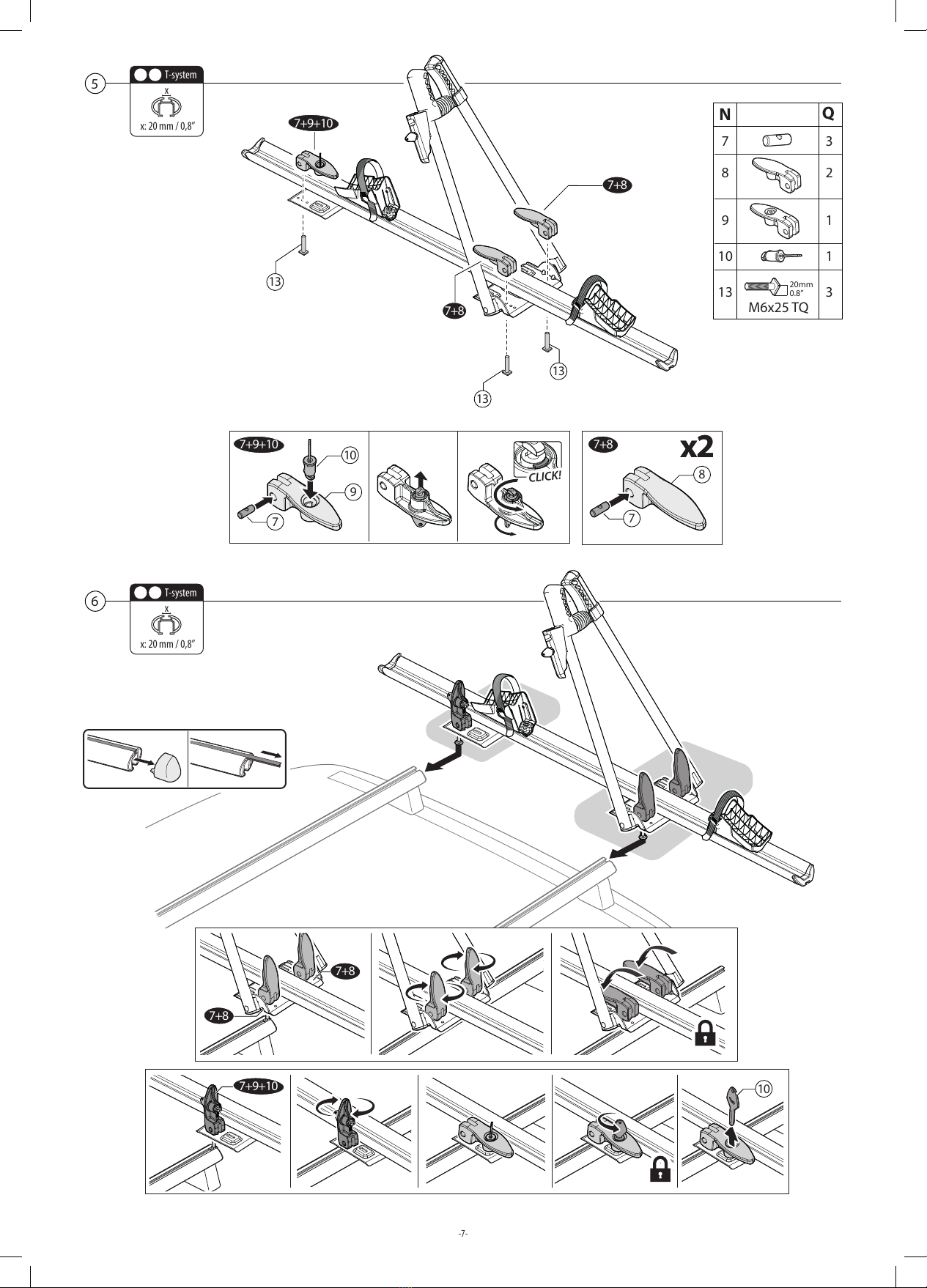

11
12
NQ
M6x60
7 3
8 2
9 1
10 1
11 3
12 3
4
8
7+9+10
7+8
7+8
7
8
7+8
11
11 12
12
10
7
9
CLICK!

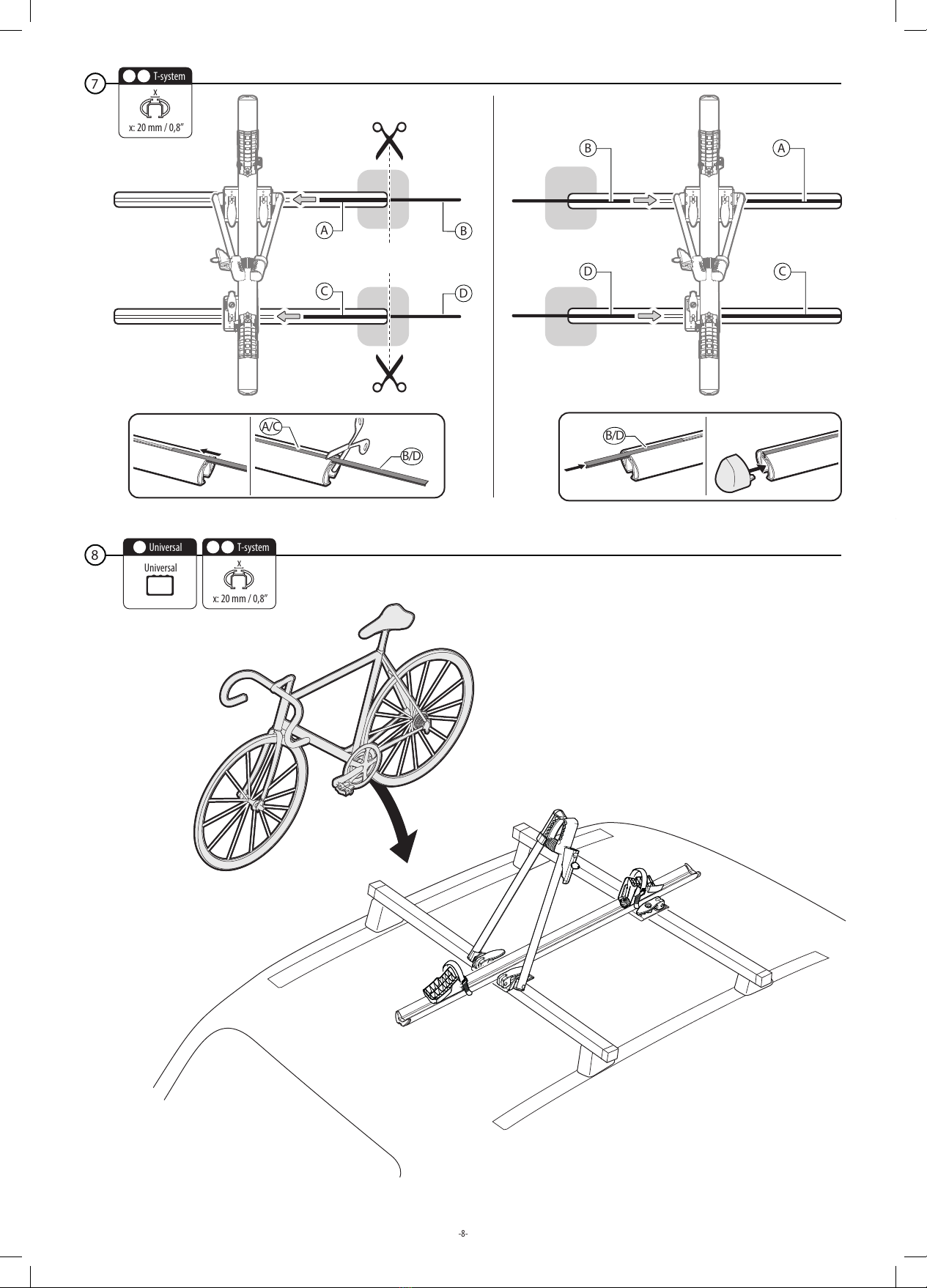

7+9+10
11
11
7+8
12
7+8
7+8
8
12
7
12
7+9+10
10
10
910
12
7
7+9+10 7+9+10
Universal
Min 30mm - 1,2”
Max 65mm - 2,5”
Min 25mm / 1”
Max 35mm / 1,4”
B
A/B A
A
B
(pag. 8)
Universal
Universal
x2x2
-6-
All manuals and user guides at all-guides.com
all-guides.com

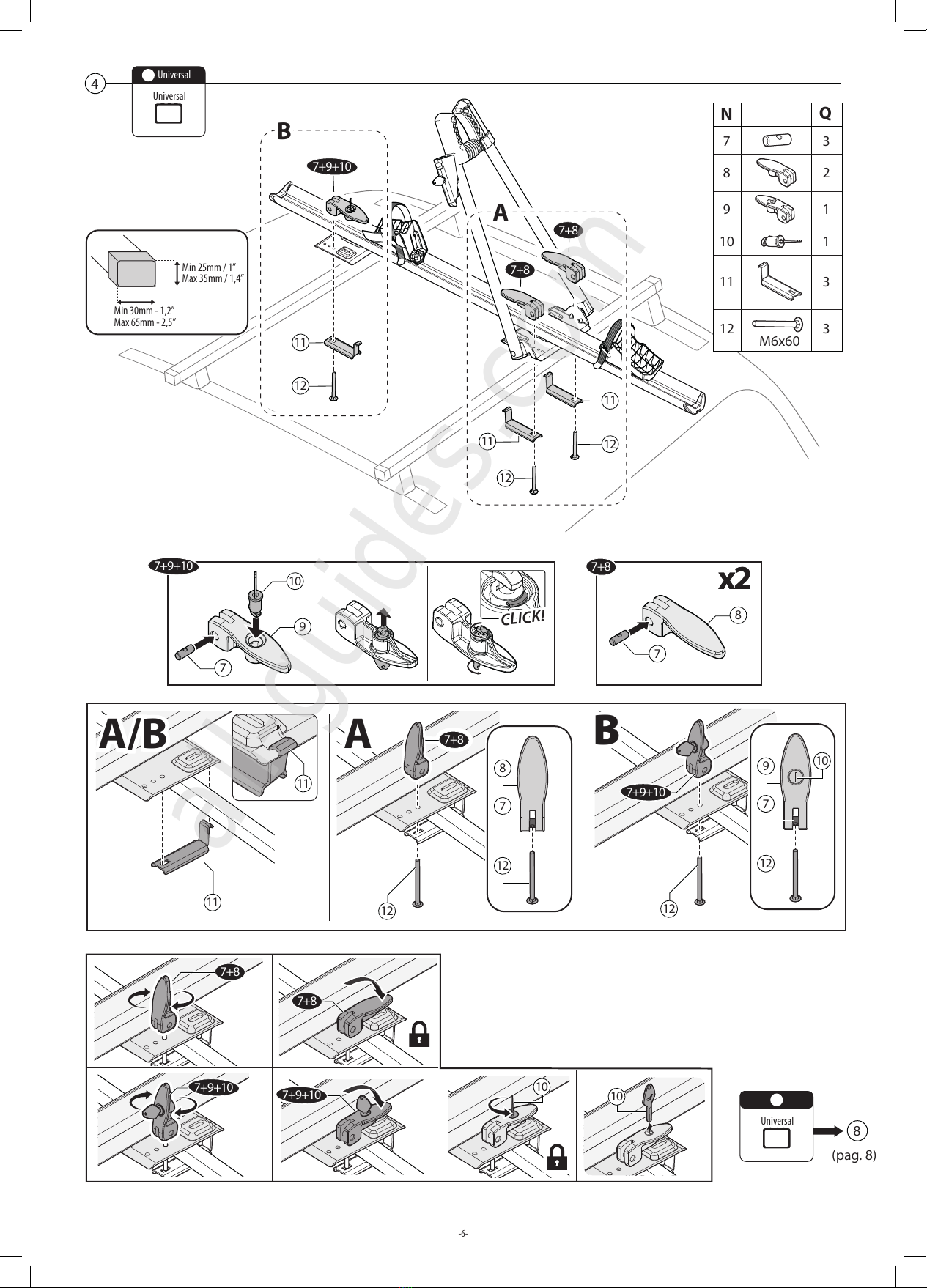

11
12
NQ
M6x60
7 3
8 2
9 1
10 1
11 3
12 3
4
8
7+9+10
7+8
7+8
7
8
7+8
11
11 12
12
10
7
9
CLICK!
7+9+10
11
11
7+8
12
7+8
7+8
8
12
7
12
7+9+10
10
10
910
12
7
7+9+10 7+9+10
Universal
Min 30mm - 1,2”
Max 65mm - 2,5”
Min 25mm / 1”
Max 35mm / 1,4”
B
A/B A
A
B
(pag. 8)
Universal
Universal
x2x2
5
NQ
7 3
8 2
9 1
10 1
13 3
M6x25 TQ
20mm
0.8”
7+9+10
7+8
7
8
7+8
13
13
7+8
13
10
7
9
CLICK!
7+9+10
6
7+9+10 10
7+8
7+8
x: 20 mm / 0,8”
x
T-system
x: 20 mm / 0,8”
x
T-system
x2x2
-7-
All manuals and user guides at all-guides.com

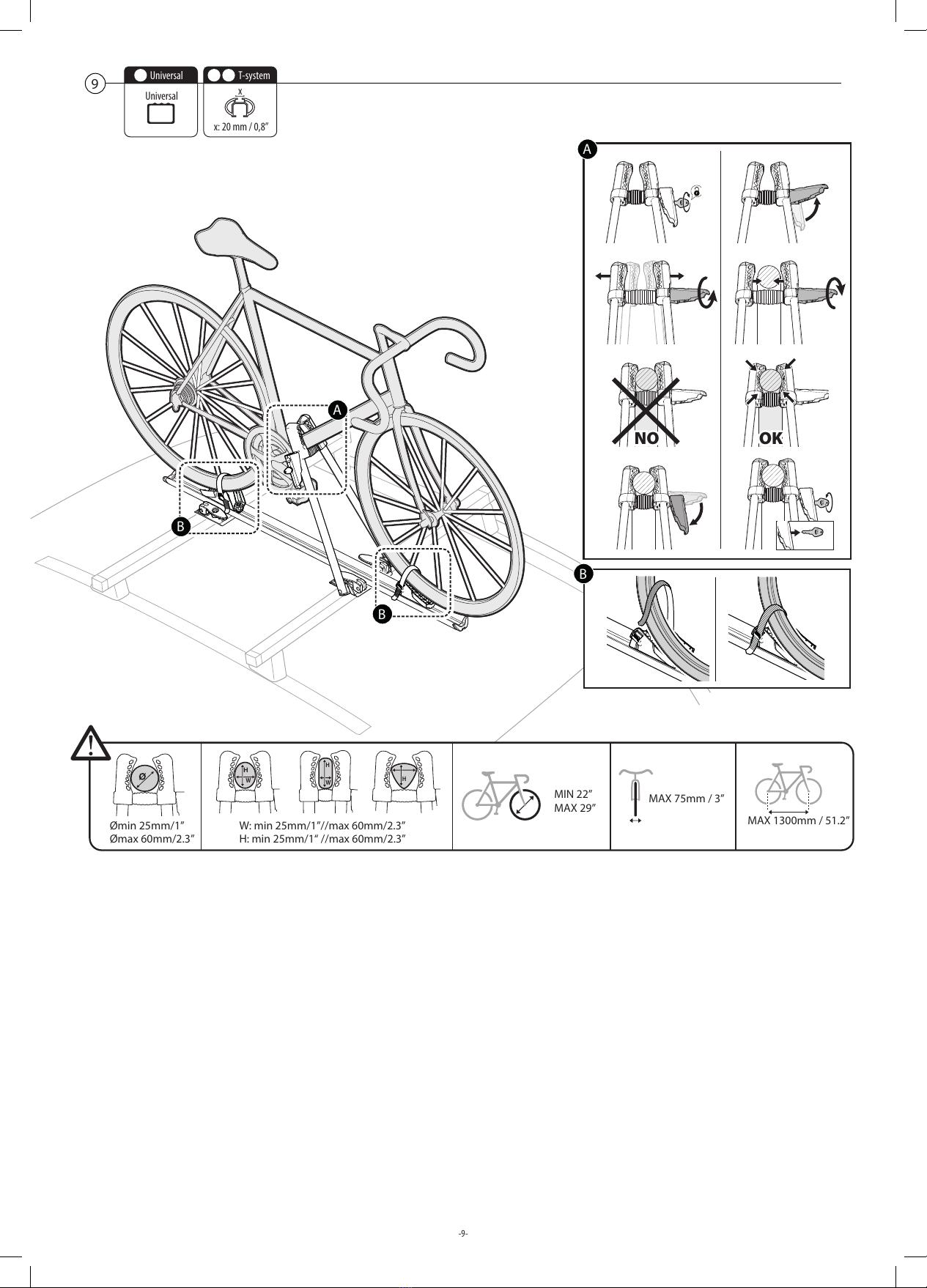

D
B
C
A
7
D C
B A
B/D
B/D
A/C
8
x: 20 mm / 0,8”
x
T-system
x: 20 mm / 0,8”
x
T-system
Universal
Universal
9
MAX 75mm / 3”
MIN 22”
MAX 29”
MAX 1300mm / 51.2”
B
B
B
A
xxxx
xxxx
xxxx
NO OK
A
Ømin 25mm/1”
Ømax 60mm/2.3”
W: min 25mm/1”//max 60mm/2.3”
H: min 25mm/1“ //max 60mm/2.3”
H
W
W
H
x: 20 mm / 0,8”
x
T-system
Universal
Universal
-8-
All manuals and user guides at all-guides.com
D
B
C
A
7
D C
B A
B/D
B/D
A/C
8
x: 20 mm / 0,8”
x
T-system
x: 20 mm / 0,8”
x
T-system
Universal
Universal
9
MAX 75mm / 3”
MIN 22”
MAX 29”
MAX 1300mm / 51.2”
B
B
B
A
xxxx
xxxx
xxxx
NO OK
A
Ømin 25mm/1”
Ømax 60mm/2.3”
W: min 25mm/1”//max 60mm/2.3”
H: min 25mm/1“ //max 60mm/2.3”
H
W
W
H
x: 20 mm / 0,8”
x
T-system
Universal
Universal
-9-
All manuals and user guides at all-guides.com

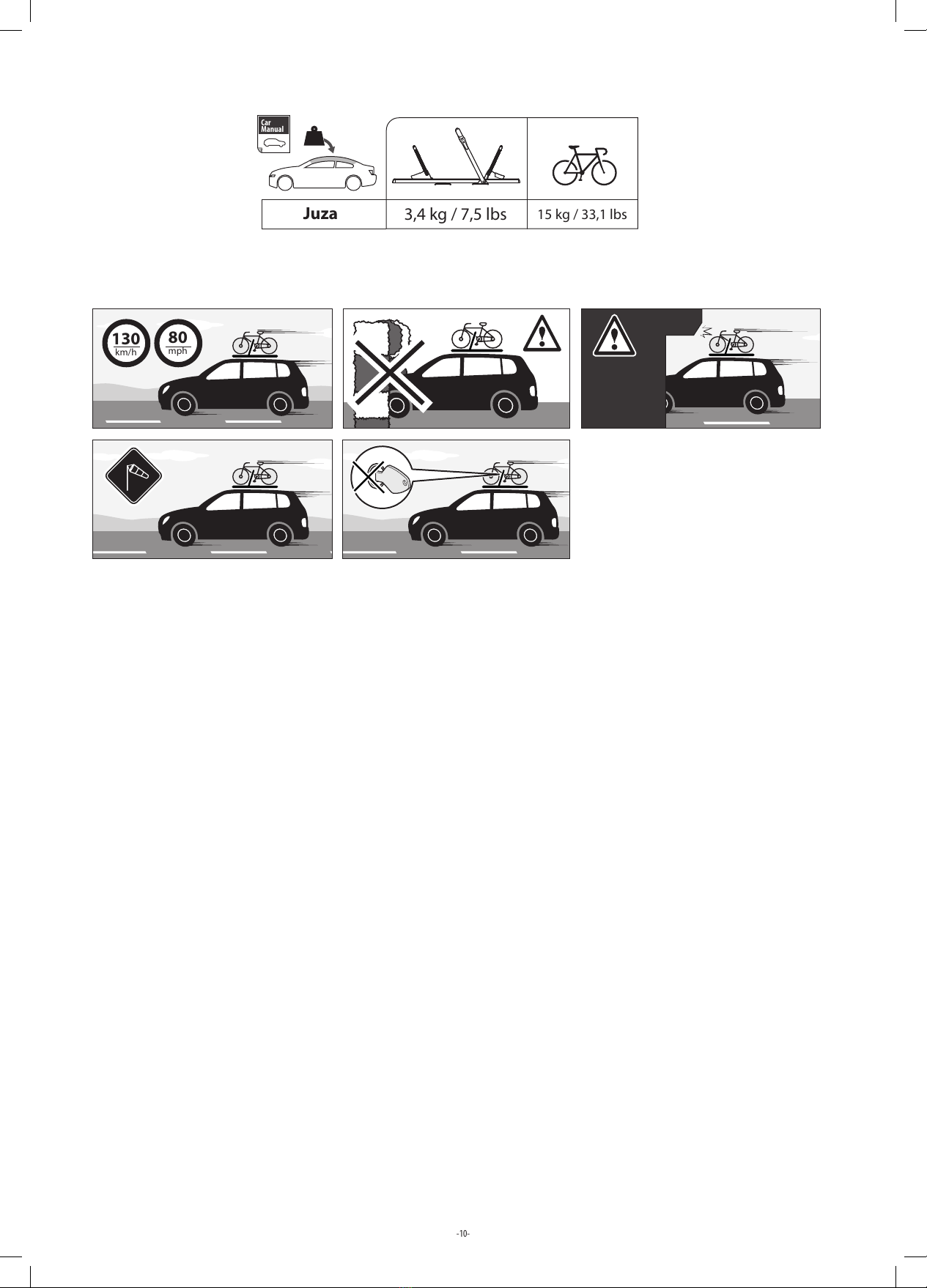

130
km/h
80
mph
Juza 15 kg / 33,1 lbs
3,4 kg / 7,5 lbs
Car
Manual
-10-
All manuals and user guides at all-guides.com
