Mercury Pinpoint GPS Manuale utente
FCC and IC Compliance Statement
PINPOINT KEY FOB, FCC ID ‑ MVU10148
ACMA: N2523
IC: 6094A‑09291, 6094A‑09305
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received including
interference that may cause undesired operation.
This device complies with FCC Rules. Changes or modifications not
expressly approved by MotorGuide could void the user's authority to
operate the equipment.
The MotorGuide Pinpoint GPS System complies with Industry Canada
RSS‑210 standard. See RSS‑GEN 7.1.5. The term "IC:" before the
certification/registration number only signifies that registration was
performed based on a Declaration of Conformity indicating that Industry
Canada technical specifications were met. The term "IC:" before the
certification/registration number does not imply that Industry Canada
approved the equipment.
EU Compliance Statement
Attwood Corporation hereby declares that the Motorguide Pinpoint GPS
System is in compliance with the essential requirements and other
relevant provisions of the 99/5/EC R&TTE directive.
A copy of the original CE Declaration of Conformity is on our website at
http://www.motorguide.com/support/certifications.
Environmental Compliance Statement
All MotorGuide products that are subject to the 2002/96/EC WEEE
directive are compliant with the WEEE marking requirement. Such
products are marked with the "crossed‑out wheelie bin" WEEE symbol
(shown, below) in accordance with European Standard EN50419.
54539
eng i
© 2014 Mercury Marine Pinpoint GPS 90-8M0086988 1213
The symbol on the product or its packaging indicates that this product must not
be disposed of with your other household waste. Instead, it is your
responsibility to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at
the time of disposal will help conserve natural resources and ensure that it is
recycled in a manner that protects human health and the environment. For
more information about where you can drop off your waste for recycling, please
contact your local authority, or where you purchased your product.
Thank You
Thank you for purchasing the MotorGuide Pinpoint GPS Navigation System.
The Pinpoint GPS Navigation System is designed to enhance the precision
control and functionality of your MotorGuide trolling motor. We're confident that
the Pinpoint GPS will enhance your fishing experience and we appreciate that
you chose MotorGuide.
Warranty Message
The product you have purchased comes with a Limited Warranty from
MotorGuide. The terms of the policy are set forth in the Warranty Information
section of this manual. The policy statement contains a description of the
duration of coverage, important disclaimers and limitations of damages,
and other related information. Please review this important information.
The description and specifications contained herein were in effect at the time
this manual was approved for printing. MotorGuide, whose policy is one of
continued improvement, reserves the right to discontinue models at any time, to
change specifications, designs, methods, or procedures without notice and
without incurring obligation.
MotorGuide, Lowell, Michigan U.S.A.
Mercury Marine
Eagle and Lowrance are registered trademarks of Navico Inc. Garmin is a
registered trademark of Garmin Ltd. Humminbird is a registered trademark of
Johnson Outdoors Marine Electronics, Inc. Vexilar is a registered trademark of
Vexilar, Inc.
Copyright and Trademark Information
© MERCURY MARINE. All rights reserved. Reproduction in whole or in
part without permission is prohibited.
Alpha, Axius, Bravo One, Bravo Two, Bravo Three, Circle M with Waves Logo,
K‑planes, Mariner, MerCathode, MerCruiser, Mercury, Mercury with Waves
Logo, Mercury Marine, Mercury Precision Parts, Mercury Propellers, Mercury
Racing, MotorGuide, OptiMax, Quicksilver, SeaCore, Skyhook, SmartCraft,
Sport‑Jet, Verado, VesselView, Zero Effort, Zeus, #1 On the Water and We're
Driven to win are registered trademarks of Brunswick Corporation. Pro XS is a
trademark of Brunswick Corporation. Mercury Product Protection is a registered
service mark of Brunswick Corporation.
ii eng
Warranty Information
MotorGuide Two Year Limited Warranty............................................................ 1
Product Installation and Operation
Installing the Pinpoint GPS Modules.................................................................. 3
Operating the Pinpoint GPS System................................................................ 12
Owner Service Assistance
Frequently Asked Questions and Troubleshooting........................................... 26
Service Assistance........................................................................................... 27
Mercury Marine Service Offices........................................................................ 27
eng iii
eng iv
MotorGuide Two Year Limited Warranty
KEEP YOUR ORIGINAL PURCHASE RECEIPT OR BILL OF SALE.
1. For recreational use customers, Pinpoint GPS components are warranted
to the original retail purchaser to be free from defects in material or
workmanship for a period of two years from the date of purchase.
2. To obtain warranty service, the purchaser should deliver or return the unit
(postage prepaid and insured) to any MotorGuide authorized service
dealer. DO NOT RETURN TO PLACE OF PURCHASE unless they are
an authorized service center. Products returned by mail should be
carefully packaged and include a note describing the nature of the
problem and/or service requested, customer address, and phone number.
A copy of the receipt, bill of sale, registration verification or other proof of
purchase is required with the return of the product for warranty
consideration. Warranty claims will not be accepted without presentation
of purchase receipt for the trolling motor, other verification of registration,
or bill of sale for a boat package.
3. MotorGuide, at its discretion, will repair or replace items covered under
the terms of this warranty. Neither MotorGuide nor MotorGuide service
dealers are responsible for damages to MotorGuide products due to
repairs performed by anyone other than an authorized MotorGuide
service dealer. Neither MotorGuide nor Attwood is responsible for failure
or damage caused by improper installation, set‑up, preparation, or
previous service or repair errors.
4. For commercial use and government use customers, Pinpoint GPS
components are warranted to the original retail purchaser to be free from
defects in material or workmanship for one (1) year. Commercial use is
defined as any work or employment‑related use of the product, or any use
of the product which generates income, for any part of the warranty
period, even if the product is only occasionally used for such purpose
such as rental fleets, guides, fish camps or similar operations. Warranty is
not transferable to any subsequent purchaser. The Mercury Product
Protection plan is not available to commercial use or government use
customers.
5. Warranty coverage is available to customers that purchase from an
authorized dealer or retailer that is authorized by MotorGuide to distribute
the product in the country in which the sale occurred. Warranty coverage
and duration varies by the country in which the owner resides. This
Limited Warranty begins on the date the product is first sold to a
purchaser or the date on which the product is first put into service,
whichever occurs first. The repair or replacement of parts, or the
performance of service under this warranty, does not extend the life of this
warranty beyond its original expiration date. Promotional warranties are
not included in this statement and coverage may vary by promotion.
Product either sold or put into service more than six years from date of
manufacture is excluded from warranty coverage.
WARRANTY INFORMATION
eng 1
6. We reserve the right to improve the design of any trolling motor or
accessory without assuming any obligation to modify any trolling motor or
accessory previously manufactured.
7. This warranty will not apply to: 1) haul‑out, launch, towing and storage,
transportation charges and/or travel time, telephone or rental charges of
any type, inconvenience, or loss of time or income, or other consequential
damages; or 2) removal or replacement of boat partitions or material
because of boat design for necessary access to the Product; or 3)
disconnection and reconnection of hard‑wired trolling motors.
8. TERMINATION OF COVERAGE: Warranty coverage may be terminated
for repossessed product, or product purchased at auction, from a salvage
yard, from a liquidator, from an insurance company, from unauthorized
marine dealers or boatbuilders, or other third party entities.
9. ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE EXCLUDED
FROM THIS WARRANTY, WARRANTIES OF MERCHANTABILITY AND
FITNESS ARE EXCLUDED FROM THIS WARRANTY, IMPLIED
WARRANTIES ARE LIMITED TO THE LIFE OF THIS WARRANTY.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER LEGAL RIGHTS WHICH MAY VARY FROM
STATE TO STATE.
For your records:
Model number _______________________________
Serial number _______________________________
WARRANTY INFORMATION
2 eng

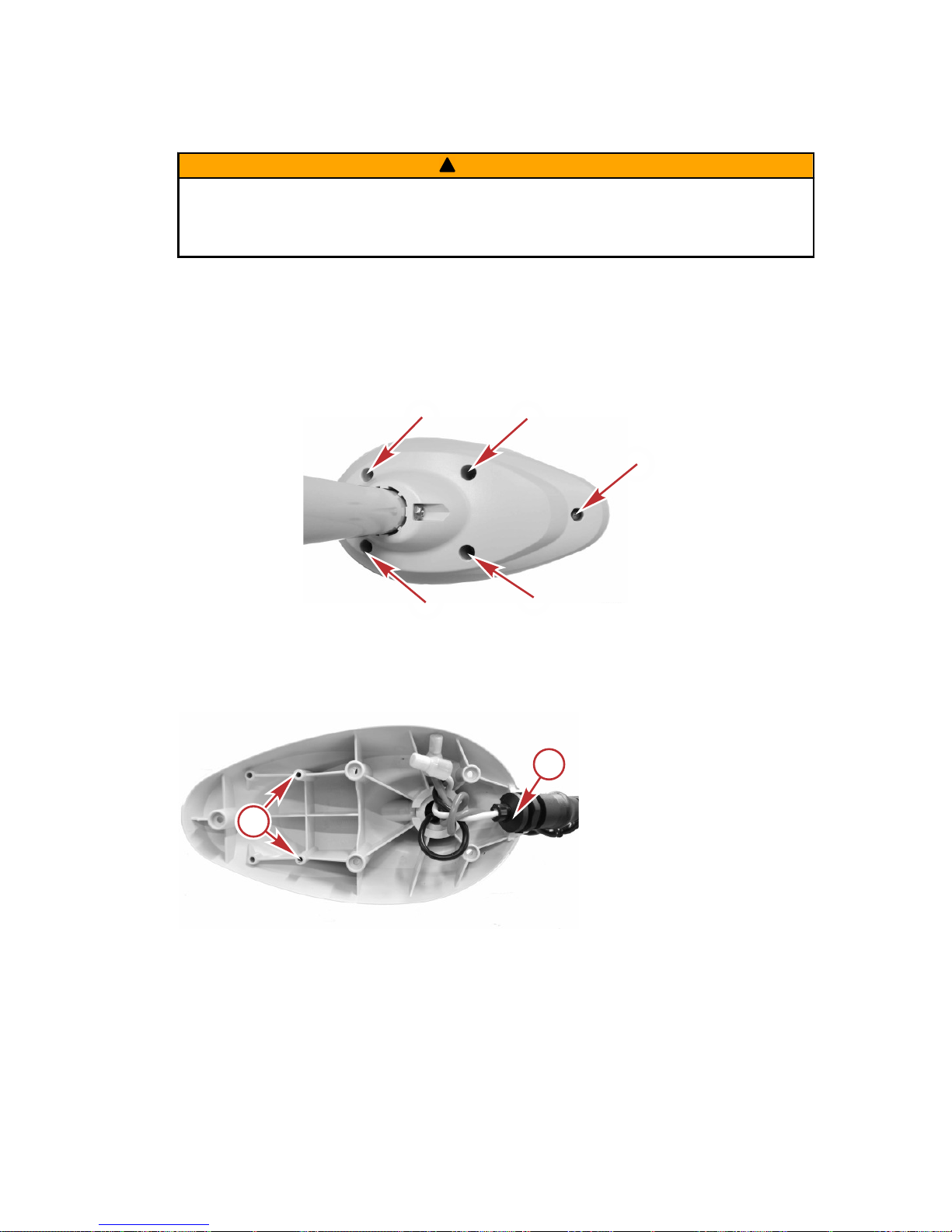

Installing the Pinpoint GPS Modules
! WARNING
Before working around electrical system components, disconnect the battery
cables from the battery to prevent injury or damage to the electrical system
due to an accidental short circuit.
1. Starting with the negative (–) lead, disconnect the trolling motor battery
cables from the battery, or unplug the trolling motor from the boat's power
receptacle.
2. Remove the five screws from under the trolling motor head. Remove the
cover from the trolling motor head.
52749
Screw locations—under trolling motor head
3. Remove the cable grommet from the trolling motor head.
a - GPS module mounting holes
b - Cable grommet
aa
b
54435
PRODUCT INSTALLATION AND OPERATION
eng 3
4. Place the upper GPS module into the trolling motor head as shown, with
the GPS cable exiting the module from below. Secure the upper GPS
module to the trolling motor head with two mounting screws. Push the
power wires to one side to ease installation of the GPS cable. Route the
GPS cable out of the trolling motor head, through the slot in the cable
grommet as shown.
NOTE: The cable grommet is molded to allow the GPS cable to be routed
under it.
IMPORTANT: Do not overtighten the mounting screws or use power tools to
tighten the screws.
a - Upper GPS module
b - Mounting screws (2)
c - Incorrect GPS cable routing—do not install the cable here
d - Cable grommet
e - Unused slot for sonar cable
f - GPS cable
53468
a
b
b
d
d
f
e
f
c
PRODUCT INSTALLATION AND OPERATION
4 eng
5. Place the cover onto the trolling motor head. Ensure that the cable
grommet is seated in the trolling motor head and that no wires are
pinched. Install the five screws that secure the cover to the trolling motor
head.
IMPORTANT: Do not overtighten the screws or use power tools to tighten the
screws.
6. Extend the trolling motor column so that the coiled power cable is as long
as possible. Starting from the trolling motor head, wrap the coiled GPS
cable around each coil of the power cable until you reach the lower
mount. This will place the coiled GPS cable inside the coils for the power
cable.
54436
PRODUCT INSTALLATION AND OPERATION
eng 5
7. Remove the side panel screws from each side of the trolling motor. Gently
pull the side panels away from the mount, taking care not to damage the
locating tabs, and remove the side panels from both sides of the trolling
motor.
a - Side panel screws
b - Locating tab
8. Remove the status indicator light panel from the trolling motor by lifting it
up, then rotating it to clear the foot release lever. Do not unplug the status
indicator light panel from the trolling motor.
54527
9. Install the lower GPS module into the empty slot into the trolling motor
base in the following order:
Place the lower GPS module gently into the empty slot. Route the
NMEA cable through the slots as shown, with the connector exiting
the trolling motor base.
NOTE: If the NMEA cable will not be used, it can be coiled and left inside the
trolling motor base.
Remove the cap from the female GPS connector.
aa
b54454
PRODUCT INSTALLATION AND OPERATION
6 eng
Indice
Altri manuali Mercury GPS
