Merits S930A Manuale utente
S930A S940A

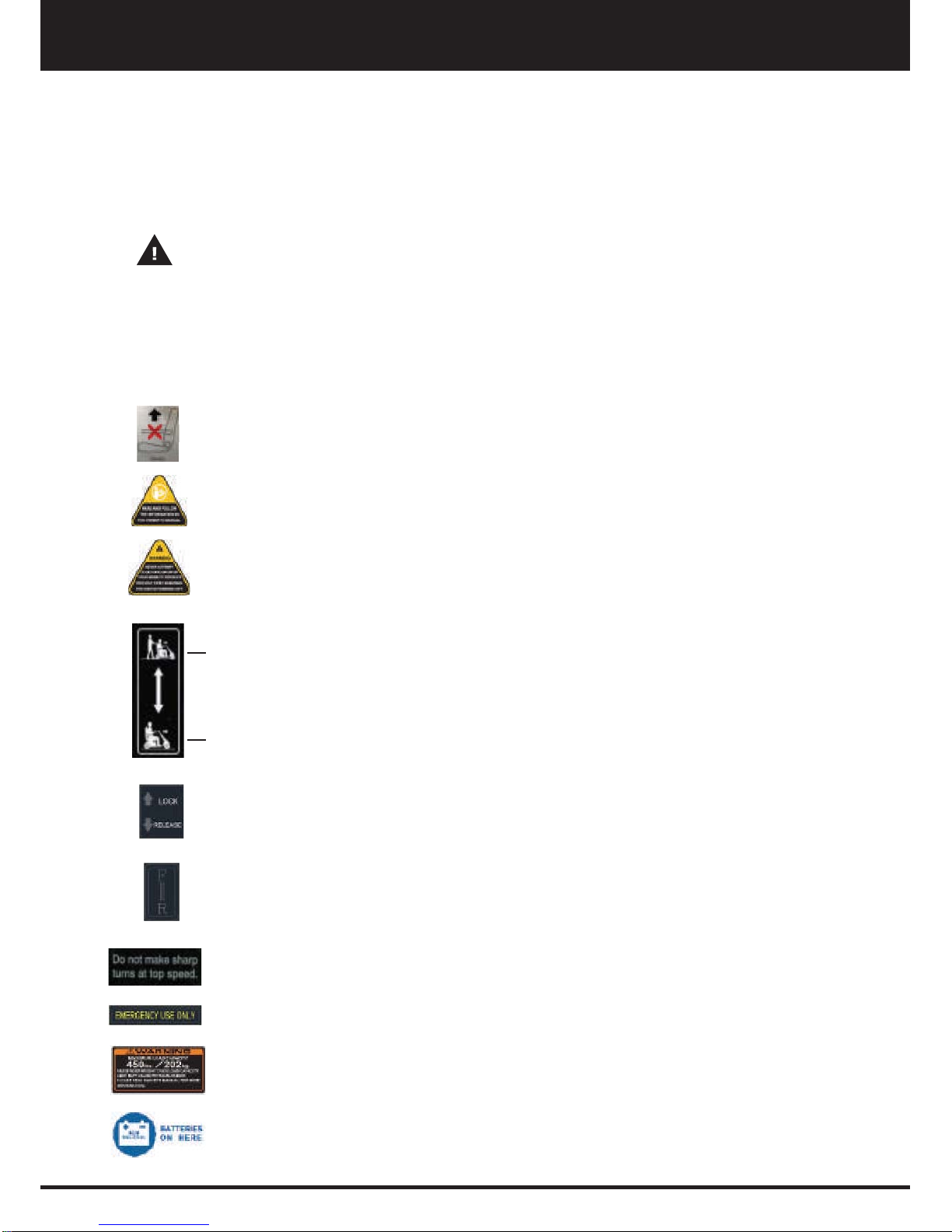

PRODUCT SAFETY SYMBOLS
The symbols below are used on the scooter to identify warnings, mandatory
actions, and prohibited actions.
It is very important for you to read and understand them completely.
HAZARD IDENTIFICATION
The hazard identification surround shape is represented as a yellow symbol on a
black triangle with a black border. It is used to indicate a potentially hazardous
condition/situation that could result in personal injury, component damage, or
malfunction.
Pinch/Crush points created during assembly.
Read and follow the information in the owner’s manual.
Never attempt to get onto or off of your mobility product without first
ensuring the unit is powered off.
Unlocked and in freewheel mode.
Indicatestiller angle adjustment.
Indicate forward and backward.
Do not make sharp turns at top speed.
Emergency use only.
Maximum load capacity 450lbs/202kg.
Locked and in drive mode.
Place unit on level ground and stand to one side when changing from
drive mode to freewheel mode or freewheel mode to drive mode.
01
Batteries on here.

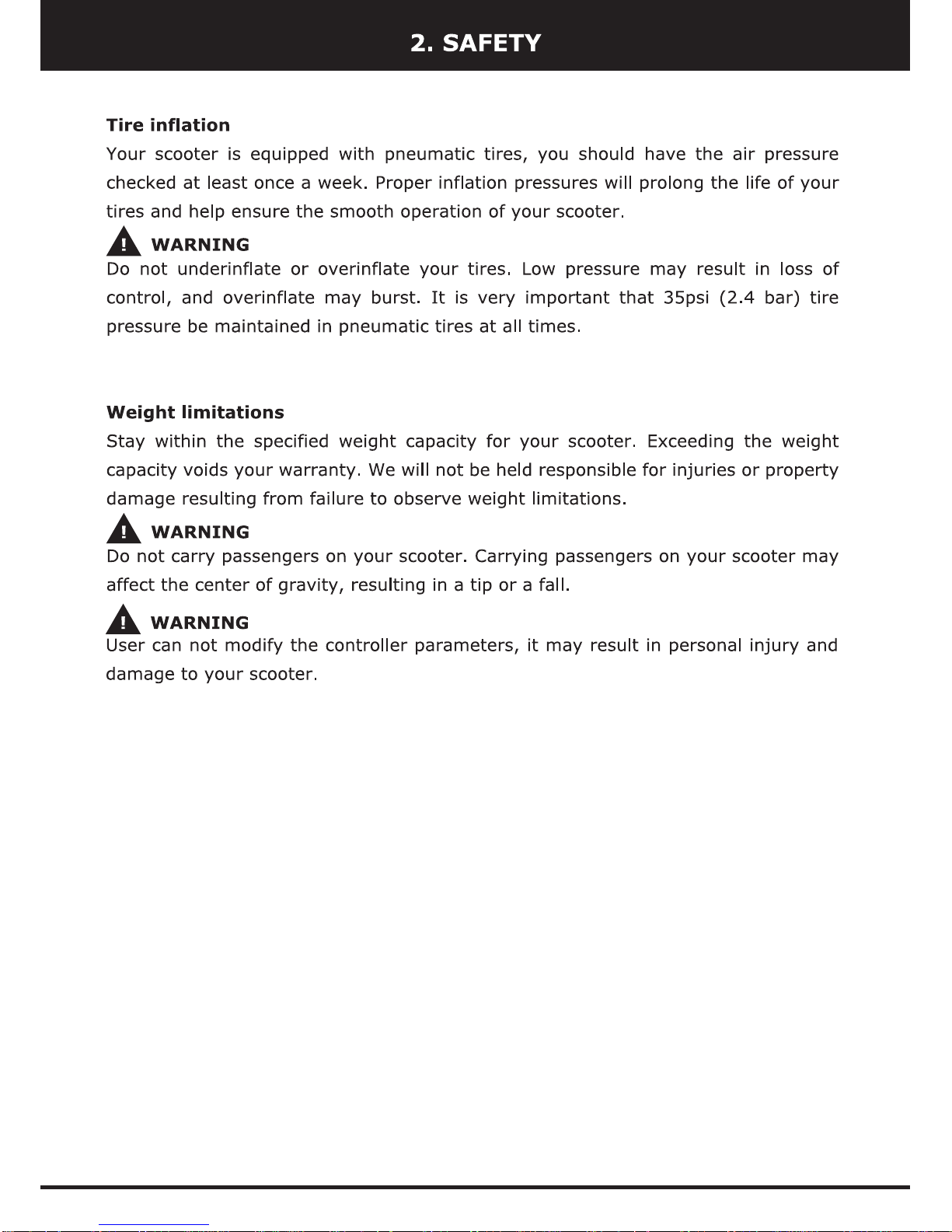

WARNING
For your safety, please read the owner’s manual before operating this product.
Before reading through the owner’s manual, please do not operate the product.
WARNING
For your safety, when you operate the scooter or before you operate the scooter,
if you find any problem, please stop operating the scooter immediately and contact
with the dealer for solving the problem.
WARNING
For your safety, the user should be comply with the following condition for operating
the scooter:
1. Spirits in good condition, can clearlydistinguish thesurroundingscondition
andphysicalfunction are normal to operate the scooter.
2. Afterdrinkingor eatingofalcoholicbeveragesor food, do notoperate the product.
3. Before operating the scooter, do nottake medicine which might
affectsanityormental state.
WARNING
For your own safety, Visually Impaired person can not operate this product
02
Indicator
Seat Pivot
Lever
Seat Position
Adjuster
Headlight
Front Bumper
Front Wheel
Wig-wag Control Lever
Control Panel
Mirror
OPTIONAL ONLY FOR GPS/MOBILE
PHONE(12V/5A SOCKET)
Tiller Angle
Adjustment Lever
Tiller
Adjustment
Armrest
Removable Seat
Free Wheel Lever
Rear Light
Rear Whee
03
Indicator
Seat Pivot Lever
Seat Position
Adjuster
Headlight
Front Bumper
Front Wheel
Rear Whee
Wig-wag Control Lever
Control Panel
Mirror
OPTIONAL ONLY FOR GPS/MOBILE
PHONE(12V/5A SOCKET)
Tiller Angle
Adjustment Lever
Tiller
Adjustment
Armrest
Removable Seat
Free Wheel Lever
Rear Light
04
S940 (4-Wheels) S930 (3-Wheels)
12 kph / 7.5 mph ; 15 kph / 9.6 mph
88 km/55 mil
210 cm/82.7 in 135 cm/53.2 in
13 cm / 5.1 in
650W
PG S-Drive 140 ; Rhino II 160A
12V / 100AH x 2PCS
Max. 8A Off-board (Note)
10
14"
16"
Intelligent,regenerative and electromagnetic brakes
154 cm / 60.6 in
72 cm / 28.3 in
102 kg / 224 lb
204 kg / 450 lb
20 kg / 44 lb (each)
This specification is for universal use and real spec may vary by regions and countries.
Note : Depends on the specifications of the accompanied charger.
Model Number
Max. speed up to
Range Up To
Turning Radius
Ground Clearance
Motor
Controller
VRLA(valve-regulated lead-acid)
Battery
Charger
Gradient
Front Wheel
Rear Wheel
Brake
Overall Length
Overall Width
Total Weight Without Batteries
Weight Capacity
Seat Weight
30 kg / 67 lb (each)
Battery Weight
The product meets all the requirements of ISO 7176-14:2008. Forces necessary to
operate the control devices: engaging 45N,disengaging 60N,speed control 3N,
push buttons 4N.
05
