Merloni Elettrodomestici
EN 03-05-20/01 1-54
Language Issue/Edition Page
Service manual
DISHWASHER EVO3
Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 2-54
Language Issue/Edition Page
Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 3-54
Language Issue/Edition Page
Contents
1 EXTERNAL FEATURES 6
1.1 Programme selector 6
1.2 LED 7
1.3 LCD 8
1.4 LVS free-standing range installation key 8
2 DESCRIPTION OF STANDARD CYCLE 9
3 DESCRIPTION OF EVO3 CYCLES 12
3.1 Resetting a wash cycle 12
3.2 Standard cycle 12
3.3 Glassware cycle 12
3.4 Duo Wash cycle 13
3.5 Auto Wash cycle 13
3.6 Super wash cycle 15
3.7 Eco cycle 15
3.8 Rapid cycle 16
3.9 Special guest cycle 16
3.10 Soak cycle 16
3.11 Special Filter Cleaning cycle 17
4 COMPLETE WATER LINE DIAGRAM 20
4.1 Composition 20
4.2 Fill line functioning 23
4.3 Wash line functioning 24
4.4 Drain line functioning 24
4.5 Symmetrical microfilter 24
4.6 Troubleshooting 25
Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 4-54
Language Issue/Edition Page
5 FILL LINE AND OVERFLOW SYSTEM 26
5.1 Turbine fill functioning 26
5.2 Normal turbine fill analysis 27
5.3 Possible fill failures 27
5.4 Acquastop alarm 28
5.5 Bit 100 diagram 28
5.6 Replacing the Bit 100 card 30
5.7 Connection 33
5.8 Turbidity sensor 37
5.9 Use of rinse aid 37
5.10 Failures and possible causes 38
5.11 Duo wash 38
6 NEW DRYING SYSTEM WITH TURBO DRY (EVO 3) 39
7 SALT INDICATOR LIGHT 41
8 EVO3 TABLE OF ALARMS 46
9 TEST AND AUTOTEST CYCLES 49
9.1 To run the Test/Autotest programme follow the steps below: 49
9.2 RESET CODE 50
9.3 Test and Autotest specifications 50
10 CORRECT DISHWASHER FUNCTIONING 53
Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 5-54
Language Issue/Edition Page
List of components
Fill solenoid 20
Water meter turbine 20
Air-break chamber 20
Water softener 20
Wash pump + 1/2 load solenoid 21
Wash pump + duo wash motor 22
Concealed heating element 22
Symmetrical microfilter 24
LED Card 32
LCD Card 32
Turbidity sensor 37
New dryer chamber 40
High pressure sensor 43
TR (open heating element) 44
Dispenser 45
Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 6-54
Language Issue/Edition Page
1 EXTERNAL FEATURES

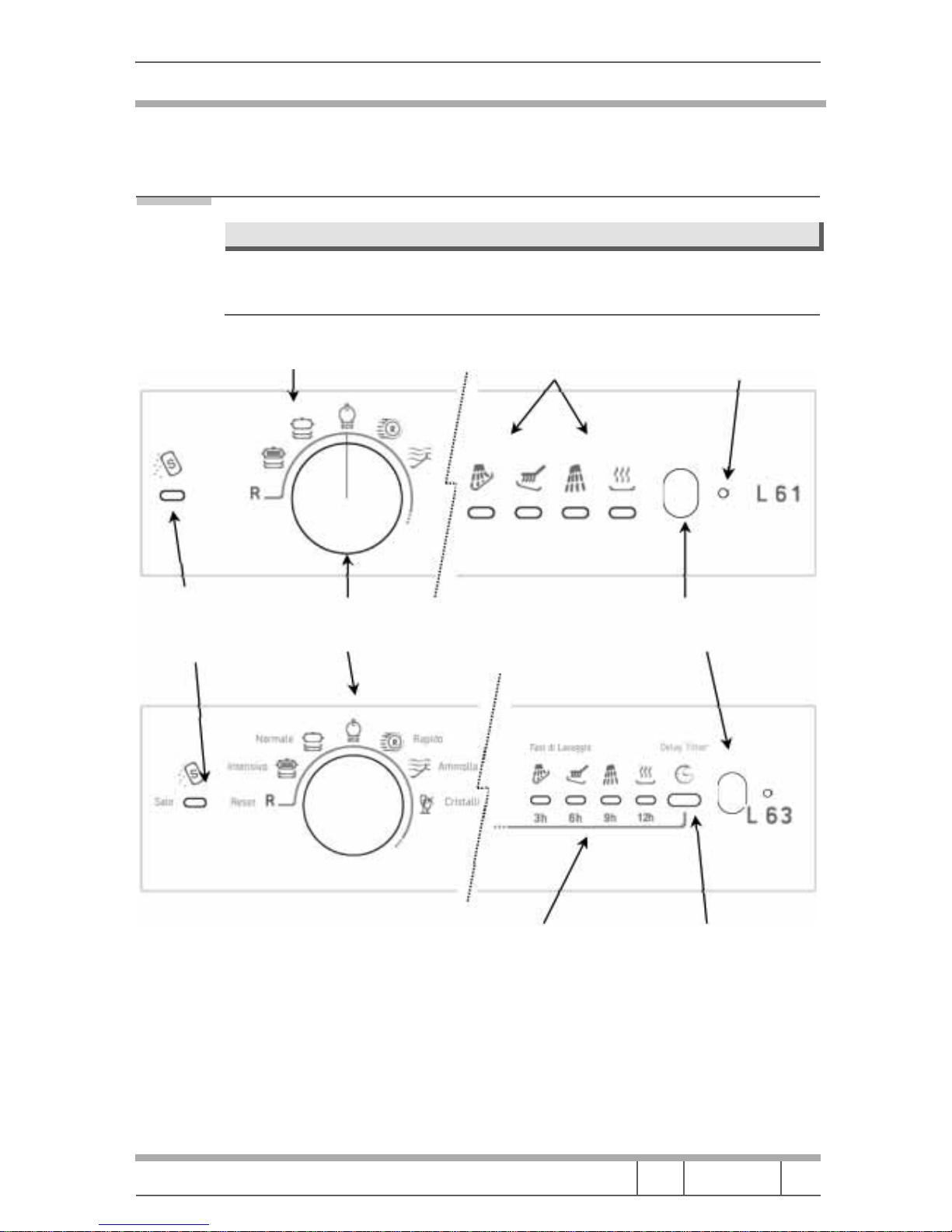

1.1 Programme selector
N.B. A DIWA 126 timer has been fitted in all machines with the 4 LEDs.
Programme
type + reset Indicator lights
cycle status ON-OFF light
Salt
indicator light
Programme
selector ON-OFF button
Programme selector,
delayed start button
Cycle status and delayed start
indicator lights
Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 7-54
Language Issue/Edition Page

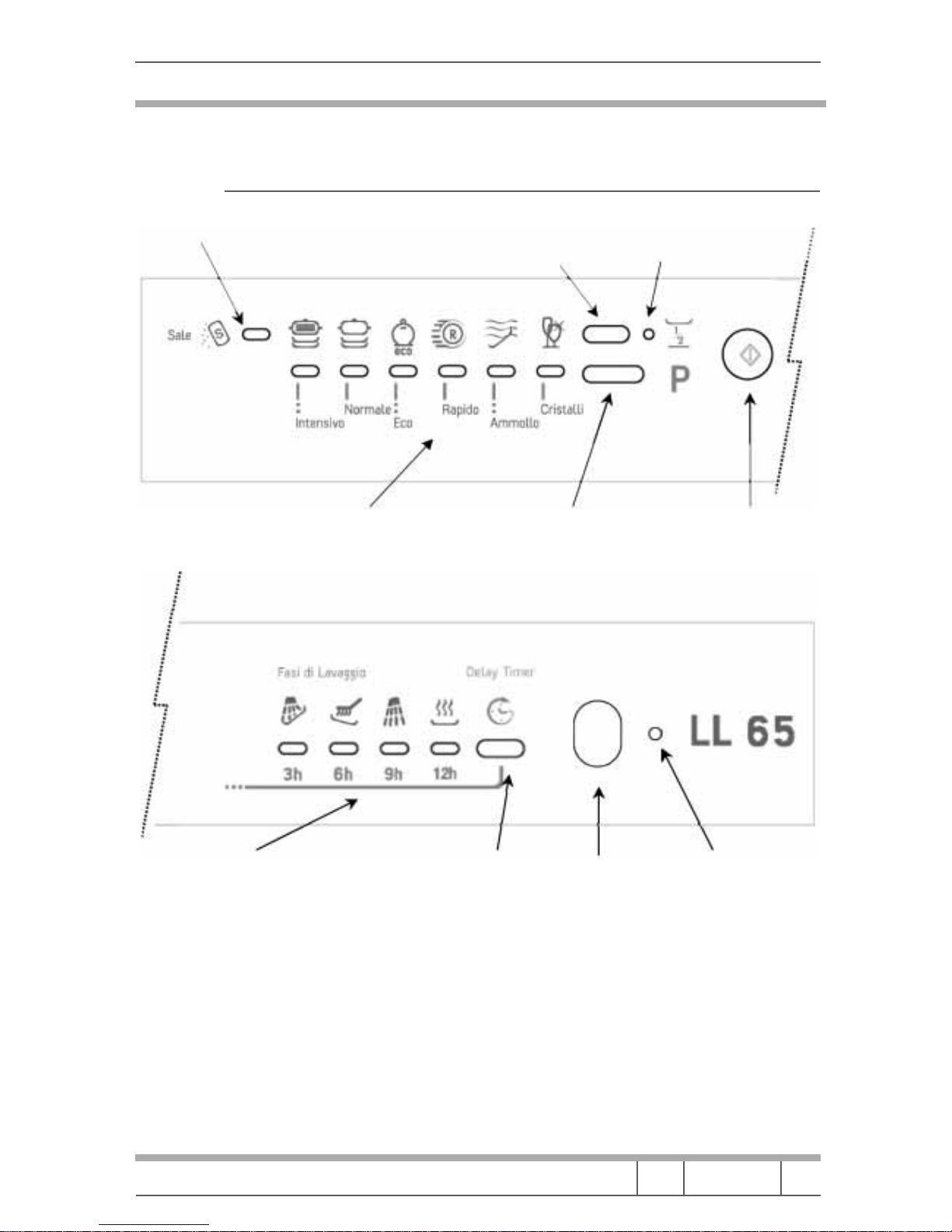

1.2 LED
Salt
indicator light
Half-load button Half-load indicator light
Programme
indicator light Programme
selector Start/Reset
button
Cycle status and delayed start
indicator lights Programme selector,
delayed start button On/Off light
On/Off
button
Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 8-54
Language Issue/Edition Page

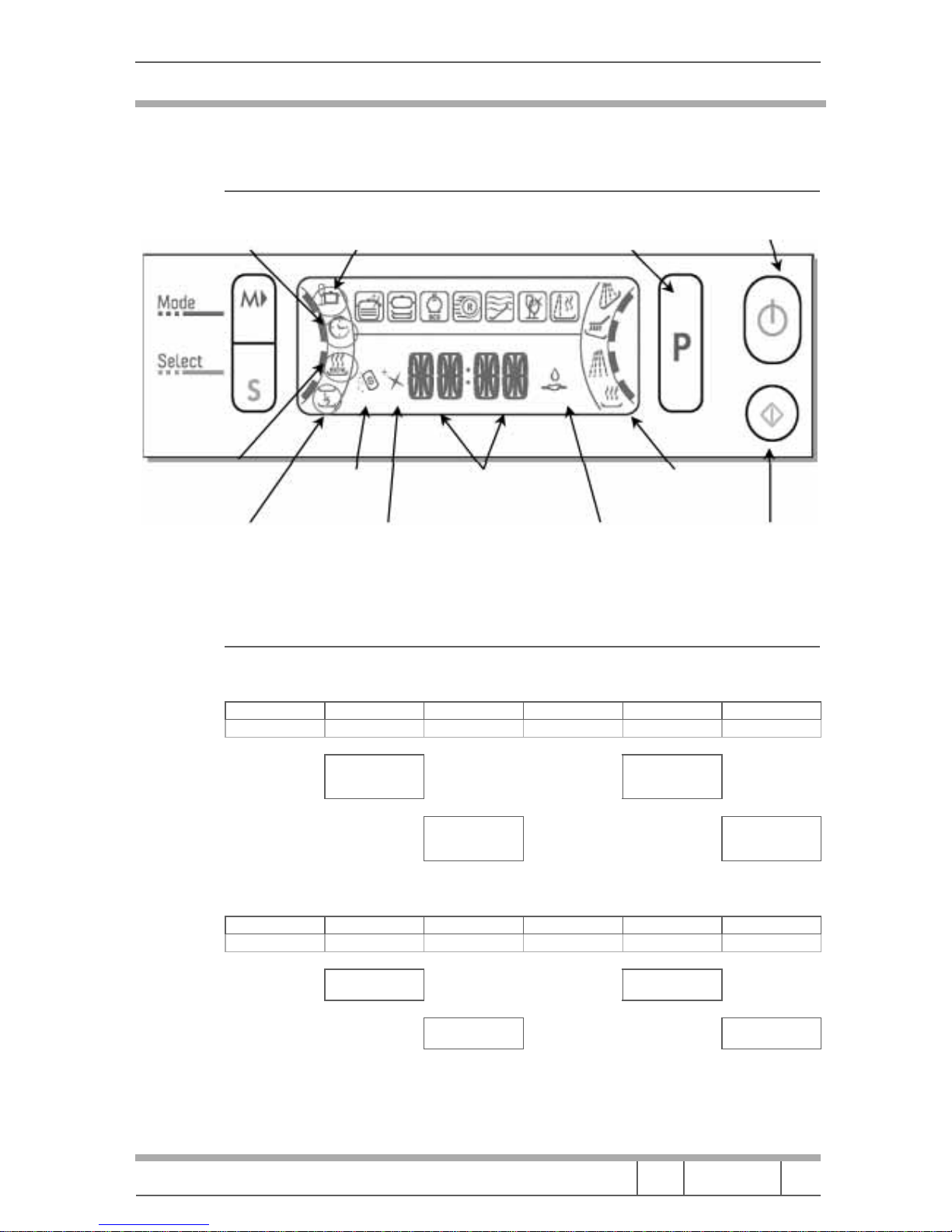

1.3 LCD
1.4 LVS free-standing range installation key
ARISTON
LL65TX
Dishwashers External features Width Performances Safety features Colour
L = 4 LEDs
D = LCD
X = Graphics display
Nothing = overflow
T = AcquaStop
6 = 60 cm
4 = 45 cm
Nothing = White
X = Stainless steel
N = Black
INDESIT
D63TYES
Dishwashers External features Width Performances Safety features Colour
Nothing = overflow
T = AcquaStop
6 = 60 cm
4 = 45 cm Nothing = White
YES = Silver
Delayed start
indicator light Programme indicator light
AUTO DUO WASH Programme selector Stand-by
button
Start/Reset button
Cycle status
indicator light
Leakage indicator
light
Multifunction number
readout
Rinse aid indicator
light
Top/bottom rack
indicator light
Extra dry indicator
light Salt indicator
light
Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 9-54
Language Issue/Edition Page
2 DESCRIPTION OF STANDARD CYCLE
The standard cycle comprises:
• one or more pre-rinses
• one wash cycle
• one cold or lukewarm rinse
• one hot rinse
• one drying cycle (see attached line drawing)
The pre-rinses remove larger food particles and are run with 5 grammes of
detergent. In cycles such as the intense wash, the pre-rinse will be heated.
The wash cycle is the stage in which food particles are removed through the
action of the enzymatic detergent and temperatures reached.
The rinse cycles eliminate any remaining dirt from plates as well as
preparing them for drying by dispensing the rinse aid and taking the
temperature over 60°C.

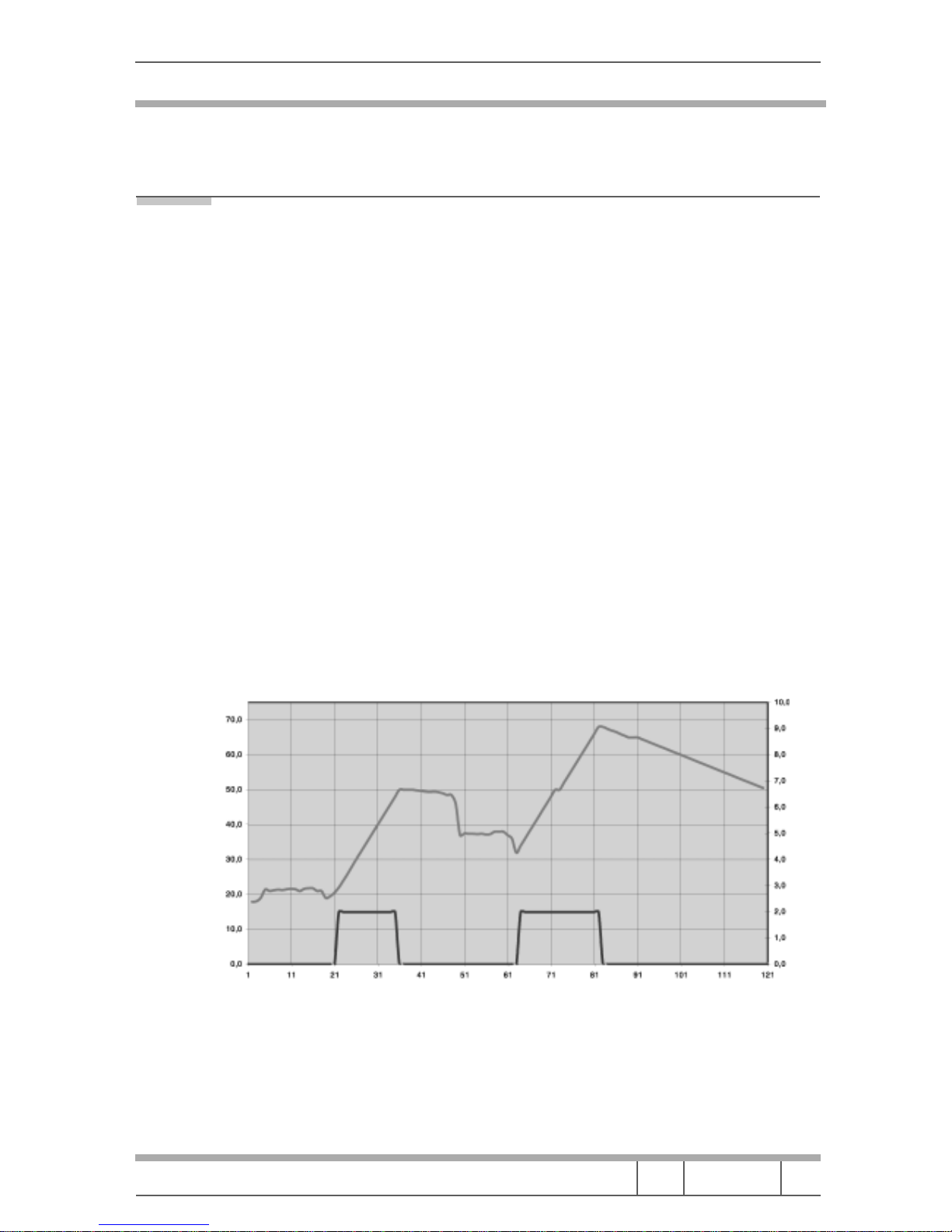

1. Chart 1 shows the temperatures reached throughout the cycle and when
the heating element switches on and off to reach the required temperature.
You will see the cold pre-rinse, wash with gradually increasing temperature
and hot-rinse stages.
time (min)
Variations in temperature during the cycle
heating element (KW)
temperature (C°)
Chart 1
Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 10-54
Language Issue/Edition Page

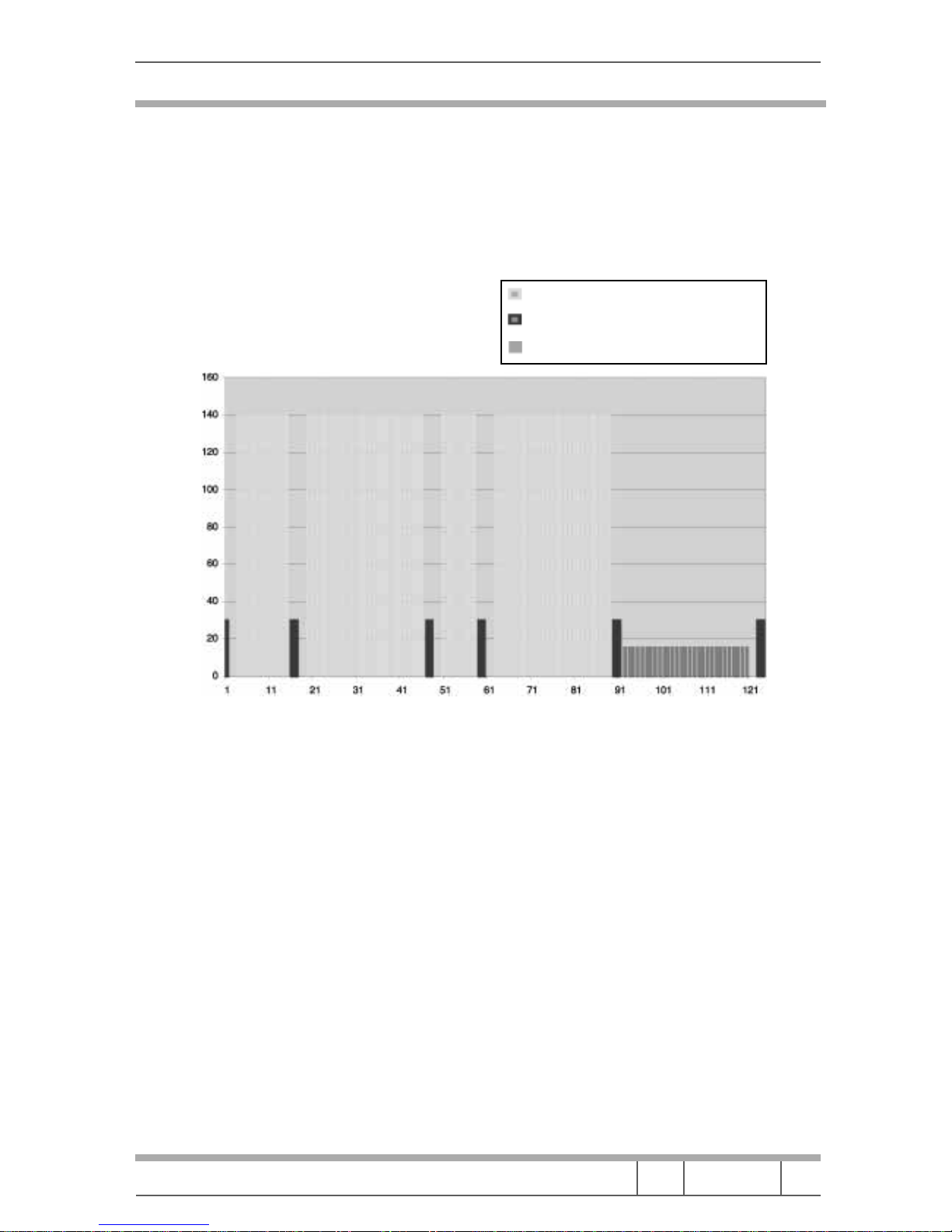

2. Chart 2 shows the activation of all motors:
a) motor pump
b) drain pump
c) fan (installed in models with LCD readout and graphics display)
pumps
time (min)
motor pump (required wattage)
drain pump (watts)
fan (watts)
activation (watts)
Chart 2
