MERLYN 6 Series Manuale utente

Installation Guide

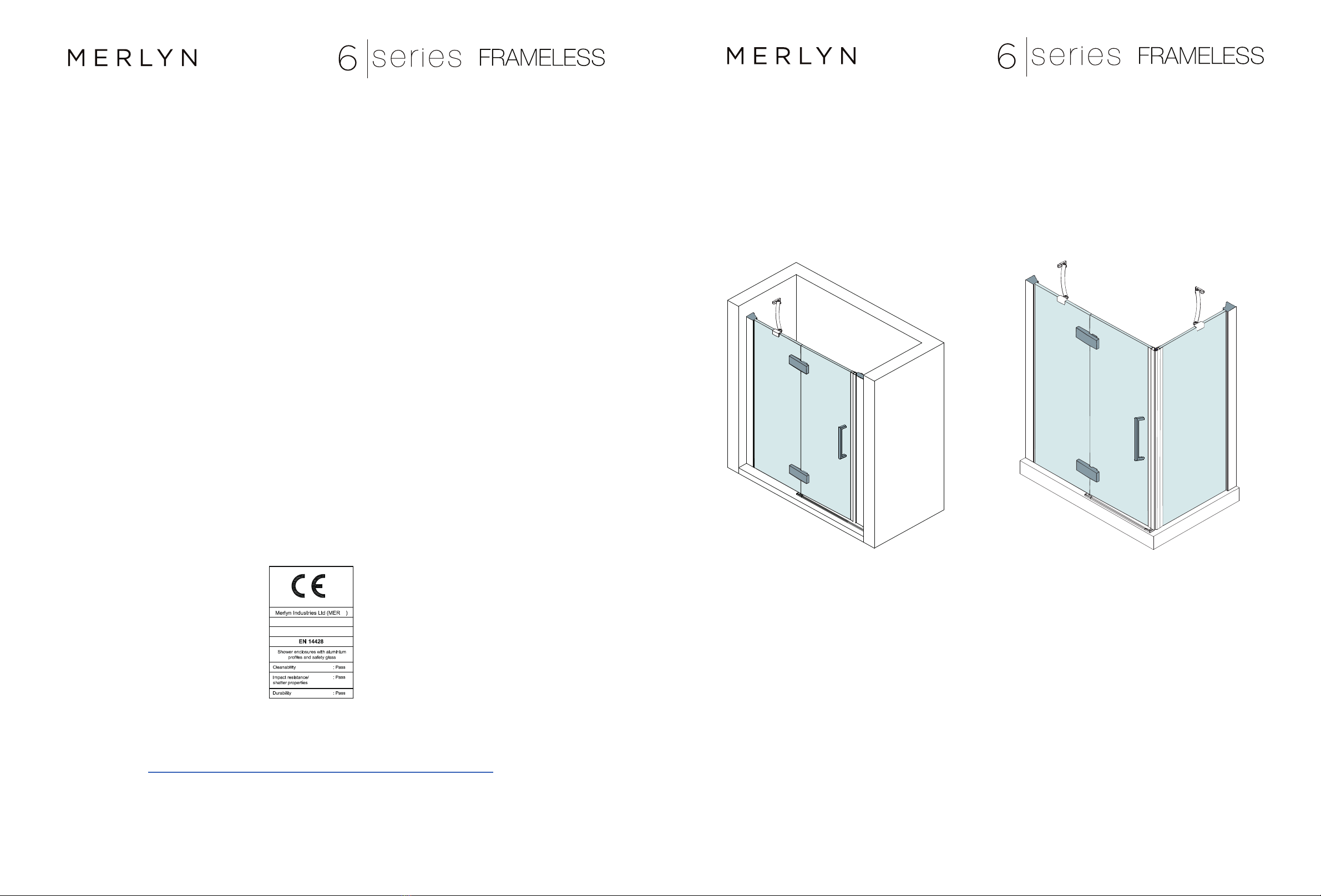

31. 1.

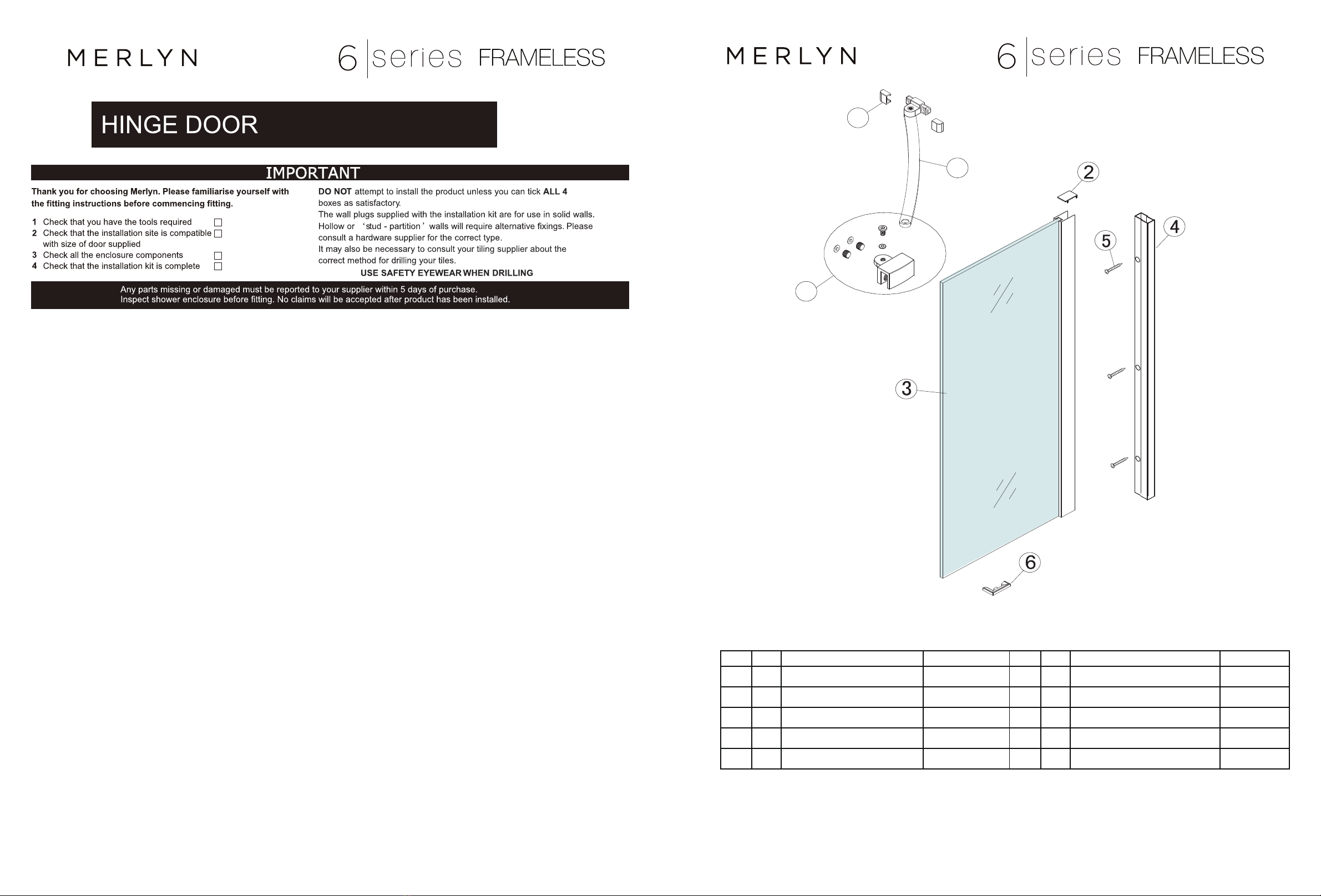

HINGE DOOR IN A RECESS WITH SIDE PANEL

HINGE DOOR

Page 2-14 Page15-30

CES6FHI 1.1

To download the Declaration of Performance (DOP) for this product please use the link below.

http://merlynshowering.com/aftersales-support/dop-certs/

For further information please contact IRL: 056 7791 555, UK: 08081011429

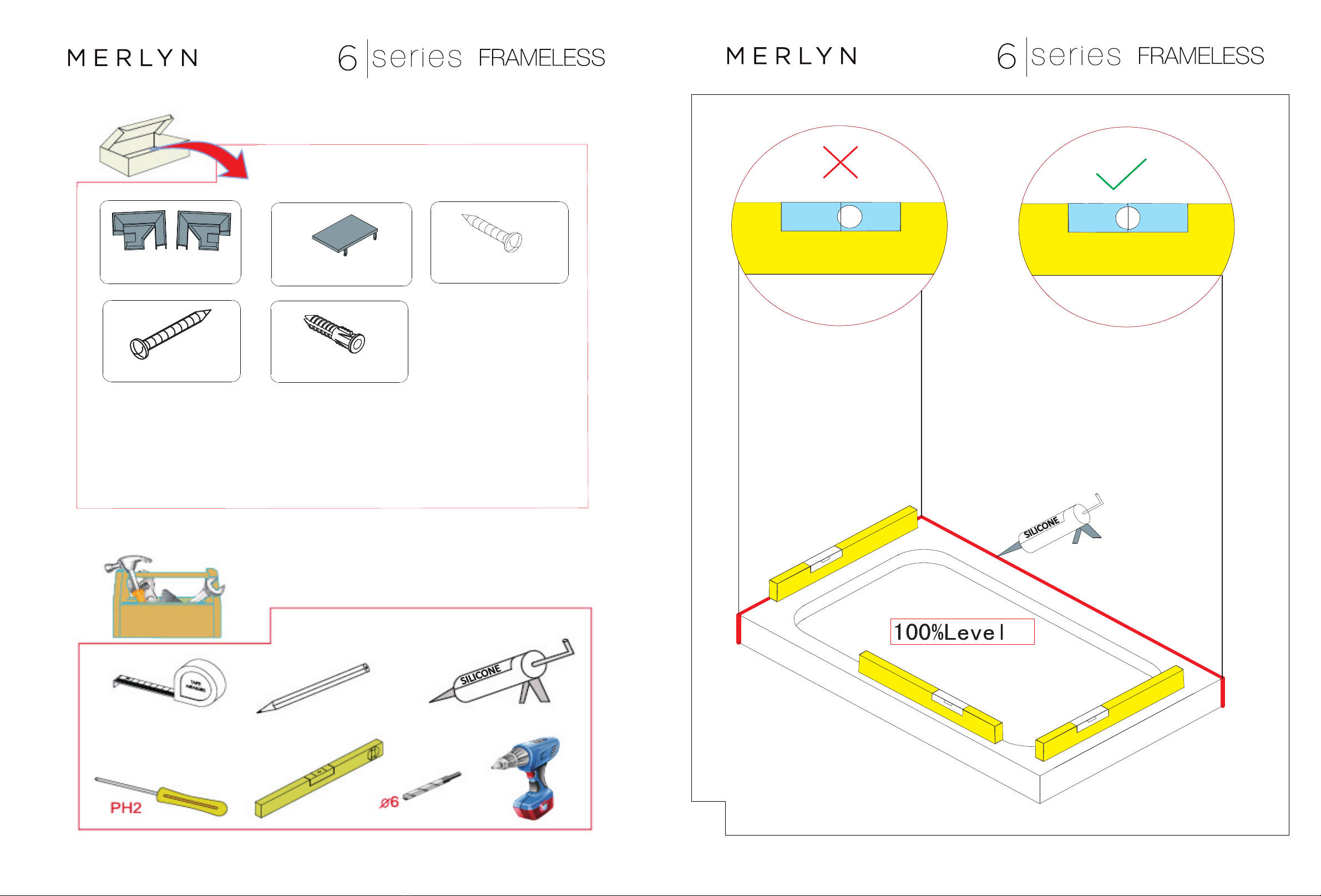

2. 3.

IN A RECESS

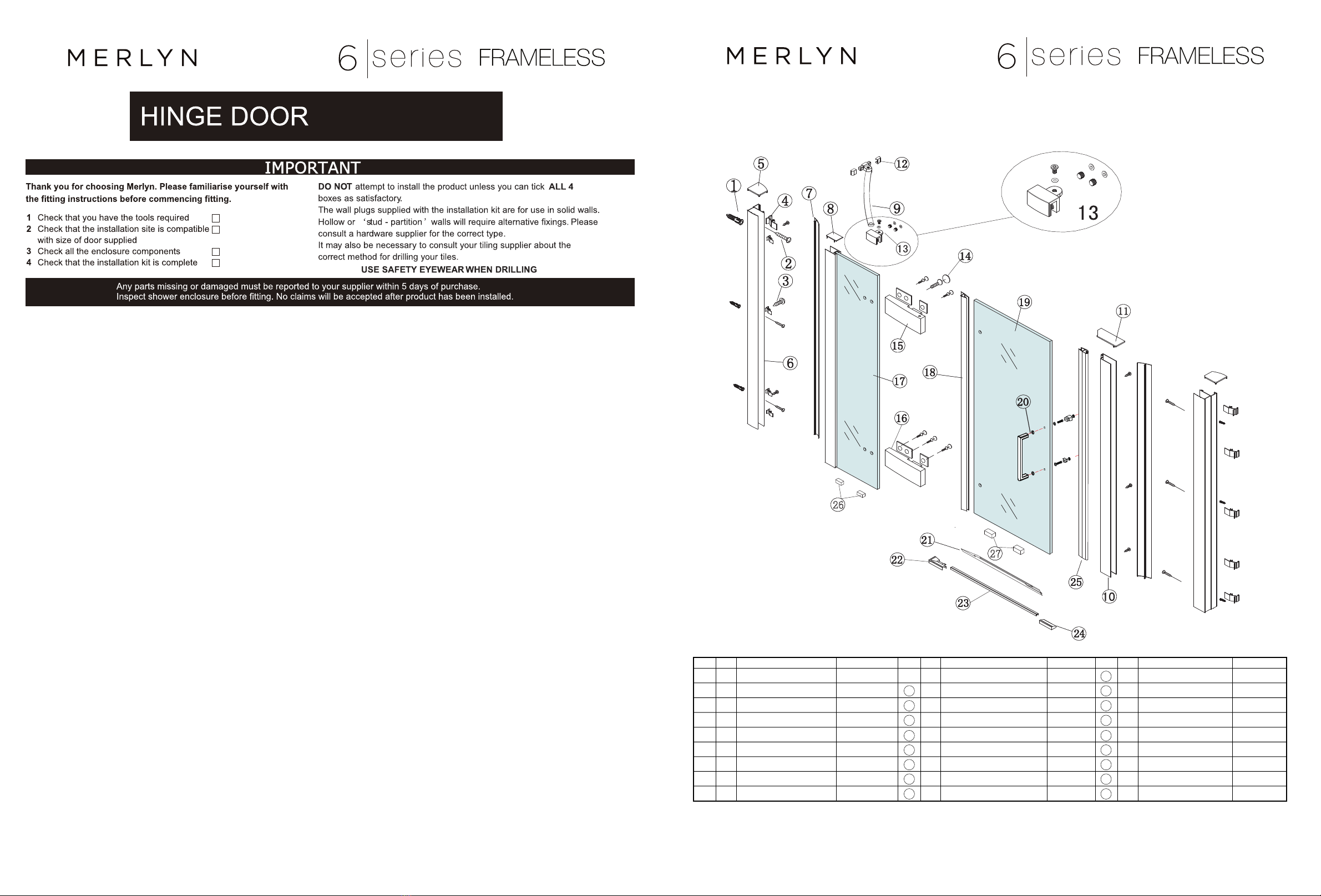

No. Qty Description Part No. No. Qty Description Part No. No. Qty Description Part No.

⑨

①

②

③

④

⑤

⑥

⑦

⑧

⑩

Bracing bar

Wall plug

Pan head screw 4 x 30

Pan head screw 4 x 12

Cover strip clip

Wall profile cover cap

Wall profile

Cover strip

Upright profile cap

Moving panel hinge seal

Magnet profile

Magnet profile cover cap

Bracing bar clamp

Bracing bar cover cap

Hinge 2

Hinge 1

Hinge cover cap

Fixed panel

A01S0633

A01S0180

A01S0189

A01S0619

A01S0617

SP0D2019

A01S0206

A01S0207

Moving panel spacer

Moving panel

Handle

Bottom seal

Fixed panel footplate

Threshold

Closing post footplate

Fixed panel block

Magnet seal set

A01S0213

SP0B08072

A01S0605

A01S0210

A01S0182

A01S0211

A01S0635

A06S0063

SP0D1123

SP0D0ST430

SP0D0ST412

A01S0116

A01S0190

A01S0177

A01S0115

A01S0188

MERLYN

2C 2D 2E

SP0D1123

SP0D0ST430

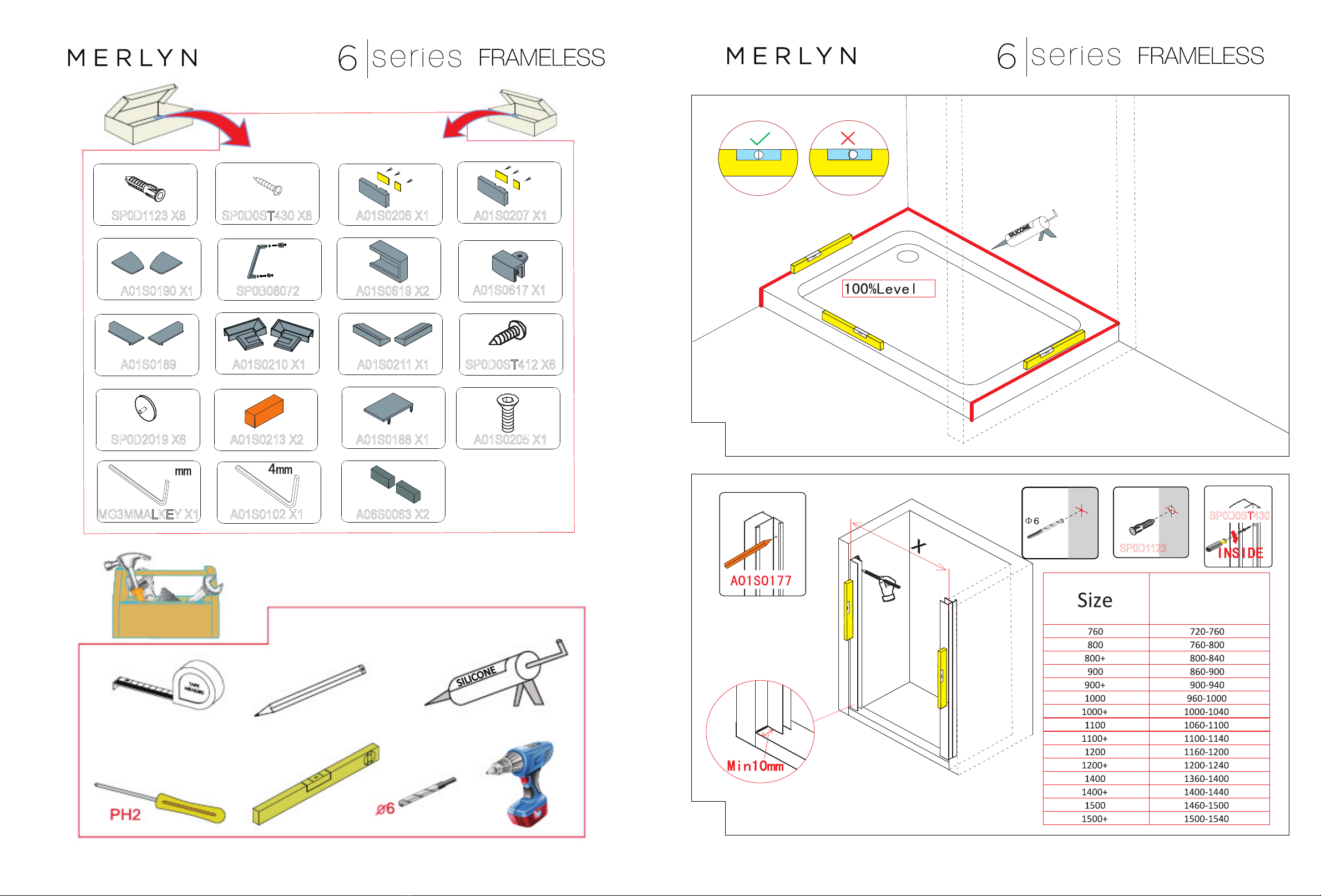

MG3MMALKEY X1

SP0D1123 X8 SP0D0ST430 X8 A01S0206 X1 A01S0207 X1

A01S0190 X1 SP0B08072 A01S0619 X2

A01S0189 A01S0210 X1 A01S0211 X1 SP0D0ST412 X6

SP0D2019 X6 A01S0213 X2 A01S0188 X1 A01S0205 X1

A01S0102 X1 A06S0063 X2

MERLYN

A01S0617 X1

A06S0063

INSIDE

NOTE: Ensure the

hinge pins (red) are

in correct position

and both hinges

are level.

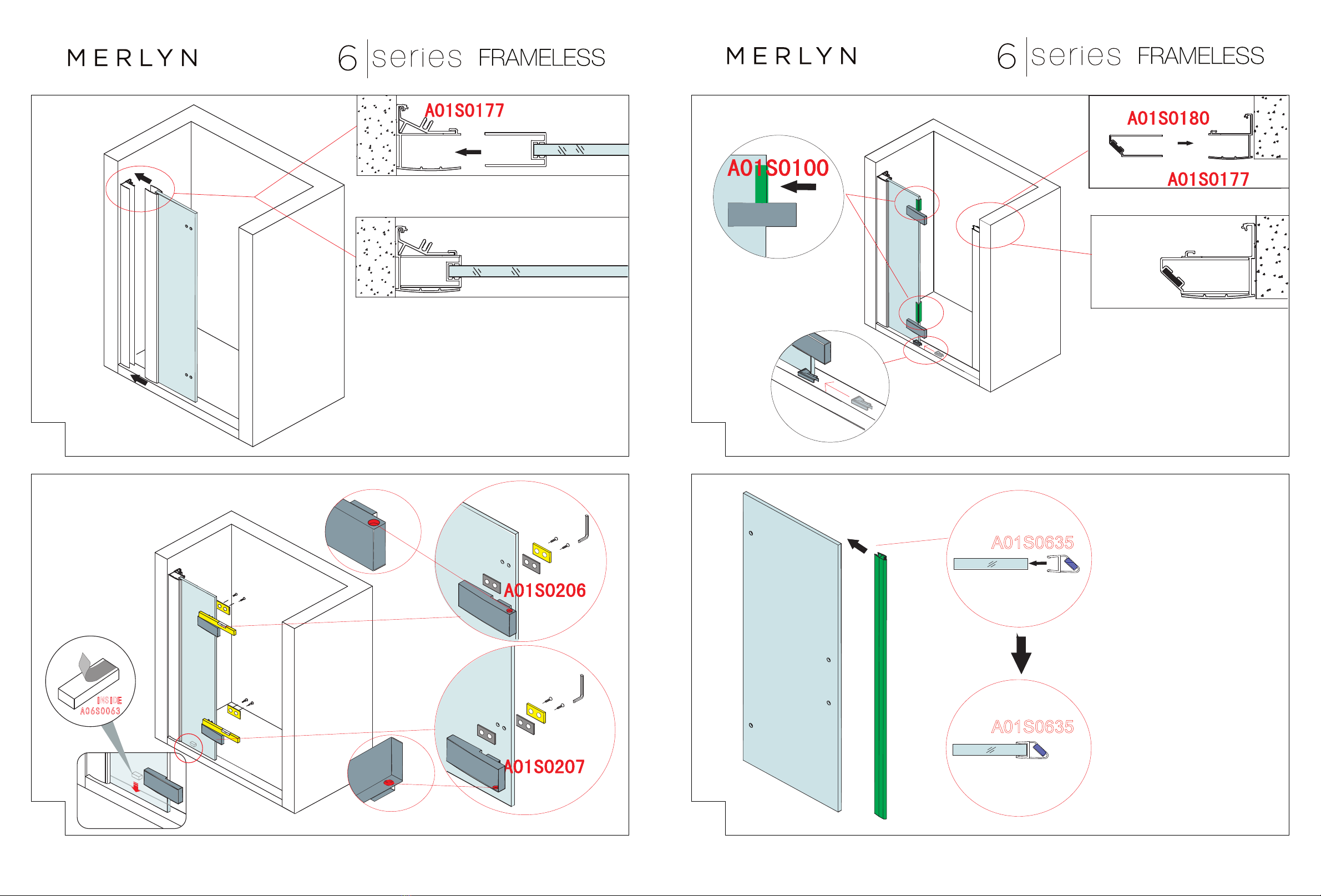

5A: Use A01S0100 to set gap

between panels top and bottom.

5B: Fit fixed panel footplate under

the fixed panel.

5C & 5D: Fit the magnet profile with

angled edge facing outside.

A01S0635

NOTE：when fitting the

moving panel magnet seal

ensure the bottom is flush

with the bottom of the glass.

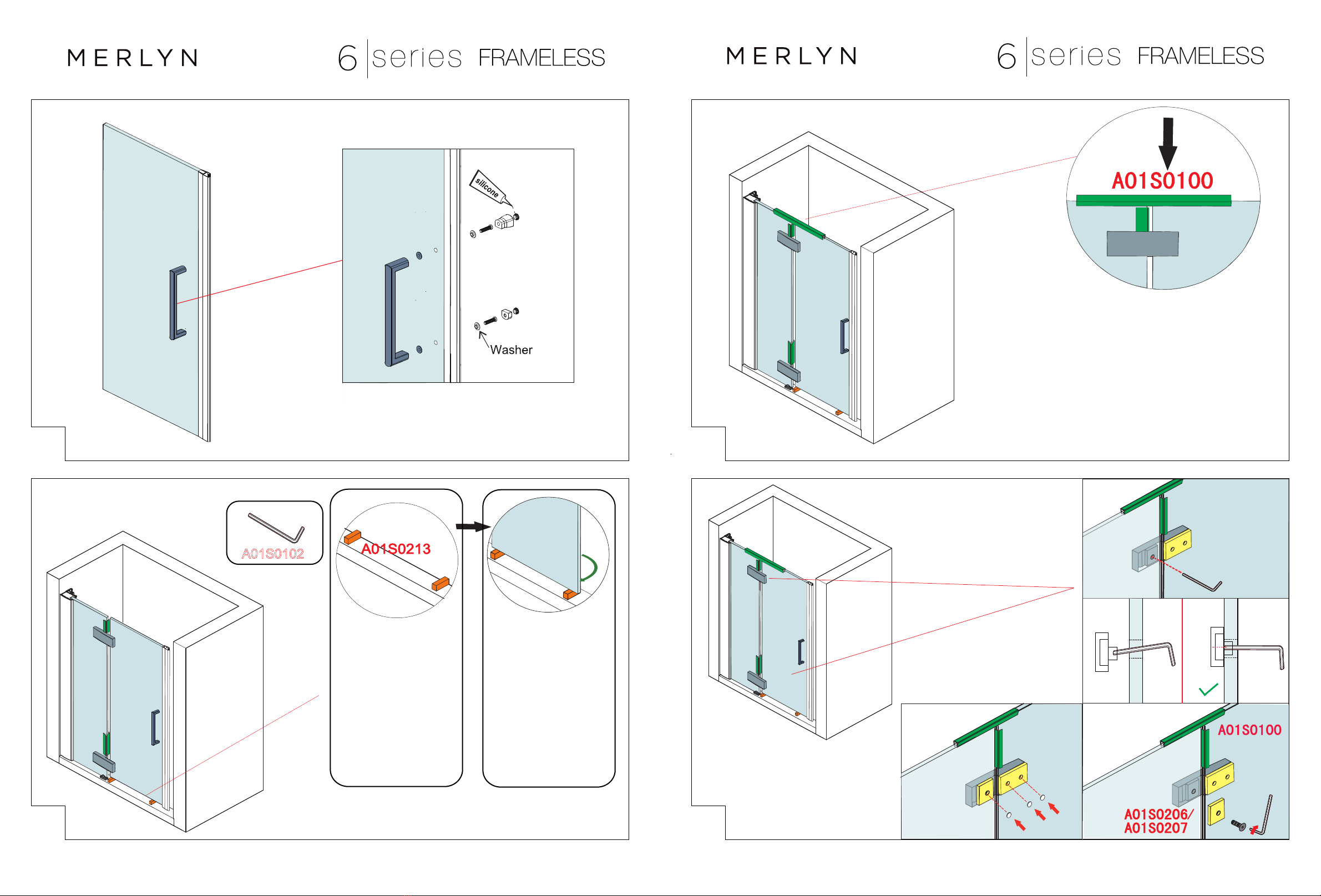

8A 8B

4mm

A01S0102

Hex Key is

needed

8A: Use the 20mm

spacers A01S0213

to set the height of

the moving panel.

Extra 2mm spacers

are provided to

adjust the height if

required.

8B: From inside the

enclosure place the

moving panel on the

spacers. You will

need the 4mm hex

key, holding seal

A01S0100 and

remaining hinge

parts.

10A

10B

10C

10A: Ensure there are no

gaps between

A01S0100 and the

moving panel.

10B: If needed adjust the

height of the moving

panel with the 2mm

spacers to align the

hinge.

10C: Full tighten the hinge

plate. ×

10D

10.

11.

12A 12B

14D

14B

14C

11B

11A

14A

SP0D0ST412

13A

13B

A01S0115

A01S0190

A01S0188

A01S0115

A01S0190

A01S0189

12.

13.

15A

15B

15C

ST0D1123

17A

17B

17C

18A

18B

18C

A01S0633

A01S605

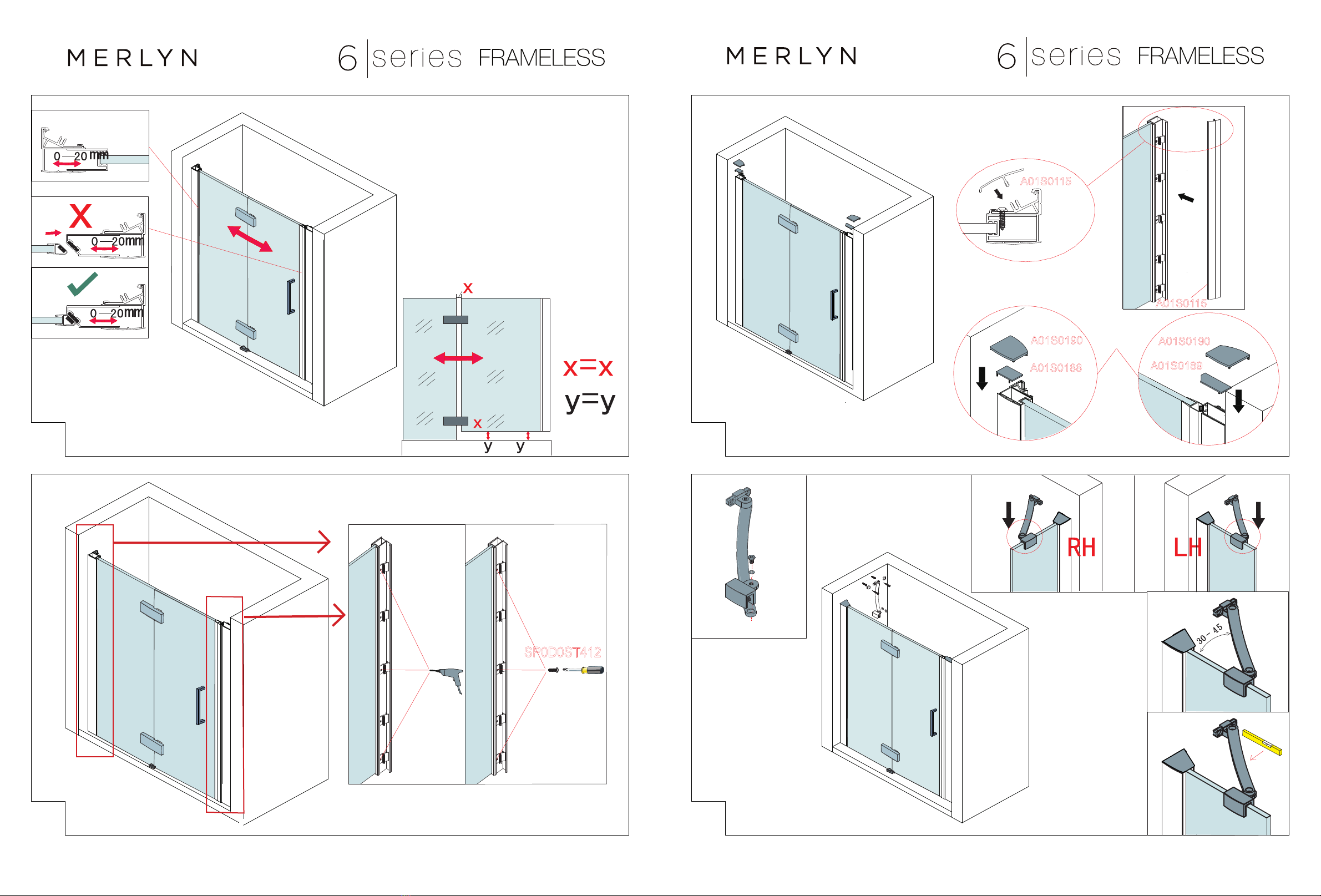

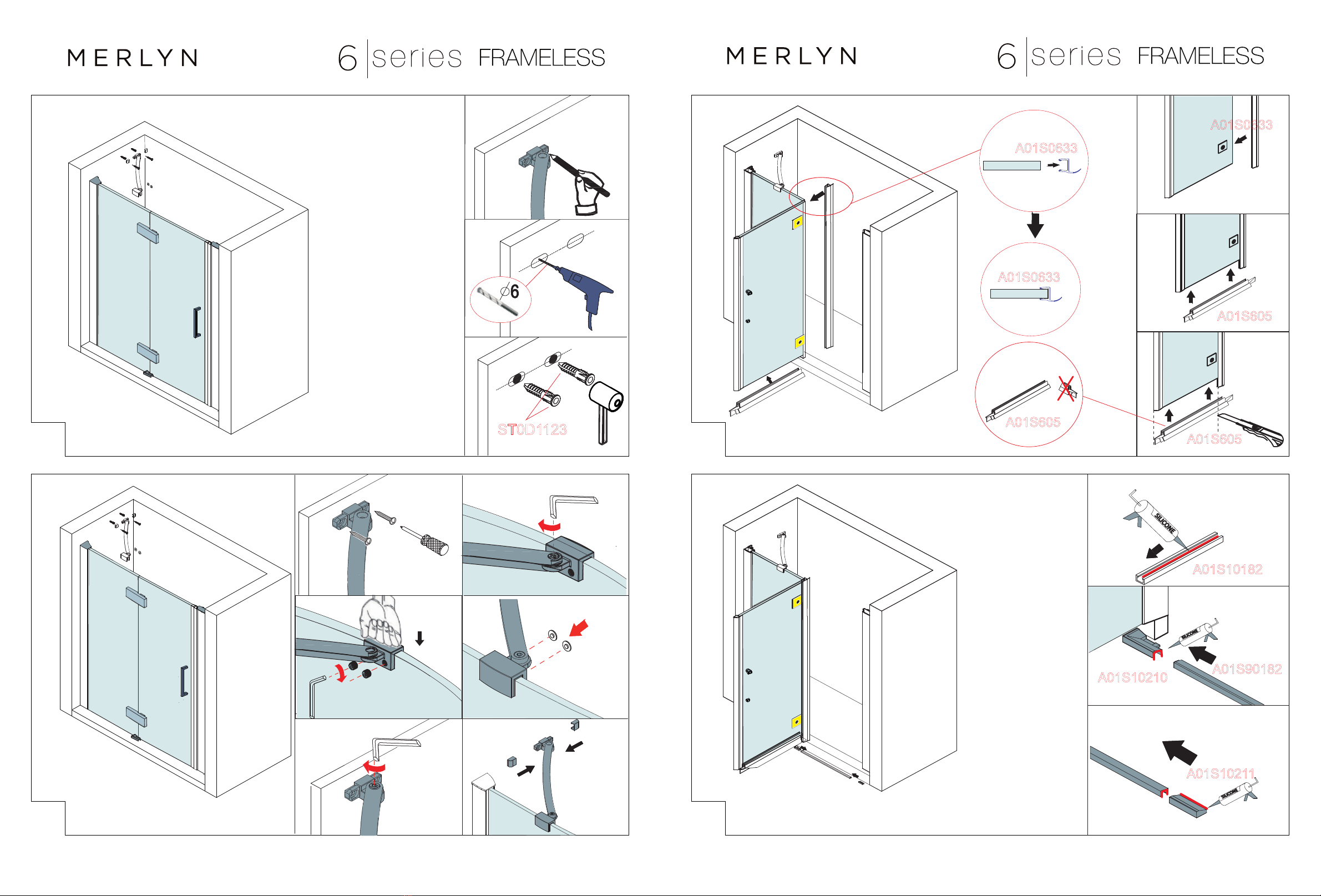

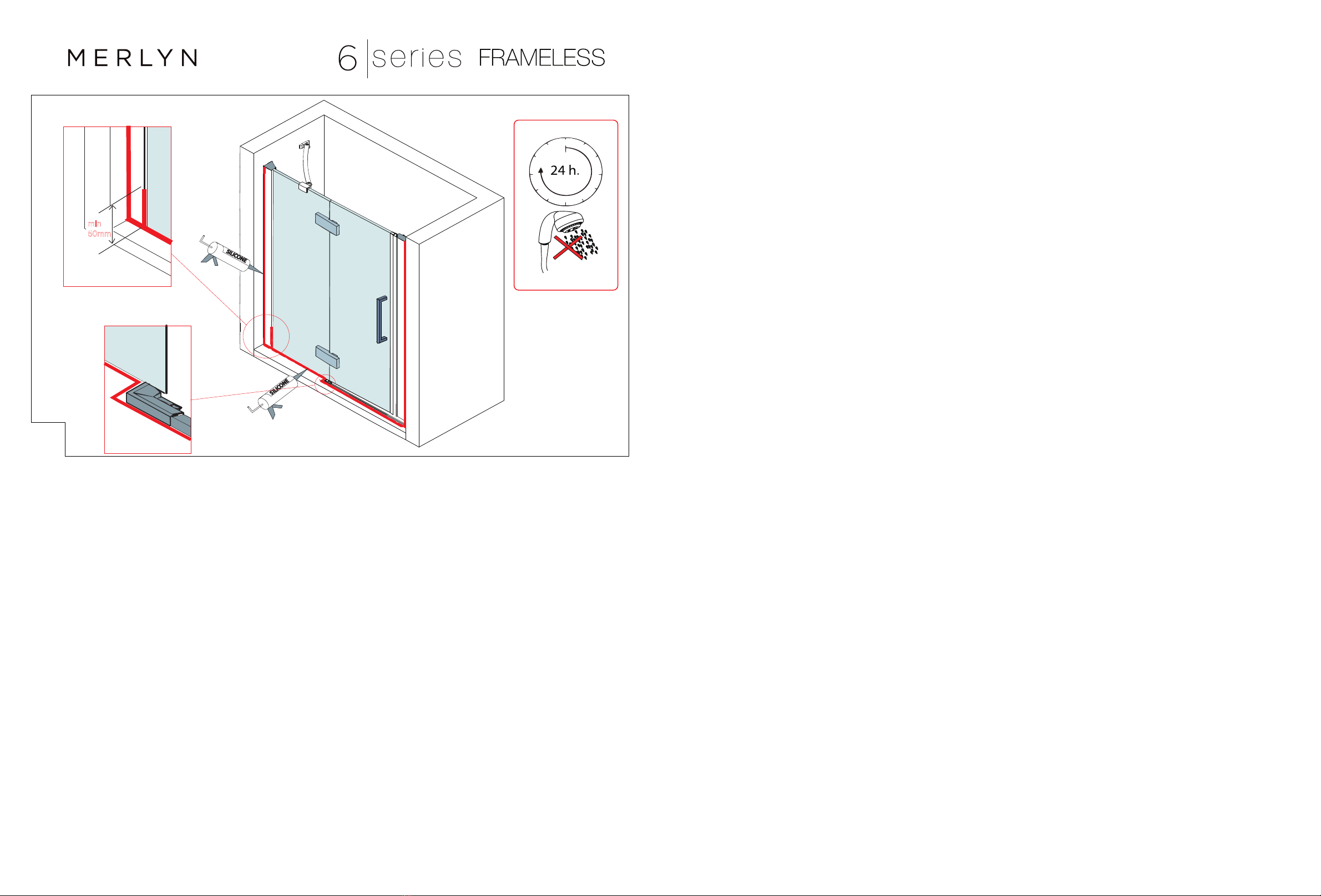

NOTE: Ensure the seal is

level with the top the glass.

A01S10182

A01S10210 A01S90182

A01S10211

16A

16F

16E

16C

16D

16B

NOTE:Hold the clamp level

with the glass while tightening.

14.

min

50mm

15. 16.

WITH SIDE PANEL 1

No.

Qty

Description

Part No.

No.

Qty

Description

Part No.

Bracing bar cover cap

A01S0619

Side panel footplate

A01S0212

Upright profile cap

A01S0188

Bracing bar

Side panel

Bracing bar clamp

A01S0289

Extension profile

A0114D0

Pan head screw 4 x 50

SP0D0ST450

①

⑥

②

⑦

③

⑧

④

⑤

17.

18.

SP0D0ST430 X2

SP0D0ST450 X3 SP0D1123 X2

A01S0188 X1A01S0212
