MERLYN 6 Series Manuale utente
Thank you for choosing Merlyn.Please familiarise yourself
with the fitting instructions before commencing fitting.
1. Check that you have the tools required.
2 that the installation site is compatible . Check
with size of door supplied
3. Check all the enclosure components.
4 that the installation kit is complete. Check
DO NOT attempt to install the product unless you can
tick ALL 4 boxes as satisfactory.
The wall plugs supplied with the installation kit are for
use in solid walls. Hollow or 'stud-partition’ walls will
require alternative fixings. Please consult a hardware
supplier for the correct type.
It may also be necessary to consult your tiling supplier
about the correct method for drilling your tiles.
VIVID
10
IMPORTANT
Any parts missing or damaged must be reported to your supplier within 5 days of purchase.
Inspect shower enclosure before fitting. No claims will be acceptable after product has been installed.
USE SAFETY EYEWEAR WHEN DRILLING
SLIDING DOOR
INSTALLATION GUIDE
PIVOT DOOR
M040-01

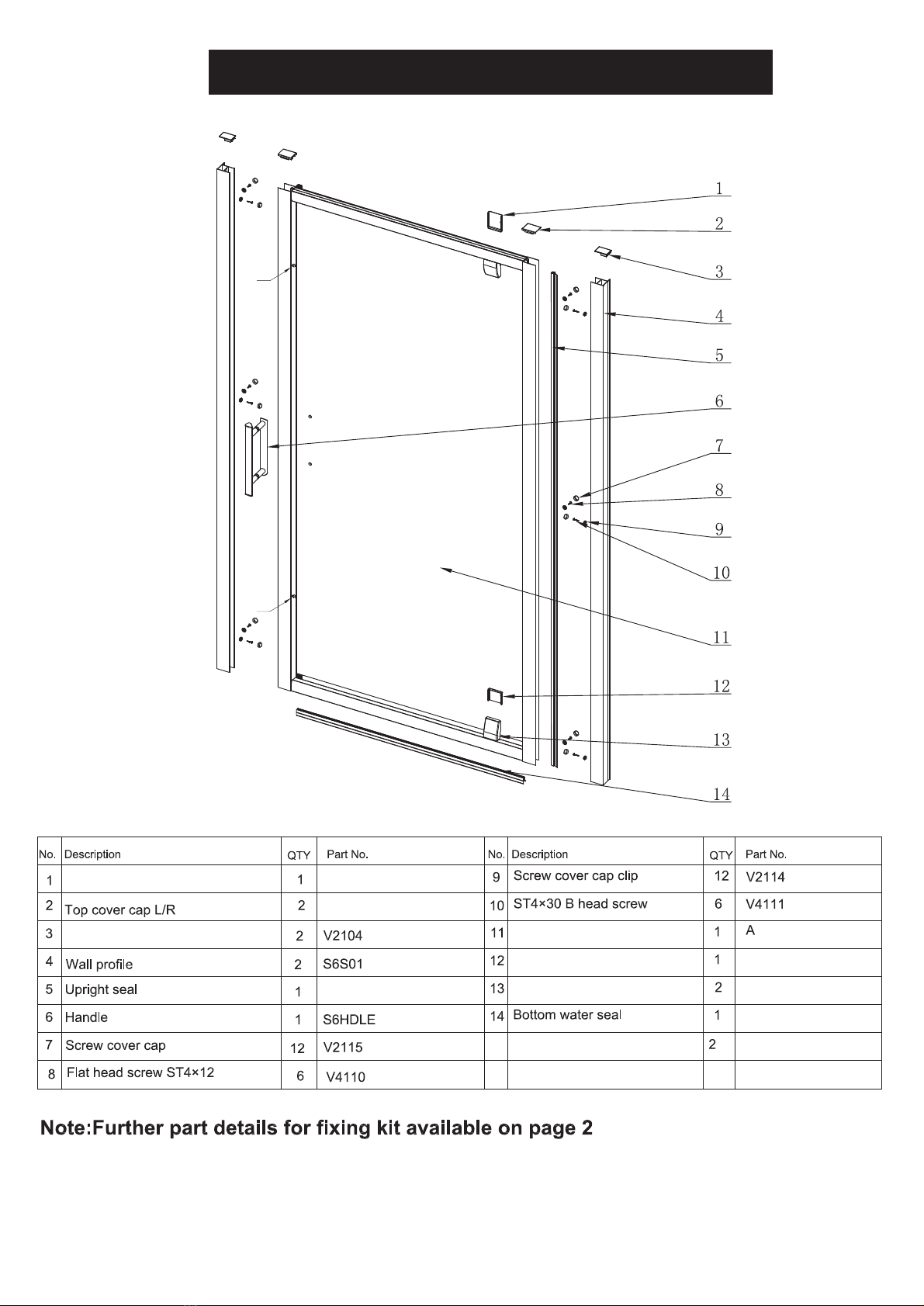

COMPONENTS AND BOX CONTENTS 1
Wall profile cover cap
S6PV019
S6PV021L/R
S6PV006
S6PV020
S6PV017
S6PV011
Ball catch S6PV018
15
15
15
Inner pivot cap top
Inner pivot cap bottom
Pivot door
Outer pivot cap
FIXING KIT COMPONENTS, TOOLS REQUIRED, SITE 2
V2115
12×
V2114
12×
V6113
×6
V4111
×6
V4110
×6
1× 1×
V6115
× 1
3mmALKEY
X1
Tools Required
- 6mm masonry drill bit
- Power drill
- Quality Silicone
- Pencil
- Tape Measure
- F lat head screw driver
- Spirit level with horizontal and vertial level indicators
IMPORTANT - Installation site
1. Ensure the top surface of the shower tray on which the enclosure will be installed is level in every direction.
2. The tiles or other wall finishing should be effectively sealed at the tray edges.
3. Tiles should extend at least to the corners of the tray and a minimum of 2.0 metres from the top of the tray.
1× 1×
×
V2104
2
S6HDLE
1×
S6HDLEP2 1×
S6HDLEP3 2×
S6HDLEP4 2×
S6HDLEP1 1×
S6HDLEP6 2×
S6HDLEP7 1×
S6HDLEP5 4×
S6PV021R S6PV021L
S6PV019 S6PV020
- #2 Philips head screw driver
FITTING WALL PROFILE 3
Step 1.
Step in wall profile 20mm from the front edge of the shower tray. Ensure wall profile is plumb.
Do not silicone behind wall profile to wall, see sealing section.
Do not fix the wall profile yet
Step 2.
Mark the position for fixing the wall profile to wall.()
100％
Level !
TRAY MUST BE 100% LEVEL IN ALL DIRECTIONS
Ensure the shower tray is level in all directions and is
properly sealed to the wall. The wall must be tiled down to
the top edge of the tray. Do not angle out bottom tile.
TRAY MUST BE SEALED FULLY AROUND WHERE THE
TRAY MEETS THE WALL.
PROCEDURE
2
Inside
S6S01
20m m
20mm
100％ level
V6113
∅6mm masonry
drill bit
V4111
V2114
5
Step 3.
Insert the wall profiles into both sides of door
frame.
Step 4.
Position the door onto tray.
Step 5
Fix the wall profiles to the wall using V4111.
NOTE: If you are not close to the minimum
adjustment, fix the wall profile to the wall on the
magnetic upright profile side first.
Inside
4
FITTING DOOR PANELS
S6S01
3
4
S6HDLEP4
S6HDLEP3
S6HDLEP5
S6HDLEP2
S6HDLEP1
S6HDLEP7
S6HDLEP6
6
Outside
FITTING DOOR PANELS AND SEALS 5
gaps are the same
Step 7.
Fit the upright seal to back of the moving panel.
Ensure the seal is fitted as shown and the
top end of seal is parallel with top end of moving
panel.
Note:
Step 8.
Fit bottom water seal to bottom of moving panel.
Ensure the seal is fitted as shown with
deflector fin to inside.
Note:
Inside
7
8
no gap here
Inside
IMPORTANT: Do not go on to Step 10
until you confirm the
square in the door frame. Tip: Use
packaging spacer if required to help.
moving panel is
Step 9
Cut the soft fin of bottom water seal at the end
closing with upright seal.
Ensure the fin is facing to the inside.Note:
12mm
closing
side
9
inside
V6115 V4110
V2114
10
V2115
S6PV006
S6PV011
FINISHING
Step 11.
6
14
V2104
12
13
S6PV019
S6PV020
V021R/L
The ball catch can be adjusted in and
out to ensure the door closes smoothly.
Note: Do not adjust the ball catch out too much !
V6INPVTC
12
11
SEALING AND TROUBLE SHOOTING
DO NOT use
the enclosure
for 24 hrs
after sealing.
TROUBLE SHOOTING GUIDE
Step 15.
Use a quality silicone sealant
and applicator gun to seal the
finished door.
Seal top to bottom on the
between the wall
profile and the wall.
Do not apply sealant on
the inside of the tray.
Seal only along bottom on the
between
glass/rail/profile and the tray
and approx 50mm up
between the wall profile and
the wall. Seal joint between
bottom profile and upright
profile.
SEALING INSIDE
INSIDE
Note:
SEALING OUTSIDE
OUTSIDE
DOOR NOT ALIGNING
1. Is the tray 100% level? ( )
2. Have the walls been checked at different levels to ensure consistency?
3. Are the fixed panel wall profiles stepped in 20mm from the edge of the tray? ( )
4. Do the finished tile measurements on the tray comply with the adjustment listed on the
label and in the specifications book?
5. Is the door closing correctly, adjust ball catch. ( )
DOOR LEAKING
1.Is the upright seal fitted correctly? ( )
2.Is the door sealed correctly? ( )
3.Is the bottom seal fitted and cut correctly? ( )
see page 3
see step 2
see step 11
ee step 7 & 8 & 9
see step 15
----
-
S
See step 8 & 9
correctly
7
50mm
