Metabo KHA 18 LTX BL 40 Manuale utente

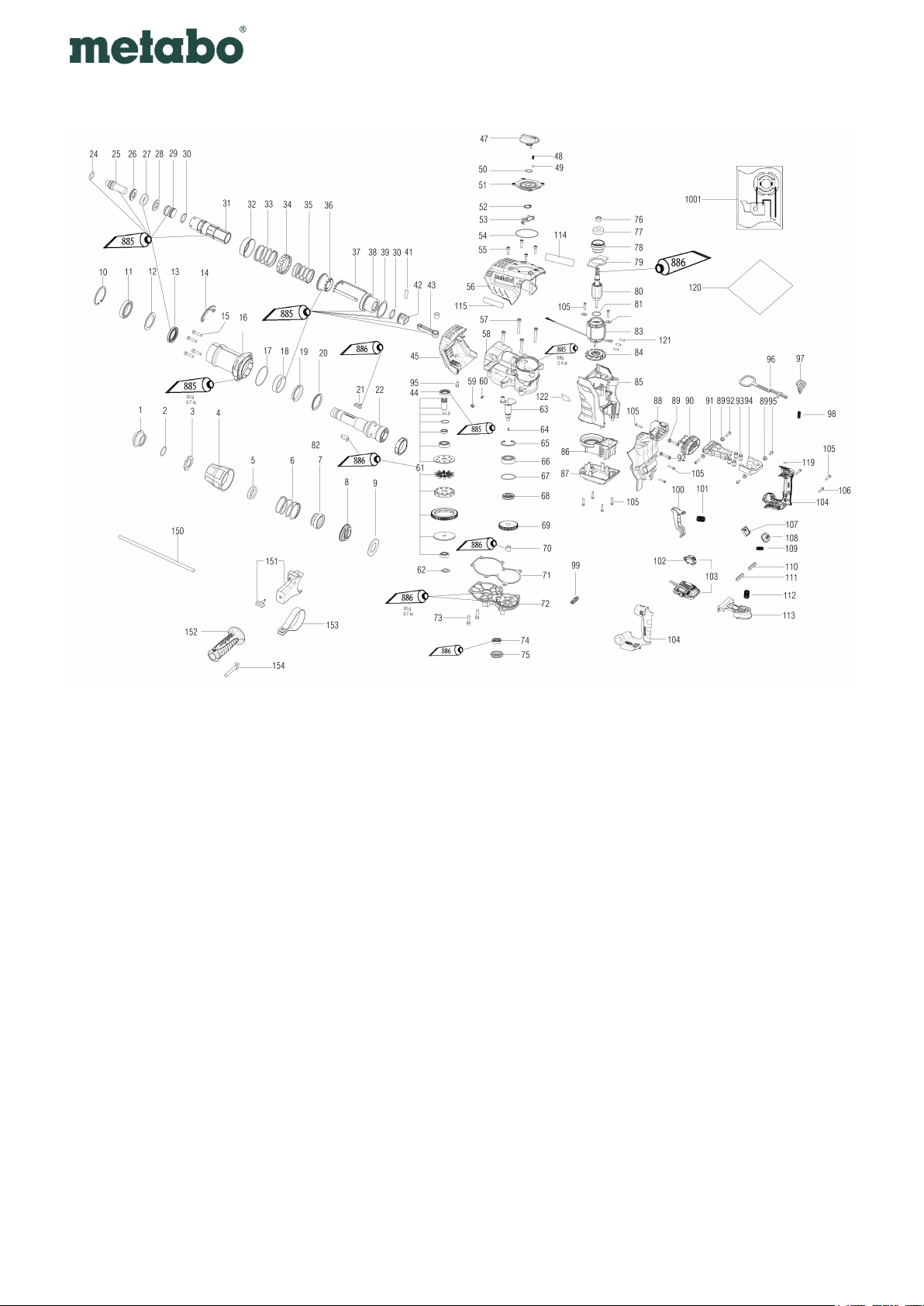

KHA 18 LTX BL 40 (00752000)
1/4
KHA 18 LTX BL 40 (00752000)
2/4
Pozitie Cantitate Numar tip Denumire PG
1 1 344113840 Rubber cap 14
2 1 342024310 RETAINING RING 11
3 1 341722950 Washer 14
4 1 343453420 Sliding sleeve
5 1 344113850 Damper 11
6 1 342010950 Pressure spring 11
7 1 339149050 Retaining ring 18
8 1 341722960 Supporting disc 19
9 1 339149060 Guide plate 11
10 1 141180870 Circlip 12
11 1 320054390 Ball bearing 19
12 1 341722970 Washer 11
13 1 339013120 Shaft sealing ring 17
14 1 339149620 Hook 17
15 4 341570980 Screw with flange 12
16 1 315107640 Housing cpl. 24
17 1 344113860 O-ring 11
18 1 344113870 Damping ring 13
19 1 341020210 Support ring 12
20 1 341722980 Supporting disc 14
21 2 339149080 Bit lock 25
22 1 341212650 Drill driving sleeve front 36
24 1 344113880 O-ring 15
25 1 341212660 Second hammer 21
26 1 341722990 Supporting disc 16
27 1 344113890 Damper 14
28 1 341723010 Supporting disc 14
29 1 341212670 Striker 18
30 2 344113900 O-ring 15
31 1 341212680 Drill driving sleeve behind 31
32 1 341006570 Sleeve 13
33 1 342010960 Spring 12
34 1 343447420 Retaining ring 13
35 1 342010970 Spring 11
36 1 341212690 coupling sleeve 31
37 1 339149090 Shift fork 15
38 1 340037470 Bevel gear 35
39 1 341723000 Thrust washer 12
40 1 343447010 Insert 11
41 1 341570970 Guard Linkage Pin 11
42 1 343447430 Plastic plunger 17
43 1 341166800 Connecting rod 20
44 1 339013110 Shaft sealing ring 18
45 1 343447150 hood 15
47 1 343453310 Control knob slide
48 1 342024340 Pressure spring 11
49 1 341166880 STEEL BALL 11
50 1 344113940 O-ring 19
51 1 341166810 Control-knob cover 19
52 1 141180130 Retaining ring 11
53 1 339149120 Shift element 12
54 1 344114010 O-ring 11
KHA 18 LTX BL 40 (00752000)
3/4
Pozitie Cantitate Numar tip Denumire PG
55 4 341571020 Screw 12
56 1 343447160 crank cover 21
57 4 341571000 Screw 12
58 1 316097100 CRANKCASE ASSEMBLY cpl. 36
59 1 341723080 cap screw 11
60 1 344113950 Valve 19
61 1 316071410 Intermediate gear cpl.
62 1 341723140 Washer 11
63 1 341605540 Eccentric shaft 26
64 1 339101120 Adjusting spring 12
65 1 342024300 RETAINING RING 12
66 1 320054420 Ball bearing 22
67 1 344113930 O-ring 11
68 1 339013100 Shaft sealing ring 15
69 1 340037480 Spur gear 21
70 1 320054430 Needle bearing 13
71 1 344113970 Seal 14
72 1 343452020 Gear box cover
73 2 341571010 Screw 11
74 1 339013310 Shaft sealing ring 14
75 1 339149590 Holding ring 15
76 1 341006770 Sleeve 13
77 1 143110400 Ball bearing, 12x32x10 25
78 1 341072430 Bearing support 21
79 1 339149600 Fixed bearing cover 13
80 1 310013220 Rotor complete 34
81 1 344103720 O-ring 11
82 2 343453320 Holder 11
83 1 311013320 Stator compl. 33
84 1 330007110 Fan 22
85 1 316099690 Housing compl. 21
86 1 339153630 Baffle 13
87 1 343453250 Motor cap 14
88 1 343453260 Back cover 19
89 6 341723960 Spacer sleeve 12
90 1 344114850 Bellows 15
91 1 315420340 Fork 17
92 5 141124950 Cap screw 11
93 4 344114270 Rubber plug Hikoki number C410599 11
94 1 315420740 Transatory unit Hikoki C315234 16
95 2 141124940 Flat headed screw 11
96 1 339153640 Shift fork
97 1 343453300 On lock button 11
98 1 342011060 Pressure spring 11
99 1 343088290 electronic unit, LED 16
100 1 343453330 Trigger cap 12
101 1 342011090 Pressure spring 11
102 1 343412510 poti switch 24
103 1 316071420 electronic unit w.switch
104 1 343453290 Handle half w.cover 26
105 12 141116020 Self-tap fill h screw 12
107 1 343088230 electronic unit, speed button 16
KHA 18 LTX BL 40 (00752000)
4/4
Pozitie Cantitate Numar tip Denumire PG
108 1 343448580 Speed button 13
109 1 342011100 Pressure spring 11
110 1 344114920 Rubber buffer 11
111 1 344114930 Rubber buffer 11
112 1 342011080 Pressure spring 11
113 1 343453270 Release Bracket 14
114 1 338132990 type label left able saw 12V BL 12
115 1 338132980 type label right sable saw 12V BL 12
119 1 338129960 Indication label, CAS 12
121 3 341213440 Heat shrink tube 11
122 1 338133530 Indication label 11
150 1 341519710 Depth stop Hikoki number C410882 14
151 1 316097130 Locking element compl. 21
152 1 343448500 Side support handle 23
153 1 339149640 Band,Hikoki number C421809 12
154 1 341519870 Handle bolt Hikoki number C421810 13
880 1 631800000 Special grease
885 1 344131350 Special Grease 500g 37
886 1 344131360 Gear grease 30
1001 1 338510720 Diagram
