KAHA SWIVEL BASIN MIXER

INSTALLATION GUIDE

TECHNICAL SPECIFICATIONS

Operating Pressure:

Min 0.35 bar, Max 10 bar.

Recommended 0.35 bar - 5 bar.

Recommended installation of a pressure

limiting valve if supply exceeds 5 bar.

Operating Temperature:

Hot: Max 80°C.

Cold: Min 5°C.

Methven warrants this product against manufacturing defects and that it is suitable for use

under the operating conditions speciﬁed in this instruction sheet.

For your warranty please refer to www.methven.com or call Customer Service

New Zealand

0800 804 222

Australia

1300 638 483

0800 195 1602

Notes:

After installation all connections●

must be checked for leaks.

All installations must be carried●

out in compliance with relevant

water regulations.

IMPORTANT

Please read all of the instructions before installation

This mixer is designed for all pressure systems above 0.35 bar.

This mixer is not recommended for use in uncontrolled heating systems such as wet-backs or

solar heating units.

NOTE: Base ring use is optional and should be used when required to ensure a seal is

achieved between the tap and basin. If ﬁtting base ring please remove the o-ring from

the base of the tap body.

All pipework must be thoroughly ﬂushed prior to the installation of the mixer. In-line ﬁlters

(not supplied) must be ﬁtted on both hot and cold supplies to prevent foreign particles

damaging the ceramic cartridge.

CORRECT

INCORRECT

DO NOT STRETCH OR TWIST HOSES

R35mm Min

20mm

Cold

DO NOT CRUSH

HOSE OR

SWAGED ENDS

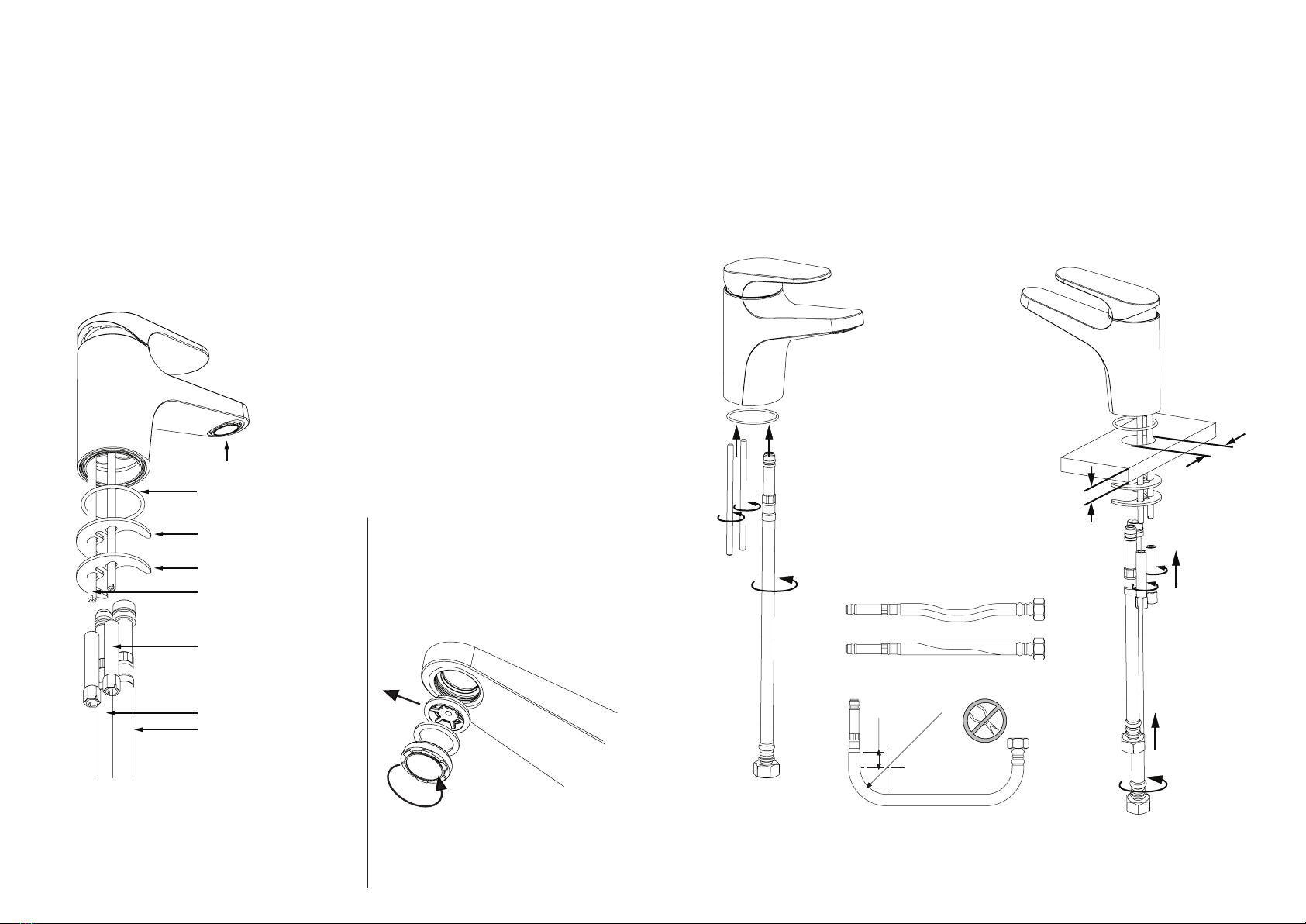

Stream shaper

O-ring (remove if

ﬁtting base ring)

Mounting stud

Mounting gasket

Mounting plate

Mounting nut

Flexible inlet hose:

cold

hot

Max 40mm

Ø 35mm

Hot

Equal Low Pressure Installations.

Remove stream shaper using cache key.

Remove ﬂow restrictor in spout and

insert rubber washer before replacing

stream shaper
