General
1
1. General
Carefully read the instructions in this manual as they contain important information re-
garding proper, efficient and safe installation, use and maintenance of the appliance.
Keep this manual in a safe place for eventual use by other operators of the appliance.
The installation of this appliance must be carried out in accordance with the manufactur-
er’s instructions and following local regulations. The connection of the appliance to the
electric and water supply must be carried out by qualified persons only.
Persons using this appliance should be specifically trained in its operation.
Switch off the appliance in case of failure or malfunction. The periodical function checks
requested in the manual must be carried out according to the instructions. Have the appli-
ance serviced by a technically qualified person authorized by the manufacturer and using
original spare parts.
Not complying with the above may put the safety of the appliance in danger.
1.1 Symbols used in the manual
This symbol informs about a situation where a safety risk might be at hand. Given instruc-
tions are mandatory in order to prevent injury.
This symbol informs about the right way to perform in order to prevent bad results, appli-
ance damage or hazardous situations.
This symbol informs about recommendations and hints that help to get the best perform-
ance out of the appliance.
1.2 Symbols used on the appliance
This symbol on a part informs about electrical terminals behind the part. The removal of
the part must be carried out by qualified persons only.
1.3 Checking the relationship of the appliance and the manual
The rating plate of the appliance indicates the serial number of the appliance. If the man-
uals are missing, it is possible to order new ones from the manufacturer or the local rep-
resentative. When ordering new manuals it is essential to quote the serial number shown
on the rating plate.
2.4.2012 Rev. 3.0
Safety
2
2. Safety
2.1 Safe use of the appliance
An oven is a warming device which heats up when used. For this reason, please observe
the following instructions to avoid the risk of burns.
The edges of the door become hot when the oven is used for longer periods.
Use the oven gloves when handling hot ovenware and baking plates.
Beware of hot steam escaping from inside the oven when opening the oven door.
Do not leave the oven on completely unattended for long periods.
The air distribution plate in front of the fan inside the oven must be kept in the proper po-
sition when the oven is in use.
2.2 Disposal of the appliance
Once the appliance has reached the end of its useful life, it must be disposed of in com-
pliance with local rules and regulations. The appliance may contain substances/materials
which potentially have an adverse impact on the environment as well as recyclable mate-
rials. The best way of dealing with such substances is to dispose of them through a proper
waste company.
2.4.2012 Rev. 3.0
Functional description
3
3. Functional description
3.1 Intended use of the appliance
The Metos Chef 40 is intended for baking buns, bread, rolls and other similar products.
Chef 40 can also be used for cooking food.
The Metos Chef 50 is intended for baking buns, bread, rolls and other similar products.
Chef 50 can also be used for cooking food.
The Metos Chef 240 is intended for cooking and browning food, baking and for heating
convenience meals and keeping food warm.
3.1.1 Use for other purposes
Use of the appliance for any other purposes than that mentioned above is prohibited.
The manufacturer shall not be held liable for any situations which may arise from failure
to comply with the warnings and instructions given in this manual.
3.2 Construction
In addition to a single oven, two or three ovens can be stacked on top of another on a stand
forming a roasting and baking station. One or two convection ovens can also be replaced
by a Chef 220 oven or a Chef 200 proving cabinet.
This manual covers the Chef 40, Chef50 and Chef 240 convection ovens, while Chef 220
and Chef 200 have their own manuals.
3.3 Operating principle
In convection ovens, cooking takes place by hot air circulating around the food. Rapidly
circulating air is fanned around the food from all sides to cook effectively and evenly.
Moisture can be used to further boost cooking of certain products (see “Cooking tips”).
This also affects food quality and reduces weight loss. The oven is also fitted with a steam
outlet valve for removing superfluous steam from the oven chamber.
2.4.2012 Rev. 3.0
Functional description
4
3.3.1 Control panel switches

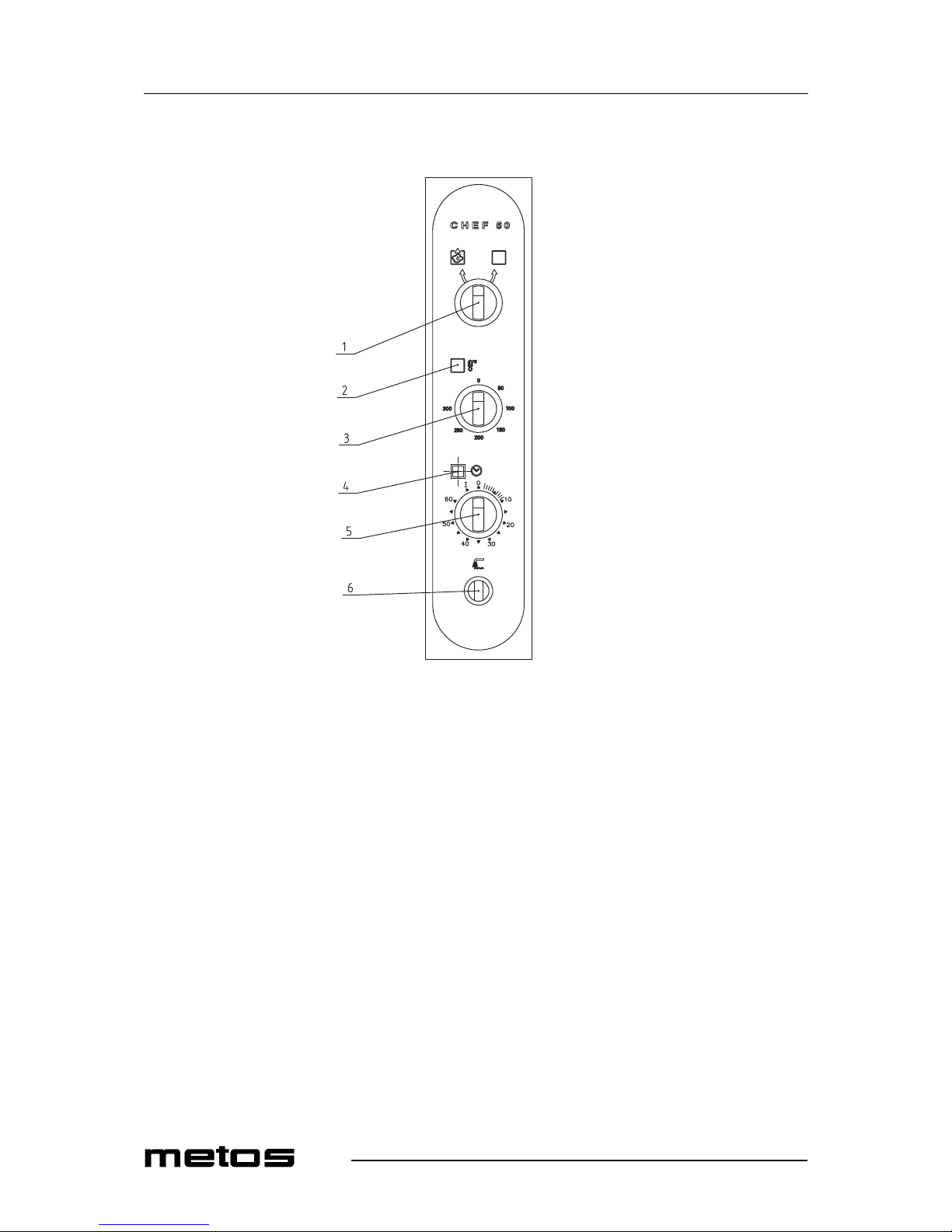

Control panel switches Chef 40 and 50
1. Steam exhaust valve. The steam exhaust valve can be used to remove ex-
cess steam and moisture from inside the oven.
2. Thermostat lamp. The yellow lamp is always on when the heating elements
are on.
3. Thermostat switch. To set the temperature between +50ºC and +300ºC.
4. Oven-on lamp. The green lamp lights up when the oven is switched on.
5. Timer. Stepless control 0-60 minutes or continuous use (position I). The
timer has a sound feature which rings when the timer is in position 0.
6. Moisturing device. Moisture is added when the switch is turned clockwise
and temperature has been set at the thermostat switch.
