Metra Electronics 95-7339S Manuale utente

METRA. THE WORLD’S BEST KITS.™

APPLICATIONS

1-800-221-0932 metraonline.com

INSTALLATION INSTRUCTIONS FOR PART 95-7339

WIRING & ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness: • 70-7303 2009-Up Kia/Hyundai Harness

Antenna Adapter: • 40-KI11 2007-Up Kia Antenna Adapter

Hyundai Genesis Coupe 2.0 2010-up

(For models equipped with manual climate control)

95-7339B

95-7339S

• DDIN head unit provision

• ISO stacked head unit provision

• Painted to match factory finish

95-7339B=Black 95-7339S=Silver

Panel Removal Tool • Phillips Screwdriver • Small Flat Blade Screwdriver • Socket Wrench

A B C

• A) Trim Panel • B) Double DIN brackets • C) (6) PC-7503 Panel Clips

TOOLS REQUIRED

KIT FEATURES

KIT COMPONENTS

Table of Contents

Dash Disassembly

– Hyundai Genesis Coupe 2.0 2010-up 3

Kit Preparation

– Hyundai Genesis Coupe 2.0 2010-up 4

Kit Assembly

– Double DIN/stacked ISO DIN head unit provision 5

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certified technicians

95-7339

Caution

Metra recommends disconnecting the negative battery terminal before beginning any

installation. All accessories, switches, and especially air bag indicator lights must be

plugged in before reconnecting the battery or cycling the ignition.

*NOTE: Refer also to the instructions included with the aftermarket radio.

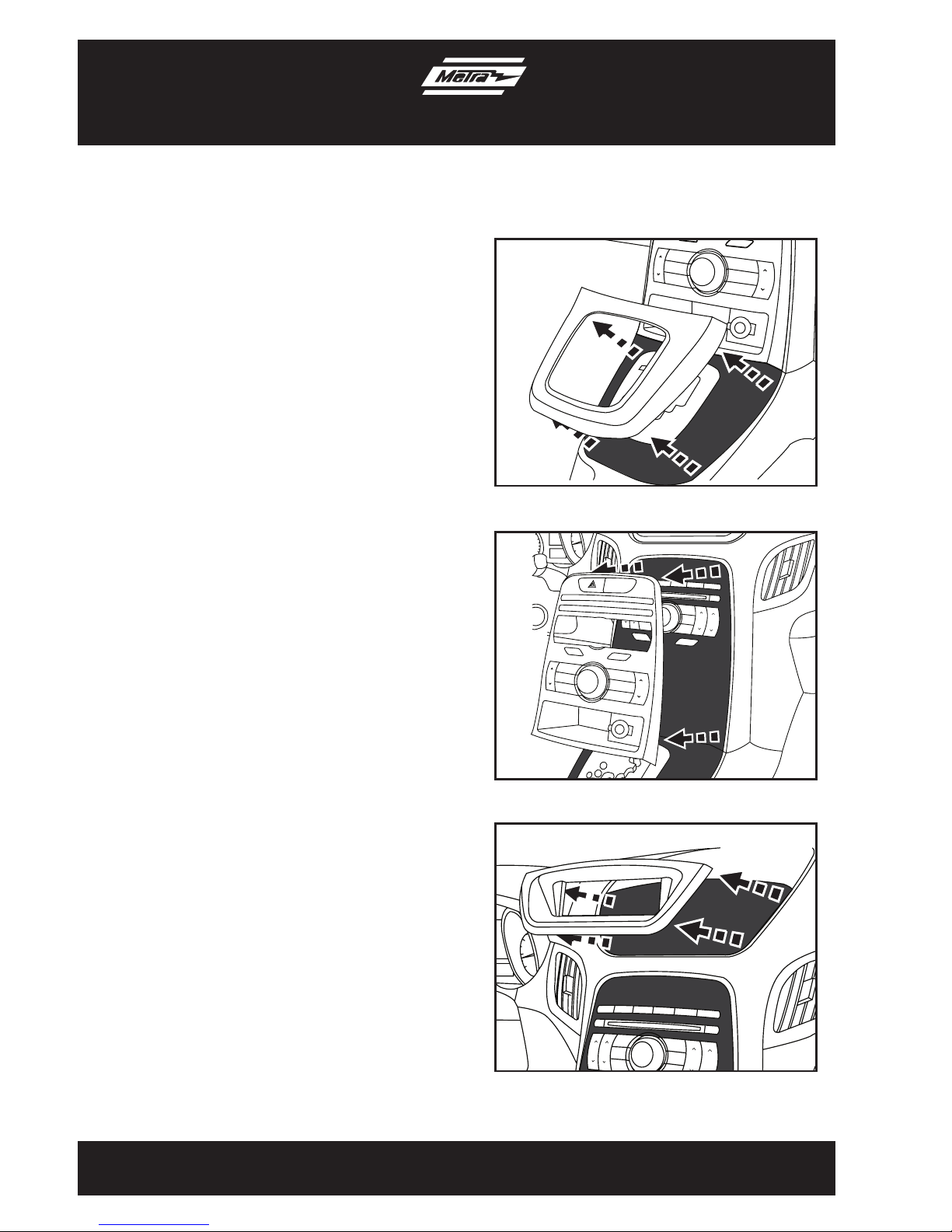

1. Unclip and remove the shifter trim

panel. (Figure A)

2. Unclip and remove the radio/climate

control trim panel. (Figure B)

3. Unclip and remove the display trim

panel above radio. (Figure C)

4. Remove (4) Phillips screws securing

the radio.

5. Remove (4) Phillips screws securing the

climate control to the factory trim panel.

Continue to kit preparation

Dash Disassembly

95-7339

(Figure A)

(Figure B)

(Figure C)

95-7339

Kit Preparation

1. Attach the climate control to the

95-7339 trim plate using the factory

hardware. (Figure A)

2. Attach the (6) panel clips to the

95-7339 trim plate. (Figure B)

Continue to kit assembly

(Figure A)

(Figure B)

Kit Assembly 95-7339

1. Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adapter from Metra or

AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

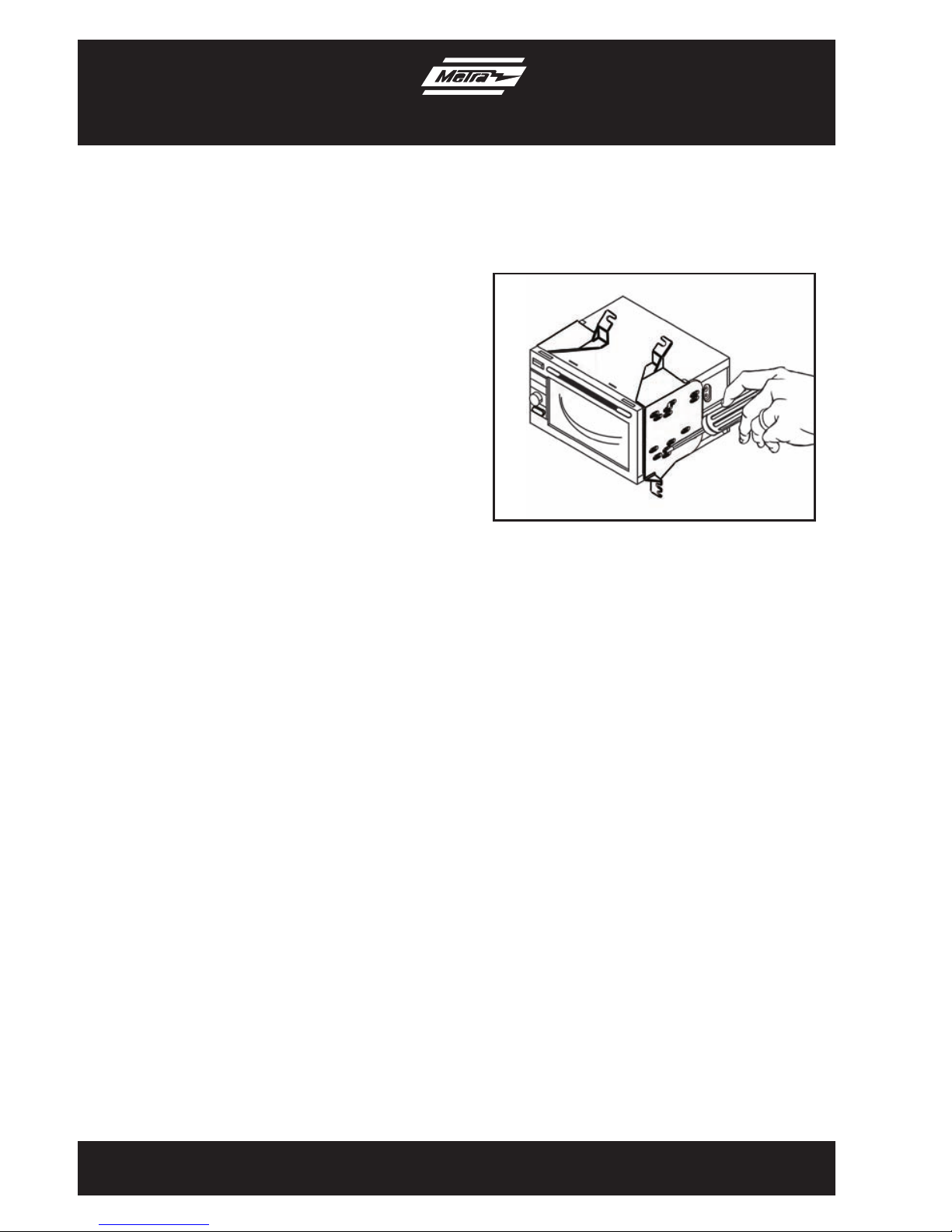

2. Attach the Double DIN brackets to the

aftermarket radio then mount the unit in

the sub dash. (Figure A)

3. Reassemble dash in reverse order of

disassembly using the 95-7339 trim

panel instead of the factory trim panel.

Double DIN/stacked ISO DIN

head unit provision

(Figure A)

Notes

METRA. THE WORLD’S BEST KITS.™

1-800-221-0932 metraonline.com

INSTALLATION INSTRUCTIONS FOR PART 95-7339

REV. 5/17/11
