INSTALLATION INSTRUCTIONS FOR PART 99-7952

1-800-221-0932 www.metraonline.com

KIT FEATURES

•DIN head unit provision

•ISO DIN head unit provision

A) Radio Housing l B) ISO Brackets | C) Trim Plate

KIT COMPONENTS

TOOLS REQUIRED:

99-7952

APPLICATIONS

2005-2007 Suzuki Aerio

Phillips Screwdriver I Small Flat Blade Screwdriver I Utility Knife

Dash Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Kit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 3

Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

TABLE OF CONTENTS

99-7952

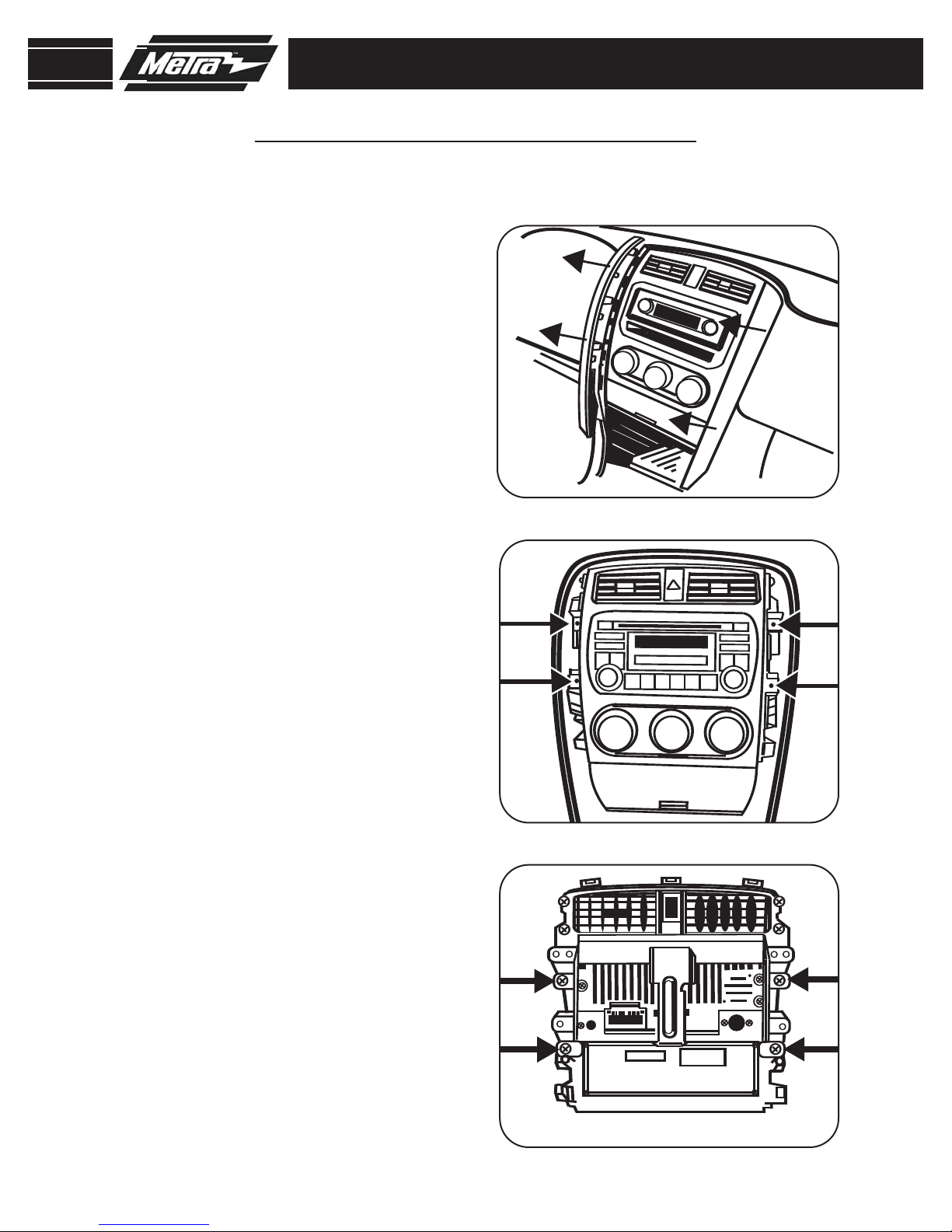

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip and remove the trim panels

from both sides of radio/climate

controls.

(Figure A)

2005-2007 SUZUKI AERIO

Remove (4) Phillips screws holding

radio to sub dash and remove radio.

(Figure B)

Remove (4) )Phillips screws securing

the radio and brackets to the factory

radio trim panel.

(Figure C)

DASH DISASSEMBLY

A/C AUTO

AUTO

OFF

65 85

PUSH

Rear View

99-7952

KIT ASSEMBLY

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs down.

(Figure A)

Slide the aftermarket head unit into

the cage and secure. (

Figure B)

DIN HEAD UNIT PROVISION

Secure the 99-7952 radio housing to

the factory radio trim panel using

the factoryhardware.

Cut and remove the center bar in

the DIN opening of the 99-7952

Radio Housing.

Mount the ISO Brackets to the head

unit with the screws supplied with

the unit.

(Figure A)

Slide the head unit into the radio

opening until the side clips engage.

(

Figure B)

Snap the Trim plate into the Radio

Housing.

(Figure B)

ISO DIN HEAD UNIT PROVISION

99-7952

KIT ASSEMBLY

Secure the 99-7952 radio housing

to the factory radio trim panel using

the factoryhardware.

Cut and remove the center bar in

the DIN opening of the 99-7952

Radio Housing.

FINAL ASSEMBLY

Locate the factory wiring harness in the dash and make the connection as shown.

Metra recomends using the proper mating adapter and making the connections as

shown. (Isolate and individually tape off the ends of any unused wires to prevent

electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Make wiring connections using the EIA color code chart shown below and the instructions included with the head

unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually

tape off ends of any unused wires to prevent electrical short circuit.

12V Ignition / Acc . . . Red

12V Batt / Memory . . Yellow

Ground . . . . . . . . . . . Black*

Power Antenna . . . . . Blue

Amp Turn-On . . . . . . Blue / White

Amp Ground . . . . . . . Black / White

Illumination. . . . . . . . Orange

Dimmer . . . . . . . . . . Orange / White

Right Front (+) . . . . . Gray

Right Front (-). . . . . . Gray / Black

Left Front (+) . . . . . . White

Left Front (-) . . . . . . . White / Black

Right Rear (+). . . . . . Violet

Right Rear (-) . . . . . . Violet / Black

Left Rear (+). . . . . . . Green

Left Rear (-) . . . . . . . Green / Black

*NOTE: When Black a wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

METRA / EIA WIRING CODE

FINAL WIRING CONNECTIONS

99-7952

KIT ASSEMBLY

99-7952

NOTES

INST997952

1-800-221-0932 www.metraonline.com

INST99-7952

REV. 04/10/07
