Metra Electronics 99-7335S Manuale utente
APPLICATIONS
METRA. The World’s best kits.™metraonline.com1-800-221-0932 © COPYRIGHT 2004-2013 METRA ELECTRONICS CORPORATION
REV. 2/19/2014 INST99-7335S
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
INSTALLATION INSTRUCTIONS FOR PART 99-7335S
• DIN radio provision with pocket
• ISO Mount radio provision with pocket
• Double DIN radio provision
• Painted to match factory dash, “S”=Silver
KIT FEATURES
Hyundai Veracruz Limited 2007-2012
99-7335S
• A) Radio housing • B) ISO Brackets • C) ISO Trim plate • D) Double DIN brackets
• E) Double DIN trim plate • F) Pocket
KIT COMPONENTS
A B C D
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-1004 - KIA/Hyundai 2004-up
• 70-7303 - KIA/Hyundai 2009
Antenna Adapter:
• 40-KI11 - KIA 2007-up
• Small flat blade screwdriver • Panel removal tool
• Phillips screwdriver
TOOLS REQUIRED
E F
2

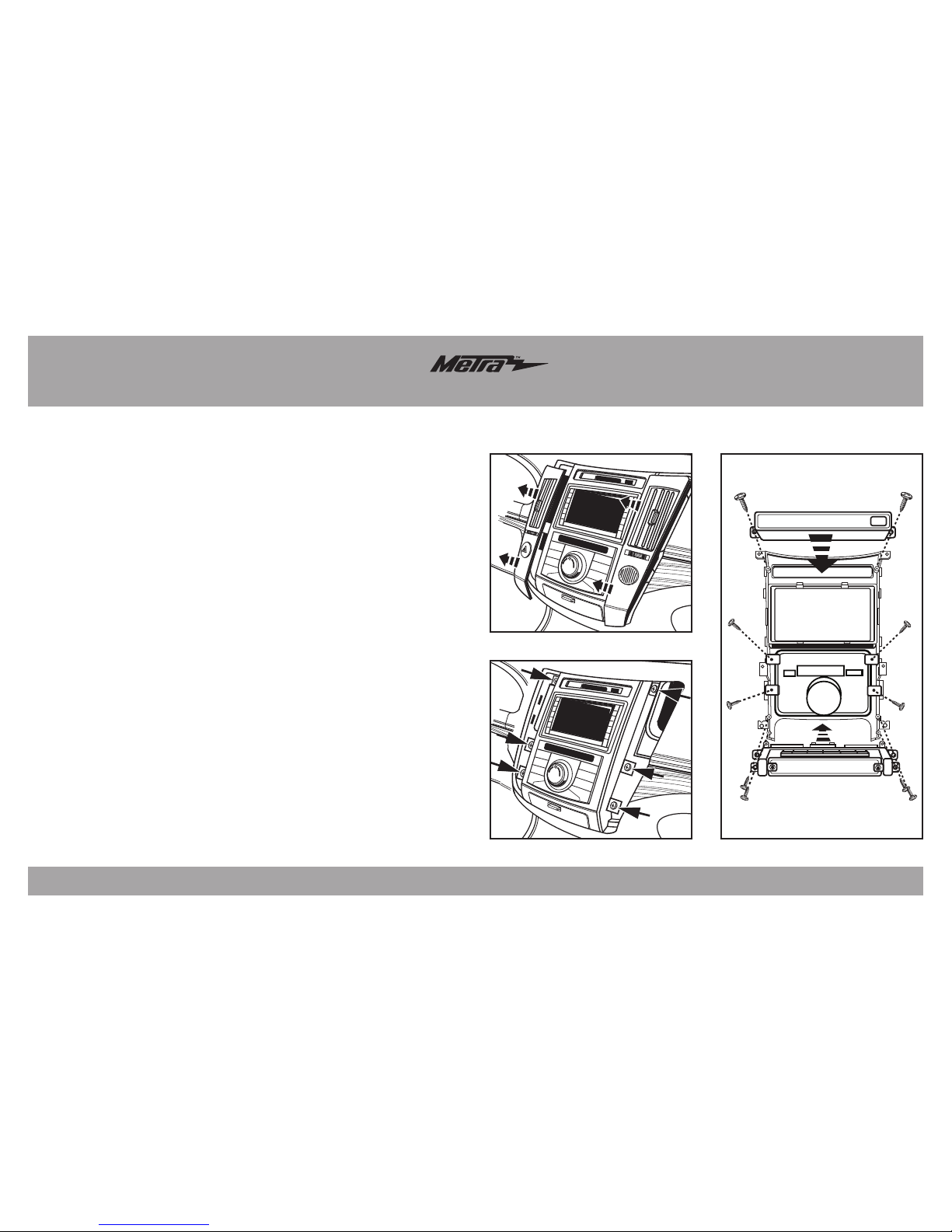

Dash Disassembly 99-7335S
1. Unclip and remove the side
trim panels.
Tip: Start at the bottom of
the panels. (Figure A)
2. Remove (6) Phillips head
screws securing the radio
trim panel and remove trim
panel. (Figure B)
3. Remove (4) Phillips screws
securing the climate
control, (2) Phillips screws
securing the clock display
and (4) Phillips screws
securing the pocket from
the radio trim panel.
(Figure C)
Continue to kit preparation
Hyundai Veracruz Limited 2007-2012
(Figure A)
(Figure C)(Figure B)
Dash Disassembly
– Hyundai Veracruz Limited 2007-2012
(Automatic climate control only) ......................... 2
Kit Preparation ............................................... 3
Kit Assembly
– DIN radio provision with pocket .................... 3
– ISO radio provision with pocket .................... 4
– Double DIN radio provision ........................... 5
Table of Contents
CLOCK DISPLAY-REAR VIEW
CLIMATE CONTROL-REAR VIEW
RADIO HOUSING
REAR VIEW
POCKET-REAR VIEW
Pocket, rear view
Clock display, rear view
Radio housing,
rear view
Climate control
3
Kit Preparation 99-7335S
Hyundai Veracruz Limited
2007-2012
1. Attach the climate control, pocket and the clock display
into the 99-7335S radio housing using the factory
hardware. (Figure A)
Continue to kit assembly
(Figure A)
H
M
R
PUSH
A/C
TEMP
PASSENGER
DUAL
REAR
REAR
FRONT
MODE
OFF
AUTO
A
MANUAL
TEMP

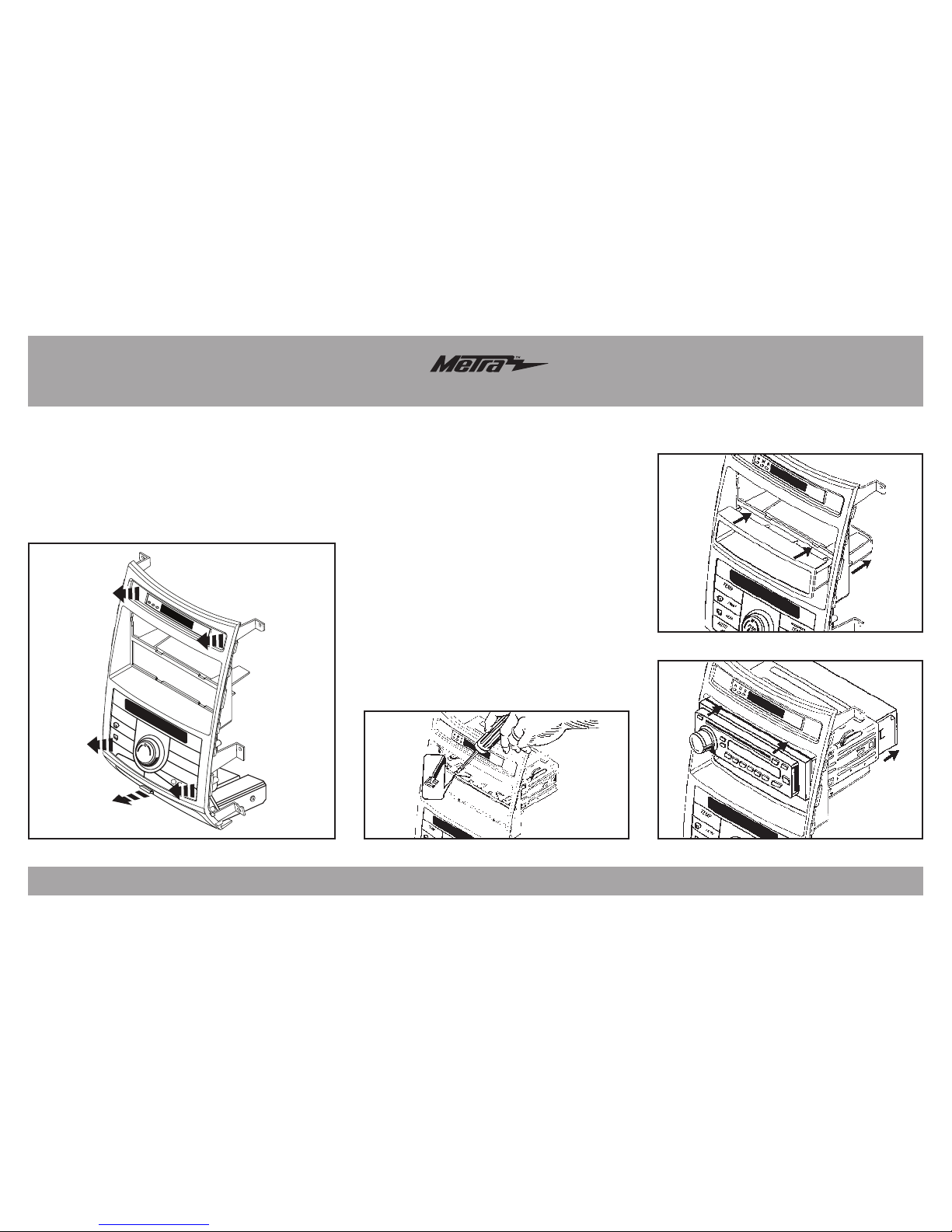

Kit Assembly 99-7335S
1. Slide the DIN cage into the radio housing and
secure by bending the metal locking tabs
down. (Figure A)
2. Snap the pocket into the bottom opening of the
radio housing. (Figure B)
3. Slide the aftermarket radio into the cage and
secure. (Figure C)
4. Locate the factory wiring harness in the dash.
Metra recommends using the proper mating
adapter from Metra or AXXESS. Re-connect the
negative battery terminal and test the radio for
proper operation.
5. Reassemble dash in reverse order
of disassembly.
(Figure B)
(Figure C)
DIN radio provision with pocket
(Figure A)
4

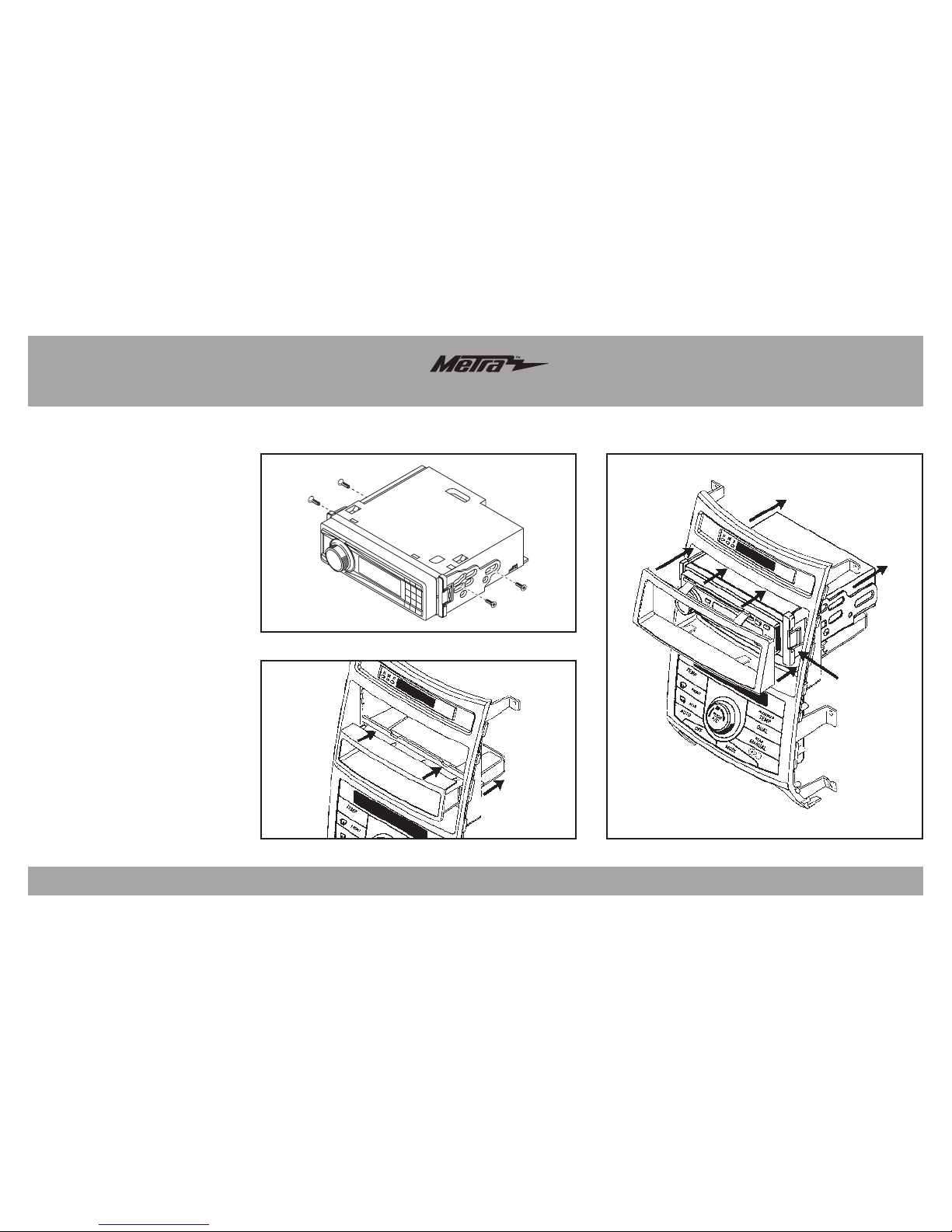

Kit Assembly 99-7335S
1. Mount the ISO brackets to the
radio with the screws supplied
with the radio. (Figure A)
2. Snap the pocket into the bottom
opening of the radio housing.
(Figure B)
3. Slide the radio into the radio
opening until the side clips engage.
(Figure C)
4. Snap the trim plate into the radio
housing. (Figure C)
5. Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS. Re-connect
the negative battery terminal and
test the radio for proper operation.
6. Reassemble dash in reverse order
of disassembly.
ISO radio provision with pocket
(Figure C)
(Figure A)
(Figure B)
Right
side clip
5
Kit Assembly 99-7335S
1. Cut and remove the center bar from the
radio housing. (Figure A)
2. Snap the double DIN brackets to the
inside edge of the double DIN trim plate.
(Figure B)
3. Slide the double DIN radio into the
bracket/radio housing assembly and
secure the double DIN radio to the
assembly using the screws supplied
with the radio. (Figure C)
4. Snap the double DIN trim plate into the
radio housing. (Figure C)
5. Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the radio for
proper operation.
6. Reassemble dash in reverse order
of disassembly.
Double DIN radio provision
(Figure C)
(Figure A)
(Figure B)
99-7335S
Notes
99-7335S
