Locker Controller ELS NET Technical Manual

Page 2

Locker Controller ELS NET Technical Manual

Table of contents

Locker Controller ELS NET Technical Manual.......................................................................................... 4

Product description............................................................................................................................. 4

Basic Parts ........................................................................................................................................... 5

Locker Controller PCB with two extension modules and connecting PCB ..................................... 5

Emergency Open Push-button (optional)....................................................................................... 5

ELS NET Tester (optional) ............................................................................................................... 5

Connections ........................................................................................................................................ 6

Connecting Locker Extension Modules........................................................................................... 7

Locker Extension Module setting ................................................................................................... 7

Connecting Electronic Locks ........................................................................................................... 8

Power supply connection (Locker Controller without distribution board) .................................... 8

Power supply connection (Locker Controller with distribution board).......................................... 9

Metra NET Network connection (Locker Controller without distribution board)........................ 10

Metra NET Network connection (Locker Controller with distribution board) ............................. 10

External emergency open pushbutton connection (optional) ..................................................... 11

ELS NET Tester connection (optional)........................................................................................... 12

DIP switch settings ............................................................................................................................ 12

Network address........................................................................................................................... 13

Operating modes .......................................................................................................................... 14

Signalization ...................................................................................................................................... 15

Power-on ...................................................................................................................................... 15

Operation...................................................................................................................................... 15

Network Communication ............................................................................................................. 16

Setting Operational parameters –via Metra NET Network.............................................................. 16

Emergency Open procedure ............................................................................................................. 17

Internal Emergency open pushbutton.......................................................................................... 17

External Emergency open pushbutton ......................................................................................... 17

Test mode of operation .................................................................................................................... 17

Test mode activation .................................................................................................................... 18

Erasing operating parameters ...................................................................................................... 18

Testing electronic locks installation.............................................................................................. 19

Testing Parameter request button ............................................................................................... 20

Testing Emergency open pushbutton........................................................................................... 21

Page 3

Locker Controller ELS NET Technical Manual

Device replacement .......................................................................................................................... 22

Maintenance ..................................................................................................................................... 22

Troubleshooting Guide ..................................................................................................................... 23

Technical data ................................................................................................................................... 23

Appendix ........................................................................................................................................... 23

Page 4

Locker Controller ELS NET Technical Manual

Manufacturer:

Metra inženiring d.o.o.

IOC Trzin

Špruha 19

SI-1236 Trzin, Slovenia

phone:

fax:

web:

+386 1 56 10 740

+386 1 56 10 744

www.metra.si

System:

Metra ELS NET –Electronic Locking Systems

Product Group:

Locker Controller

Types:

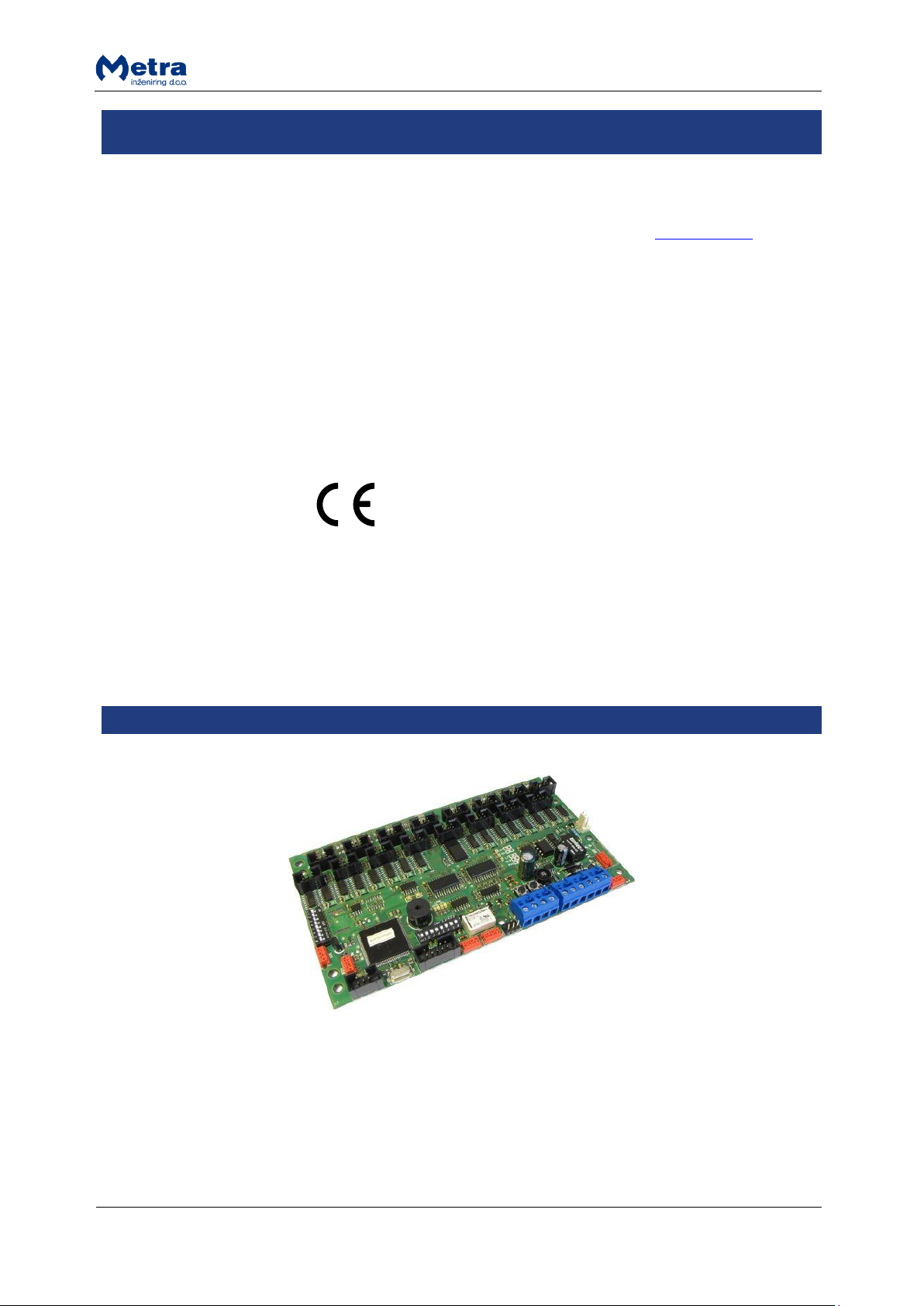

LC16ANT (Locker Controller 16)

LC16NT (Locker Controller 16 on mounting plate)

LC24NT (Locker Controller 24 on mounting plate)

LC32NT (Locker Controller 32 on mounting plate)

LC08 (Locker Controller Extension Module)

Year of Construction:

2006-2010

Declaration of Conformity:

The Metra ELS NET products have been developed, designed and

manufactured in accordance with the EU directive for Electromagnetic

Compatibility (2004/108/EC).

Locker Controller ELS NET Technical Manual [rev.3-250211]

2011 Metra inženiring d.o.o.

No part of this manual may be reproduced in any form or by any means without prior written permission of Metra inženiring d.o.o.

The contents of this manual are subject to change without notice.

All efforts have been made to ensure the accuracy of the contents of this manual, however, should any errors be detected, Metra inženiring would greatly appreciate being informed of

them. Metra inženiring d.o.o. can assume no responsibility for any errors in this manual.

Product description

Metra Locker Controller is used in different Metra Electronic Locking Systems. Device drives and

monitors Metra Electronic Locks. Up to 16 locks can be connected directly to the unit, with the

possibility to add up to two Extension Modules for 8 additional Electronic Locks each. This enables

configurations for up to 16, 24 or 32 locks, which makes the controller adoptable to many locker

layout configurations. As user interface different system specific Metra user interface devices (e.g.

Display RFID/Keypad/Combo/Touch, Reader Terminal, Reader Terminal Basic, etc.) can be used.

Page 5

Locker Controller ELS NET Technical Manual

Locker Controller also supports emergency and security features. A pushbutton for emergency

opening of all Lockers connected to the Locker Controller (and belonging extension modules) is fitted

on the main electronics board and also an external emergency pushbutton can be connected. In case

of attempt of break-in an Alarm message is distributed over Metra NET Network to Metra user

interface devices and over Metra Network Controller to LAN / WAN and Metra software.

For easier installation on site different configurations of controller & extension module(s) on

mounting plates are supplied.

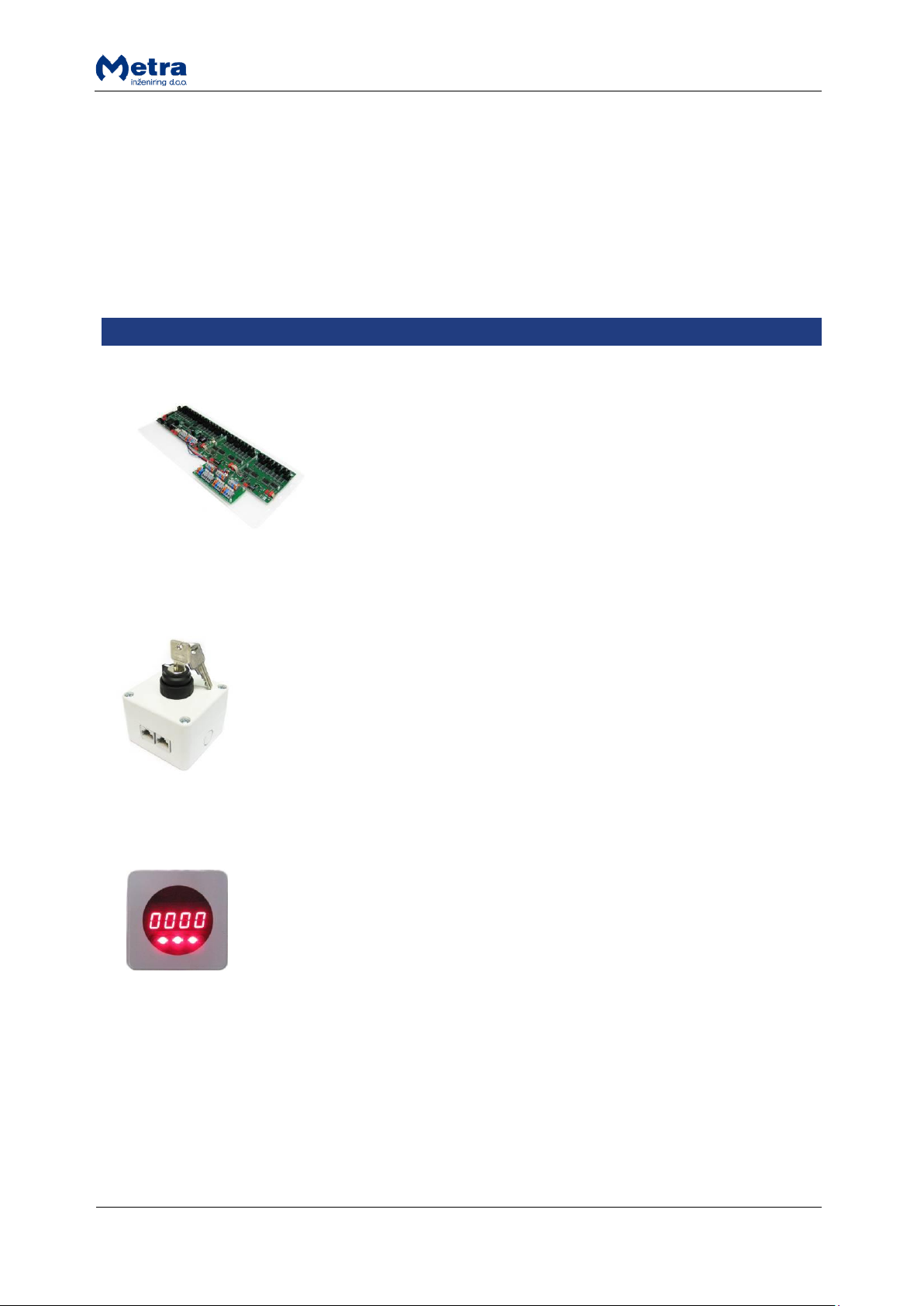

Basic Parts

Locker Controller PCB with two extension modules and connecting PCB

Emergency Open Push-button (optional)

Emergency Open Push-button is used to initiate Emergency Open procedure

for all Electronic Locks connected to Locker Controller.

ELS NET Tester (optional)

Tester with 4 digit display for TEST mode of operation.

Page 6

Locker Controller ELS NET Technical Manual

Connections

description

Electronic Lock 1

Electronic Lock 27

Electronic Lock 2

Electronic Lock 28

Electronic Lock 3

Electronic Lock 29

Electronic Lock 4

Electronic Lock 30

Electronic Lock 5

Electronic Lock 31

Electronic Lock 6

Electronic Lock 32

Electronic Lock 7

Local CAN*

Electronic Lock 8

Local CAN*

Electronic Lock 9

BDM Loader

Electronic Lock 10

Local CAN**

Electronic Lock 11

Local CAN**

Electronic Lock 12

BDM Loader

Electronic Lock 13

COM (Not used)

Electronic Lock 14

Local CAN***

Electronic Lock 15

Local CAN***

Electronic Lock 16

Metra NET Network

Electronic Lock 17

Power****

Electronic Lock 18

Power****

Electronic Lock 19

Emergency open pushbutton

Electronic Lock 20

Coin acceptor (Not used)

Electronic Lock 21

Reader (Not used)

Electronic Lock 22

Fingerprint module (Not used)

Electronic Lock 23

Display (Not used)

Electronic Lock 24

I2C (ELS NET Tester)

Electronic Lock 25

BDM Loader

Electronic Lock 26

I2C (Not used)

Page 7

Locker Controller ELS NET Technical Manual

*NOTE: Local CAN connectors and are internally parallel connected.

**NOTE: Local CAN connectors and are internally parallel connected.

***NOTE: Local CAN connectors and are internally parallel connected.

****NOTE: 12V DC Power connectors and are internally parallel connected.

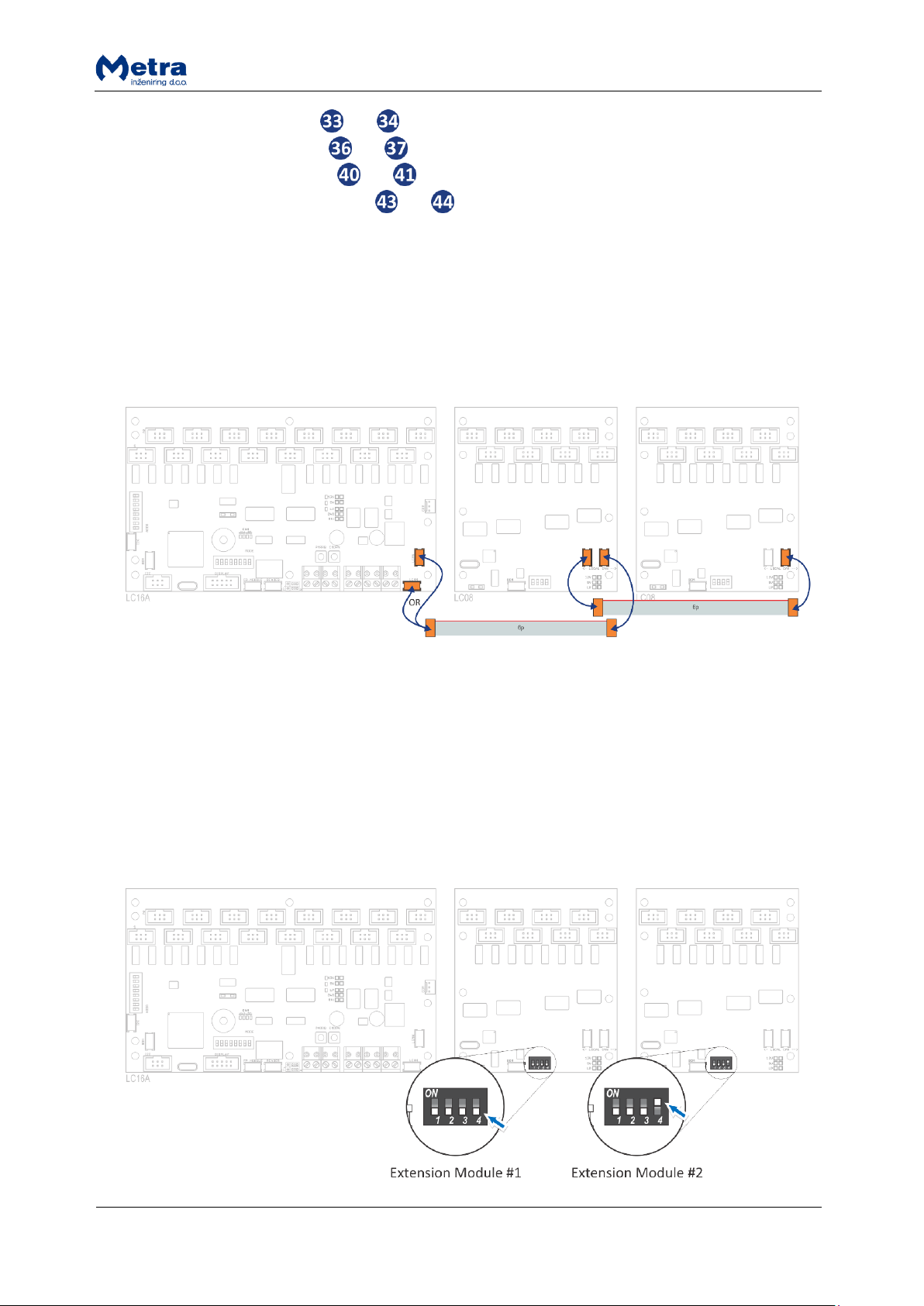

Connecting Locker Extension Modules

When Locker Controller without mounting plate is used connect up to two Extension modules by 6

wire flat cable. There are two equivalent connectors on the main electronics board (LC16A) use the

one which suits your connection best.

When Locker Controller is ordered with mounting plate Extension Modules (LC24_* and LC32_*) are

already connected.

Locker Extension Module setting

The first Locker Extension Module DIP switch (indexes 17-24) and second Locker Extension Module

DIP switch (indexes 25-32) must be set as follows:

Page 8

Locker Controller ELS NET Technical Manual

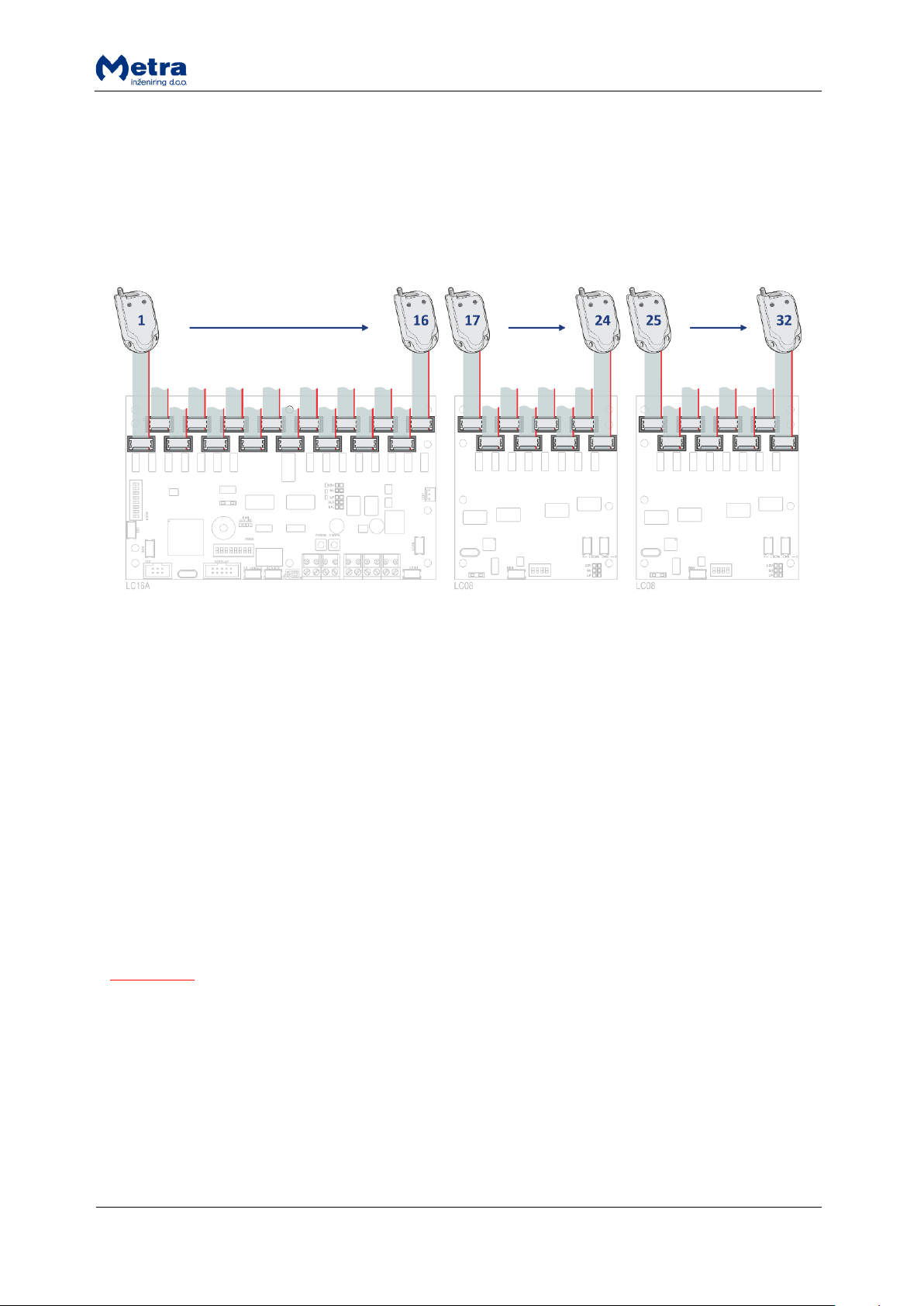

Connecting Electronic Locks

Connect Electronic Locks using 6 wire flat cable.

Maximum length of each cable is 20 meters.

Cables from Electronic Locks with lower locker numbers must be connected to lower index

connector. Locker number is increasing from left to right (blue arrows)!

Mind ascending order when numerating lockers. Gaps between numbers are allowed.

EXAMPLE: Most left connector (index 1) is locker number 161, most right connector (index 32) is

locker number 192.

Power supply connection (Locker Controller without distribution board)

Regulated 12 VDC power supply is required for proper operation. Connect as many units as possible

to a single power supply unit. Consult the Technical Specifications section of this document for

current consumption.

There are two internally connected power connectors on the board. You can use one as “Power IN”

and the other as “Power OUT” connector.

Connect 12V DC regulated power supply to designated terminals. The terminals are marked as +12V

for positive connection and GND for ground connection.

WARNING

Mind the polarity! Wrong polarity could result in irreparable damage to the device.

Respect power requirements data! Using unsuitable power supply could result in damage to the

power supply and to the device.

Page 9

Locker Controller ELS NET Technical Manual

Power supply connection (Locker Controller with distribution board)

Regulated 12 VDC power supply is required for proper operation. Connect as many units as possible

to a single power supply unit. Consult the Technical Specifications section of this document for

current consumption.

Connect 12V DC regulated power supply to designated terminals. The terminals are marked as +12V

for positive connection and GND for ground connection.

WARNING

Mind the polarity! Wrong polarity could result in irreparable damage to the device.

Respect power requirements data! Using unsuitable power supply could result in damage to the

power supply and to the device.

Page 10

Locker Controller ELS NET Technical Manual

Metra NET Network connection (Locker Controller without distribution board)

The Metra NET Network connection provides for operational functionality of the Locker Controller.

Different devices in parallel can be connected to the Metra Network Controller by a single unshielded

twisted pair (UTP) cable. Total length of the twisted pair cable is limited to 1 km. One Network Line

Terminator must be connected at the far end of the network cable. See also “Metra NET Network –

Installation Manual” for different wiring schemes.

Connect the twisted pair network cable to designated terminals. The terminals are marked as CANLO

for network low signal and CANHI for network high signal.

NOTE 

Mind the polarity of the network connection!

Metra NET Network connection (Locker Controller with distribution board)

Connect the twisted pair network cable to designated terminals. The terminals are marked as CANL

for network low signal and CANH for network high signal.

NOTE 

Mind the polarity of the network connection!
